Technical specifications for K1409
-
Product ModelK1409
-
Product ParametersSystem subrack
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size25.5x8x11.3cm
-
ManufacturerHIMA
-
Weight12 kg
-
Product Type19-inch safety system subrack
-
Height Units5 HU (5U)
-
Cooling4 × integrated fans (redundant)
-
Input Voltage24 V DC
-
Output Voltage5 V DC
-
Operating Temperature0°C to +60°C (+32°F to +140°F)
-
Storage Temperature-25°C to +85°C (-13°F to +185°F)
-
Relative Humidity5% to 95%, non-condensing
Description

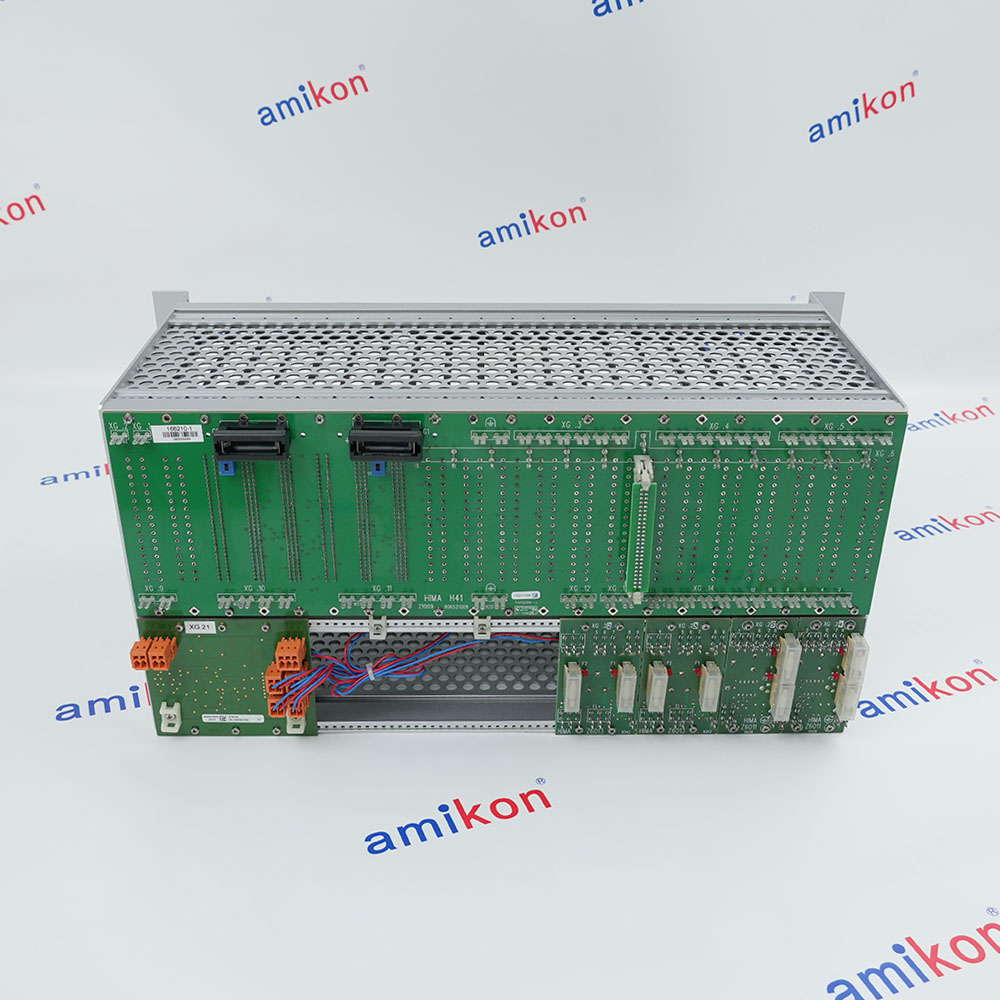

HIMA K1409 is a 5 HU (5U) 19-inch safety system subrack designed for the H41q-HS and H41q-HRS safety control systems. The subrack provides the physical chassis and backplane infrastructure for redundant central modules, redundant power supply, safety I/O modules, and optional communication and coprocessor modules.
The K1409 subrack is available in two configurations. The H41q-HS/B 4237-1 features a single channel bus with redundant central modules. The H41q-HRS/B 4237-2 features a fully redundant bus architecture with redundant central modules, providing higher availability for critical safety applications.

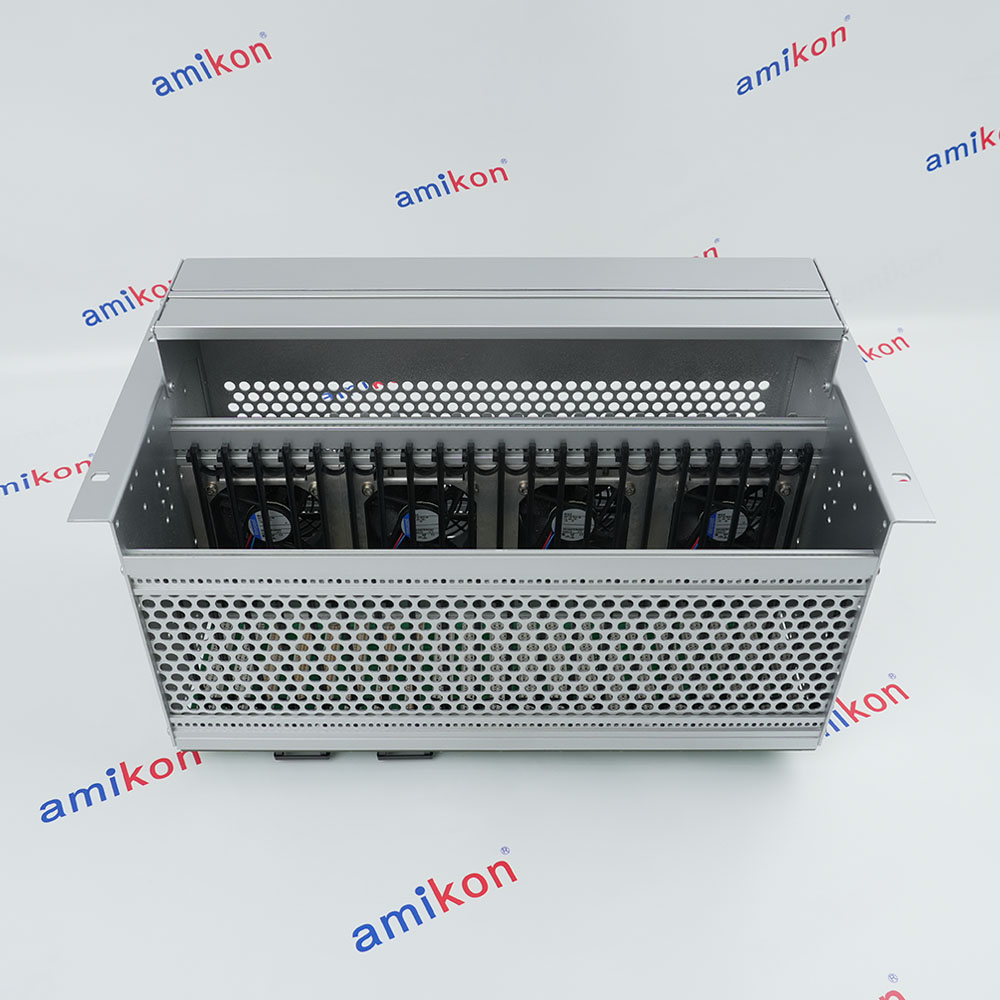

The subrack includes four integrated cooling fans with redundant operation and monitoring. The power supply accepts 24 V DC input and generates 5 V DC for internal module operation, with redundant power supply modules ensuring continuous operation in the event of a primary supply failure.
The K1409 subrack is available in two configurations. The H41q-HS/B 4237-1 features a single channel bus with redundant central modules. The H41q-HRS/B 4237-2 features a fully redundant bus architecture with redundant central modules, providing higher availability for critical safety applications.
The subrack includes four integrated cooling fans with redundant operation and monitoring. The power supply accepts 24 V DC input and generates 5 V DC for internal module operation, with redundant power supply modules ensuring continuous operation in the event of a primary supply failure.
Alternative Names
K14O9
KI409
K 1409
K 14O9
K I409
K-1409
K-14O9
K-I409
Information
Overview
Manuals
Application Notes
Product Applications
Safety Pre-Requisites
Features:
- 5 HU, 19-inch modular safety subrack
- Supports H41q-HS and H41q-HRS systems
- 24 V / 5 V redundant power supply architecture
- Integrated four-fan cooling system
- Redundant central modules for high availability
The subrack is engineered for high-availability safety applications and includes redundant central modules together with a 24 V / 5 V power supply system to ensure continuous operation during fault conditions. The integrated four-fan cooling system supports reliable operation in demanding industrial environments.
The K1409 HIMA System Subrack may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HIMA K1409 System Subrack Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Two system variants are available: the H41q-HS/B 4237-1 with a single-channel bus architecture, and the H41q-HRS/B 4237-2 with a fully redundant bus architecture for maximum fault tolerance and system availability.
The platform is TÜV certified and approved for applications up to Safety Integrity Level 3 (SIL 3) in accordance with IEC 61508, making it suitable for critical safety instrumented systems (SIS) in industries such as oil & gas, petrochemical, power generation, chemical processing, and other continuous-process industries.
- Emergency Shutdown (ESD): Houses modules for rapid automated plant/offshore shutdowns upon hazard detection
- Burner Management (BMS): Manages ignition/shutdown of industrial boilers, furnaces, and reactors
- High-Integrity Pressure Protection (HIPPS): Safety controller preventing pipeline/vessel over-pressurization faster than mechanical relief
- Fire & Gas (F&G): Processes flame/gas/smoke inputs to trigger suppression, alarms, and isolation valves
- Turbomachinery Protection: Hosts modules tracking speed, vibration, and temperature to prevent catastrophic failure
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Disconnect Power: Completely isolate and lock out the external 24 VDC power supply before handling any components.
ESD Protection: Wear a grounded electrostatic discharge (ESD) wrist strap to avoid destroying sensitive module electronics.
Visual Inspection: Check the backplane and module pins for any physical damage before insertion.
Technical notes
The K1409 system is TÜV certified and applicable up to SIL 3 according to IEC 61508. It is used in process industries including oil and gas, chemical, petrochemical, and power generation where high-availability safety instrumented systems are required. The subrack operates from 0°C to +60°C and stores safely from -25°C to +85°C at 5% to 95% relative humidity non-condensing.
FAQs
-
What is the HIMA K1409?
+The HIMA K1409 (often associated with HIMA's H41q/H51q safety systems) is a 19-inch I/O and subrack system. -
What systems is the K1409 subrack compatible with?
+It is primarily built to house modules for the HIMA H41q and H51q programmable safety controllers (SIL 3) commonly used in process industries like oil, gas, and chemicals. -
How are the modules connected to the controller?
+Connection is handled via a dedicated integrated backplane. System bus communication is typically achieved via flat cables (e.g., BV7032), with total bus lengths capable of extending up to 30 meters. -
What are the power distribution options for this rack?
+The subrack typically uses dedicated modules (like the HIMA F7133) that fuse and distribute logic and field power (L+ and L-) directly to the backplane.
