Technical specifications for 10300/1/1
-

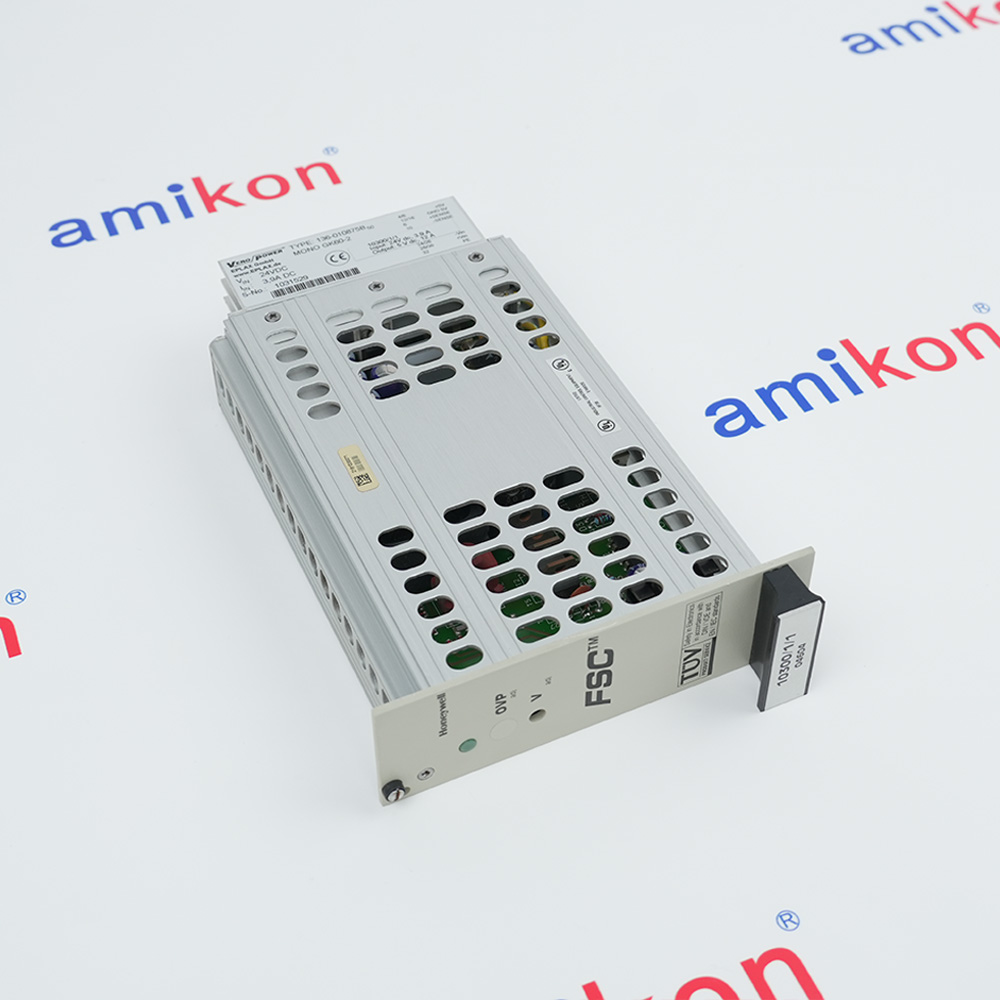

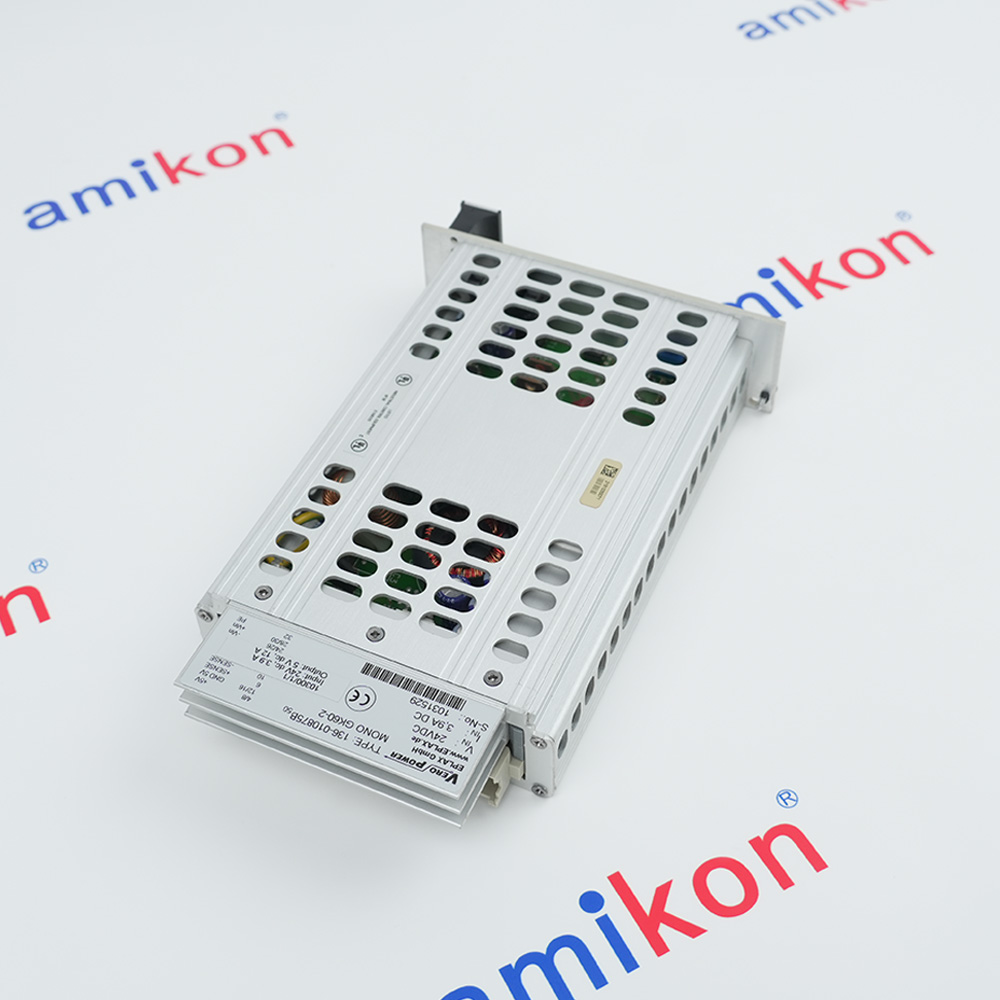

Product Model10300/1/1
-
Spare Model136-010875B
-
Product ParametersDiagnostic and battery module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x21x12.8cm
-
ManufacturerHoneywell
-
Weight0.65 kg
-
ApprovalsCE, TÜV, UL
-
Space requirements8 TE, 3 HE (= 8 HP, 3U)
-
Power requirementscurrent < 3.9 A at 24 Vdc
-
Inrush current< 18 A
-
Output voltage5 Vdc with overvoltage protection
-
Output current12 A at 0°C to 45°C
Description
1030011
DISCONTINUED BY MANUFACTURER
CONVERTER MODULE
3.9AMP 24VDC INPUT
12AMP 5VDC OUTPUT
DISCONTINUED BY MANUFACTURER
CONVERTER MODULE
3.9AMP 24VDC INPUT
12AMP 5VDC OUTPUT
Information
Overview
Manuals
Technical notes
Product Applications
Key Operational Instructions
Features:
- Dual Voltage Conversion (24 Vdc to 5 Vdc)
- Galvanic Isolation Between Supply Voltages
- 30-Second Cool-Down Safety Requirement
- Hot-Swappable with Safety Protocol
The supply voltage of the FSC system is 24 Vdc, which can bepowered from the plant's 24 Vdc supply system with battery back-up.The FSC system uses an internal 5 Vdc to power the FSC modules.The 10300/1/1 DC/DC converter provides the internal 5 Vdc withgalvanic isolation between the two supply voltages.
The 10300/1/1 Honeywell DC/DC Converter Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 10300/1/1 DC/DC Converter Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Keep 10300/1/1 modules off-line for at least 30 seconds afterbeing on-line. 10300/1/1 modules have an NTC resistor as aninrush current limiter. Replacing (or repowering) the modulewithin 30 seconds after removal (or power-off) may cause asupply voltage dip which may trip the system (because the NTCresistor did not yet cool down sufficiently).
10300/1/1 modules without a suffix code and with suffixcode 04601 have an ON/OFF input on pin d14. This pinshould not be connected.
The 10300/1/1 module is a pin-compatible upgraded versionof the GK60 module.
- Safety & Emergency Shutdown:ESD for high-integrity process control
- Burner/Boiler Management:Safety-focused management for boilers/burners
- Turbine/Compressor Safeguarding:Supports safety monitoring for turbines/compressors
- Process Control Systems:Powers DCS control modules
- Fire and Gas Detection:Safety systems for fire & gas detection
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Safety Cooling Period: If you remove or power off the module, keep it offline for at least 30 seconds before reconnecting or repowering. The module contains an NTC resistor to limit inrush current; if it doesn't cool down, it can cause a voltage dip that might trip the entire system.
Placement: This module must be placed closely to the system bus (such as 12-SBUS) because the 5 Vdc power supply limits are extremely tight.
Status Indicator: Note that in redundant configurations with single I/O, the output LED may remain "on" even if the specific 10300/1/1 module is switched off, as it can be energized by the redundant partner unit
