Technical specifications for FC-PDB-0824P
-
Product ModelFC-PDB-0824P
-
Product ParametersPower Distribution Board (24Vdc, 2 Amp, 8 channel)
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size30.8x12.1x5.5cm
-
ManufacturerHoneywell
-
Weight0.55 kg
-
ApprovalsCE; UL, TUV, CSA pending
-
rating max2 AT (slow acting)
-
Connectors2 pole header with keying
-
WeidmullerBVZ 7.62HP/02F SN (conn.)
-
WeidmullerBV/SV7.62HP KO (keys)
-
Field connector2 pole socket block
-
DIN EN railsTS32 / TS35 × 7.5
Description
The FC-PDB-0824P is a Honeywell Power Distribution Board designed to enable easy distribution of 24Vdc from the main power rail to individual 24Vdc devices inside the cabinet enclosure. The FC-PDB-0824P is specifically designed for use with Honeywell's Safety Manager System, providing reliable power distribution for devices such as fan units and Field Termination Assemblies (FTAs).

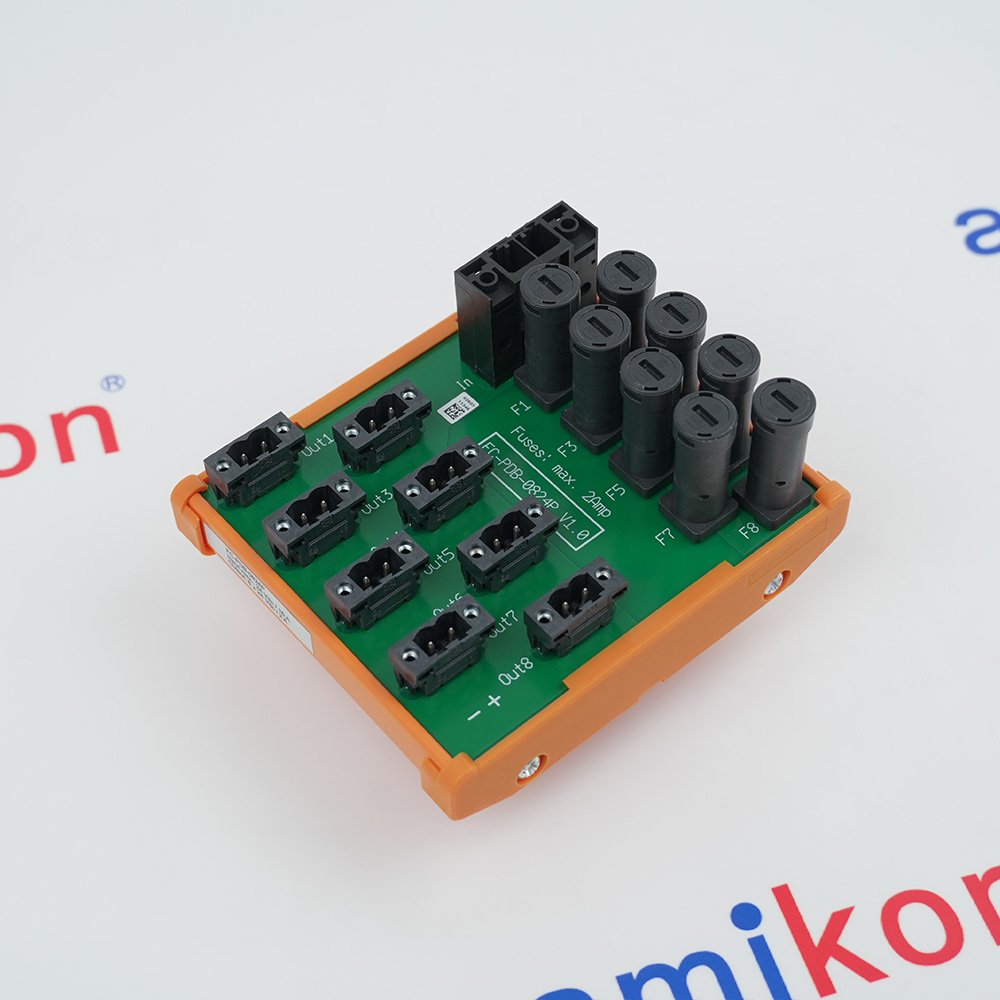

The FC-PDB-0824P features one 24Vdc entry connector (In) for connection to the main bus bar and eight 2 Amp fused 24Vdc field connectors (Out1 through Out8) for connection to up to eight 24Vdc devices. The FC-PDB-0824P provides max. 2 AT (slow acting) fuse protection on each output channel, with fuse dimensions of 5×20 mm (0.20×0.79 in), ensuring safe operation of connected devices.
The FC-PDB-0824P input connector is a 2-pole header with keying (Weidmüller BVZ 7.62HP/02F SN), which prevents incorrect insertion and ensures reliable power connection. The FC-PDB-0824P field connectors are 2-pole socket blocks (Weidmüller BLZ 5.08/2F SN SW), providing secure connections to individual devices. The FC-PDB-0824P has a type number of FC-PDB-0824P V1.0 and is conformal coated (CC) for enhanced environmental protection.
The FC-PDB-0824P features one 24Vdc entry connector (In) for connection to the main bus bar and eight 2 Amp fused 24Vdc field connectors (Out1 through Out8) for connection to up to eight 24Vdc devices. The FC-PDB-0824P provides max. 2 AT (slow acting) fuse protection on each output channel, with fuse dimensions of 5×20 mm (0.20×0.79 in), ensuring safe operation of connected devices.
The FC-PDB-0824P input connector is a 2-pole header with keying (Weidmüller BVZ 7.62HP/02F SN), which prevents incorrect insertion and ensures reliable power connection. The FC-PDB-0824P field connectors are 2-pole socket blocks (Weidmüller BLZ 5.08/2F SN SW), providing secure connections to individual devices. The FC-PDB-0824P has a type number of FC-PDB-0824P V1.0 and is conformal coated (CC) for enhanced environmental protection.
Alternative Names
FC-PDB-O824P
FC-POB-0824P
FC-POB-O824P
FC-PD8-0824P
FC PDB 0824P
FC PDB O824P
FC POB 0824P
FC PD8 0824P
FCPDB0824P
FCPDBO824P
Information
Overview
Manuals
Application Notes
Product Applications
Wiring Connections
Features:
- 8-Channel 24V DC Power Distribution
- 2 Amp Slow-Acting Fuse Protection per Channel
- Keyed Input Connector for Secure Power Connection
- DIN Rail Mounting for Easy Installation
- CE and UL Pending Certifications
The board features one 24 Vdc entry connector (In) for connection to the main bus bar and eight 24 Vdc field connectors (Out1 through Out8) for connection to up to eight 24 Vdc devices. Each output channel is protected by a 2 A slow-acting fuse (5 × 20 mm). The input connector is a Weidmüller BVZ 7.62HP/02F SN 2-pole header with keying, and the output connectors are Weidmüller BLZ 5.08/2F SN SW 2-pole socket blocks.
The FC-PDB-0824P Honeywell Power Distribution Board (24Vdc, 2 Amp, 8 channel) may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-PDB-0824P Power Distribution Board (24Vdc, 2 Amp, 8 channel) Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FC-PDB-0824P Power Distribution Board is an industrial power distribution module designed to provide reliable 24 VDC power distribution across eight independent output channels. The board serves as a centralized power interface for Safety Manager systems, remote I/O installations, and other industrial automation applications requiring organized field power management.
Each output channel is rated for up to 2 A and incorporates individual protection to help isolate faults and prevent a failure on one circuit from affecting other connected devices. This architecture improves system availability and simplifies troubleshooting during maintenance activities.
- Oil & Gas: Used in upstream and downstream facilities to manage safety instrumented systems
- Petrochemical & Chemical: Integrates remote I/O for hazardous processing environments requiring failsafe controls
- Power Generation: Manages critical safety loops and remote sensor data across plant turbines and boilers
- Process Automation: Serves as the backbone for distributed and remote sensor signal processing across continuous manufacturing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Input Power: Connect the 24 VDC source using the dedicated input connectors. Use a Weidmuller BVZ 7.62/02F SW (or equivalent 2-pole header with keying).
Field/Output Wiring: Connect your field devices to the 8 output channels using a Weidmuller BLZ 5.08/2F SN SW (2-pole socket block).
Ensure all wiring adheres to local safety regulations, such as IEC 364-6-61 or VDE 0100.
Technical notes
The PDB-0824P can be connected to the main power bar using a 24Vdc power distribution cable (PDC-MB24-y), and 24V distribution cables (PDC-FTA24) can be used to connect the PDB-0824P with up to eight 24Vdc devices. The PDB-0824P is an essential component for power management in Safety Manager systems, ensuring reliable and protected power distribution to critical system components.
FAQs
-
What is the FC-PDB-0824P?
+The Honeywell FC-PDB-0824P is a Safety Manager power distribution board designed for industrial automation systems. -
What is the primary function of the FC-PDB-0824P?
+It acts as an intermediary between the main power rail and various low-power components inside an industrial enclosure, centralizing power delivery to FTAs and fan units while simplifying cabinet wiring. -
Are there built-in protection features?
+Yes, each of the 8 output channels features a 2-Amp fuse to protect downstream 24 VDC devices from overcurrent conditions. -
Is the module certified for harsh or hazardous environments?
+Yes, it is typically conformal coated for environmental protection, CE-marked, ATEX directive-compliant, and certified for Class I, Division 2, Groups A, B, C, and D hazardous locations.
