Technical specifications for FC-TSFIRE-1624
-
Product ModelFC-TSFIRE-1624
-
Spare ModelTSFIRE-1624
-
Product ParametersTermination Assembly Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size17x7x5.7cm
-
ManufacturerHoneywell
-
Weight0.2 kg
-
ApprovalsCE, TUV, UL, CSA, FM
-
Voltage24 V DC +25% / –15%
-
Current Max.570 mA (at 24 V DC ext.)
-
With EOL resistors Typ.70mA (at 24 V DC ext.)
-
No load Typ.11mA (at 24 V DC ext.)
-
Number of channels16
-
Channel resistance680 Ω +/–5%
-
Shorted current35 mA (at 24 V DC ext.)
-
Relay voltage17 – 39 V DC
-
Current Typ8.5 mA at 24 V DC
Description
Termination Assembly Module
Safe fire detector input FTA
with line monitoring
24 V DC, 16 channels
Fire detection input functionl
Global reset of the connected sensors
Safe fire detector input FTA
with line monitoring
24 V DC, 16 channels
Fire detection input functionl
Global reset of the connected sensors
Information
Overview
Manuals
Technical notes
Product Applications
Mounting and Preparation
Features:
- Fail-safe Fire detector input FTA withline monitoring
- 24 Vdc, 16 channels
- FSC system
- Global reset of the connected sensors.

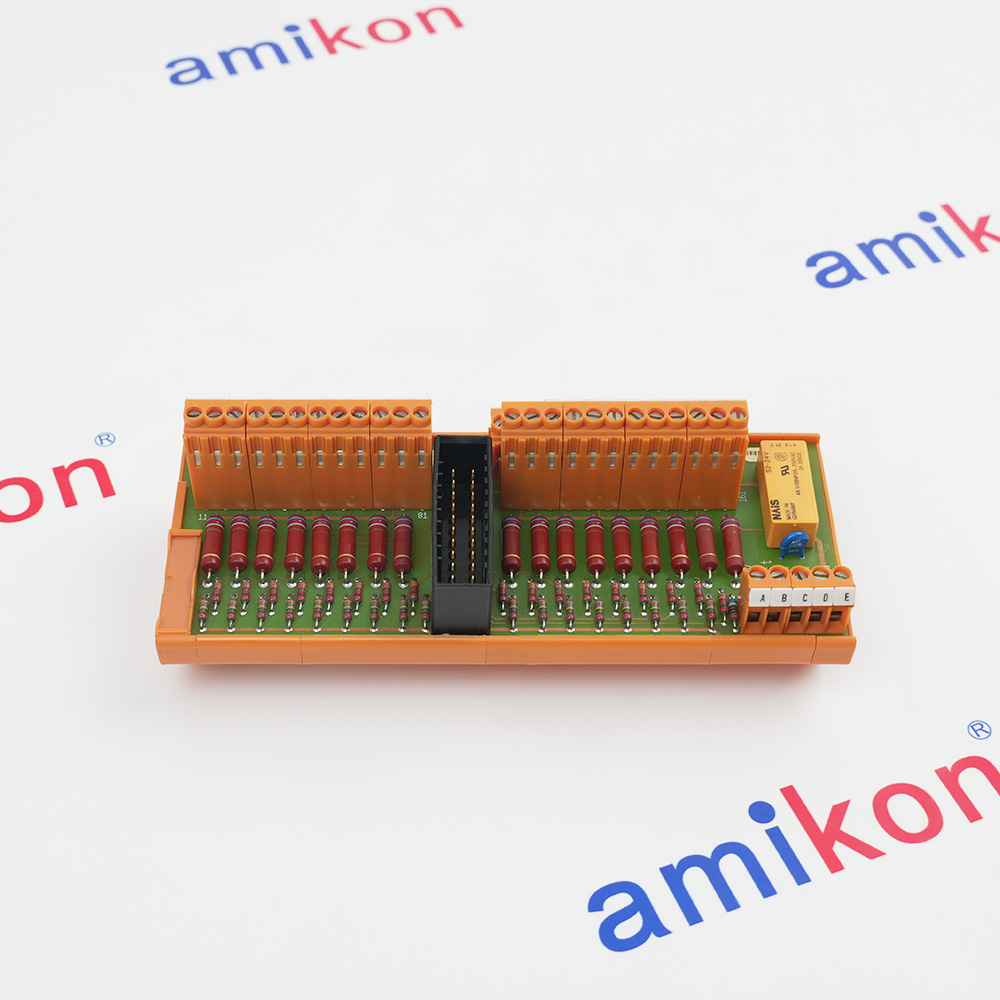

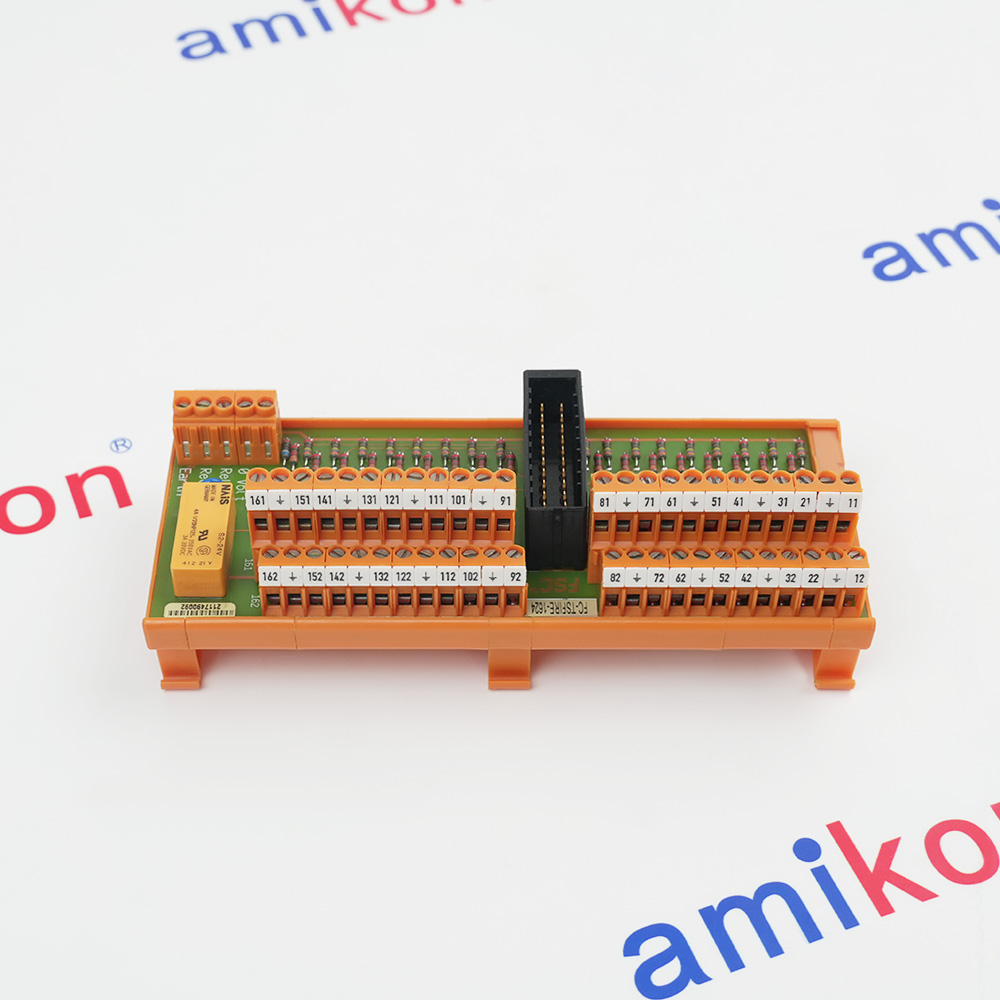

The FS-TSFIRE-1624 module has sixteen digital detector inputchannels which may be used for both safety-related and non-safetyrelated applications. The FS-TSFIRE-1624 module uses a SIC-C-12system interconnection cable to transfer the 16 input signals to a(redundant pair of) 10105/2/1 module(s).The FTA module has a universal snap-in facility for standard DIN ENrails, and screw terminals for connection of power supply and fieldwiring.
The FC-TSFIRE-1624 HONEYWELL Field termination assembly module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL FC-TSFIRE-1624 Field termination assembly module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FS-TSFIRE-1624 module requires an external 24 Vdc powersupply.This provides a field signal with open voltage of approx. 24 Vdc and ashort-circuit current of approx. 35 mA. The normal operating voltage(with a 4.7 kOhm EOL resistor) is approx. 20.5 Volt. The relay on the FS-TSFIRE-1624 module enables a reset of allconnected detectors by removing the supply voltage to the field. Therelay is normally de-energized (energized = reset detectors). TheGlobal Reset function is non-safety related .
- Petrochemical Refineries: Managing large-scale fire detection networks in flammable processing areas.
- Offshore Platforms: Providing reliable fire and gas supervision in harsh, isolated maritime environments.
- Chemical Plants: Supervising safety loops for critical production lines where fire risks are high.
- Burner Management Systems (BMS): Ensuring flame detection and safety monitoring for industrial furnaces and boilers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Rail Mounting: The module features a universal snap-in provision for standard DIN EN rails (TS32 or TS35).
Hazardous Locations: Ensure the installation environment complies with Class I, Division 2 ratings if applicable to your site.
Power Down: Always disconnect power before making or modifying any connections to prevent equipment damage or accidental alarms.
FAQs
-
What is the FC-TSFIRE-1624？
+The Honeywell FC-TSFIRE-1624 is a Field Termination Assembly (FTA) module used to connect up to 16 digital fire detectors to Honeywell Safety Manager systems -
Do you provide warranty as standard?
+We provide a full 12-month warranty for the FC-TSFIRE-1624. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be. -
Is this product brand new?
+Yes, Honeywell FC-TSFIRE-1624 is brand new, original, unused, and factory sealed -
What is the power requirement?
+The module requires a 24 Vdc power supply, with a maximum consumption of 12 W. -
What is the function of the FC-TSFIRE-1624?
+It serves as the interface between (digital) fire detectors and the safe high-density analog input module (SAI 1620m) in the Safety Manager system, supporting 16 input channels for safety-related applications.
