- 8C-PAOHA1 51454469-275

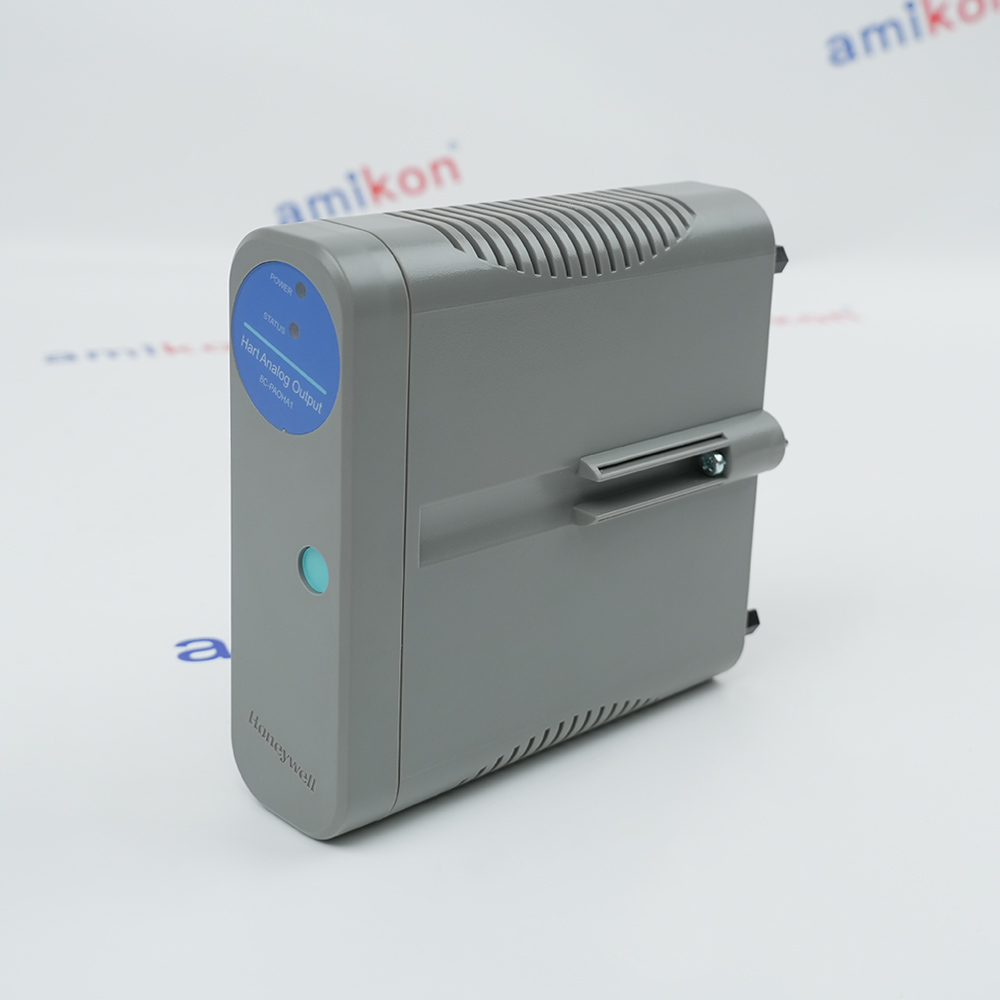

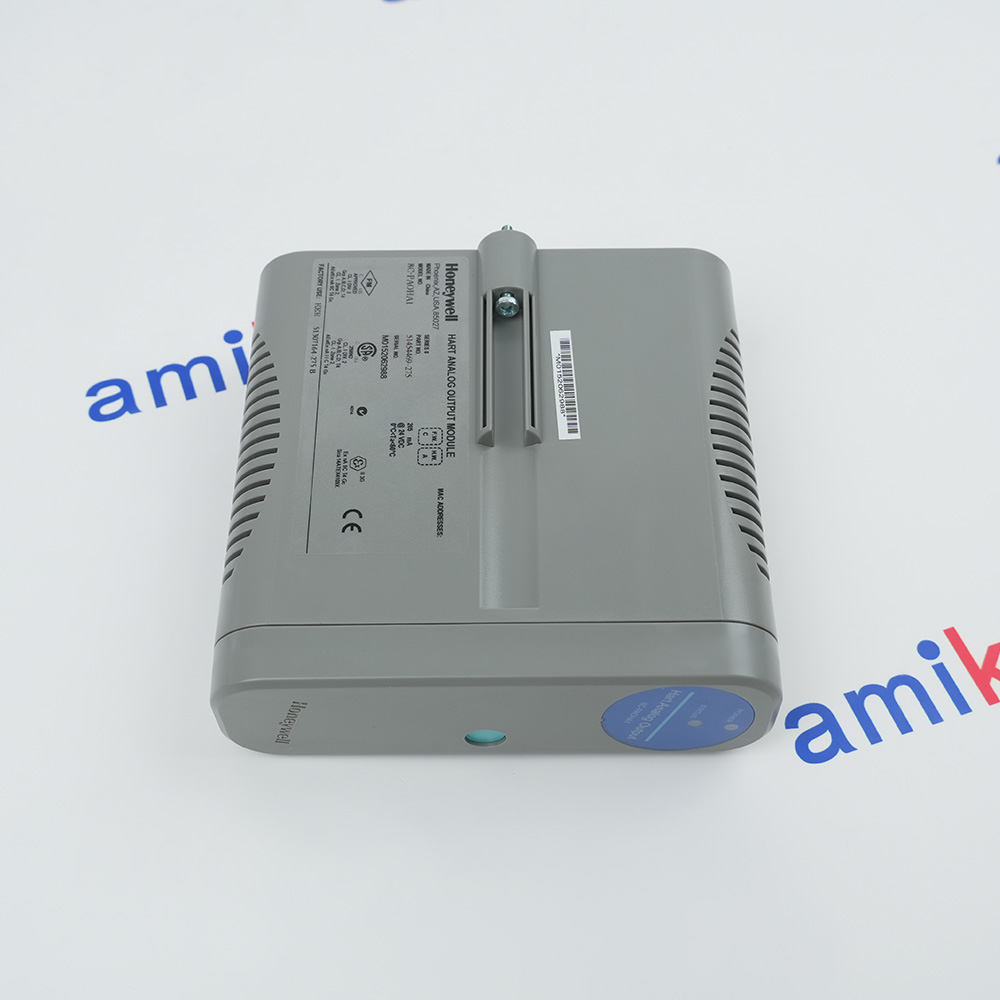

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 8C-PAOHA1 51454469-275
-
Product Model8C-PAOHA1 51454469-275
-
Spare Model51454469-275
-
Product ParametersAnalog Output with HART
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6x15.6x14.3cm
-
ManufacturerHoneywell
-
Weight0.3 kg
-
Output Type4-20 mA
-
Output Channels16
-
Load Resistance50-800Ω
-
Voltage Rating24 VDC
-
Module current rating205 mA
-
Operating Temperature0 to 60 ℃
-
Storage temperature-40 to 85 ℃
-
Resolution± 0.05% of Full Scale
-
Calibrated Accuracy± 0.2% of Full Scale (25oC) including linearity
-
Directly Settable Output Current Range2.9 mA to 21.1 mA
-
Maximum Open Circuit Voltage22 V
Description
The Honeywell 8C-PAOHA1 is an Analog Output with HART module in the Honeywell Series 8 I/O family. The Honeywell 8C-PAOHA1 delivers high-level constant current to actuators and recording/indicating devices. The Honeywell 8C-PAOHA1 is a coated module, indicated by the "8C" prefix in the model number. Conformal coating material is applied to the electronic circuitry of the Honeywell 8C-PAOHA1 for protection against moisture, dust, chemicals, and temperature extremes.
The Honeywell 8C-PAOHA1 supports standard 4-20 mA DC outputs. The Honeywell 8C-PAOHA1 also supports HART communication. The Honeywell 8C-PAOHA1 is HART-capable for multivariable devices. HART data on the Honeywell 8C-PAOHA1 can be used for device configuration and status monitoring. Secondary and tertiary variables from HART devices on the Honeywell 8C-PAOHA1 can be accessed for process control and asset management.
The Honeywell 8C-PAOHA1 supports standard 4-20 mA DC outputs. The Honeywell 8C-PAOHA1 also supports HART communication. The Honeywell 8C-PAOHA1 is HART-capable for multivariable devices. HART data on the Honeywell 8C-PAOHA1 can be used for device configuration and status monitoring. Secondary and tertiary variables from HART devices on the Honeywell 8C-PAOHA1 can be accessed for process control and asset management.
Alternative Names
8C PAOHA1 51454469 275
8C-PA0HA1 51454469-275
8C-PAOHAI 51454469-275
8C-PAOHA1 5I454469-275
8CPAOHA1
Information
Overview
Manuals
Engineering Considerations
Product Applications
Mechanical Mounting
Features:
- Extensive self diagnostics
- Optional redundancy
- HART-capable, multivariable devices
- Safe-state (FAILOPT) behaviors configurable on a per channel basis
The Honeywell 8C-PAOHA1 incorporates extensive self-diagnostics. The Honeywell 8C-PAOHA1 supports optional redundancy. Redundancy for the Honeywell 8C-PAOHA1 is accomplished directly on the IOTA without any external cabling or redundancy control devices, by simply adding a second IOM to an IOTA.
The 8C-PAOHA1 51454469-275 Honeywell Analog Output with HART may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 8C-PAOHA1 51454469-275 Analog Output with HARTManuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell 8C-PAOHA1 plugs into the Input Output Termination Assembly (IOTA). The IOTA for the Honeywell 8C-PAOHA1 holds the module and the connections for field wiring. The Honeywell 8C-PAOHA1 receives power from the IOTA. Field power for the Honeywell 8C-PAOHA1 is supplied through the IOTA, with no need for extra power supplies.
The Honeywell 8C-PAOHA1 is part of the Series 8 I/O system. The Series 8 I/O system including the Honeywell 8C-PAOHA1 features an innovative form that supports enhanced heat management. The Honeywell 8C-PAOHA1 provides significant reduction in overall size compared to equivalent functionality in previous generations. The I/O Module and field terminations for the Honeywell 8C-PAOHA1 are combined in the same area. The Honeywell 8C-PAOHA1 is plugged into the IOTA to eliminate the need for a separate chassis.
- Power Generation Plants:Turbine/substation/DCS data routing
- Chemical Processing Facilities:Fail-safe telemetry for hazardous/non-hazardous areas
- Oil and Gas Refineries:Pipeline, subsystem data & ESD integration
- Pulp and Paper Mills:Wet/dry end comms prevents downtime
- Water Treatment Stations:Local PLCs to master for distribution tracking
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Seating: Align the module pins carefully with the Input Output Termination Assembly (IOTA) slots.
Securing: Press the module firmly onto the IOTA until the side locking tabs click into place.DIN Rail: Snap the IOTA base onto a standard 35mm DIN rail inside the enclosure.
Spacing: Maintain a minimum 25mm clearance around the assembly for optimal convective cooling.
Technical notes
Series 8 AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel toeither HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOMdevice electronics fails.
FAQs
-
What is the 8C-PAOHA1?
+The Honeywell 8C-PAOHA1 (Part Number 51454469-275) is an analog output module featuring HART communication, typically used with Honeywell Experion PKS and ControlEdge HC900 process controllers. -
What is the main function of the 8C-PAOHA1?
+It converts digital signals from the controller into precise analog signals (4-20 mA or 0-10 V) to control field instruments. It also supports HART protocol for two-way smart device communication and advanced diagnostics. -
Does it support HART protocol?
+Yes, it is fully HART-enabled, allowing users to configure, calibrate, and monitor smart field devices directly through the control system.. -
What is the module's IOTA compatibility?
+The module operates with Series 8 IOTA (Input Output Termination Assembly) modules, typically the 8C-TAOXA1 (non-redundant) or 8C-TAOXB1 (redundant)
