- TC-FPDXX2 97285371-B01
In Stock
Ships by Tuesday, July 28
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for TC-FPDXX2 97285371-B01
-
Product ModelTC-FPDXX2 97285371-B01
-
Product ParametersPower Supply Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size11.1x14.5x14cm
-
ManufacturerHoneywell
-
Weight1.15 kg
-
Input Voltage Range19.2-32 VDC
-
Input Powe100 W
-
Maximum Inrush Current30 A
-
Frequency RangeDC
-
Total power output maximum, watts70 W @ 60 C
Description

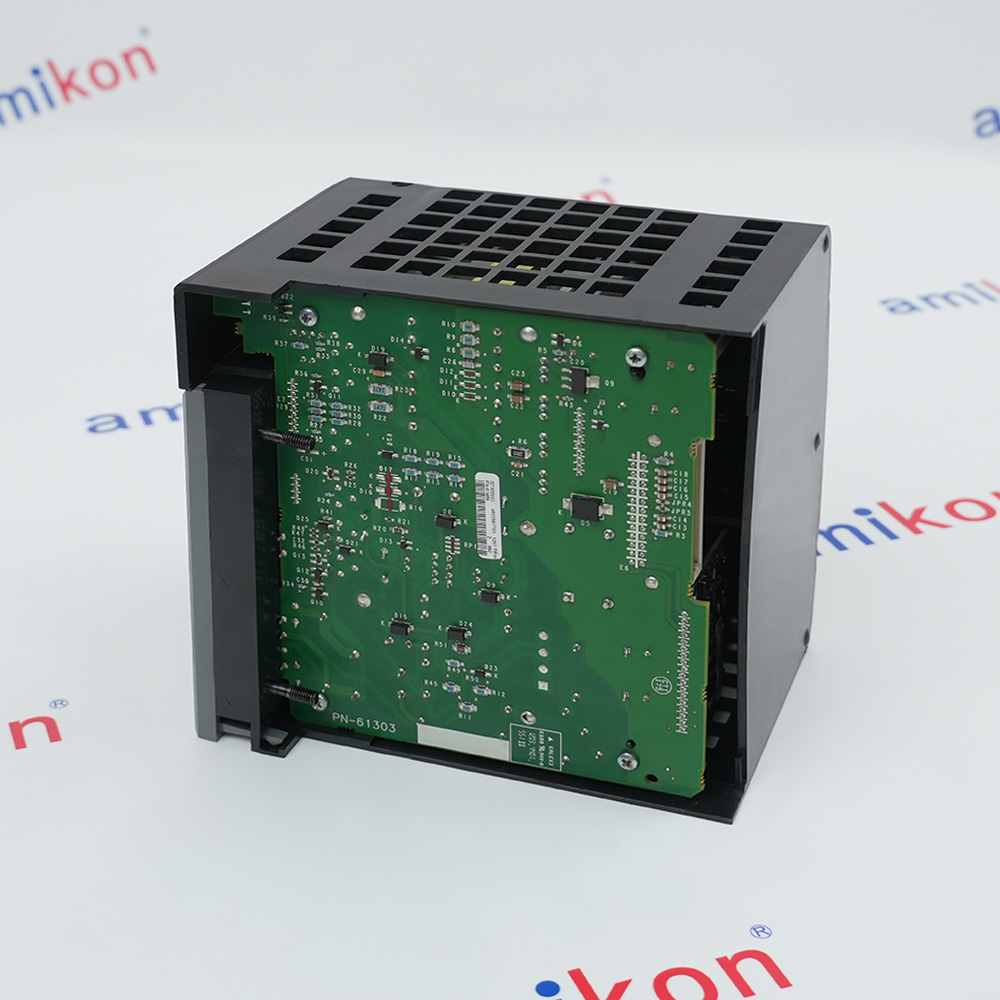

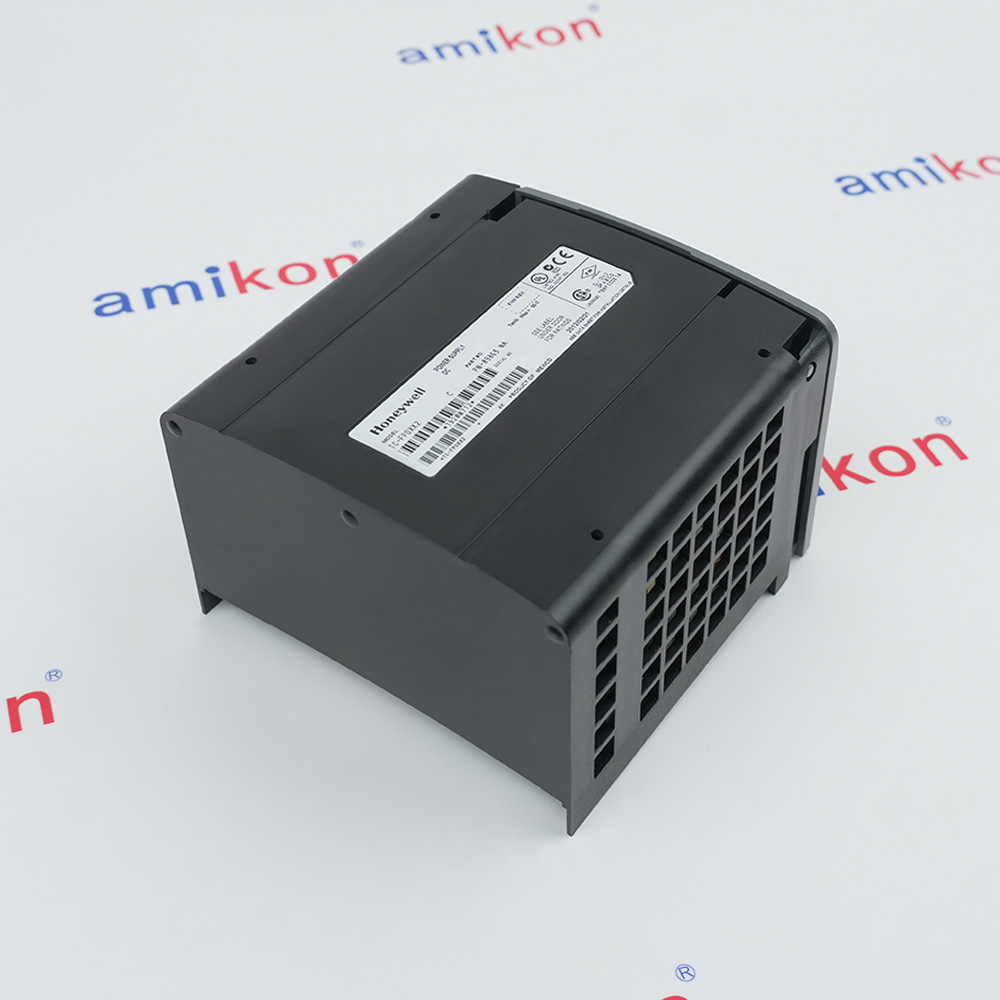

The Honeywell TC-FPDXX2 is a Series-A DC Power Supply Module designed for Honeywell Experion PKS and Series-A I/O chassis. Installed on the left side of the chassis, it provides regulated backplane power for controllers, communication modules, and I/O modules without occupying a module slot. The unit accepts a 19.2–32 VDC input and distributes multiple regulated voltages to the chassis backplane, including 24 VDC, 5.1 VDC, 3.3 VDC, and 1.2 VDC. It delivers a maximum combined output power of 70 W at 60°C and is intended for continuous industrial operation.
The TC-FPDXX2 is used in Honeywell Experion PKS control systems for reliable power distribution within Series-A chassis. It includes integrated protection features and supports a wide operating voltage range, making it suitable for industrial automation environments where stable backplane power is required.
The TC-FPDXX2 is used in Honeywell Experion PKS control systems for reliable power distribution within Series-A chassis. It includes integrated protection features and supports a wide operating voltage range, making it suitable for industrial automation environments where stable backplane power is required.
Information
Overview
Manuals
Application Notes
Product Applications
Wiring and Electrical Connections
Features:
- Wide-Range 19.2–32 VDC Input
- 70W Maximum Total Power Output
- Built-in Non-Replaceable Fuse Protection
- High Inrush Current Capability
The TC-FPDXX2 delivers a maximum total power output of 70 W at 60°C to the chassis backplane, distributed across multiple DC output voltages to power various module types. The TC-FPDXX2 provides backplane output currents of 1.5 A at 1.2 V, 4 A at 3.3 V, 10 A at 5.1 V, and 2.8 A at 24.0 V, with the combination of all output power not exceeding 70 W. The TC-FPDXX2 is rated for a maximum inrush current of 30 A, ensuring reliable startup under demanding industrial conditions.
The TC-FPDXX2 HONEYWELL Power Supply Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL TC-FPDXX2 Power Supply Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The TC-FPDXX2 operates within environmental conditions of 0 to 60°C (32 to 140°F) for operative limits and -40 to 85°C (-40 to 185°F) for storage and transportation, with relative humidity of 5 to 95% non-condensing. The TC-FPDXX2 withstands vibration of 10 to 60 Hz at 0.5 g maximum acceleration and mechanical shock of 5 g maximum for 30 ms duration. The TC-FPDXX2 carries comprehensive agency certifications including UL 508 Industrial Control Equipment, Class I Division 2 Groups A, B, C & D for hazardous and ordinary locations, and CE marking compliance with EN 50081-2 emissions and EN 50082-2 immunity standards. The TC-FPDXX2 also meets C-Tick requirements under the Australian Radiocommunications Act for electromagnetic compatibility.
- Chemical/Petrochemical: Manages blending, batch processing, and reactor safety configurations
- Oil/Gas Refining: Handles upstream telemetry, terminal monitoring, and downstream process control
- Power/Utilities: Houses control/redundancy modules for turbine control and plant-wide monitoring
- Water/Wastewater: Streamlines data acquisition from remote flowmeters, pumps, and sensors
- Pulp/Paper: Hosts dense I/O networks for rollers, chemical boilers, and automated cutting systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The TC-FPDXX2 typically operates on an input voltage range of 19.2–32 Vdc. Connections are made via the 20-position removable terminal block (TC-TBNH), which allows you to pre-wire the system.
DC Power Input: Connect the positive side of the DC power line to the positive (+) terminal, and the negative side to the negative (-) terminal.
Wire Specifications: Use a maximum of 14 AWG (1.4 mm) wire for all power and grounding terminations.
Alternative Names
TC-FPDXXZ
TC FPDXX2
TC FPDXXZ
TCFPDXX2
Technical notes
With a maximum combined output capacity of 70 W at 60°C, the TC-FPDXX2 is suitable for a wide range of Experion PKS system configurations. It incorporates an internal non-replaceable fuse, supports 14 AWG power wiring, and is engineered for continuous operation in industrial control cabinets.
FAQs
-
Where is this module installed?
+The TC-FPDXX2 installs on the left side of the chassis. It acts as a Field Power Distribution (FPD) module and does not consume a standard I/O or controller slot. -
What is the safe operating temperature range?
+The module operates safely in environments between 0°C and +60°C, and can be safely stored between -40°C and +85°C. -
What is the total power budget?
+The total combined power output across all backplane voltages (1.2 V, 3.3 V, 5 V, and 24 V) cannot exceed 70 W. If the voltage drops below 19 V, it may indicate an issue with the power supply. -
Can the module handle sudden motor startups or voltage dips?
+Yes. The input voltage may safely drop down to 16 VDC for up to 2 minutes per hour to tolerate initial motor starting loads.
