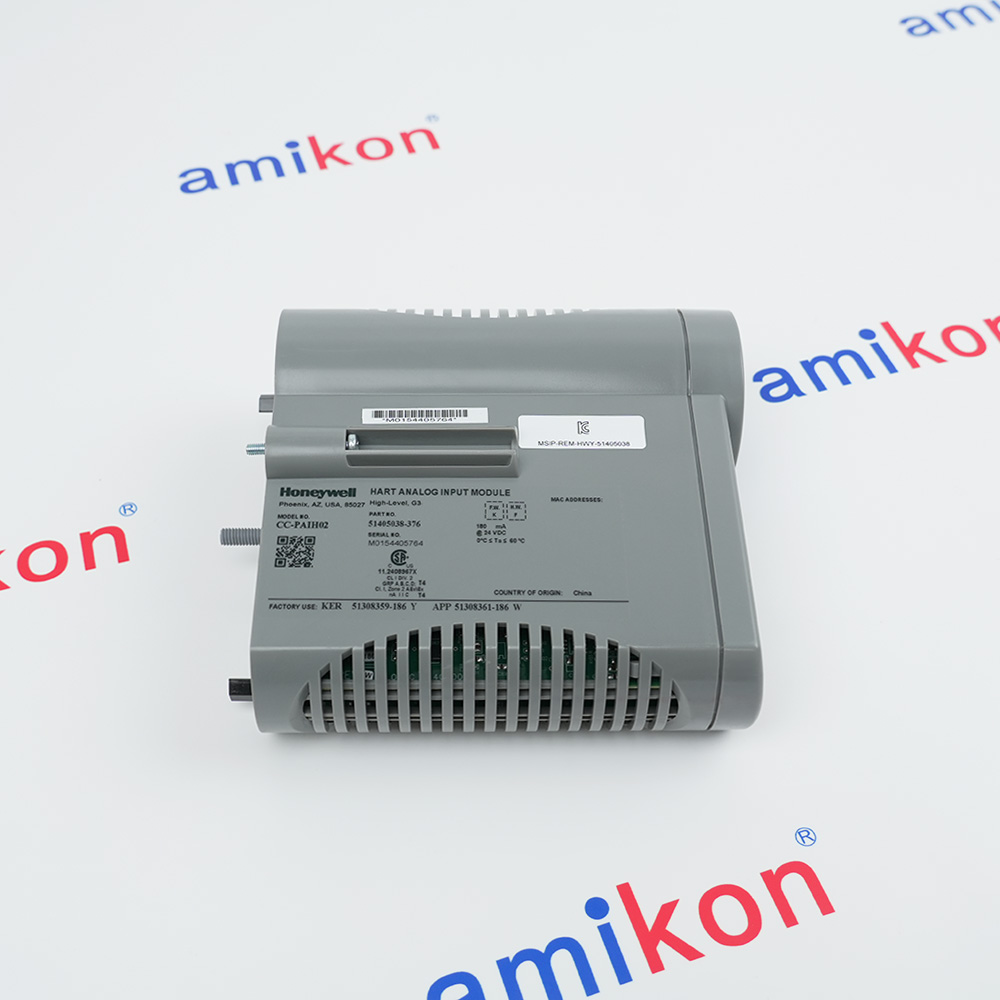

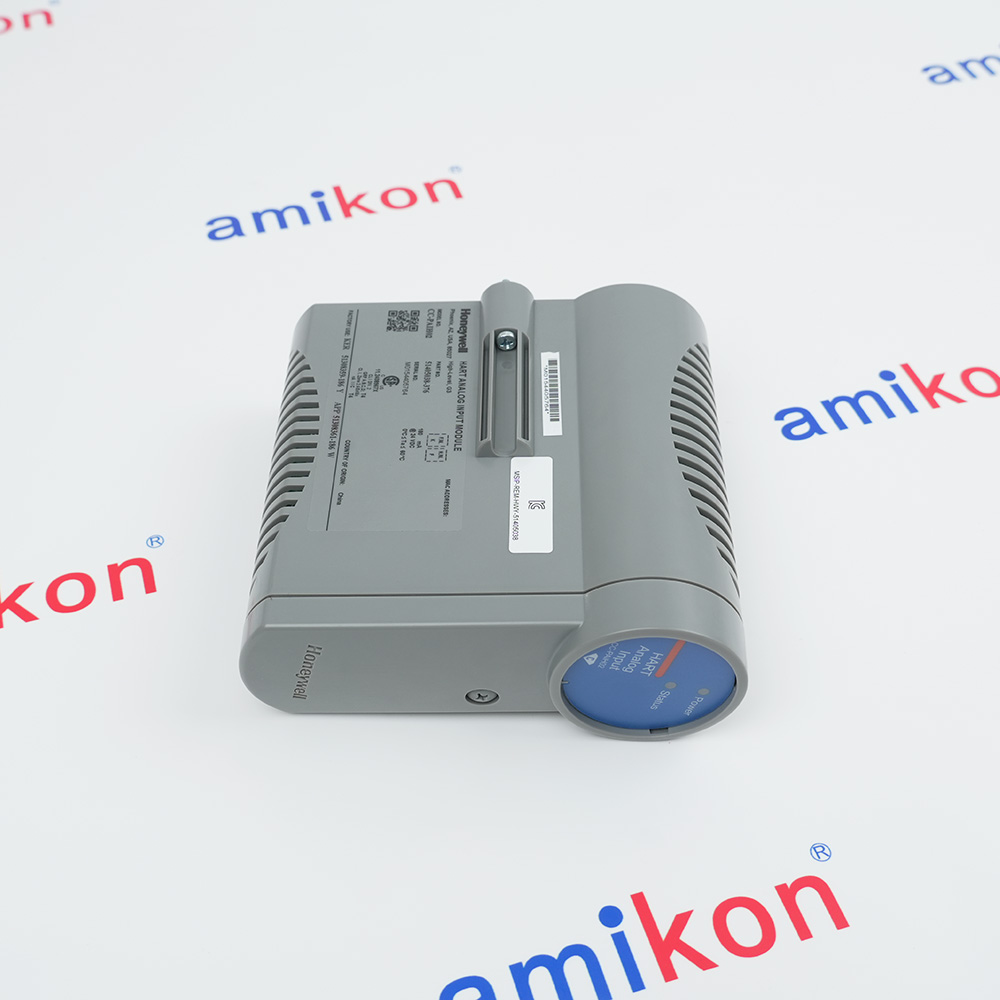

- CC-PAIH02 51405038-376
In Stock
Ships by Thursday, June 18
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CC-PAIH02 51405038-376
-
Product ModelCC-PAIH02 51405038-376
-
Spare ModelCC-PAIH02
-
Product ParametersAnalog Input Modulewith HART
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock5 units
-
Estimated Shipping Size6x15.5x14.5cm
-
ManufacturerHoneywell
-
Weight0.4 kg
-
Input Channels16 Channels
-
Common Mode Voltage, dc to 60 Hz-6 to +5 V peak
-
A/D Converter Resolution16 bits
-
Input Range1 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA
-
Normal Mode Rejection Ratio, at 60 Hz19 dB
-
Normal Mode Filter ResponseSingle-pole RC, -3 dB @ 6.5 Hz
-
Maximum Normal Mode Input± 30 Volts
-
Crosstalk, dc to 60 Hz-60 dB
-
Input Scan Rate50 ms
Description
The Honeywell CC-PAIH02 is an Analog Input with HART module in the Honeywell Experion Series-C I/O family. The Honeywell CC-PAIH02 accepts high level current or voltage inputs from transmitters and sensing devices. The Honeywell CC-PAIH02 is part number 51405038-376.
The Honeywell CC-PAIH02 supports analog inputs which are typically 4-20 mA DC inputs for traditional devices. The Honeywell CC-PAIH02 also supports HART inputs. Analog inputs on the Honeywell CC-PAIH02 are typically 4-20 mA DC for both traditional and HART devices. HART data on the Honeywell CC-PAIH02 can be used for status and configuration. HART data such as the secondary and tertiary variables on the Honeywell CC-PAIH02 can also be used as process control variables.
The Honeywell CC-PAIH02 supports analog inputs which are typically 4-20 mA DC inputs for traditional devices. The Honeywell CC-PAIH02 also supports HART inputs. Analog inputs on the Honeywell CC-PAIH02 are typically 4-20 mA DC for both traditional and HART devices. HART data on the Honeywell CC-PAIH02 can be used for status and configuration. HART data such as the secondary and tertiary variables on the Honeywell CC-PAIH02 can also be used as process control variables.
Alternative Names
CC PAIH02 51405038 376
CC-PAIH02
51405038-376
CC-PA1H02
CC-PAIHO2
CC-PAIH02 51405038--376
CC-PAIHO2 514O5O38-376
Information
Overview
Manuals
Engineering Considerations
Product Applications
Comparison with Related Models
Features:
- Extensive self-diagnostics
- Supplies non-incendive field power
- Non-incendive Power
- Open-wire Bad PV Detection
- PV protection through an open wire detectiondiagnostic
- HART-capable, multivariable instruments and multiplemodems for fast collection of control variables
The Honeywell CC-PAIH02 provides fast loop scan capability. The Honeywell CC-PAIH02 plugs into the Input Output Termination Assembly (IOTA). The IOTA for the Honeywell CC-PAIH02 holds the module and the connections for field wiring. The Honeywell CC-PAIH02 receives power from the IOTA. Field power for the Honeywell CC-PAIH02 is supplied through the IOTA.
The CC-PAIH02 51405038-376 Honeywell Analog Input Modulewith HART may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PAIH02 51405038-376 Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
CC-PAIH01 supports voltage inputs for channels 13-16 CC-PAIH02 supports voltage inputs for channels 1-16 when usedwith CC-TAIDx1 IOTA. Each channel's 250-Ohm load resistor is connected to the input terminal through a wire jumper onthe IOTA. This jumper should be cut by the user on channels to be used with voltage transmitters. For channels 13-16 thelow-side input connection is normally connected to system common by a wire jumper on the IOTA. This jumper may be cutby the user to enable differential operation subject to operating within the CMV specification.
- Oil and Gas: Monitoring high-pressure and temperature variables in refineries and extraction sites
- Petrochemical and Chemical: Controlling critical process parameters and managing complex analytical data for quality control
- Power Generation: Integrating smart sensors into centralized control platforms for precise energy management
- Building Automation: Managing industrial-scale HVAC, lighting, and security systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The Honeywell CC-PAIH02 is the modern successor to the CC-PAIH01, introducing significant performance upgrades and expanded input flexibility. While both are 16-channel High-Level Analog Input (HLAI) modules for the Experion PKS Series C system, the CC-PAIH02 offers higher precision and broader channel support.
CC-PAIX02: The non-HART version of the CC-PAIH02. It supports the same 16-channel differential/single-ended inputs but lacks digital HART communication.
CC-PAIX01: The legacy non-HART predecessor to the CC-PAIX02, matching the CC-PAIH01's limited differential channel support (channels 13–16 only).
Technical notes
This Series C IO function will be able to detect and annunciate Open field wire. In addition, a seemingly-valid PV from achannel diagnosed as having a Open-wire will provide a status of “invalid” (thus preventing incorrect control action)
