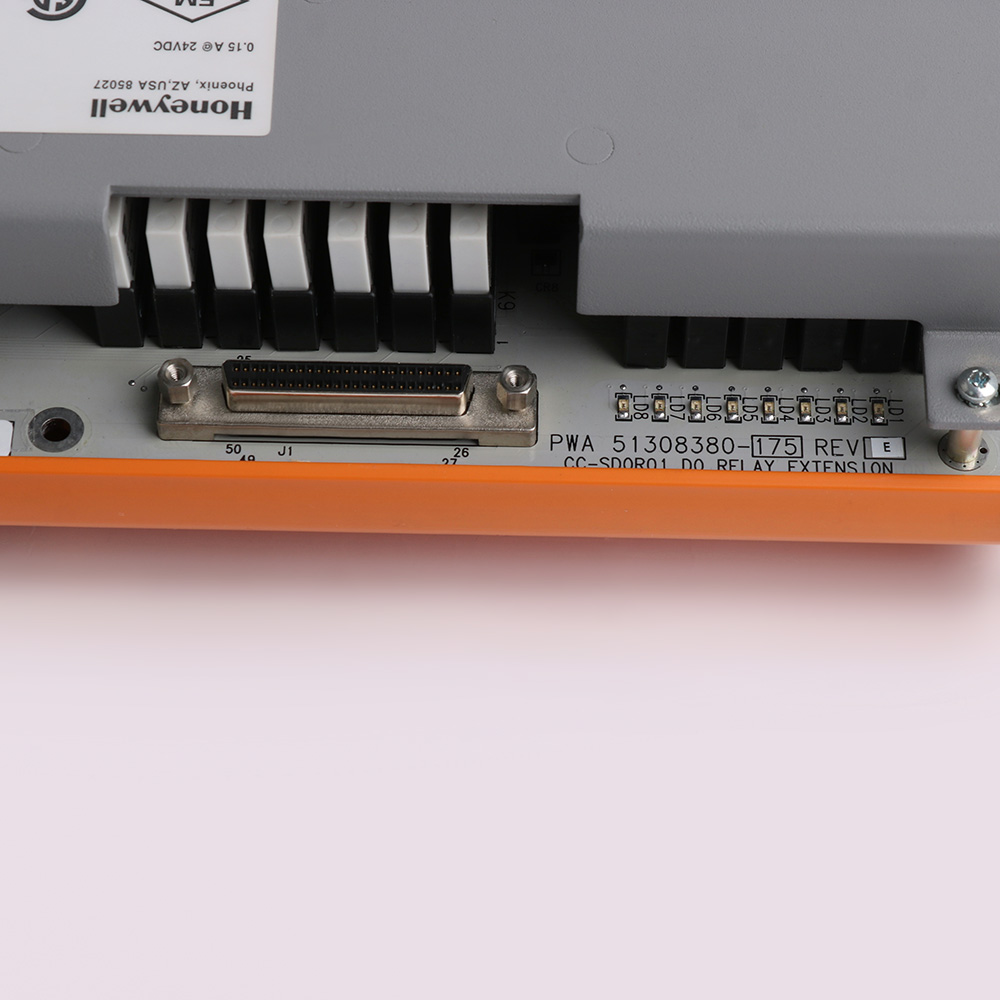

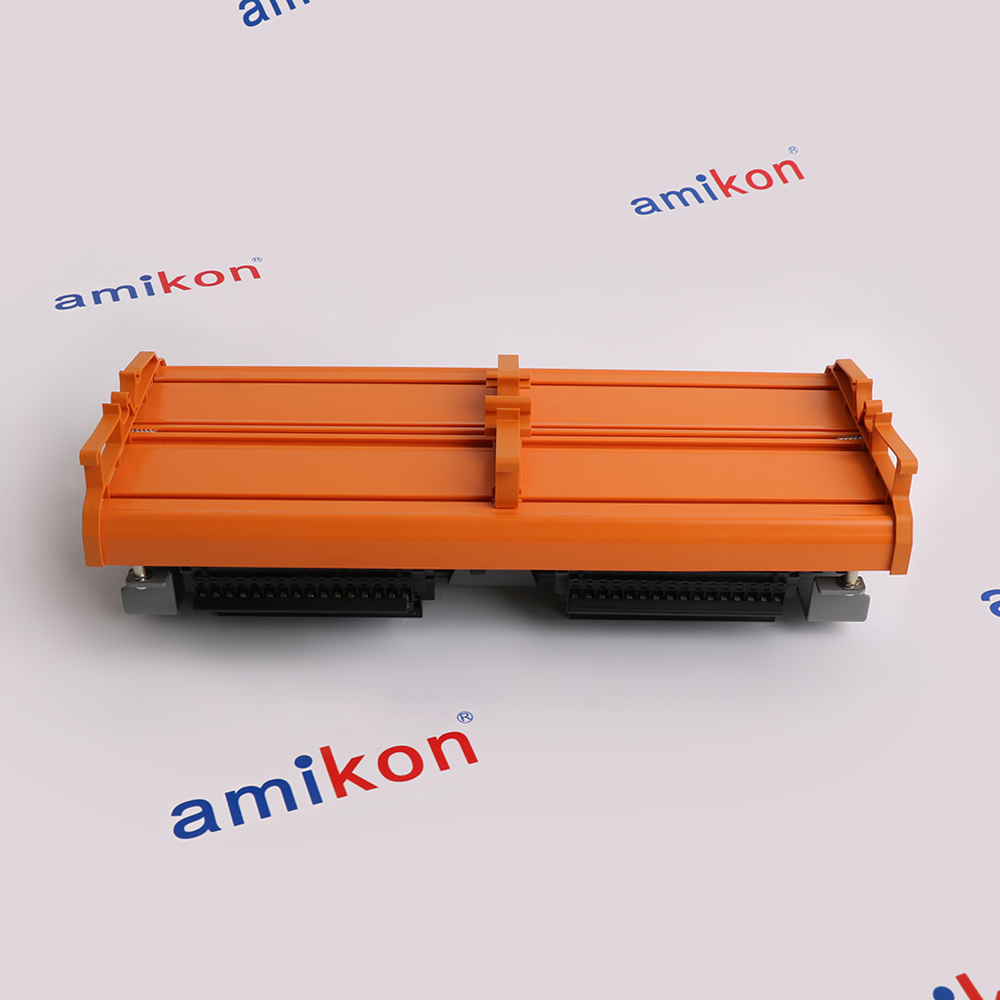

CC-SDOR01 51308380-175 Digital Output Relay Extension IOTA
Honeywell CC-SDOR01 51308380-175 is the relay-extension IOTA for the Experion Series C digital-output relay arrangement. It works with the documented CC-PDOB01 digital-output I/O module and associated relay IOTA configuration to connect discrete field loads.
The relay arrangement provides 32 isolated dry-contact outputs, each selectable as normally open or normally closed by a jumper. Socketed relays, channel-on indicators and coil suppression support field switching; voltage and current limits depend on whether the connected load is AC or DC and resistive or inductive.
The relay arrangement provides 32 isolated dry-contact outputs, each selectable as normally open or normally closed by a jumper. Socketed relays, channel-on indicators and coil suppression support field switching; voltage and current limits depend on whether the connected load is AC or DC and resistive or inductive.
BEFORE YOU BUY
Confirm the complete digital output relay extension iota
ACTUAL APPLICATIONS
Application context for CC-SDOR01 51308380-175
CC-SDOR01 51308380-175 extends relay-output wiring in a compatible Experion Series C system. Process applications include chemical production, petroleum refining and industrial energy. The relay board follows the configured IOM and IOTA arrangement, with load ratings checked separately for each field circuit.
-
01 · CHEMICAL PROCESSING
Chemical Production and Process Manufacturing
Industrial Chemical ProductionPetrochemical Production and Processing -
02 · OIL & GAS
Petroleum Refining and Gas Processing
Petroleum Refining and ProcessingNatural Gas Process Production -
03 · POWER GENERATION
Electricity Generation and Industrial Energy
Thermal Electric Power GenerationIndustrial Cogeneration and Heating
Technical specifications for CC-SDOR01 51308380-175
-
Product ModelCC-SDOR01 51308380-175
-
Product ParametersDigital Output Relay Extension IOTA
-
In stock10 units
-
ManufacturerHoneywell
-
Isolated output channels32
-
Contact configurationsForm A (SPST/NO) or Form B (SPST/NC), jumper selectable
-
Contact materialAgSnO2
-
Maximum load voltage250 V AC RMS / 125 V DC
-
Resistive AC load per output3 A at 125 / 250 V AC
-
Resistive DC load per output3 A at 30 V; 1 A at 48 V; 0.2 A at 125 V
-
Inductive AC load per output2 A at 125 / 250 V AC, power factor 0.4
-
Minimum load voltage12 V DC
-
Minimum load current100 mA
-
Maximum inrush current10 A for 4 s at 10% duty cycle
-
Channel/logic isolation1500 V AC RMS or ±1500 V DC
-
Maximum turn-on time20 ms
-
Maximum turn-off time20 ms
-
Mechanical contact life5000000 cycles at 180 cycles/min
-
Coil surge absorber120 Ω + 0.033 µF per channel
View all additional
Alternative Names
CC-SDOR01 51308380-175
Experion Series C Digital Output Relay Extension IOTA
CC-SDOR01 relay extension IOTA
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate CC-SDOR01 51308380-175 digital output relay extension iota
CC-SDOR01 51308380-175 is the relay-extension element in the documented Experion Series C relay-output arrangement. Match CC-PDOB01 and the associated IOTA identities before assigning field outputs.
Configure each relay as the required Form A or Form B contact. Check the 32-channel dry-contact arrangement, AC/DC load ratings, minimum load and inrush-current boundary for each circuit.
Verify jumper positions, isolated wiring, channel indicators and switching response. Test the configured controller output mapping and connected field-load behavior before service.
Features:
- 32 isolated dry-contact relay outputs
- Per-output Form A / Form B jumper selection
- Load-specific AC/DC current and inrush limits
The CC-SDOR01 51308380-175 digital output relay extension iota requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify CC-SDOR01 51308380-175 digital output relay extension iota
Match both CC-SDOR01 and 51308380-175 to the installed extension board. A CC-TDOR IOTA or the CC-PDOB IOM is a different part of the relay arrangement.
Record contact-selection jumpers, relay positions, field wiring and IOM/IOTA configuration. Inspect socket and terminal condition while preserving circuit segregation.
After exchange, test commanded on/off behavior and the selected contact form on all configured outputs. Check channel indication and connected-load ratings against the saved configuration.
Features:
- CC-SDOR01 and 51308380-175 extension identity
- CC-PDOB01 and associated IOTA configuration match
- Relay socket, jumper and field-circuit comparison
The CC-SDOR01 51308380-175 digital output relay extension iota requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- EP03-490-520 section 5.17 relay IOTA reference
- Isolation and switching-time specification tables
- Contact material, load ratings and coil suppression
Documentation for the CC-SDOR01 51308380-175 digital output relay extension iota must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size29.8 × 13 × 8.8cm
-
Shipping weight1.20kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about CC-SDOR01 51308380-175
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is CC-SDOR01 the Series C digital-output IOM itself?
No. The specification identifies CC-SDOR01 as the relay-extension IOTA. The documented relay arrangement uses the CC-PDOB01 IOM and its associated IOTA configuration. -
How are normally open and normally closed contacts selected?
The relay arrangement supports Form A (SPST/NO) or Form B (SPST/NC), selected by a jumper for each output. -
What is the maximum specified relay load voltage?
It is 250 V AC RMS or 125 V DC. Current capacity depends on the load type and operating voltage. -
What resistive DC load currents does the relay table allow?
The table lists 3 A at 30 V DC, 1 A at 48 V DC and 0.2 A at 125 V DC per output. Do not apply the 3 A rating to every DC voltage. -
What is the stated inrush-current boundary?
The specification allows a maximum 10 A for 4 seconds at a 10% duty cycle. Check the complete switching duty of the field load. -
What isolation is documented for the relay outputs?
The table specifies 1500 V AC RMS or ±1500 V DC channel-to-channel and channel-to-logic-common isolation. -
Which identifiers should accompany a relay-extension request?
Provide CC-SDOR01 51308380-175, the connected CC-PDOB01 IOM and IOTA identities, relay jumper arrangement, field-load details and quantity. -
What delivery checks are needed for CC-SDOR01?
Inspect the full label, relay sockets, terminal connections, jumpers and PCB condition. Compare the extension arrangement and intended field-load ratings before installation.
