PRODUCT DESCRIPTION

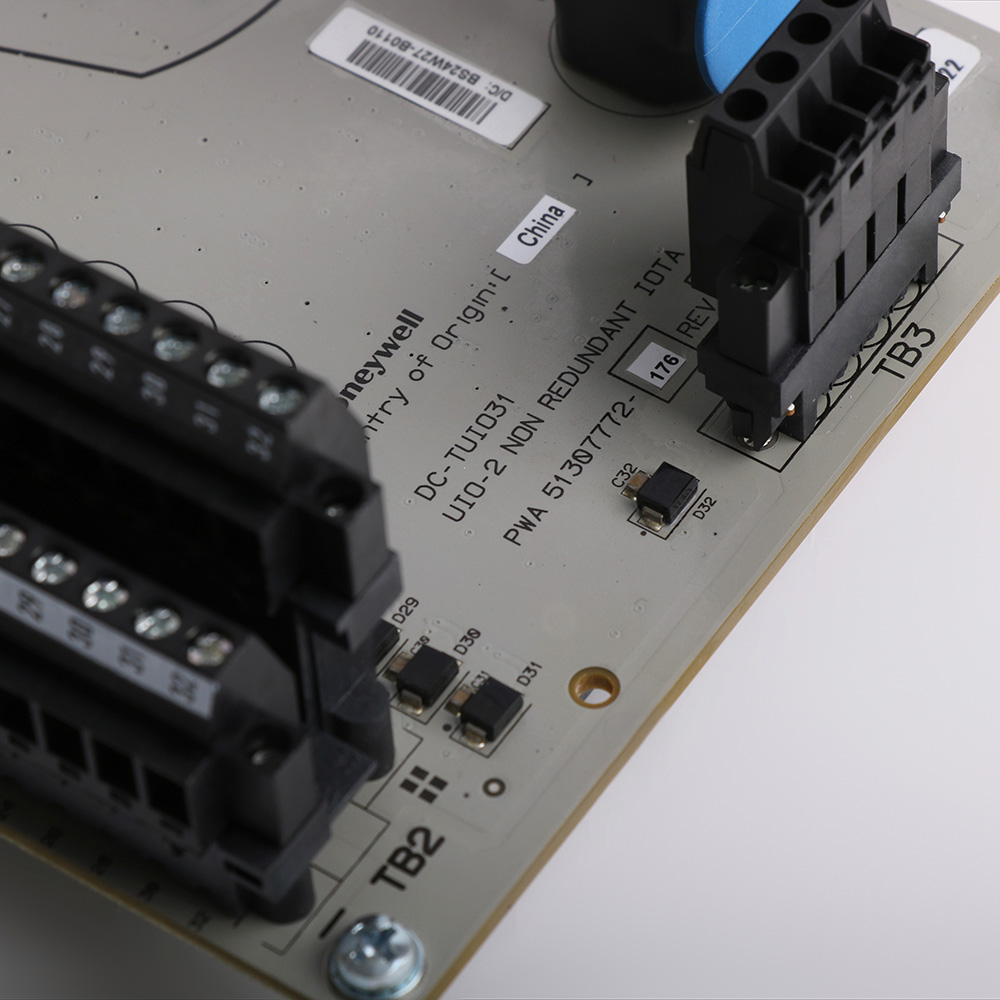

DC-TUIO31 51307772-176 Universal I/O Termination Assembly
Honeywell DC-TUIO31 51307772-176 is a nonredundant Universal I/O termination assembly for the Experion Series C Mark II platform. It supports the compatible CC-PUIO31 module and provides the mounting, power and field-wiring connections for its 32 configurable circuits.
The assembly combines a single I/O module position, two-level detachable screw terminals and I/O Link connections. Signal conversion and channel configuration are performed by the fitted I/O module; this termination board provides the physical connection arrangement rather than independent active analog input processing.
The assembly combines a single I/O module position, two-level detachable screw terminals and I/O Link connections. Signal conversion and channel configuration are performed by the fitted I/O module; this termination board provides the physical connection arrangement rather than independent active analog input processing.
BEFORE YOU BUY
Confirm the complete universal i/o termination assembly
ACTUAL APPLICATIONS
Application context for DC-TUIO31 51307772-176
DC-TUIO31 51307772-176 provides nonredundant field termination for compatible Experion Series C Mark II Universal I/O configurations. Relevant process fields include oil and gas, chemical manufacturing and power production. Suitability depends on the fitted CC-PUIO31 module, field wiring, control configuration and verified hardware compatibility.
-
01 · OIL & GAS
Oil Production and Petroleum Processing
Petroleum Production Process OperationsNatural Gas Processing Operations -
02 · CHEMICAL PROCESSING
Chemical Manufacturing and Process Production
Industrial Chemical Production ProcessesSpecialty Chemical Batch Production -
03 · POWER GENERATION
Electricity Generation and Energy Production
Thermal Power Generation ProcessesIndustrial Combined Heat Production
Technical specifications for DC-TUIO31 51307772-176
-
Product ModelDC-TUIO31 51307772-176
-
Product ParametersUniversal I/O Termination Assembly
-
In stock2 units
-
ManufacturerHoneywell
-
Companion I/O moduleCC-PUIO31
-
I/O module positions1
-
Redundancy configurationNonredundant
-
Field circuits32
-
Terminal constructionTwo-level detachable screw terminals
-
Maximum stranded wire size12 AWG, 2.5 mm²
-
I/O Link connectors2, IOL A and IOL B
-
Field terminal groupsTB1, TB2 and TB3
View all additional
Alternative Names
DC-TUIO31 51307772-176
Experion Series C Mark II Universal I/O Termination Assembly
Series C Mark II CC-PUIO31 companion i/o module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate DC-TUIO31 51307772-176 universal i/o termination assembly
Integrate DC-TUIO31 51307772-176 with the documented CC-PUIO31 module in a nonredundant Experion Series C Mark II configuration. Verify the termination-board and I/O-module labels separately before connecting field circuits.
Compare the 32 circuit allocation, detachable terminal arrangement and I/O Link connections with the station drawings. The termination board does not independently provide the active conversion, timing or HART functions of the companion I/O module.
Follow the applicable Honeywell station instructions for isolation, field wiring and module configuration. Validate each configured circuit through the complete station, then retain the field allocation and final acceptance record.
Features:
- Companion I/O module: CC-PUIO31
- I/O module positions: 1
- Redundancy configuration: Nonredundant
The DC-TUIO31 51307772-176 universal i/o termination assembly requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify DC-TUIO31 51307772-176 universal i/o termination assembly
Verify DC-TUIO31 51307772-176 and its nonredundant UIO-2 identity before replacement. Match the companion CC-PUIO31 module and documented Series C Mark II configuration; a CC-prefixed termination board is not assumed interchangeable.
Record terminal numbers, field-wire allocation, I/O Link routing and power connections before removing the assembly. Isolate the affected circuits according to the station procedure and preserve the controlled I/O configuration.
Fit the verified termination assembly and restore the documented module and wiring arrangement. Validate all affected channels through the host configuration and retain the board identification and functional-test results.
Features:
- Companion I/O module: CC-PUIO31
- I/O module positions: 1
- Redundancy configuration: Nonredundant
The DC-TUIO31 51307772-176 universal i/o termination assembly requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the DC-TUIO31 51307772-176 universal i/o termination assembly must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size22 x 12 x 7.5 cm
-
Shipping weight0.45kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about DC-TUIO31 51307772-176
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is DC-TUIO31 51307772-176 in an Experion station?
It is a nonredundant Universal I/O termination assembly for compatible Series C Mark II configurations. -
Which module fits DC-TUIO31 51307772-176?
The documented companion module is CC-PUIO31. -
How many circuits are terminated by DC-TUIO31 51307772-176?
The applicable Universal I/O arrangement has 32 field circuits. -
Does DC-TUIO31 51307772-176 provide redundant module positions?
No. DC-TUIO31 is the nonredundant termination assembly with one module position. -
How is field wiring connected to DC-TUIO31 51307772-176?
The assembly uses two-level detachable screw terminals. -
What wire size is documented for the Mark II field terminals?
The manufacturer specifies a maximum of 12 AWG or 2.5 mm² stranded wire. -
Does DC-TUIO31 51307772-176 perform independent signal conversion?
Active conversion and channel configuration belong to the fitted I/O module; the termination assembly provides its physical connections. -
What must be compared before exchanging DC-TUIO31 51307772-176?
Compare both labels, nonredundant configuration, field terminals, power connections and I/O Link allocation against the station drawings.
