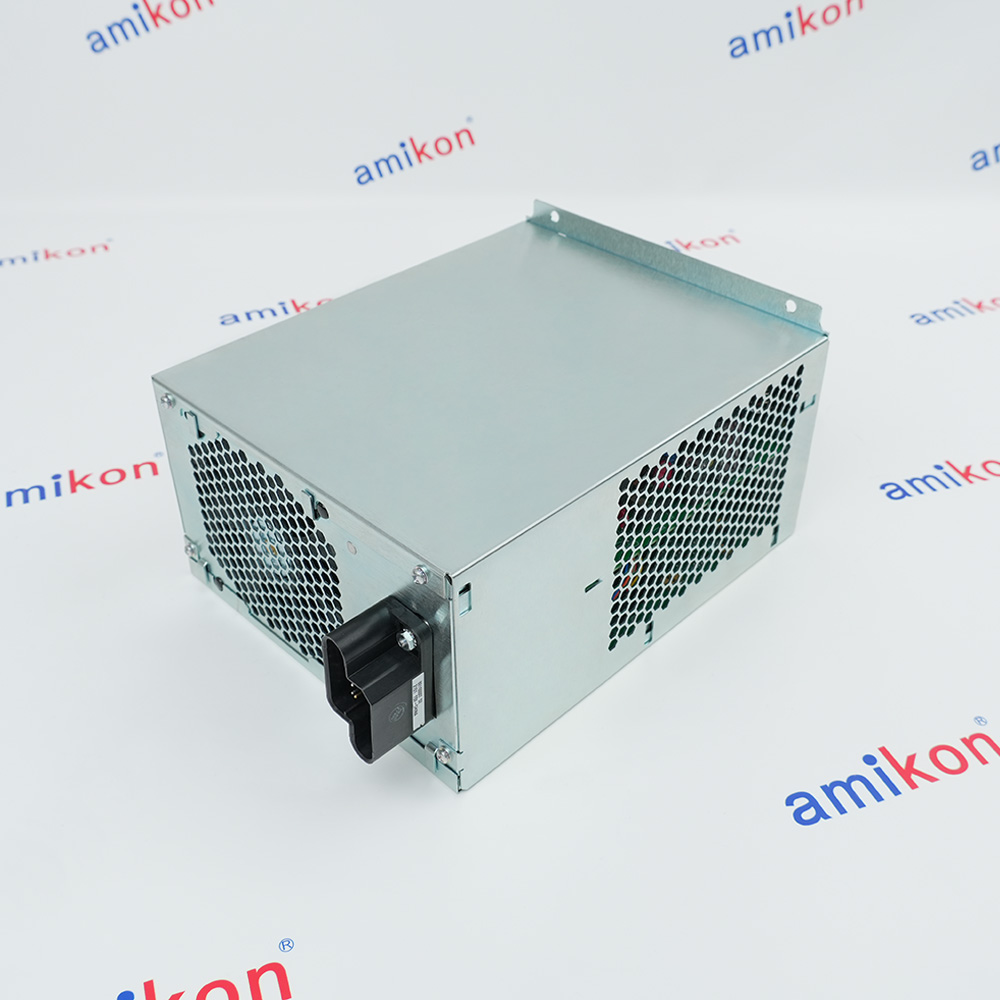

- SPS5785 51198651-100
In Stock
Ships by Saturday, June 27
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for SPS5785 51198651-100
-
Product ModelSPS5785 51198651-100
-
Product ParametersHPM power supply module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size21.6x29.6x14cm
-
ManufacturerHoneywell
-
Weight5.18 kg
-
Input Voltage85 – 264 V AC 47-63 Hz
-
In-rush Current< 30 A @ 230 V AC
-
Output 124 V DC ±1 %
-
Output 26 V AC ±10 %
-
Output 3Battery charge 24 – 26 V DC
-
Isolation3 kV AC input-to-output
-
Alarm RelayForm-C
-
Operating Temp–40 … +70 °C
-
Storage–50 … +85 °C
-
Humidity5 … 95 % RH non-condensing
Description

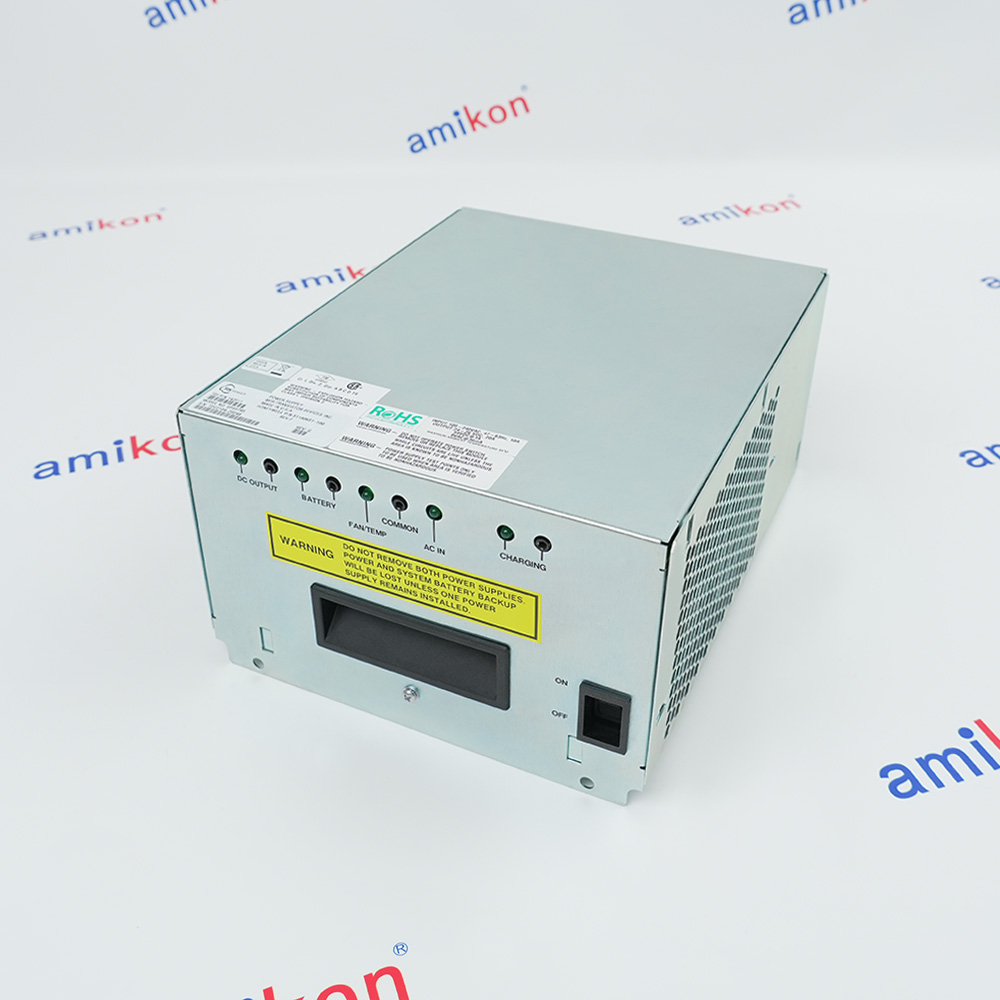

The Honeywell 51198651-100 has an extended temperature range. The Honeywell 51198651-100 has thermal shutdown capability. The Honeywell 51198651-100 has a more reliable power switch. The Honeywell 51198651-100 has more consistent alarm handling. The Honeywell 51198651-100 has five LED indicators: DC Output, Battery, Fan/Temperature, AC Input, and Charging.
The Honeywell 51198651-100 outputs 24 VDC for the xPM system. The Honeywell 51198651-100 has primary and secondary alarm contacts that monitor five functions. The Honeywell 51198651-100 opens alarm contacts when DC output voltage is outside normal limits, AC input power fails, internal electronics overheat, the internal fan fails, the 48V battery backup system fails, or the battery charger fails. The Honeywell 51198651-100 works in redundant power supply configurations where each supply is fed by a dedicated power source.
The Honeywell 51198651-100 outputs 24 VDC for the xPM system. The Honeywell 51198651-100 has primary and secondary alarm contacts that monitor five functions. The Honeywell 51198651-100 opens alarm contacts when DC output voltage is outside normal limits, AC input power fails, internal electronics overheat, the internal fan fails, the 48V battery backup system fails, or the battery charger fails. The Honeywell 51198651-100 works in redundant power supply configurations where each supply is fed by a dedicated power source.
Alternative Names
51198651-1OO
5II9865I-I00
51198651/100
51198651 100
Information
Overview
Manuals
Redundancy and Power Architecture
Product Applications
Physical Rack Mounting
Features:
- Current-Generation xPM Power Supply Replacement
- Conformal Coating on All Metallic Components
- Improved Airflow Handling
- Extended Temperature Range
- Thermal Shutdown Capability
- Five LED Alarm Indicators and Consistent Alarm Handling
The Honeywell 51198651-100 opens alarm contacts when DC output voltage is outside normal limits, AC input power fails, internal electronics overheat, the internal fan fails, the 48V battery backup system fails, or the battery charger fails. The Honeywell 51198651-100 works in redundant power supply configurations where each supply is fed by a dedicated power source.
The 51198651-100 Honeywell Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 51198651-100 Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Parallel Redundancy: The unit supports dual-power configurations and parallel operation, allowing multiple power supplies to share loads.Independent Routing: For true fault tolerance, each redundant power supply should be wired to its own completely separate and dedicated power source.
Battery Support: The module features a multi-functional architecture that accepts a 100–240 VAC main input or 48 VDC battery backup inputs, complete with an integrated 48V battery charging circuit.
- Thermal Plants: Runs the automation loops for boiler control, steam turbines, and water feed systems
- Renewable Integration: Coordinates grid-tie synchronization hardware inside large-scale substation control rooms
- Nuclear Plants: Utilized in non-safety critical balance-of-plant (BOP) automation and auxiliary system monitoring
- Ore Processing: Runs heavy-duty slurry pumps, crushers, and flotation cell controllers in corrosive environments
- Mining & Mineral Extraction Facilities:Crushers, conveyors & ventilation fans
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Chassis Slot: Locate the dedicated power supply slot in the HPM/UCN equipment cabinet.Alignment Guide: Align the module carefully with the top and bottom chassis guide rails.Seating the Unit: Slide the module firmly inward until the rear connectors fully engage.Securing Screws: Tighten the front panel retaining screws to secure the unit against vibrations.
Technical notes
The Honeywell 51198651-100 is a power supply module for the PM/APM/HPM (xPM) power system family. The Honeywell 51198651-100 is the current version released in early 2009. The Honeywell 51198651-100 replaces legacy black-colored power supplies (51109456-200) and older silver versions (51109684-100/300 and 51198947-100). The Honeywell 51198651-100 is available as a standalone component or within the MC-ZPSUG2 power system maintenance upgrade kit.
FAQs
-
What is the 51198651-100?
+The Honeywell 51198651-100 is a Power Supply , industrial-grade power supply module. It is primarily engineered for Honeywell's Universal Control Network (UCN) systems -
Which systems are compatible with the 51198651-100?
+It is purpose-built for legacy Honeywell Distributed Control Systems (DCS). It is fully compatible with PM, APM, and HPM process automation equipment enclosures -
What is the primary function of the Honeywell 51198651-100?
+It powers critical components housed in Process Manager (PM), Advanced Process Manager (APM), and High-Performance Process Manager (HPM) equipment cabinets. -
What are the input voltage requirements?
+It features a global-ready AC line input accepting 100–240 VAC.
