Technical specifications for FC-PDB-ARTF05
-
Product ModelFC-PDB-ARTF05
-
Product ParametersA.R.T. FUSED PWR DISTR. BOARD 5VDC WD
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size23.5x10.8x6.8cm
-
ManufacturerHoneywell
-
Weight0.4 kg
-
Power dissipation8 W typical
-
Hold-up time≥ 10 ms
-
Isolation1.5 kV RMS
-
Digital Inputs16 × 24 V DC
-
Digital Outputs8 × 24 V DC
-
Operating Temp–20 … +70 °C (T4); –20 … +55 °C (T5) – no derating
-
Storage Temp–40 … +85 °C
-
Humidity5 … 95 % RH non-condensing
Description
Safety Manager A.R.T Module
FUSED PWR DISTR BOARD
5 VDC ±5 %
24 VDC ±20 %
FUSED PWR DISTR BOARD
5 VDC ±5 %
24 VDC ±20 %
Information
Overview
Manuals
Technical notes
Product Applications
Electrical Connections and Wiring
Features:
- Advanced Redundant Technology (A.R.T.) Dual-Channel Design
- Individual Fuse Protection per Output Channel
- SIL 3 Functional Safety Compliance
- Robust IP66 Environmental Protection

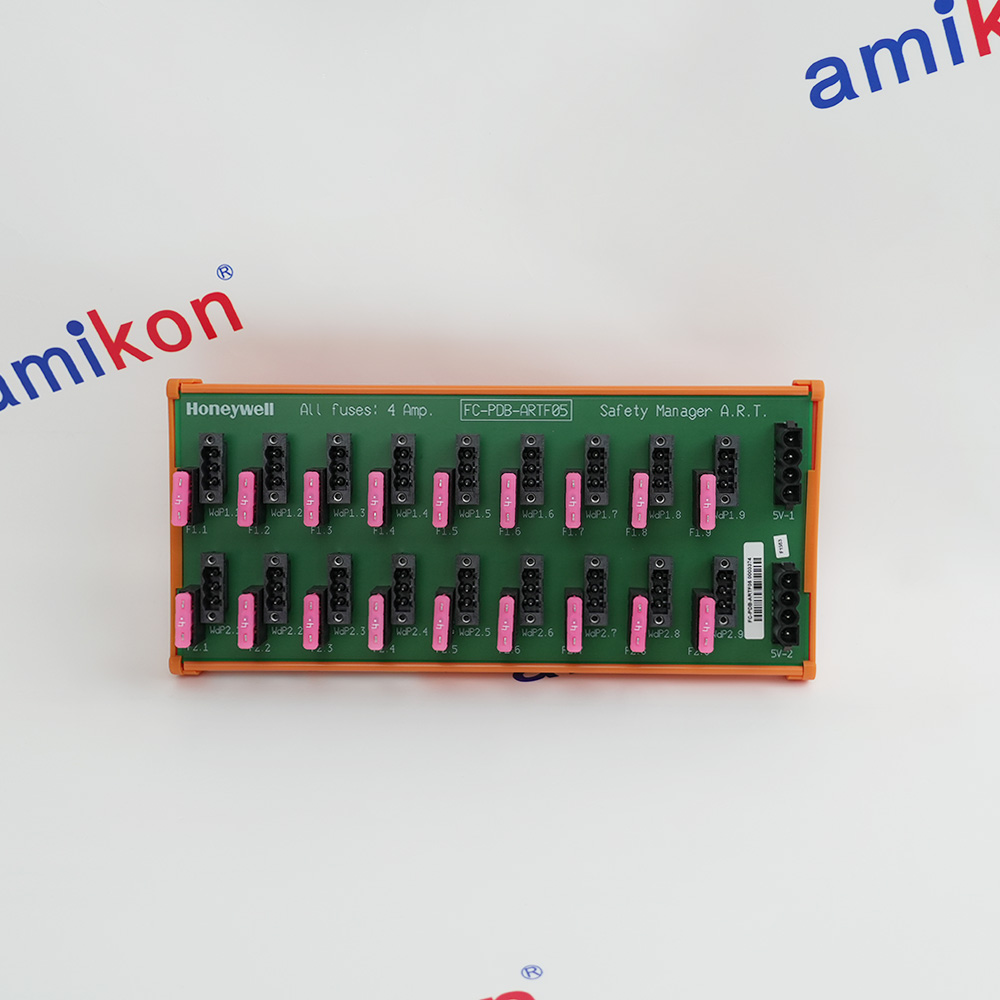

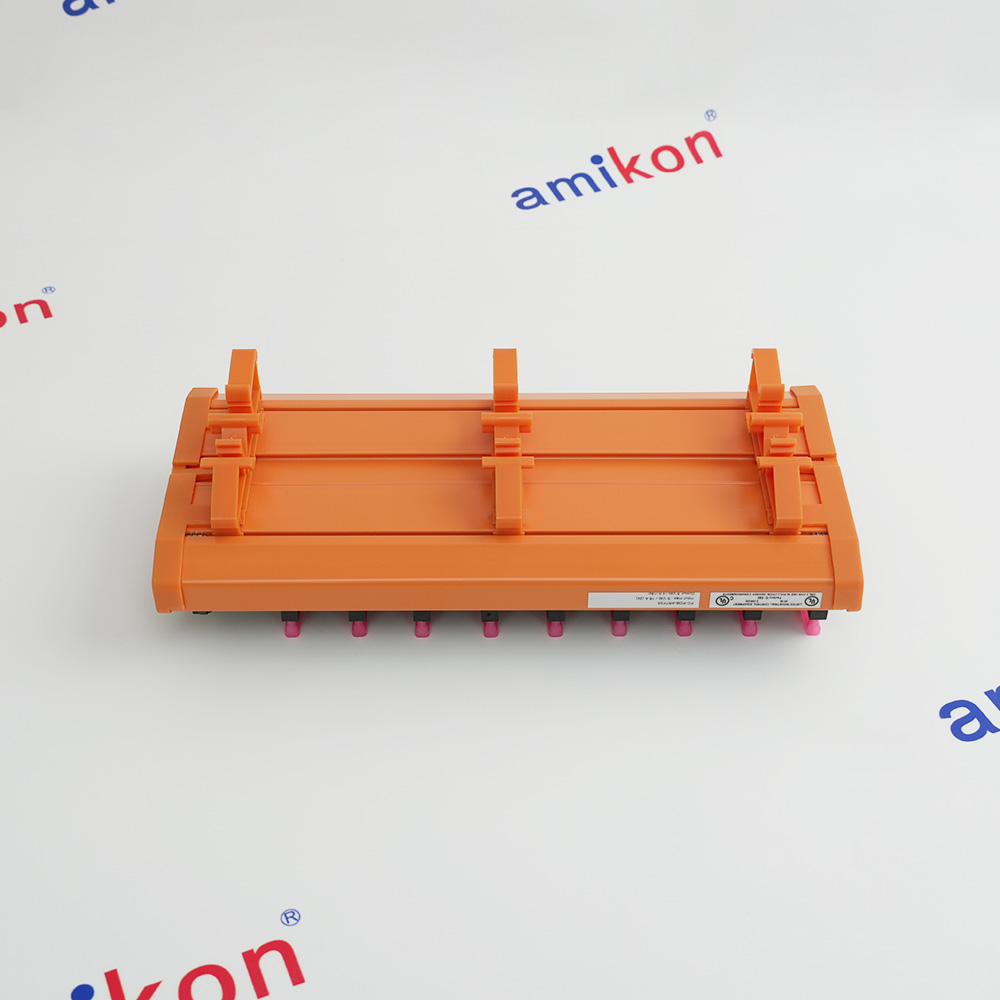

The HONEYWELL FC-PDB-ARTF05 Fused Power Distribution Board is a specialized Safety Manager A.R.T. (Advanced Redundant Technology) Module designed for mission-critical power and signal distribution within Honeywell Safety Manager (SM) systems. As an integral component of Honeywell's fault-tolerant safety architecture, this module ensures reliable, conditioned power delivery to field devices, I/O modules, and control processors in process automation, safety instrumented systems (SIS), and emergency shutdown (ESD) applications.
The FC-PDB-ARTF05 HONEYWELL Fused Power Distribution Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL FC-PDB-ARTF05 Fused Power Distribution Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
At the core of the FC-PDB-ARTF05 is its dual redundant 5 VDC power distribution capability. The module provides two independent power rails—5V-1 and 5V-2—each capable of delivering up to 16 A. This A.R.T. architecture guarantees that a single fault in one power path will not interrupt system operation; the redundant channel seamlessly assumes the full load, maintaining continuous power to safety-critical components. Each output channel is individually fused with 4 A blade fuses (5 × 19 mm, 32 VDC rating), limiting maximum output current to 2.8 A per fuse and ensuring that short-circuit or overload conditions remain localized without propagating across the safety network.
- Oil & Gas Processing:Upstream/refining/pipelines/LNG terminals
- Petrochemical & Chemical Plants:Powers safety instruments & shutdown valves
- Power Generation Facilities:Thermal/nuclear/green: supervises emergency safety
- Industrial Gas Compressors:Multi-voltage power for high-pressure gas extraction
- Blending & Mixing Facilities:Sequence control for high-torque blending vats
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Dual Power Input: Secure the dual 5V DC supply lines into the designated 4-position action-pin headers labeled 5V-1 and 5V-2.Earth Grounding: Attach a dedicated, low-impedance grounding strap from the board terminal directly to the enclosure's main earth reference bar.Field Loop Routing: Insert the field wiring into the 3-pole pin headers (WdPx.y). Use shielded wire pairs to suppress noise, keeping the shields tied cleanly to the designated 0 Vac/Vdc return.
FAQs
-
What is the FC-PDB-ARTF05?+The Honeywell FC-PDB-ARTF05 is a Fused Power Distribution Board (PDB) engineered for Honeywell Safety Manager systems
-
What type of fuses does the FC-PDB-ARTF05 use?+The module utilizes standard blade-style fuses (5 × 19 mm) with a voltage rating of 32V DC. The recommended maximum output current per fuse is 2.8A, and each individual fuse has a total rating of 4A
-
What are its specific electrical ratings?+The board supports an input rating of 5 VDC at 16A and outputs up to 5 VDC at 4A per fuse, with a maximum current capacity up to 10A across its 32 power distribution channels..
-
What safety standards does this module comply with?+It is certified for use in SIL 3 (Safety Integrity Level 3) applications. It carries official approvals from CE, UL, TUV, and CSA.
