Technical specifications for FS-TSDO-04UNI
-
Product ModelFS-TSDO-04UNI
-
Spare ModelTSDO-04UNI
-
Product ParametersSafe digital output FTA (24/48/110 V DC, 4 channels)
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock11 units
-
Estimated Shipping Size7x6x5.5cm
-
ManufacturerHoneywell
-
Weight0.05 kg
-
ApprovalsCE, UL, TUV, CSA
-
Number of channels4
-
Maximum voltage36 V DC – IEC 1010 (1990)
-
Maximum continuous current per channel4 A
-
Max. wire diameter2.5 mm⊃ 2; (AWG 14)
-
Strip length7 mm (0.28 in)
Description

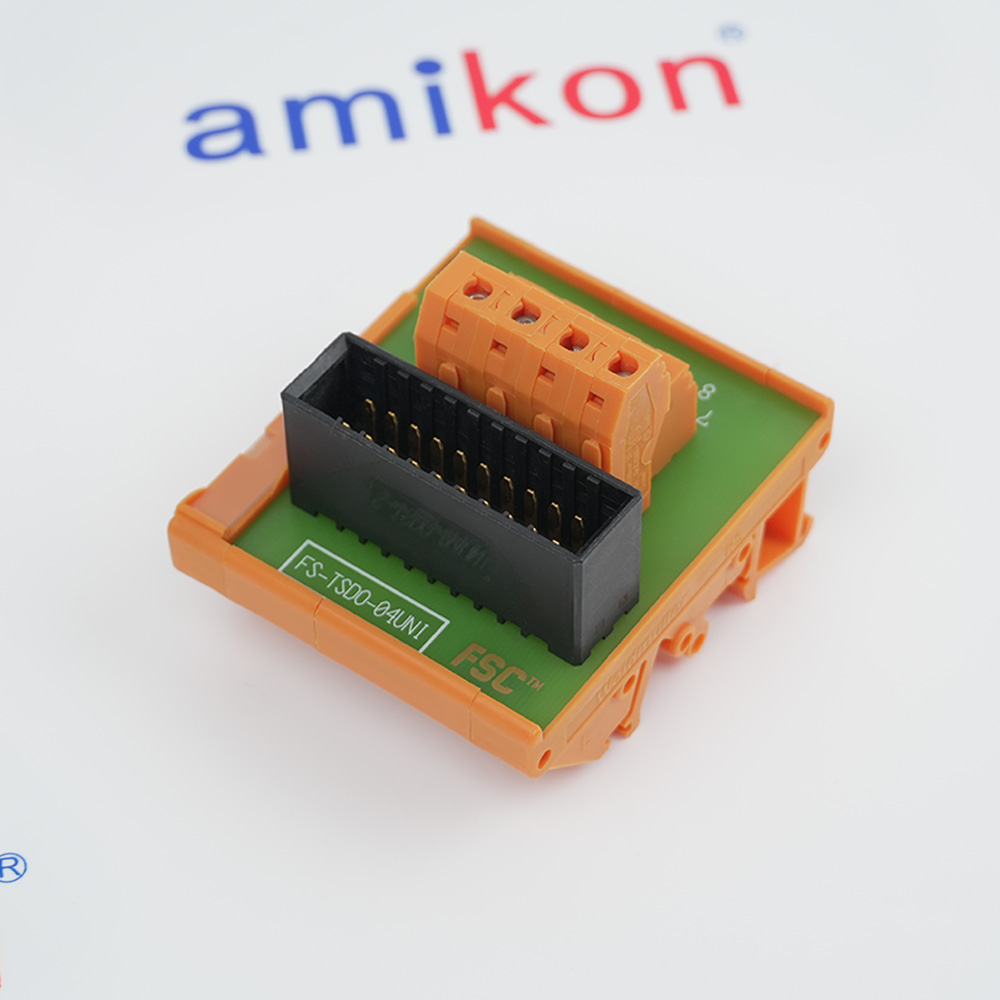

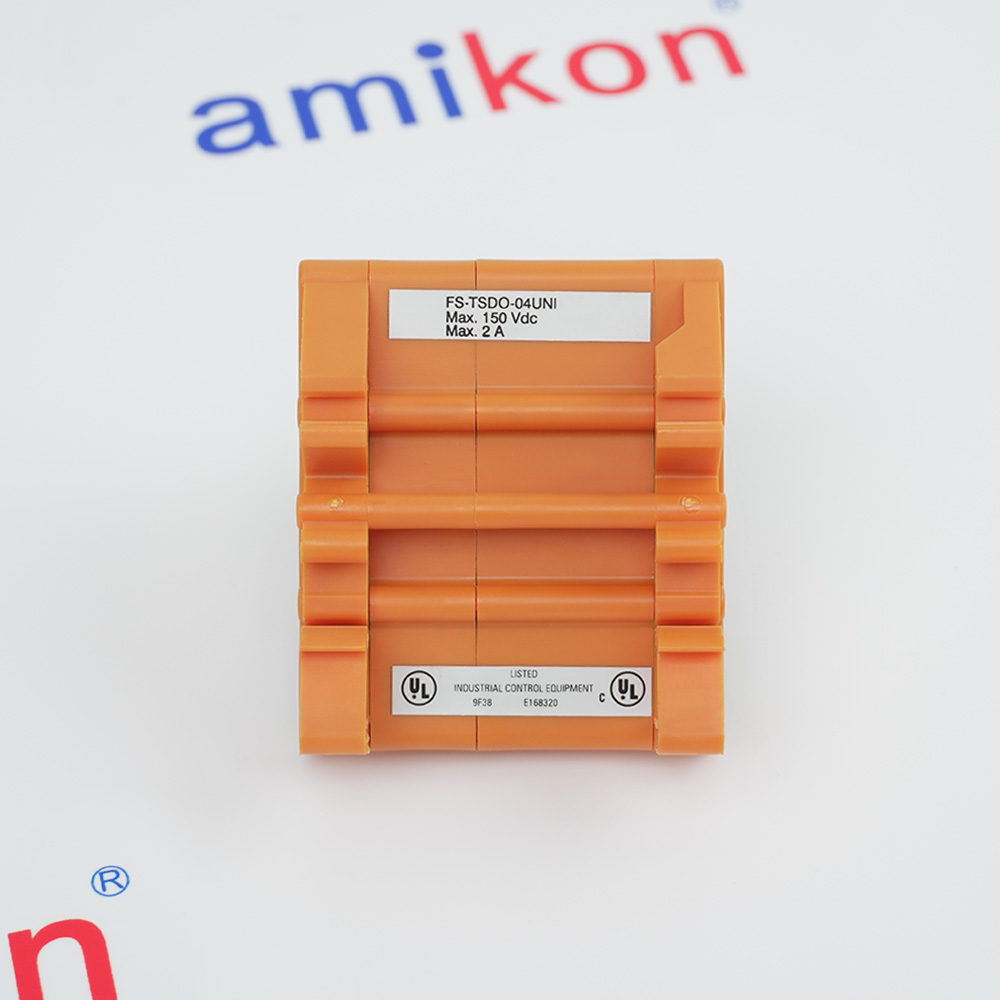

The Honeywell FS-TSDO-04UNI is a 4-channel Safe Digital Output Field Termination Assembly designed for use in Honeywell Safety Manager and FSC safety systems. The module serves as the interface between system output modules and external field devices, providing secure termination and distribution of safety-related digital output signals.
The unit supports 24 VDC, 48 VDC, and 110 VDC field circuits and is compatible with SDO-04x and SDOL-04x output modules. Through the SICC-0001/Lx system interconnection cable, a redundant pair of output modules can be connected to the FTA, supporting fault-tolerant safety architectures commonly used in Safety Instrumented Systems (SIS).
Each of the four output channels supports up to 2 A continuous current, making the module suitable for driving solenoids, shutdown relays, contactors, annunciators, valves, and other final control elements used in critical safety applications. The assembly provides field wiring termination through screw terminals and incorporates a DIN-rail mounting arrangement for straightforward installation inside Safety Manager cabinets
The unit supports 24 VDC, 48 VDC, and 110 VDC field circuits and is compatible with SDO-04x and SDOL-04x output modules. Through the SICC-0001/Lx system interconnection cable, a redundant pair of output modules can be connected to the FTA, supporting fault-tolerant safety architectures commonly used in Safety Instrumented Systems (SIS).
Each of the four output channels supports up to 2 A continuous current, making the module suitable for driving solenoids, shutdown relays, contactors, annunciators, valves, and other final control elements used in critical safety applications. The assembly provides field wiring termination through screw terminals and incorporates a DIN-rail mounting arrangement for straightforward installation inside Safety Manager cabinets
Information
Overview
Manuals
Technical notes
Product Applications
Installation and Usage
Features:
- Universal Voltage Compatibility
- 4-Channel Fail-Safe Digital Output Interface
- Line Monitoring Capability
- Universal DIN Rail Mounting
- Robust Screw Terminal Field Wiring
Field termination assembly module TSDO-04UNI is the interface betweensystem interconnection cable SICC-0001/Lx and the external field wiring (screwterminals). The four channels of a (redundant pair of) SDO-04x module(s) orSDOL-04x module(s) can be connected to the TSDO-04UNI module via systeminterconnection cable SICC-0001/Lx.The FTA module has a universal snap-in provision for standard DIN EN rails, andscrew terminals for connecting field wiring.
The FS-TSDO-04UNI Honeywell Field termination assembly module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TSDO-04UNI Field termination assembly module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FC-TSDO-04UNI (also referred to as FS-TSDO-04UNI) is a field termination assembly (FTA) designed for high-integrity safety applications within the Honeywell Safety Manager system.Interfaces with Safety Manager output modules (like SDO-0424 or SDOL-0424) via a SICC-0001/Lx system interconnection cable. The "FC-" prefix indicates the module is conformal coated for protection against harsh or corrosive environments, whereas "FS-" denotes the non-coated version
- Oil & Gas:Petrochemical plants & pipeline safety monitoring
- Power Generation:Process safeguarding, BMS & boiler control
- Chemical Processing:Safety-critical automation for complex control
- Marine Automation:Automated safety systems in marine environments
- Emergency Shutdown Systems (ESD):Automatically shuts down processes to prevent hazards
- Fire & Gas Detection:Controls output signals for detection & response
- Turbomachinery Control:Safeguards turbines/compressors from failure/damage
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The module features a universal snap-in provision for standard DIN EN rails.
Wiring: Connect field devices to the screw terminals. The module interfaces with safety controllers via dedicated system interconnection cables .
Application: Ideal for safety-critical output operations, such as shutting down equipment, activating alarms, or controlling relays in hazardous environments.
Alternative Names
FS-TSDO-04UN1
FS-TSDO-O4UNI
FS-TSD0-04UNI
FS TSDO 04UN1
FS TSDO O4UNI
FS TSD0 04UNI
FS-TSD0-O4UN1
FS TSD0 O4UN1
Technical notes
The module connects to a redundant pair of SDO or SDOL safe digital output modules via the SICC-0001/Lx system interconnection cable. Compatible output modules include the SDO-0448 (48 V DC, 0.75 A), SDO-04110 (110 V DC, 0.32 A), SDOL-0424 (24 V DC, 1 A with loop monitoring), and SDOL-0448 (48 V DC, 0.5 A with loop monitoring). The actual maximum current per channel is determined by the connected output module.
FAQs
-
What is the Honeywell FS-TSDO-04UNI？
+The FS-TSDO-04UNI (also referred to as FC-TSDO-04UNI) is a Safe Digital Output Module designed by Honeywell for industrial safety applications, particularly within the Safety Manager System. -
What is the FS-TSDO-04UNI voltage range?
+It supports 24/48/110 Vdc (depending on application) and can handle up to 150 Vdc according to IEC 1010-1990 standards. -
What is the maximum current of the FS-TSDO-04UNI?
+The maximum continuous current per channel is 2A, and the maximum total current across all channels is 4A. -
What output types does the FS-TSDO-04UNI offer?
+It provides a general-purpose DC output switch, commonly used in fail-safe and line monitoring applications.
