Technical specifications for FS-TSDO-0824
-
Product ModelFS-TSDO-0824
-
Spare ModelTSDO-0824
-
Product ParametersSafe digital output FTA (24 V DC, 8 channels)
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock22 units
-
Estimated Shipping Size7x6x5.8cm
-
ManufacturerHoneywell
-
Weight0.05 kg
-
ApprovalsCE, TUV, UL, CSA, FM
-
Number of channels8
-
Maximum voltage36 V DC - IEC 1010 (1990)
-
Maximum continuous current per channel1.5 A
-
Max. wire diameter2.5 mm⊃ 2; (AWG 14)
-
Strip length7 mm (0.28 in)
-
Tightening torque0.5 Nm (0.37 ft-lb)
Description

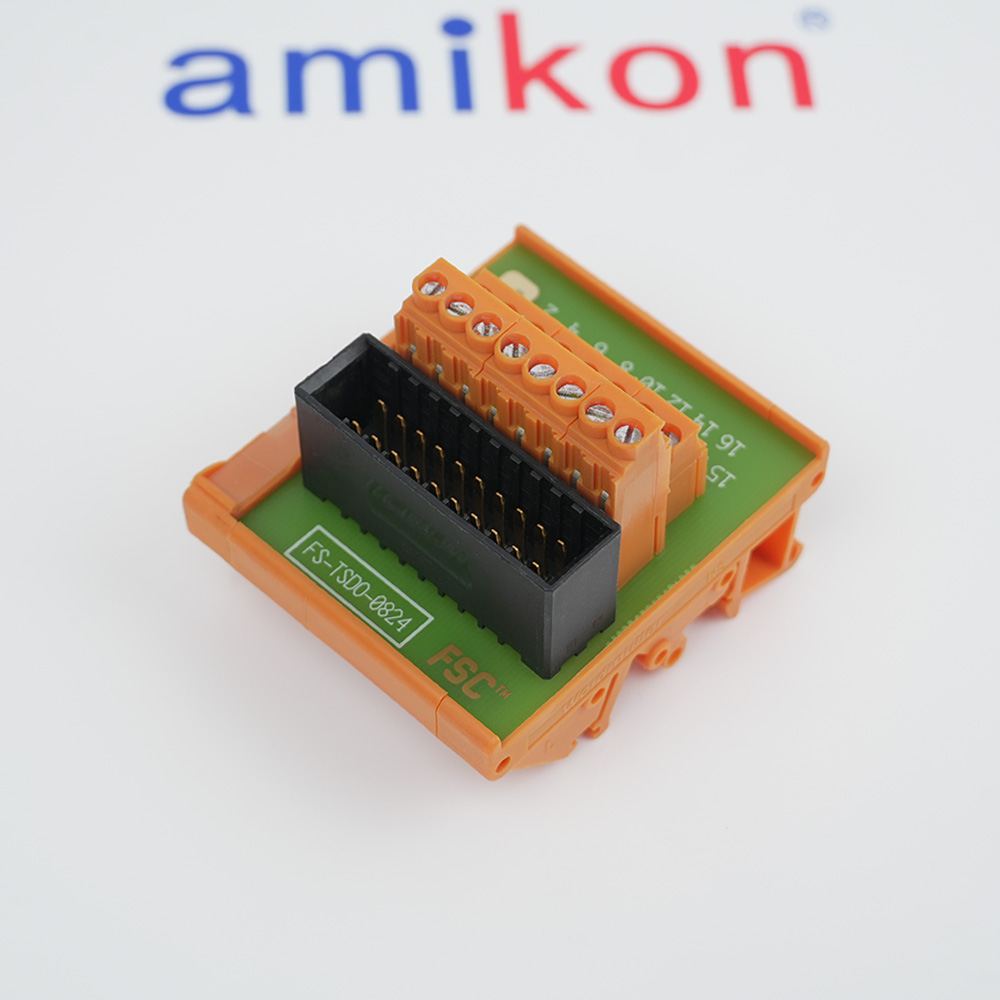

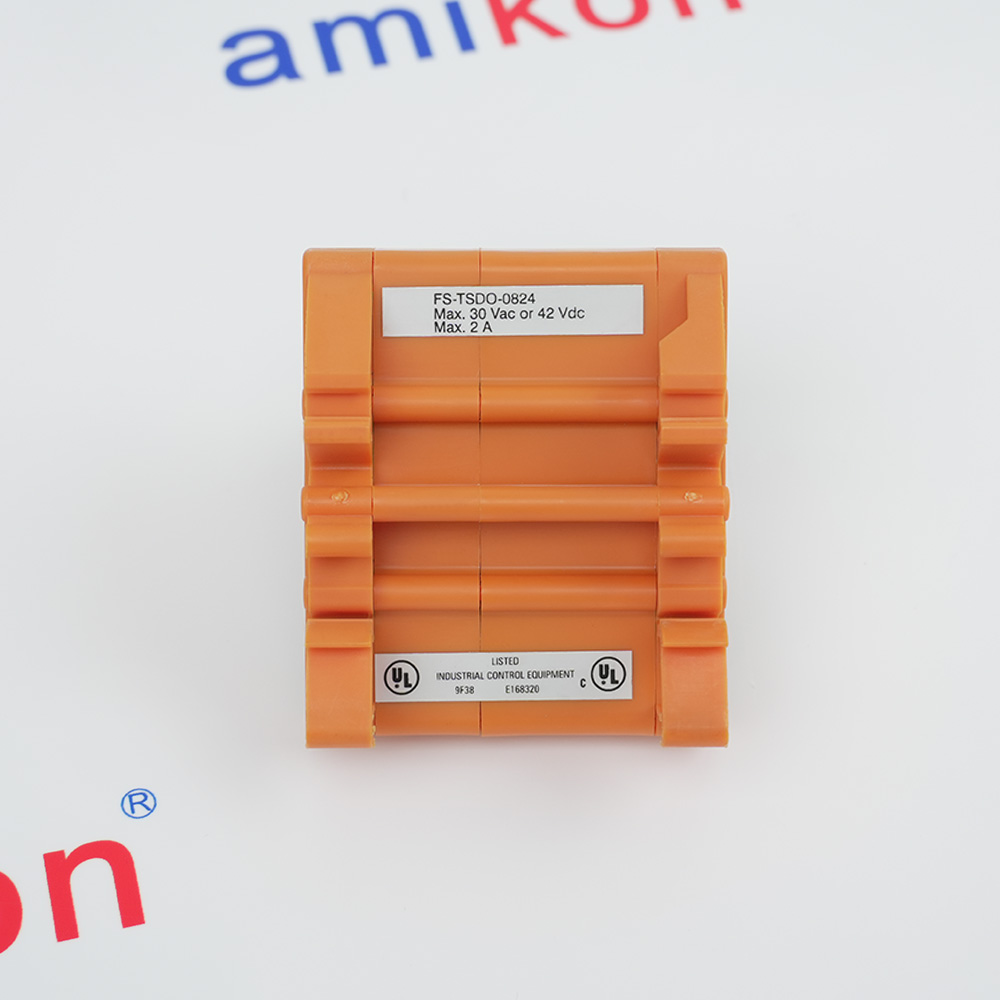

The Honeywell FS-TSDO-0824 is a Safe Digital Output Field Termination Assembly (FTA) developed for Honeywell Safety Manager systems. It provides the interface between the SDO-0824 safe digital output modules and external field wiring, enabling reliable signal transmission for safety-critical control applications. The module is designed to support eight independent digital output channels operating from a 24 VDC system architecture.
The FTA connects to a redundant pair of SDO-0824 output modules through the Honeywell SICC-0001/Lx system interconnection cable. This arrangement supports high-availability safety configurations commonly used in emergency shutdown systems, fire and gas systems, burner management systems, turbine protection systems, and other Safety Instrumented System (SIS) applications.
The FTA connects to a redundant pair of SDO-0824 output modules through the Honeywell SICC-0001/Lx system interconnection cable. This arrangement supports high-availability safety configurations commonly used in emergency shutdown systems, fire and gas systems, burner management systems, turbine protection systems, and other Safety Instrumented System (SIS) applications.
Information
Overview
Manuals
Technical notes
Product Applications
Operational Specifications
Features:
- Fail-safe digital output FTA
- 8-Channel Fail-Safe Digital Output Interface
- SIC-C-12 System Interconnection Cable Compatibility
- Universal DIN EN Rail Snap-In Mounting
The field termination assembly module FS-TSDO-0824 is theinterface between the system interconnection cable SIC-C-12 and theexternal field wiring (screw terminals).The eight channels of a (redundant pair of ) 10201/2/1 module(s) canbe connected to the FS-TSDO-0824 module via the systeminterconnection cable SIC-C-12.The FTA module has a universal snap-in facility for standard DIN ENrails, and screw terminals for connecting field wiring.
The FS-TSDO-0824 Honeywell Safe Digital Output Field Termination Assembly may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TSDO-0824 Safe Digital Output Field Termination Assembly Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FS-TSDO-0824 is a Safe Digital Output Field Termination Assembly (FTA). It is a fail-safe module for use in safety-critical industrial applications, typically integrated with Honeywell's Safety Manager or Fail Safe Control (FSC) platforms. Engineered to ensure safe shutdown or control of field devices during a system fault.Acts as the interface between system interconnection cables (like the SICC-0001/Lx) and external field wiring via screw terminals.Provides channel-to-channel and system isolation to maintain fault tolerance and prevent electrical interference.
- Emergency Shutdown (ESD) Systems:Secure shutdown signals for critical failures to protect personnel/equipment
- Fire and Gas Detection:Actuates alarms, suppression or ventilation on hazard detection
- Burner/Boiler Management Systems (BMS):Controls solenoids/igniters for safe combustion equipment operation
- Machinery Safety:Fail-safe controls for complex machinery & assembly actuators
- Turbine and Compressor Safeguarding:Safety-critical valve control for high-speed rotating equipment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Nominal Voltage: 24 VDC (Max 36 VDC).
Current Limits: Supports up to 1.5 A continuous per channel, though the actual maximum is defined by the connected output module (typically 550 mA for safe operation).
Temperature Range: Operates reliably between –20°C to +65°C (standard) or up to +75°C in certain configurations.
Alternative Names
FS-TSDO-O824
FS-TSD0-0824
FS TSDO 0824
FS TSD0 0824
FS TSD0 O824
Technical notes
Each channel supports continuous current up to 1.5 A, while the actual output capability is determined by the connected output module. The assembly is equipped with screw terminals for secure field wiring connections and accommodates conductors up to 2.5 mm² (AWG 14). Its compact DIN-rail-mounted construction allows efficient installation in Safety Manager cabinets while simplifying maintenance and replacement procedures
FAQs
-
What is FS-TSDO-0824?
+The Honeywell FS-TSDO-0824 is a 24 Vdc, 8-channel Safe Digital Output Field Termination Assembly (FTA) used in Honeywell Safety Manager and Fail Safe Control (FSC) systems. -
What is the function of the FS-TSDO-0824?
+It serves as a safe digital output, providing fail-safe control, meaning it will safely shut down processes in case of a system failure, minimizing downtime and risks. -
How many channels does it support?
+It supports 8 digital output channels. -
What are the output voltage and current capacity of FS-TSDO-0824?
+This module operates at 24Vdc and typically supports 0.5A to 1.5A of current per channel (depending on the model documentation). -
What safety rating does the module hold?
+It is designed for safety-critical systems, with models often listed for SIL 2 or higher applications.
