PRODUCT DESCRIPTION

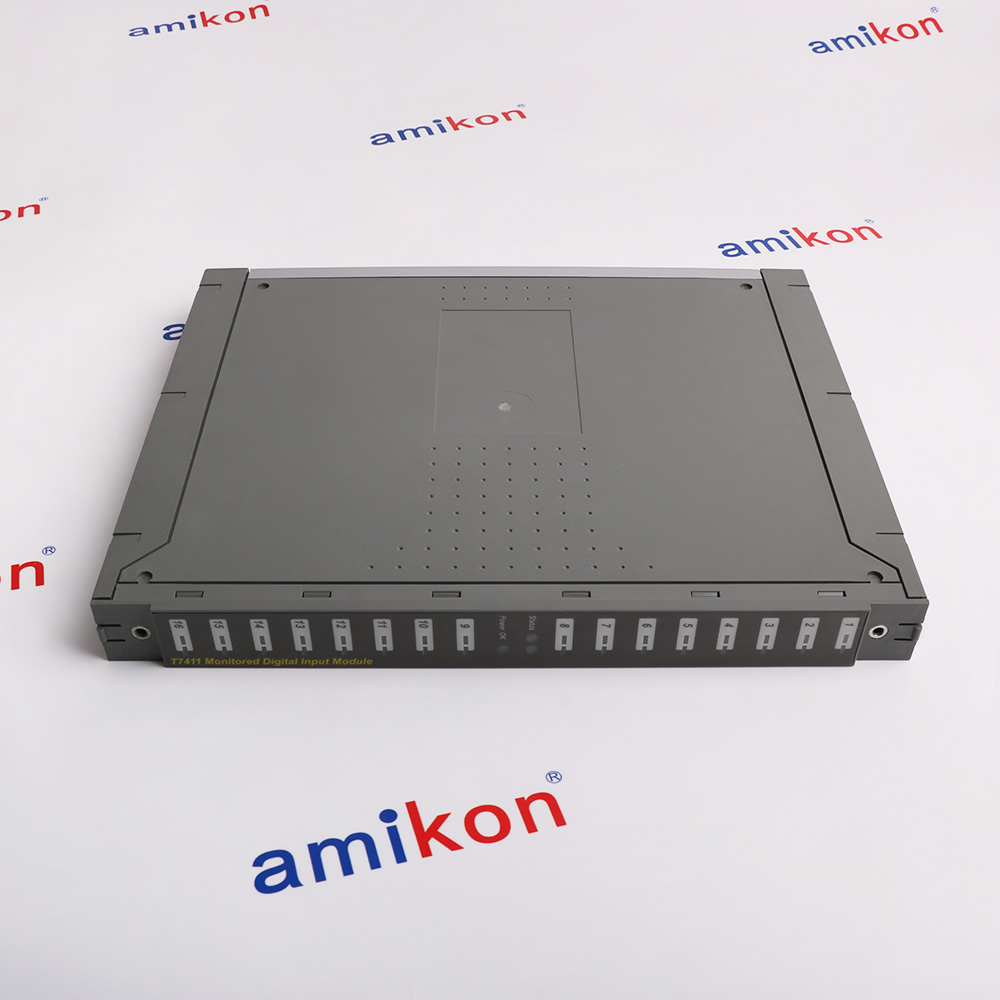

T7411 monitored digital input module for field switches
T7411 is a Regent + Plus monitored digital input module that senses sixteen field switches. With suitable line monitor devices at the switches, it detects switch position and open or shorted field wiring, reporting both input and line status to the controller.
The module accepts field power from 15 to 80 V DC and internally regulates the input supply to 24 V DC. Automatic input-circuit testing and individual status indicators support fault detection, while redundant arrangements require the documented parallel connections and configuration.
The module accepts field power from 15 to 80 V DC and internally regulates the input supply to 24 V DC. Automatic input-circuit testing and individual status indicators support fault detection, while redundant arrangements require the documented parallel connections and configuration.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T7411 Fits Across Industrial Production Sectors
Supports oil, chemical and power facilities where field-switch arrangements and controller configuration match the documented installation.
-
01 · POWER GENERATION
Electricity Generation at Gas Fired and Combined Cycle Facilities
Gas fired generating stations supplying electricity for industrial consumers.Combined cycle generating facilities producing power for utility networks. -
02 · OIL & GAS
Petroleum Extraction, Gas Treatment and Hydrocarbon Processing Facilities
Offshore petroleum platforms handling extraction and initial production processing.Natural gas treatment plants and refineries processing hydrocarbon feedstocks. -
03 · CHEMICAL PROCESSING
Bulk Chemical Manufacturing and Specialty Product Production Areas
Continuous chemical manufacturing lines producing basic industrial chemical feedstocks.Batch blending facilities preparing formulated chemicals and specialty products.

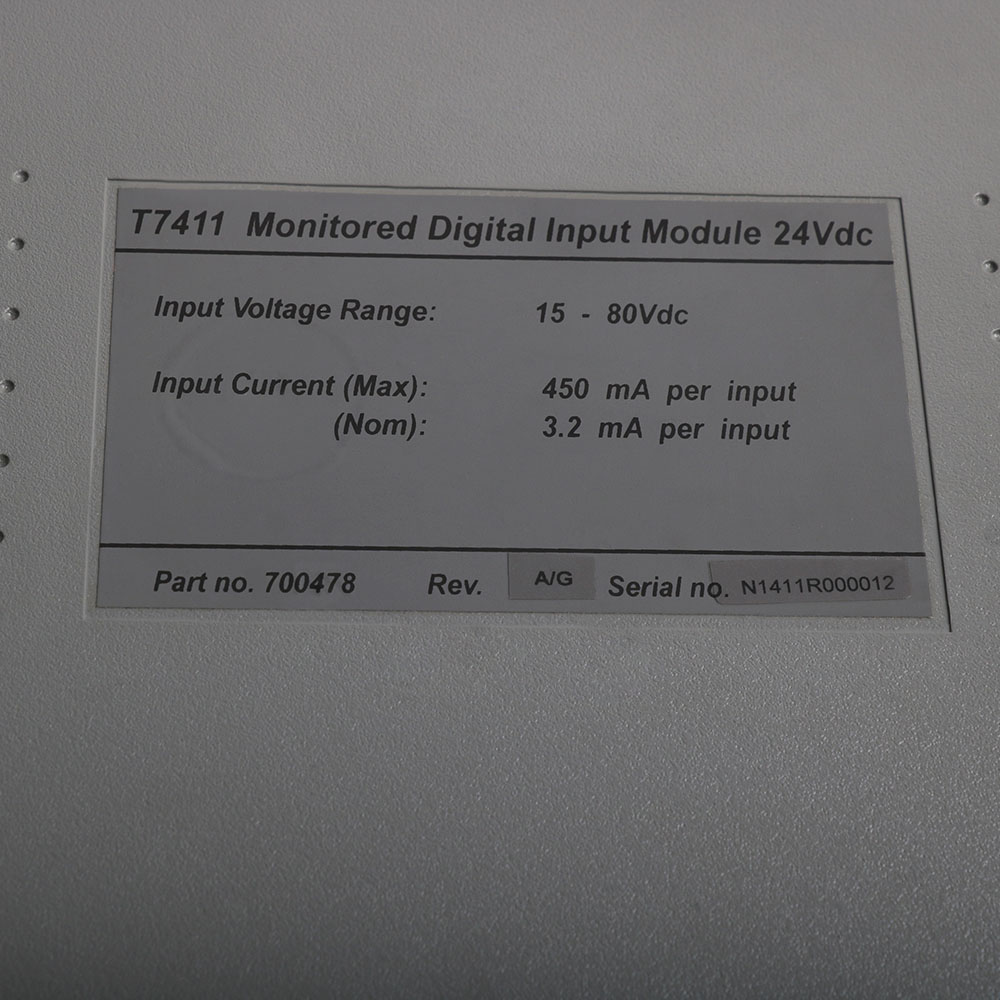

Technical specifications for T7411
-
Product ModelT7411
-
Product ParametersMonitored Digital Input Module
-
ManufacturerICS Triplex
-
Input arrangement16 inputs with a common power return
-
Field-power voltage15 to 80 V DC
-
Maximum field-power current450 mA
-
Regulated field-input supply24 V DC, internally regulated
-
Maximum input current5.0 mA
-
Input delay10 ms maximum turn-on and turn-off
-
Overvoltage protection100 V DC continuous at power terminals; 27 V DC at input terminals
-
Safetybus power0.85 load units
-
Heat dissipation8.5 W
-
Field-to-logic isolation2500 V minimum
-
Input fusingNone required; internal resistor limits short-circuit current to 5 mA
-
Operating temperature0 to 60 degrees C
-
Storage temperature-40 to 85 degrees C
-
Operating humidity0 to 95% RH, non-condensing
View all additional
Alternative Names
Regent Plus T7411 digital input
ICS Triplex monitored input module
T7411 16 point input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
REGENT + PLUS EQUIPMENT
Match T7411 to the documented Regent + Plus configuration
T7411 senses field-switch status within a compatible Regent + Plus I/O installation. Input and line-fault information are reported separately so that the controller logic can respond to wiring faults.
A line monitor device belongs at the field switch. The manufacturer gives different arrangements for a single switch with redundant modules and for independently redundant switches; do not combine those drawings.
Input testing depends on the program scan and I/O arrangement. Threshold settings, fault variables and the approved application logic must be checked against the controlled installation documents.
Features:
- Sixteen monitored switch inputs
- Separate input and line-fault status
- Configuration-dependent diagnostic testing
The ICS Triplex T7411 monitored digital input module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match T7411 and its supplied revision to the installed Regent + Plus module. A similar four-digit model from Regent or Trusted does not establish mechanical, electrical or configuration compatibility.
Verify field power, monitor-device selection, terminal wiring, thresholds and the intended simplex or redundant arrangement. Confirm the slot keys against the applicable OEM and site installation records.
Follow the approved maintenance and isolation procedure. Continued input availability during replacement depends on the documented redundant arrangement, not solely on the module being described as hot-replaceable.
Features:
- Verify complete module identity
- Match switch and line-monitor wiring
- Retain approved fault handling
The ICS Triplex T7411 monitored digital input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T7411 monitored digital input module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T7411
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does T7411 monitor?
It monitors sixteen field-switch inputs. With the appropriate line monitor devices fitted at the switches, it distinguishes switch status from open or shorted field wiring. -
What field-power supply is required?
The manual specifies 15 to 80 V DC field power, with maximum supply current of 450 mA. The module internally regulates this supply to 24 V DC for its field-input circuits. -
Are line monitor devices interchangeable?
No. The manual assigns T0412 and T0413 to different single-sensor and redundant arrangements. Select the device from the original wiring diagram for the actual arrangement. -
Can disabling the line-fault LED stop diagnostics?
No. The configuration option disables the front-panel fault indication, not the underlying monitoring. Keep the line-fault variables and required alarm handling configured. -
Is the input self-test interval fixed?
No. The detailed timing description makes it dependent on the program scan time and I/O configuration. A single interval is not specified here because the manual summaries are inconsistent. -
Can T7411 be replaced while inputs remain available?
The manufacturer describes this for the documented fault-tolerant configurations using parallel modules. It is not general permission to disconnect field wiring or perform live electrical work. -
What must be verified before a replacement is ordered?
Check the exact model and revision, Regent + Plus chassis, field supply, line monitor devices, slot arrangement and configured thresholds. The supplied unit and the installed design must be reviewed together.
