- AQS-274AM1B3A1

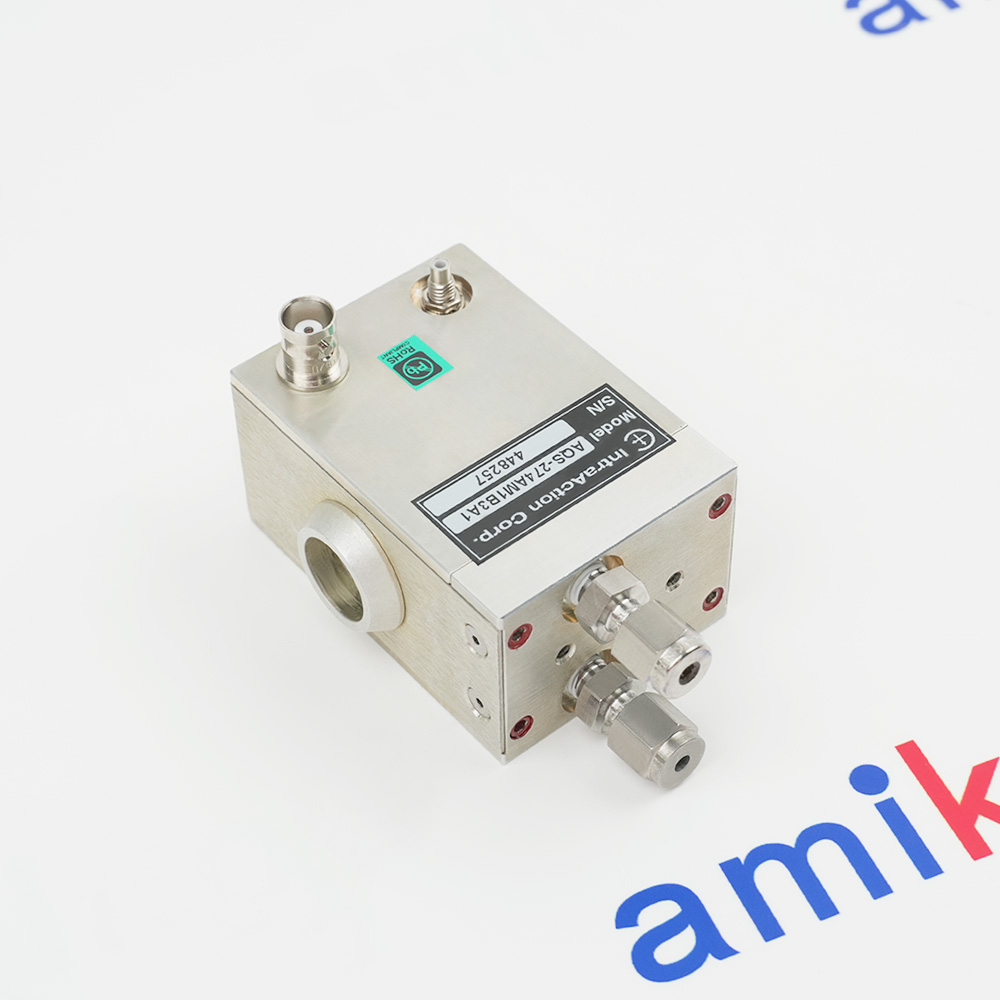

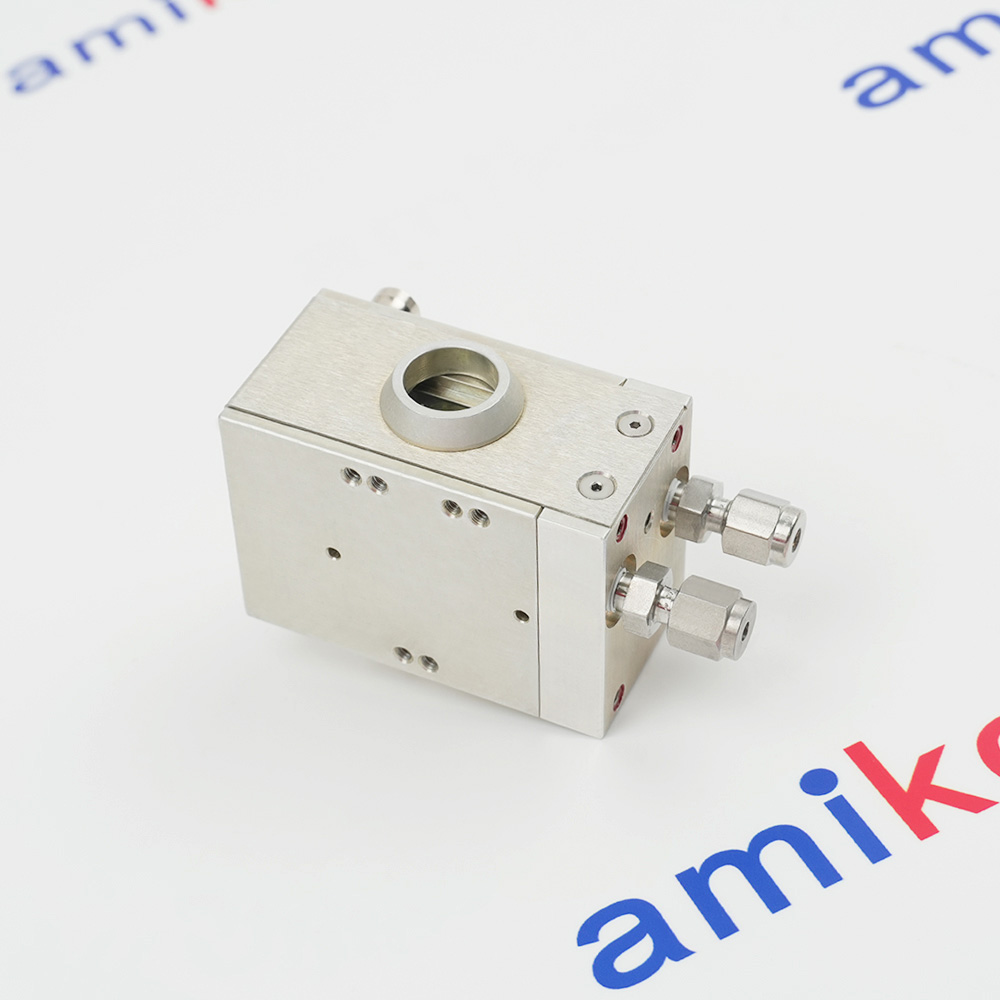

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for AQS-274AM1B3A1
-
Product ModelAQS-274AM1B3A1
-
Product Parameterscousto-Optic Q-Switch
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9.5x6.3x5cm
-
ManufacturerIntraAction
-
Weight0.3 kg
-
Optical Wavelength1.06 μm
-
Anti-reflection Coating Reflectance< 0.05%
-
Optical Power Capability500 mW/cm2
-
Optical Rise Time110 ns/mm optical beam diameter
-
Static Optical Insertion Loss0.3%
-
Optimum PolarizationPerpendicular to mounting surface
-
Input Impedance / VSWR50 ohms/1.25
-
RF ConnectorBNC
-
Heat Exchange Water cooled250 ml/min
Description
CAVITY LOSS MODULATION
HIGH OPTICAL POWER CAPABILITY
HIGH RELIABILITY
EXCELLENT TEMP. STABILITY
HIGH OPTICAL POWER CAPABILITY
HIGH RELIABILITY
EXCELLENT TEMP. STABILITY
Information
Overview
Manuals
Technical notes
Product Applications
Operational Logic
Features:
- CAVITY LOSS MODULATION
- HIGH OPTICAL POWER CAPABILITY
- HIGH RELIABILITY
- EXCELLENT TEMP. STABILITY
The AQs-274AM1B3A1 IntraAction Acousto-Optic Q-Switch may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
IntraAction AQs-274AM1B3A1 Acousto-Optic Q-Switch Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IntraAction AQS-274AM1B3A1 is an acousto-optic (AO) Q-switch primarily used as a laser marker part to generate high-peak-power laser pulses. It works by using an RF-driven acoustic wave to create diffraction losses within a laser cavity, preventing lasing while energy builds up and then releasing it in short, high-intensity bursts
- Medical Applications:Medical lasers & hyperspectral cancer imaging
- Laser Spectroscopy:High-sensitivity optical power change measurement
- Cutting & Micromachining:Precise laser pulses for aerospace/electronics material removal
- Laser Marking:High-speed engraving/marking on various materials
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
RF ON (Hold-off State): The RF signal creates an acoustic wave that diffracts the laser beam, increasing cavity loss and preventing lasing while energy builds up.
RF OFF (Pulse State): The RF signal is rapidly cut off, stopping the diffraction. This restores the cavity's high Q-factor, allowing the stored energy to be released as a high-intensity pulse
FAQs
-
How does AQS-274AM1B3A1 work?+The AO Q-switch operates by generating an ultrasonic wave in a crystal (usually fused silica or quartz) via a piezoelectric transducer. This wave creates a diffraction grating, deflecting the light out of the laser cavity.
-
What is the IntraAction AQS-274AM1B3A1？+An acousto-optic (AO) Q-switch is an intracavity device that generates high-peak-power laser pulses by using an RF-driven acoustic wave to create diffraction losses, preventing lasing while energy builds up.
-
What are the AQS-274AM1B3A1 key performance indicators?+Critical parameters include low insertion loss (for high efficiency), high optical damage threshold, high diffraction efficiency (to suppress lasing when active), and high extinction ratio.
-
What is the difference between AO and EO Q-switches?+AO Q-switches are generally easier to operate and used for moderate pulse repetition rates, while Electro-Optic (EO) Q-switches (using the Pockels effect) allow faster switching and higher peak powers but require much higher voltages (kV range).
