PRODUCT DESCRIPTION

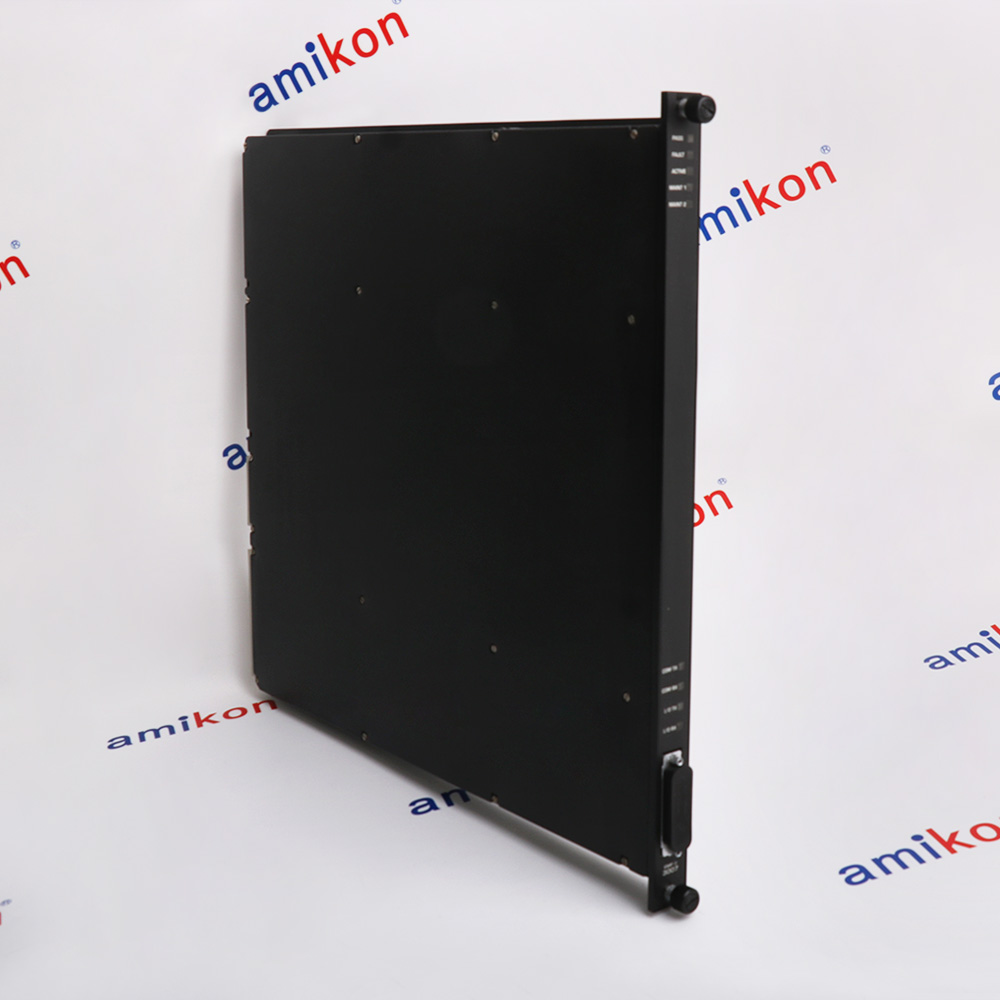

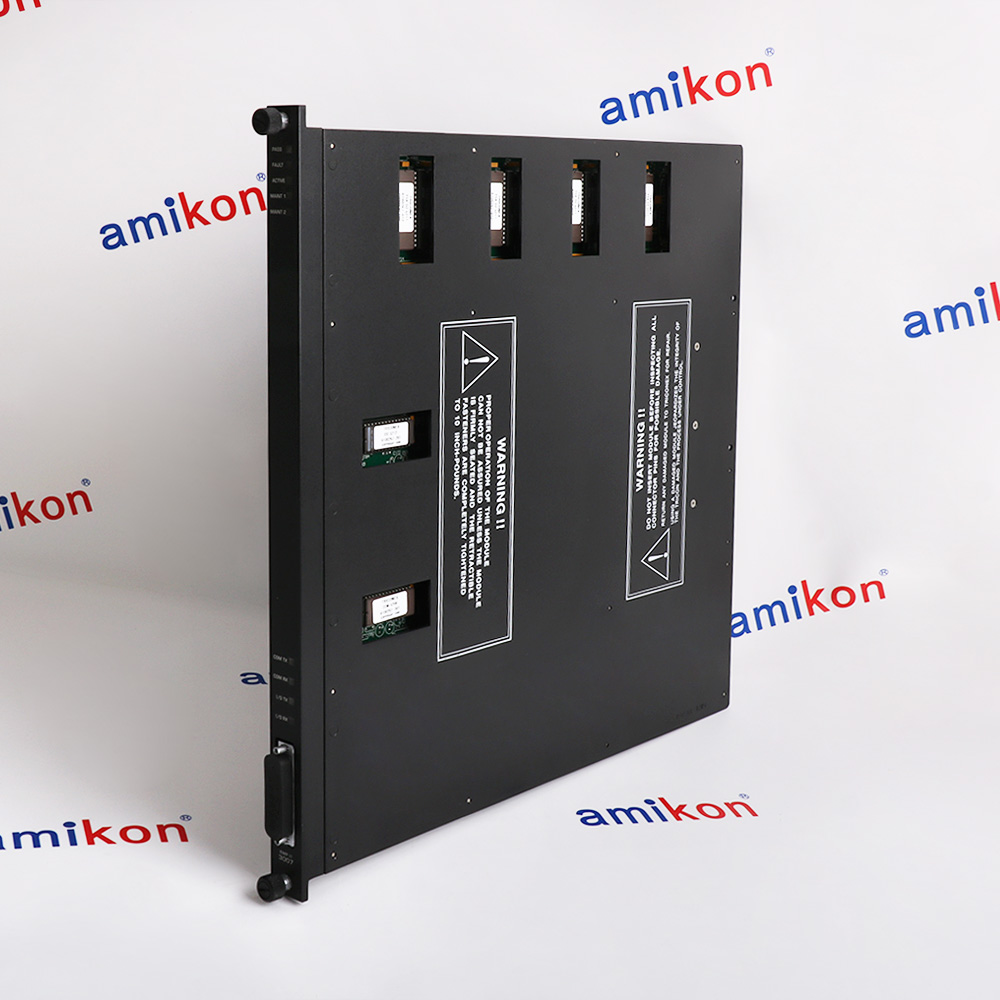

3007 - Main Processor Module
Triconex 3007 is a Main Processor Module listed for Tricon v9.0-v9.5.x and v9.51.x systems. It uses a 25 MHz National NS32GX32 central processor, an NS32381 math co-processor and 1 MB of SRAM.
Three Main Processors independently execute the control program and compare information through TriBus. Preserve the exact controller generation and memory requirement; the shared 3006/3007 specification assigns different SRAM capacities to the two models.
Three Main Processors independently execute the control program and compare information through TriBus. Preserve the exact controller generation and memory requirement; the shared 3006/3007 specification assigns different SRAM capacities to the two models.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 3007 supports legacy Tricon processing
The original specification distinguishes processor memory, internal buses and diagnostic access. Preserve the approved controller generation when replacing a Main Processor.
-
01 · PROGRAM EXECUTION
Run one independent control channel
Each Main Processor independently communicates with its I/O subsystem and executes the control program. Maintain the documented three-processor controller arrangement and approved application configuration. -
02 · EVENT RECORDING
Capture configured Boolean transitions
Use configured sequence-of-events blocks to record designated Boolean state changes with timestamps. Retrieve event data through the documented communication arrangement and SOE software. -
03 · FAULT ANALYSIS
Read processor diagnostic information
Use the dedicated optically isolated serial interface for Diagread diagnostic analysis. Do not present this connector as an unrestricted network or field-device interface.
Technical specifications for 3007
-
Product Model3007
-
Product ParametersMain Processor Module
-
Estimated Shipping Size2.1x40.7x40cm
-
ManufacturerInvensys
-
Weight2.45 kg
-
Compatible controller versionsTricon v9.0-v9.5.x and v9.51.x
-
Central processorNational NS32GX32, 32-bit, 25 MHz
-
Math co-processorNational NS32381, 32-bit, 25 MHz
-
EPROM capacity512 KB
-
SRAM capacity1 MB
-
Clock calendarBattery-backed time and date
-
Clock drift+/-2 seconds/day typical; +/-8.6 seconds/day maximum
-
TriBus rate and transfer4 Mbps; 16-bit DMA
-

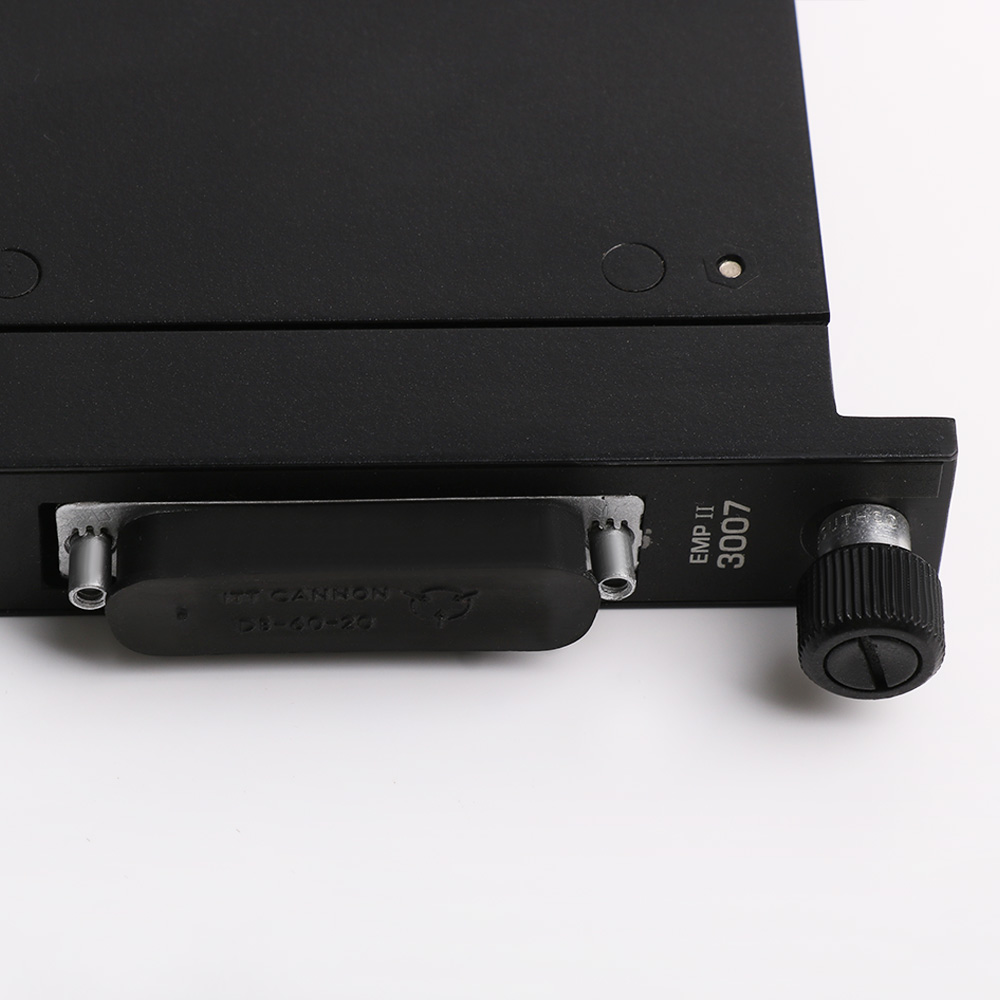

Diagnostic serial portOptically isolated RS-232, 25-pin connector
-
Serial-port isolation500 VDC
-
Communication processorIntel 80C152, 16 MHz
-
Communication processor memory32 KB EPROM; 64K shared-memory interface
-
Communication bus interfaceRS-485 at 2 Mbps
-
I/O processor and interfaceIntel 80C31, 12 MHz; RS-485 at 375 kbps
-
Logic power15 W
View all additional
Alternative Names
3007
Triconex 3007
Tricon 3007
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Retain the processor generation and memory requirement
Triconex 3007 is a Main Processor Module listed for Tricon v9.0-v9.5.x and v9.51.x systems. It uses a 25 MHz National NS32GX32 central processor, an NS32381 math co-processor and 1 MB of SRAM.
Three Main Processors independently execute the control program and compare information through TriBus. Preserve the exact controller generation and memory requirement; the shared 3006/3007 specification assigns different SRAM capacities to the two models.
Check the installed controller version, three-processor arrangement and application memory requirement. Model 3007 has 1 MB SRAM, not the 2 MB specified for 3006.
Features:
- 1 MB model-specific SRAM
- 25 MHz central and math processors
- 4 Mbps TriBus communication
The 3007 requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm 3007 identity and an active surviving processor before online exchange. Follow the processor-specific 1-10 minute indication window.
Three Main Processors independently execute the control program and compare information through TriBus. Preserve the exact controller generation and memory requirement; the shared 3006/3007 specification assigns different SRAM capacities to the two models.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- 1 MB model-specific SRAM
- 4 Mbps TriBus communication
- Dedicated Diagread serial interface
The 3007 requires replacement verification of processor status, controller version and application operation before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3007 is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size49 × 45.3 × 6.8 cm
-
Shipping weight2.85 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3007
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What distinguishes the SRAM capacity of 3007 from 3006?
The shared specification lists 1 MB for 3007 and 2 MB for 3006. Similar architecture does not make their memory capacities identical. -
Is the NS32381 the main CPU on this module?
No. NS32GX32 is the central processor and NS32381 is the math co-processor. Both are specified as 32-bit devices at 25 MHz. -
Does the diagnostic connector provide the 3008 Ethernet interface?
No. The 3007 specification identifies a 25-pin optically isolated RS-232 interface for Diagread. The 3008 network connector must not be copied into 3007 specifications. -
Do the three Main Processors share one clock or regulator?
The guide states that each Main Processor operates autonomously without shared clocks, power regulators or circuitry. -
How are Boolean changes selected for sequence-of-events recording?
Designated Boolean variables are inspected during scans, with event states and timestamps stored in configured SOE blocks. The blocks are configured in TriStation. -
Which indicator condition is required before an online processor exchange?
The manufacturer procedure requires at least one Main Processor with an Active indicator blinking yellow before the faulty processor is removed. -
Should the replacement processor follow the one-minute TCM startup expectation?
No. The Main Processor procedure gives 1-10 minutes for Pass and for Active to begin blinking at the same rate as the other processors. -
Which fault is addressed first when a processor and another module have failed?
The guide instructs replacement of the Main Processor first. Wait for its Active indication before replacing the second faulty module.
