Technical specifications for 3501T
-
Product Model3501T
-
Product ParametersDigital Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.2x40.8x39.8cm
-
ManufacturerInvensys
-
Weight2.35 kg
-
Operating Temperature0°C to +60°C
-
Storage Temperature-40°C to +85°C
-
Humidity5% to 95% non-condensing
-
Number of Channels32 isolated channels
-
Input Voltage Range0 to 32 VDC
-
Logic High Threshold> 15 VDC
-
Logic Low Threshold< 5 VDC
-
Channel Isolation250 V channel-to-channel
-
Current per ChannelApprox. 4 mA
-
Response Time< 4 ms
Description

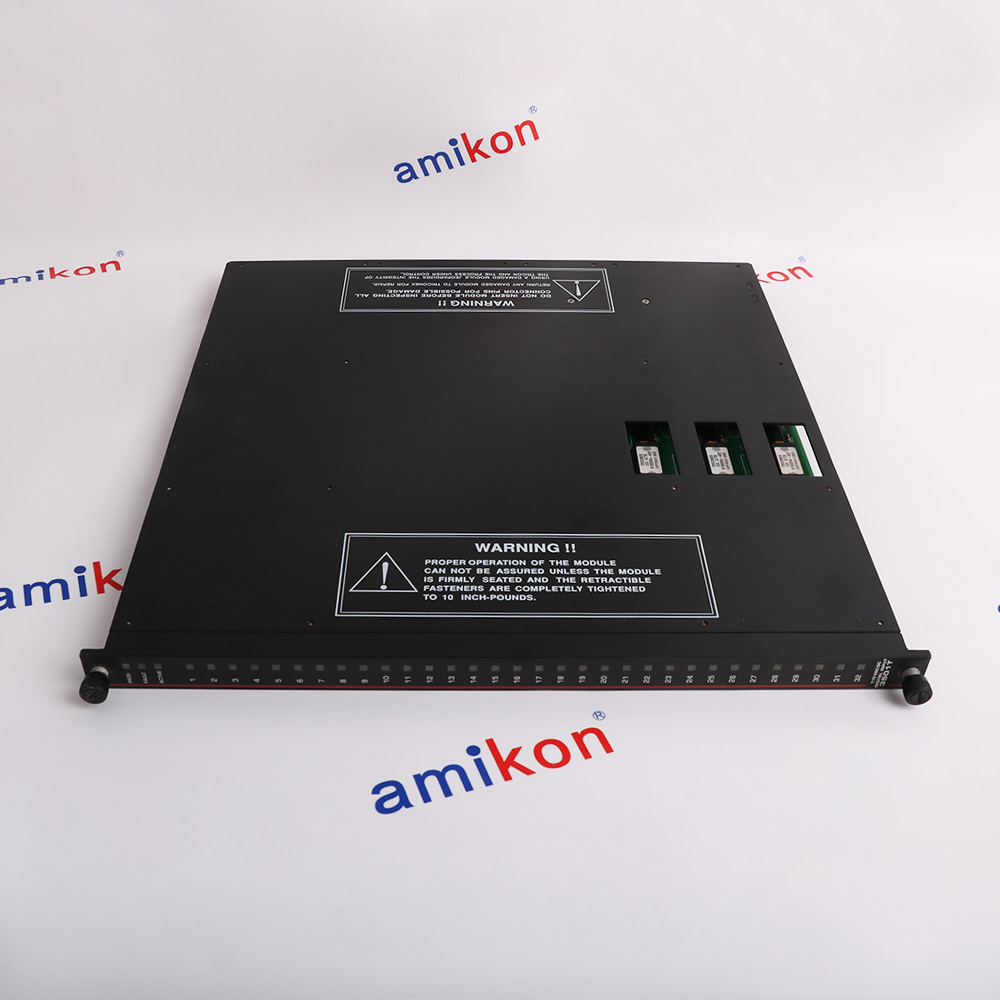

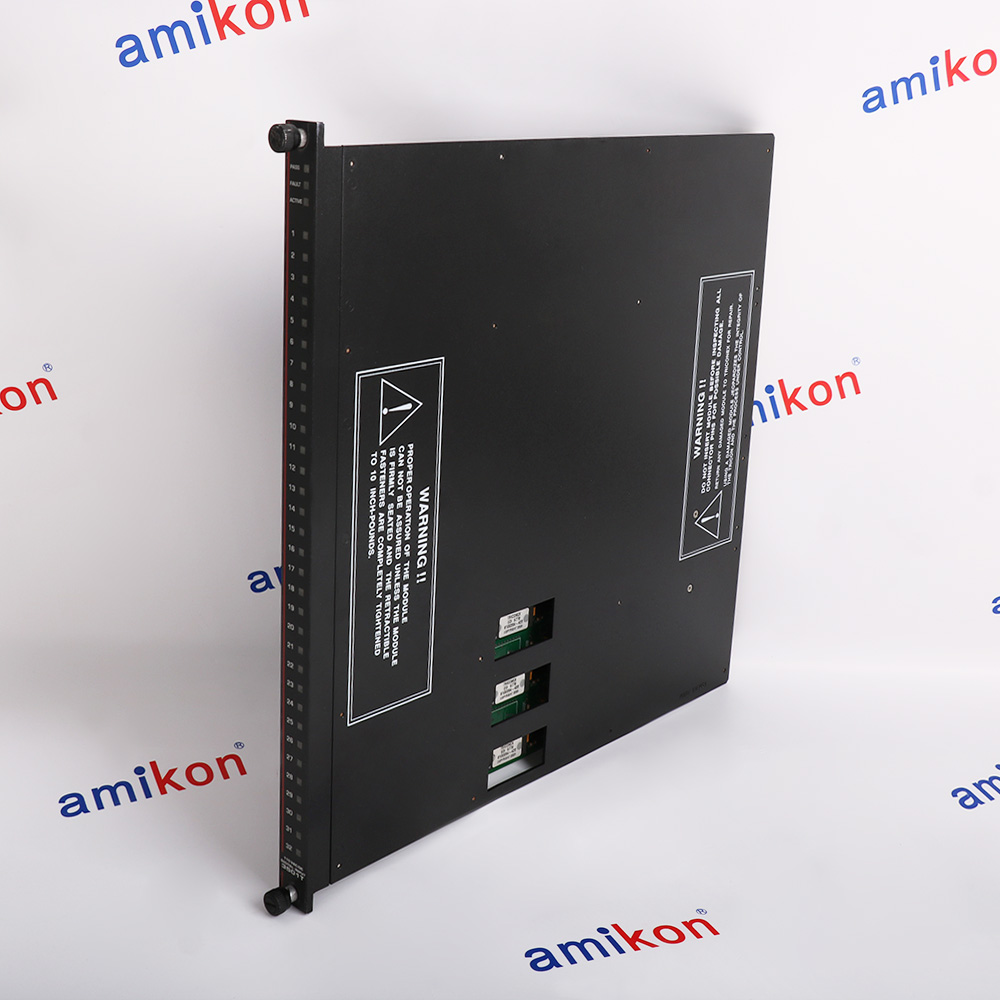

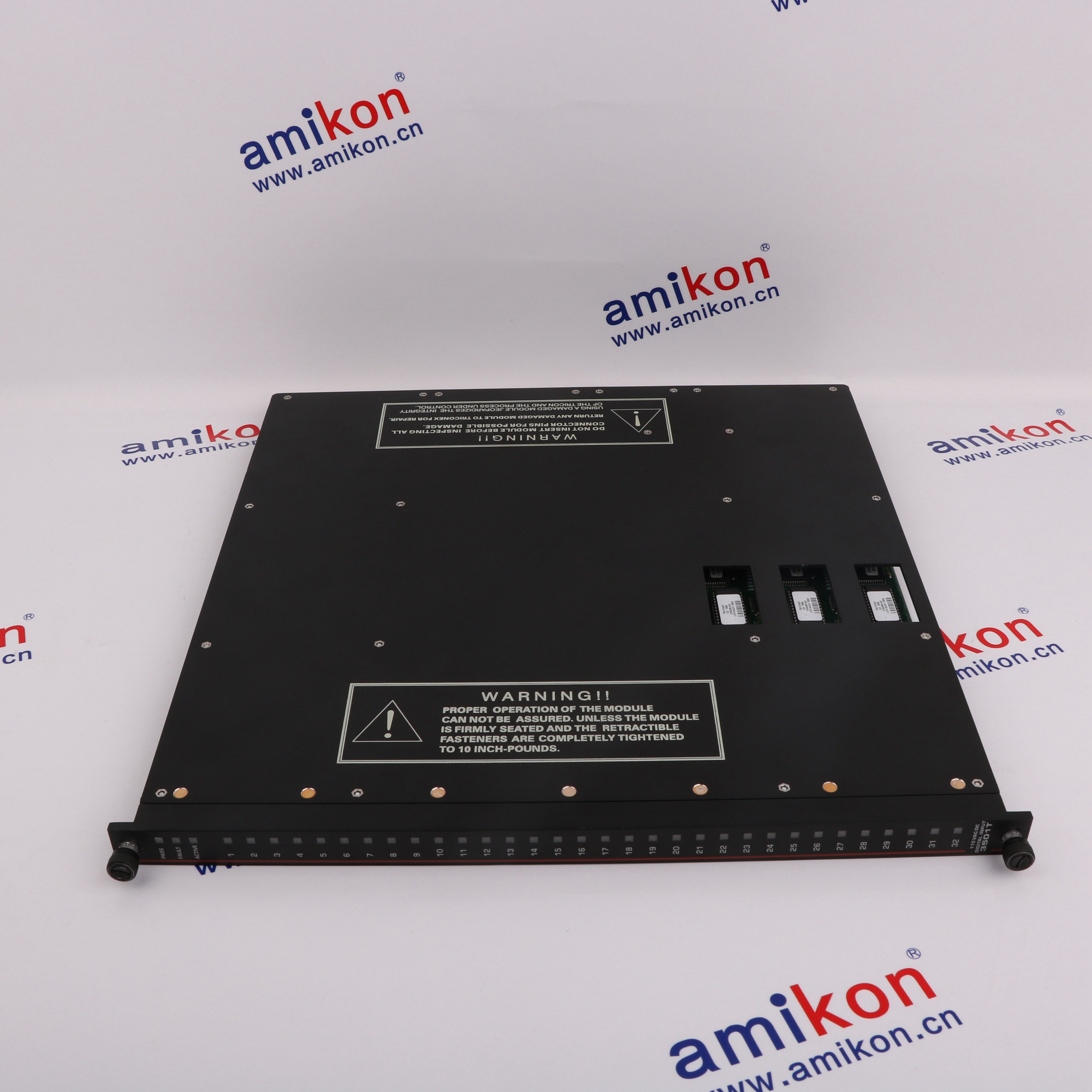

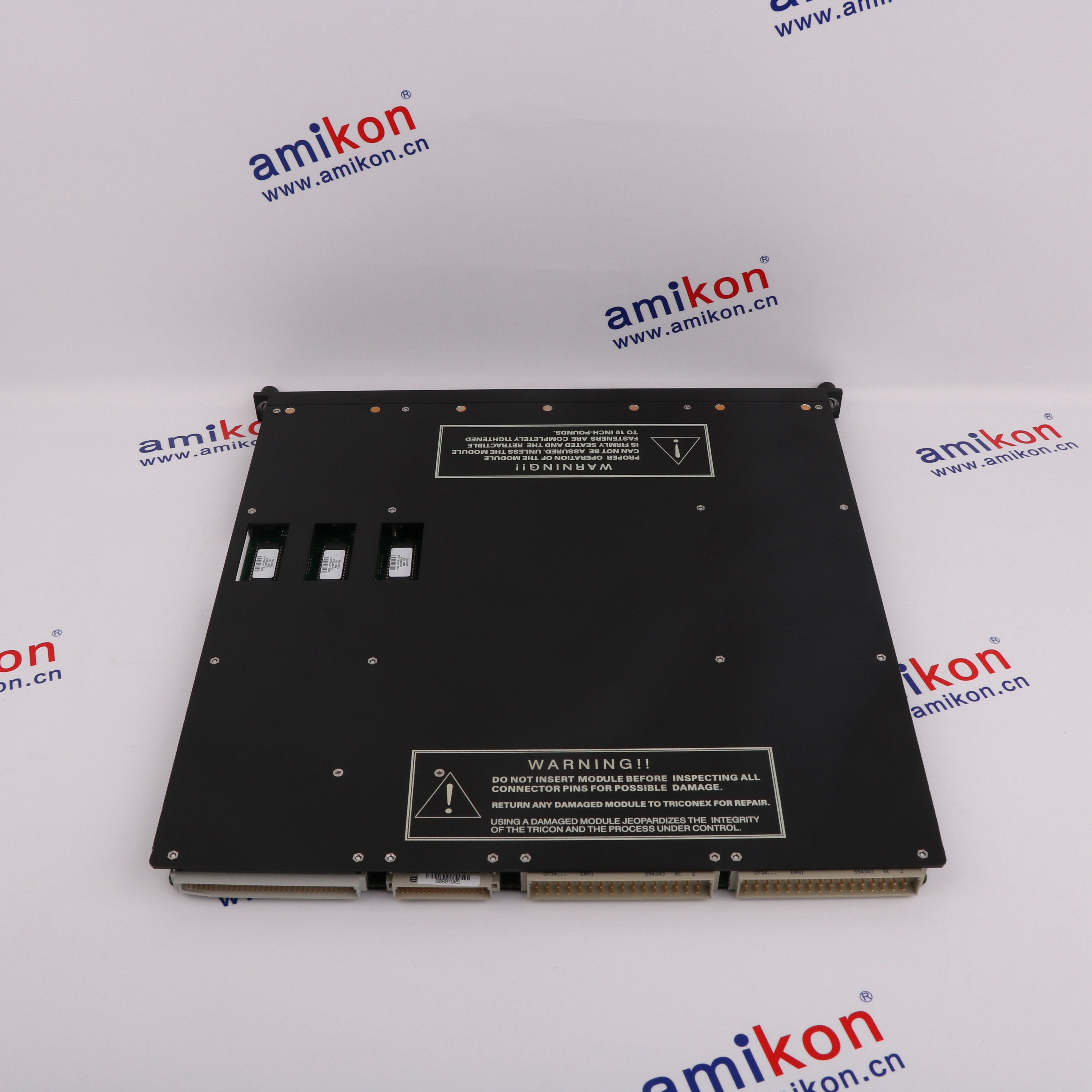

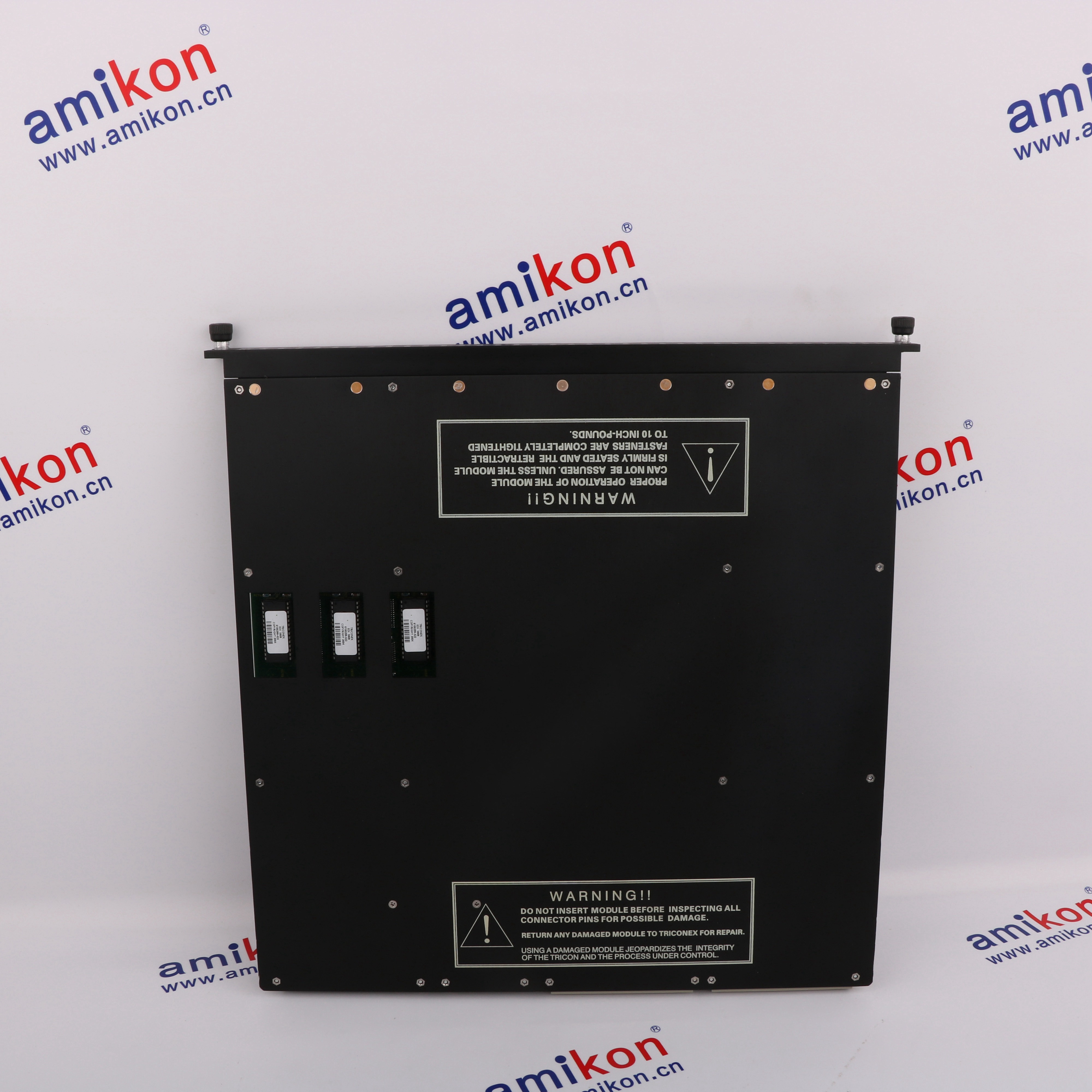

The 3501T is a 32-point Triple Modular Redundant (TMR) digital input module from the Triconex Tricon v9–v11 safety instrumented system family, manufactured by Schneider Electric. It is configured for 115 VAC/VDC nominal input voltage with non-commoned, optically isolated input points and enhanced isolation rating.
The module implements full TMR architecture with three independent channels (legs) per input point. Each channel contains a microprocessor that scans each input, compiles data, and transmits it to the three main processors upon demand. The main processors vote the input data over the proprietary TriBus high-speed communication system before processing, ensuring the highest integrity and fault tolerance. The module sustains complete ongoing diagnostics for each channel; failure of any diagnostic on any channel activates the FAULT indicator and the chassis alarm signal. The module is guaranteed to operate properly in the presence of a single fault and may continue operating with certain multiple faults.
The module implements full TMR architecture with three independent channels (legs) per input point. Each channel contains a microprocessor that scans each input, compiles data, and transmits it to the three main processors upon demand. The main processors vote the input data over the proprietary TriBus high-speed communication system before processing, ensuring the highest integrity and fault tolerance. The module sustains complete ongoing diagnostics for each channel; failure of any diagnostic on any channel activates the FAULT indicator and the chassis alarm signal. The module is guaranteed to operate properly in the presence of a single fault and may continue operating with certain multiple faults.
Information
Overview
Manuals
Application Notes
Product Applications
Typical Product Applications
Features:
- Triple Modular Redundant (TMR) architecture
- 32 isolated non-commoned digital input channels
- Nominal 115 VAC/VDC digital input
- Recommended operating range of 90–155 VAC/VDC
All TMR digital input modules sustaincomplete, ongoing diagnostics for eachchannel. Failure of any diagnostic onany channel activates the module Faultindicator which in turn activates thechassis alarm signal. The module Faultindicator points to a channel fault, not amodule failure. The module is guaranteed to operate properly in the presenceof a single fault and may continue tooperate properly with certain kinds ofmultiple faults.
The 3501T Triconex Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Triconex 3501T Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Enhanced optical isolation distinguishes the 3501T from the 3501E variant. The 3501T provides minimum 1,780 VAC / 2,500 VDC point isolation, compared to 1,000 VAC / 1,500 VDC for the 3501E. This enhanced isolation is critical for applications requiring higher dielectric withstand between field wiring and system electronics.
Logic power consumption is less than 10 W. Field power load is 1.5 W per ON point nominally, rising to 2.9 W at maximum field voltage. Leakage current to chassis is limited to 1 mA maximum per ON point at 60 Hz.
- Emergency Shutdown (ESD): Monitors pressure/temperature and triggers immediate safe plant shutdowns
- Fire & Gas (F&G): Connects to detectors for continuous protection in manufacturing and offshore rigs
- Burner Management (BMS): Manages boiler/furnace start-up, operation, and shutdown to prevent failures
- Turbine/Compressor Control: Monitors speeds, vibrations, and trip signals to safeguard rotating machinery
- Nuclear Power: Used in safety-related applications with high reliability and regulatory certification
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Emergency Shutdown Systems (ESD): Monitors critical parameters (e.g., pressure, temperature, product feed rates) in refineries and chemical plants, triggering safe plant-trip signals in the event of dangerous anomalies.
Burner Management and Flame Safety: Integrates into systems that monitor and control boilers and furnaces to prevent explosions and safely manage fuel combustion.
Fire and Gas (F&G) Monitoring: Processes signals directly from analog fire and gas detectors to provide immediate warning, voting, and suppression activation.
Alternative Names
350IT
35O1T
3501 T
Technical notes
The 3501T provides 32 non-commoned, isolated input points. Each point accepts 90 to 155 VAC or 90 to 155 VDC signals at DC or 47 to 63 Hz frequency. Switching thresholds are >86 VAC/VDC for OFF-to-ON and <28 VAC/VDC for ON-to-OFF, with 32 VAC/VDC typical hysteresis. Nominal turn-on current is 6 to 9 mA with input impedance exceeding 8.5 kΩ. Input delay is less than 8 ms for OFF-to-ON and less than 15 ms for ON-to-OFF.
FAQs
-
What is the 3501T?
+The Triconex 3501T is a 115 VAC/VDC Digital Input Module designed for fault-tolerant safety-critical systems. -
What is the primary function of the 3501T module?
+It receives field trip signals (like pressure, temperature, or expander equalization) and safely relays this data to the Main Processors for process shutdown or control. -
What is TMR (Triple Modular Redundant) architecture?
+The Tricon system utilizes three independent legs (channels) to process data. Each leg on the 3501T reads process data and sends it to its corresponding Main Processor. The processors then compare the data using a hardware voting process before acting. -
What voltage level does this module support?
+The 3501T module operates at a nominal rating of 115 VAC/VDC
