PRODUCT DESCRIPTION

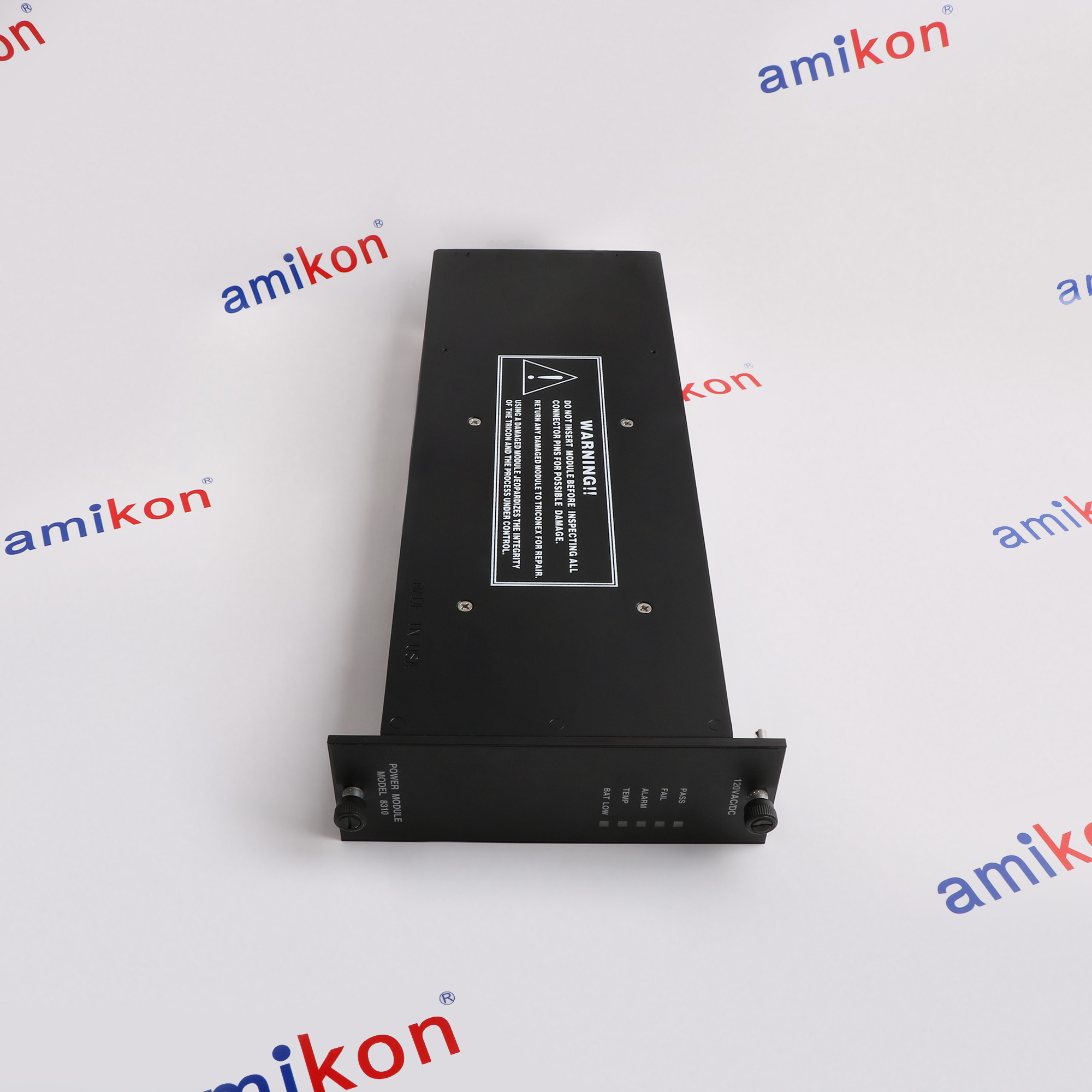

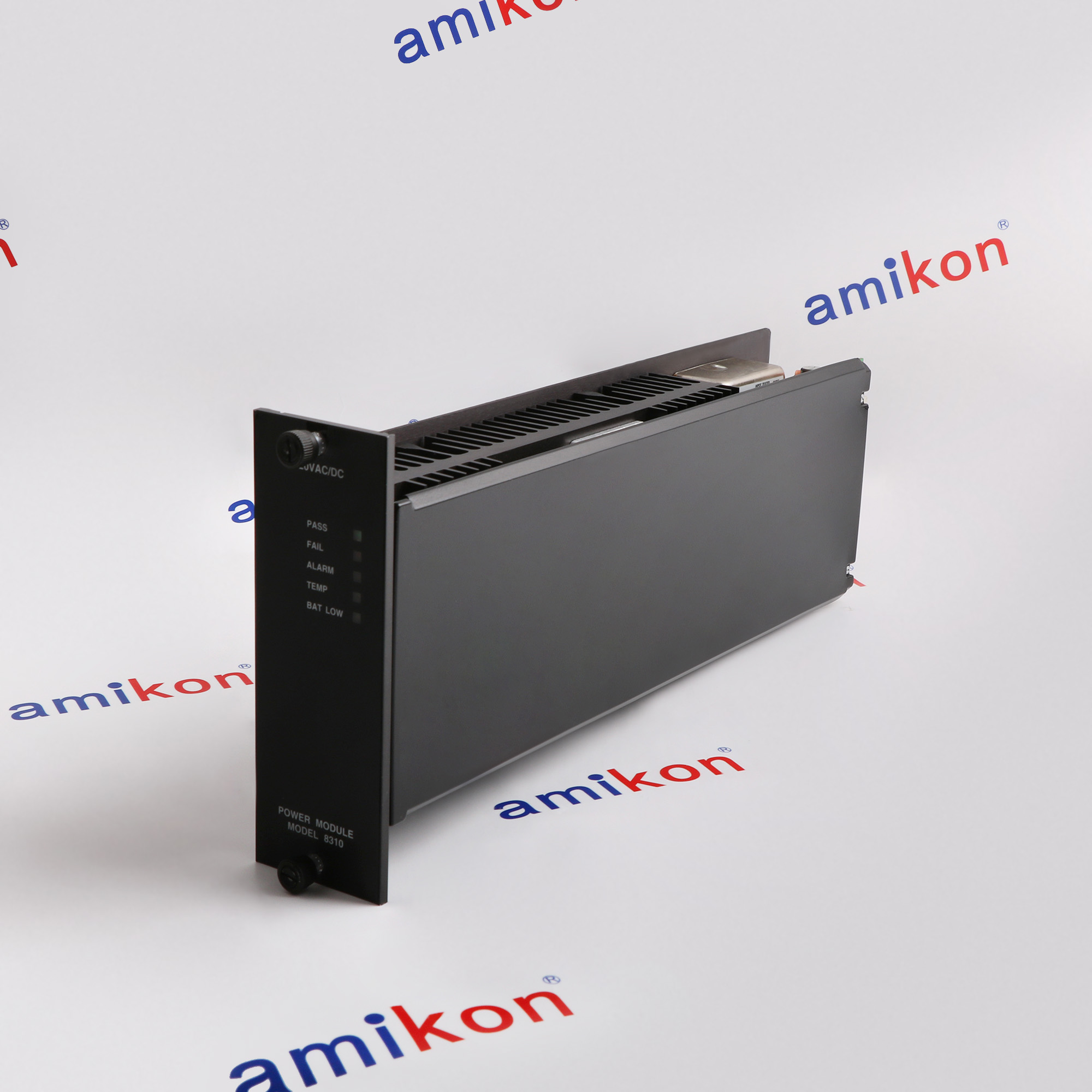

8310 - 120 VAC/VDC Power Module
Triconex 8310 converts nominal 120 VAC/VDC line power to the 6.5 VDC supply used by Tricon controller modules. The manufacturer rates its output at 175 W at a 60 degree C ambient temperature measured at the bottom of the chassis.
Each chassis uses two power modules, either capable of carrying the full load under the documented conditions. Verify source capacity, input range and the secondary supply before replacement; disable the incoming power to the module being removed.
Each chassis uses two power modules, either capable of carrying the full load under the documented conditions. Verify source capacity, input range and the secondary supply before replacement; disable the incoming power to the module being removed.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 8310 supports controller power continuity
The manufacturer specifies redundant chassis power, source sizing and maintenance conditions. Assess the complete installed load and supply arrangement.
-
01 · LINE CONVERSION
Supply the controller backplane
Convert the documented AC or DC source to the controller supply. Check the recommended input range and source capacity rather than treating the extended range as the normal operating target. -
02 · REDUNDANT SOURCES
Prove each source independently
Periodically verify that each power source can carry the entire system when the other source is disabled. Apply the site-approved proof-test schedule and the relevant module history. -
03 · CONTROLLED SERVICE
Maintain the secondary supply
Before removing one power module, verify the secondary module and active source. Disable the incoming power to the module being removed and follow the manufacturer hazardous-location conditions.
Technical specifications for 8310
-
Product Model8310
-
Product Parameters120 VAC/VDC Power Module
-
ManufacturerInvensys
-
Recommended input120 VAC/VDC, -15% to +10%
-
Extended input range85-140 VAC or 95-180 VDC
-
Input frequency47-63 Hz
-
Input-to-output isolation1000 VAC or 1500 VDC
-
Minimum input source capacity240 W per power source
-
Typical power factor0.70
-
Typical crest factor2.5
-
Steady-state input current0.75 A typical; 2.75 A maximum
-
Maximum inrush current18 A for one-half AC cycle at 120 VAC/DC
-
Input fuse5 A, time-delay
-
Output voltage6.5 VDC, +/-1%
-
Output current rating27 A minimum at 60 degrees C ambient
-
Output power rating175 W at 60 degrees C ambient
-
Zero-input hold-up time20 ms minimum; 80 ms typical
-
Output over-current limit135% typical; automatic restart
View all additional
Alternative Names
8310
Triconex 8310
Tricon 8310
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Verify input sources and full-load capacity
Triconex 8310 converts nominal 120 VAC/VDC line power to the 6.5 VDC supply used by Tricon controller modules. The manufacturer rates its output at 175 W at a 60 degree C ambient temperature measured at the bottom of the chassis.
Each chassis uses two power modules, either capable of carrying the full load under the documented conditions. Verify source capacity, input range and the secondary supply before replacement; disable the incoming power to the module being removed.
Each source must be capable of carrying the system without the other source. Confirm the installed load and wiring under the approved electrical design.
Features:
- Nominal 120 VAC/VDC input
- 6.5 VDC regulated output
- 175 W output at rated ambient
The 8310 requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Check the 8310 input rating and secondary supply before service. Disable incoming power to the module being removed and observe the 60-second reinsertion restriction.
Each chassis uses two power modules, either capable of carrying the full load under the documented conditions. Verify source capacity, input range and the secondary supply before replacement; disable the incoming power to the module being removed.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- Nominal 120 VAC/VDC input
- 175 W output at rated ambient
- Redundant chassis supply arrangement
The 8310 requires replacement verification of incoming power, secondary supply and restored status before returning to normal operation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 8310 is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size6.1 × 41 × 17.7 cm
-
Shipping weight2.80 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 8310
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Where is ambient temperature measured for the 175 W rating?
The specification defines ambient as the air temperature at the bottom of the chassis. The output rating is stated at 60 degrees C at that location. -
Why is 240 W source capacity larger than the 175 W output rating?
The first value is the minimum required input capacity per power source; the second is rated output power. They describe different sides of the power conversion and are not interchangeable. -
Does a removed 8310 permit immediate reinsertion?
No. The manufacturer cautions against reinstalling a removed power module for at least 60 seconds. -
Which supply must be checked before withdrawing a faulty power module?
Verify that the secondary power module is connected to an active source and performing normally. Incoming power to the module being removed must be disabled. -
What changes when an over-voltage shutdown occurs?
The specification gives a typical 115% over-voltage protection level and requires recycling power to restart. The over-current limit instead has automatic restart. -
At what internal temperature does the warning monitor trip?
The monitor trips above an internal power-module temperature of 83 degrees C. The guide notes this typically occurs at an ambient temperature of 60 degrees C or higher. -
Can the historical proof-test table be applied without checking shipment year?
No. The guide gives different 8310 intervals for 1996-1998, 1999 and 2000-2005 shipments and different risk-reduction targets. It does not establish a universal interval for every shipment year. -
May a failed power module remain in an ATEX application indefinitely?
No. The manufacturer requires immediate replacement or shutdown if replacement is not possible; continued operation with a failed module is limited to a location known to be free of ignitable gas concentrations.
