PRODUCT DESCRIPTION

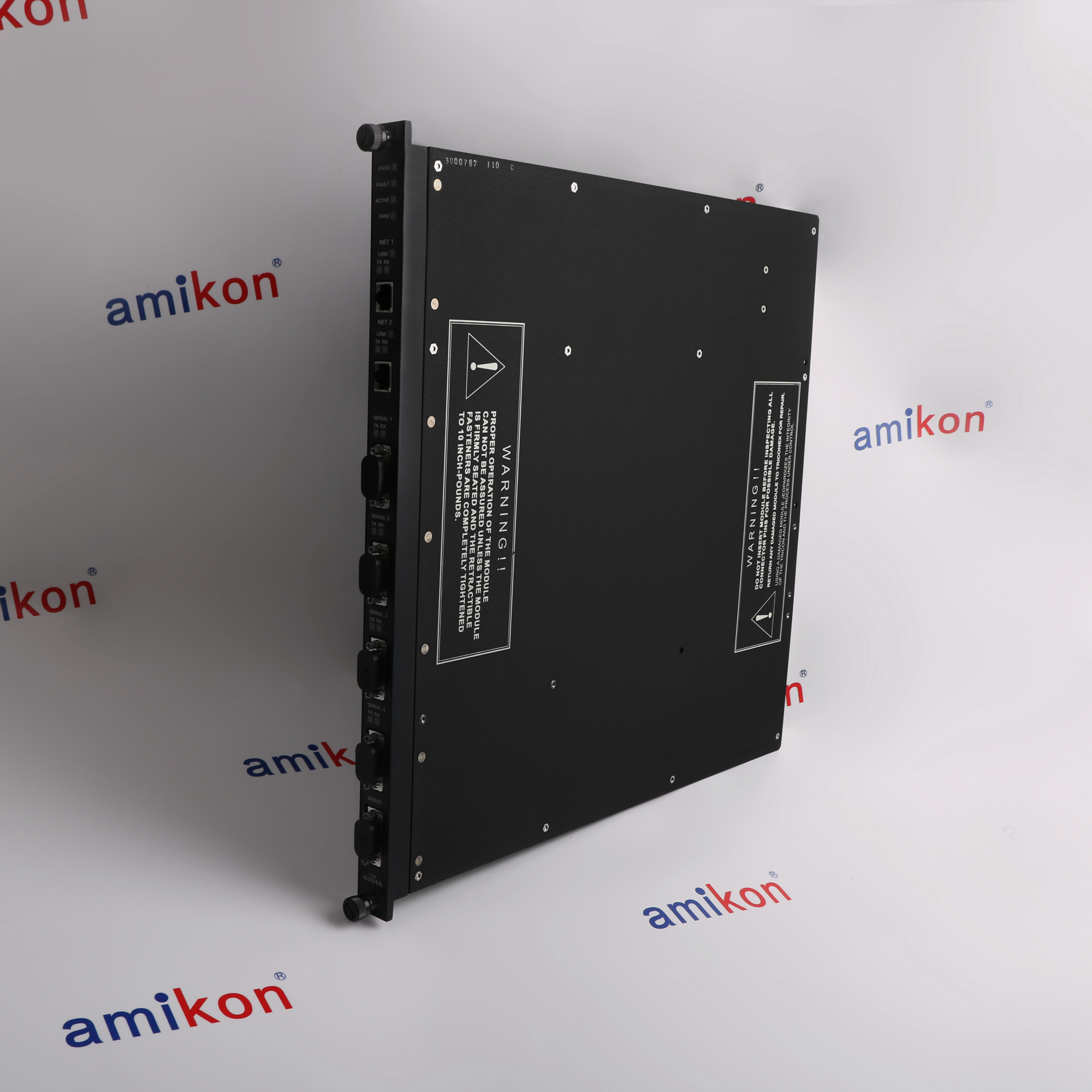

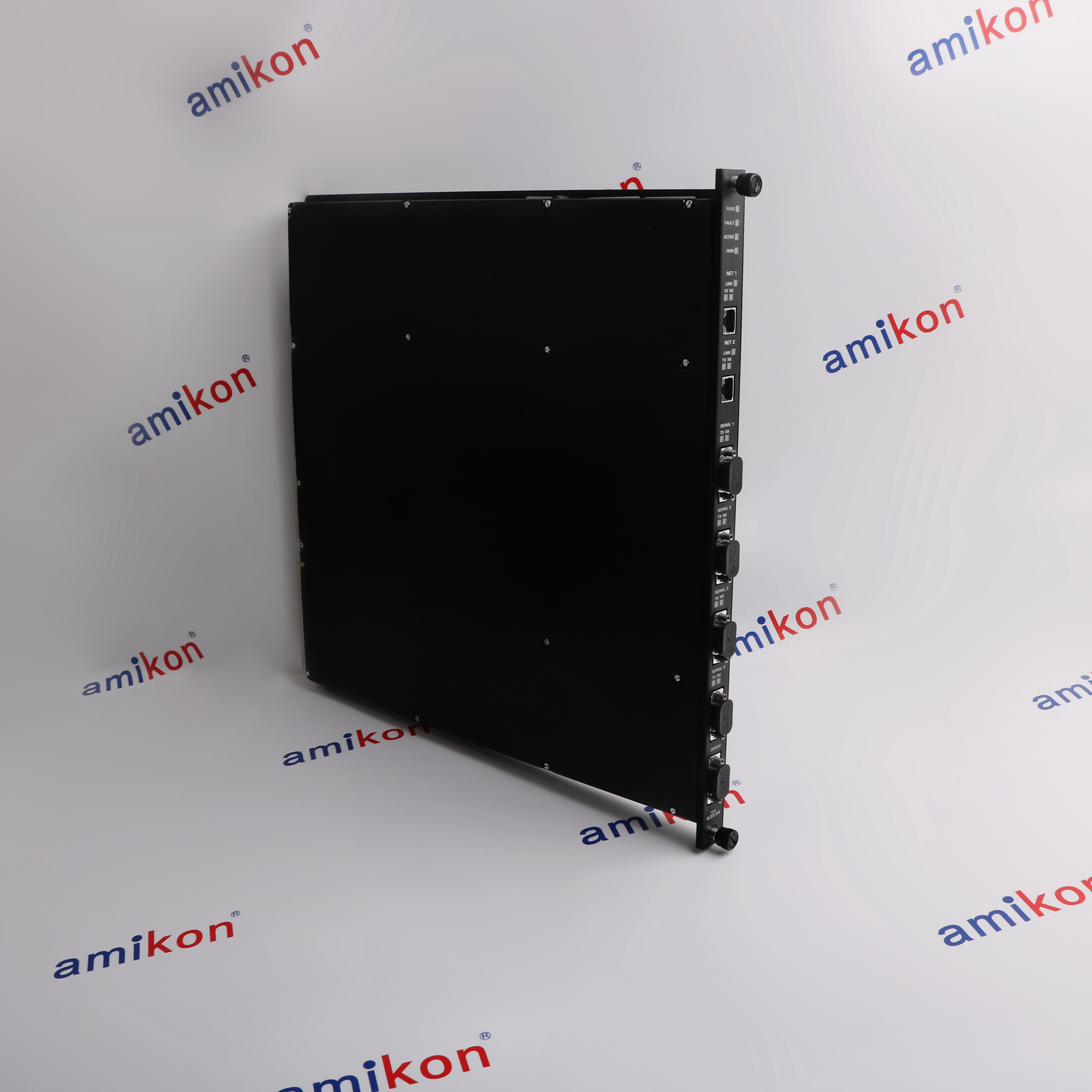

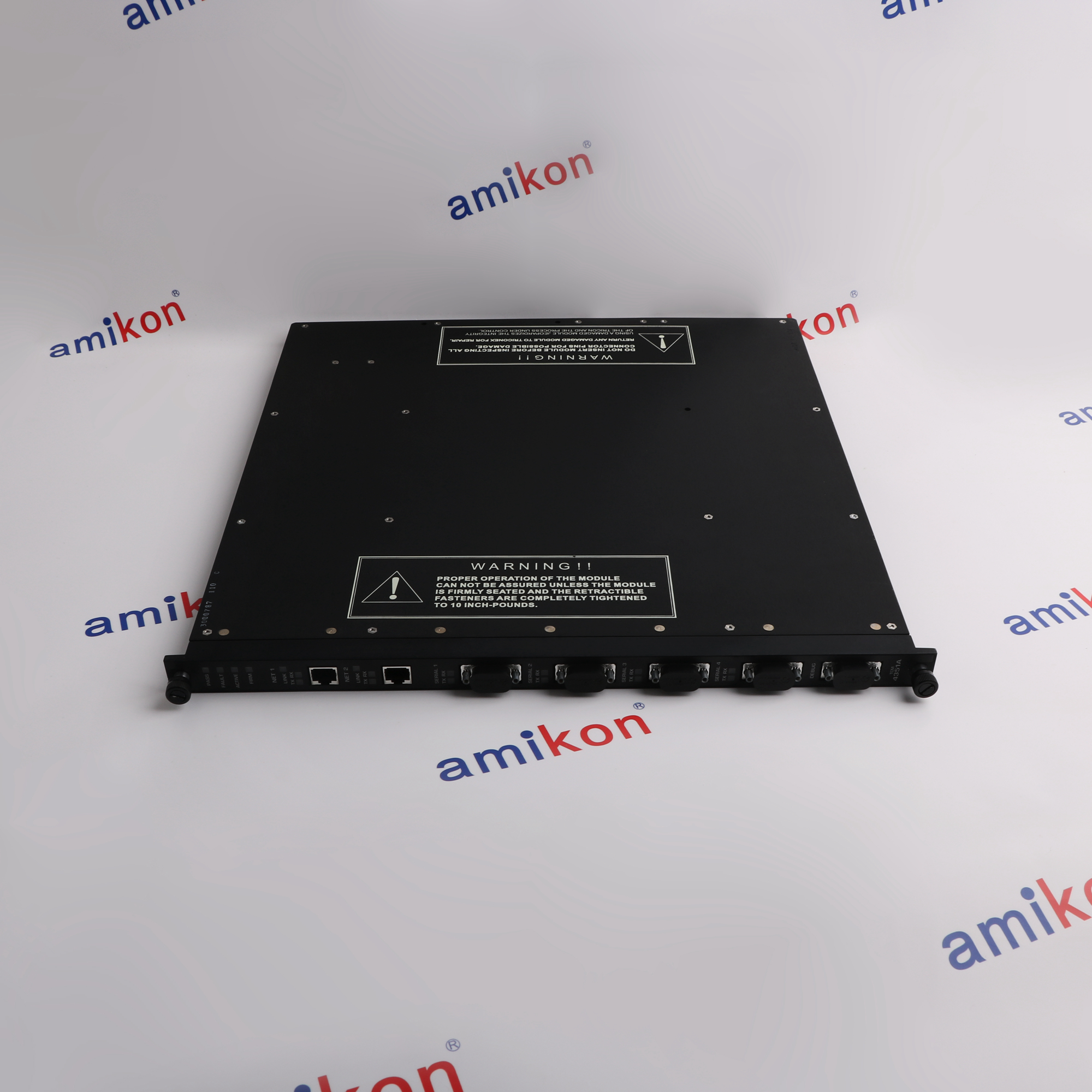

4351A - Tricon Communication Module
Triconex 4351A is the copper-network Tricon Communication Module listed for Tricon versions 10.1 through 10.2. Two RJ-45 Ethernet connections and four DB-9 serial connections support the protocol assignments documented for this generation.
TriStation, TSAA and Modbus TCP can use either network port, but the manufacturer does not extend the B-model IP multicast capability to 4351A. Verify exact module generation and system compatibility rather than interpreting the A suffix as interchangeable with other TCMs.
TriStation, TSAA and Modbus TCP can use either network port, but the manufacturer does not extend the B-model IP multicast capability to 4351A. Verify exact module generation and system compatibility rather than interpreting the A suffix as interchangeable with other TCMs.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 4351A supports Tricon communications
These uses follow the manufacturer port assignments and system-version rules. Validate the installed network and application before commissioning.
-
01 · NETWORK ALLOCATION
Place engineering access on either port
Use the documented NET 1 or NET 2 TriStation assignment when arranging a supported controller network. Keep DLC-specific services on their prescribed NET 1 interface. -
02 · MODBUS HOSTS
Allocate the Modbus TCP connection
Connect the configured Modbus TCP application through either network port. Include serial and network participants in the manufacturer limit of sixteen Modbus masters or slaves per Tricon system. -
03 · SERVICE DIAGNOSTICS
Inspect module and link indications
Read the Pass, Fault, Active and FIRM indications together with network LINK and port transmit or receive indicators. Diagnose the intended connection instead of assuming that a single illuminated LED proves every service is available.
Technical specifications for 4351A
-
Product Model4351A
-
Product ParametersTricon Communication Module
-
ManufacturerInvensys
-
Supported Tricon version10.1 through 10.2
-
Network portsTwo RJ-45 copper ports
-
Network medium10/100BaseT twisted pair
-
Network speed10 or 100 Mbps
-
Serial connectorsFour DB-9 ports
-
Serial electrical interfacesRS-232 and RS-485
-
Maximum serial rate per port115.2 kbps
-
Aggregate serial throughput460.8 kbps
-
Port isolation500 VDC
-
TriStation Ethernet assignmentNET 1 and NET 2
-
Modbus TCP assignmentNET 1 and NET 2
-
TSAA Ethernet assignmentNET 1 and NET 2
-
Embedded OPC serverNot supported
-
Logic powerLess than 10 W
-
Module status indicatorsPass, Fault, Active and FIRM
View all additional
Alternative Names
4351A
Triconex 4351A
Tricon TCM 4351A
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the controller generation and network assignment
Triconex 4351A is the copper-network Tricon Communication Module listed for Tricon versions 10.1 through 10.2. Two RJ-45 Ethernet connections and four DB-9 serial connections support the protocol assignments documented for this generation.
TriStation, TSAA and Modbus TCP can use either network port, but the manufacturer does not extend the B-model IP multicast capability to 4351A. Verify exact module generation and system compatibility rather than interpreting the A suffix as interchangeable with other TCMs.
Check the exact TCM generation, logical-slot pairing and permitted chassis location. Serial port 1 can serve Modbus or GPS; serial port 4 can serve Modbus or TriStation. Do not treat either shared assignment as simultaneous use.
Features:
- Tricon 10.1-10.2 generation
- TriStation on either Ethernet port
- Modbus TCP on either Ethernet port
The 4351A requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the exact 4351A identity, controller version and communication configuration. Label all cables before removal. Paired TCMs are independent modules, not hot spares.
TriStation, TSAA and Modbus TCP can use either network port, but the manufacturer does not extend the B-model IP multicast capability to 4351A. Verify exact module generation and system compatibility rather than interpreting the A suffix as interchangeable with other TCMs.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- Tricon 10.1-10.2 generation
- Modbus TCP on either Ethernet port
- No B-model multicast capability
The 4351A requires replacement verification of port assignments, protocol configuration and restored communication before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 4351A is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.1 × 41 × 40 cm
-
Shipping weight2.20 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 4351A
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can one supported Modbus request force multiple coil states?
Yes. The supported-function list includes function 15, Force Multiple Coils. Confirm the configured addresses and intended writes before issuing the request. -
Does the IP multicast footnote apply to 4351A?
No. The manufacturer limits that capability to 4351B and 4352B in that model group. It must not be copied into 4351A specifications. -
How is the sixteen-device Modbus limit counted?
The stated system limit combines serial and network ports. It is not sixteen additional Modbus masters or slaves for each physical connector. -
Where must DLC-based Tricon time-synchronization traffic connect?
The protocol table assigns DLC time synchronization to NET 1. This is distinct from UDP/IP time synchronization, which can use either network port for 4351A. -
Can the two sides of a logical slot contain different TCM models?
No. The system rules expressly prohibit different TCM models within the same logical slot. -
Which interface remains reserved for Triconex personnel?
The debug port is intended for Triconex personnel only. It is not an additional user serial communication port. -
Can a TCM be added to a system that already contains an EICM?
The communication rules prohibit EICM and TCM modules in the same Tricon system. Review the entire installed configuration before adding hardware. -
Does RS-485 require a different physical serial connector on this module?
The specification lists four DB-9 ports supporting RS-232 and RS-485. Apply the manufacturer wiring and configuration for the chosen electrical interface.
