PRODUCT DESCRIPTION

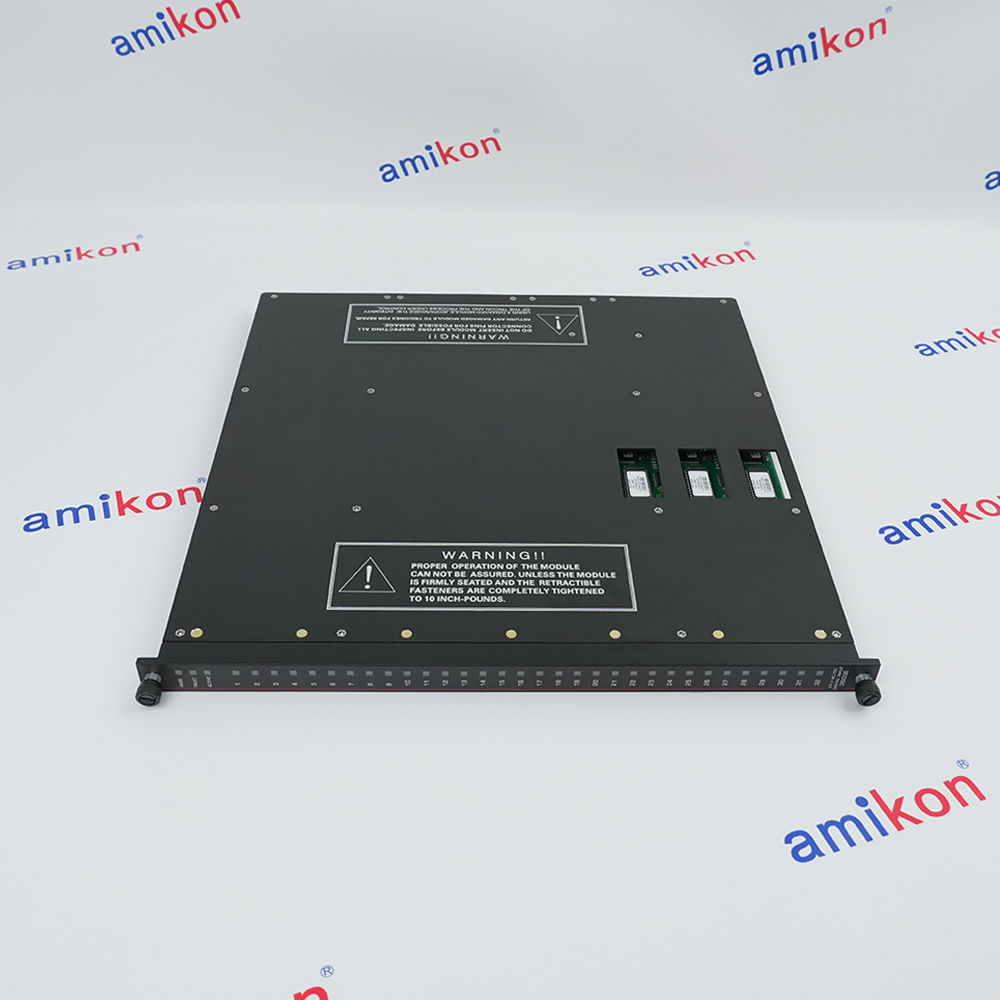

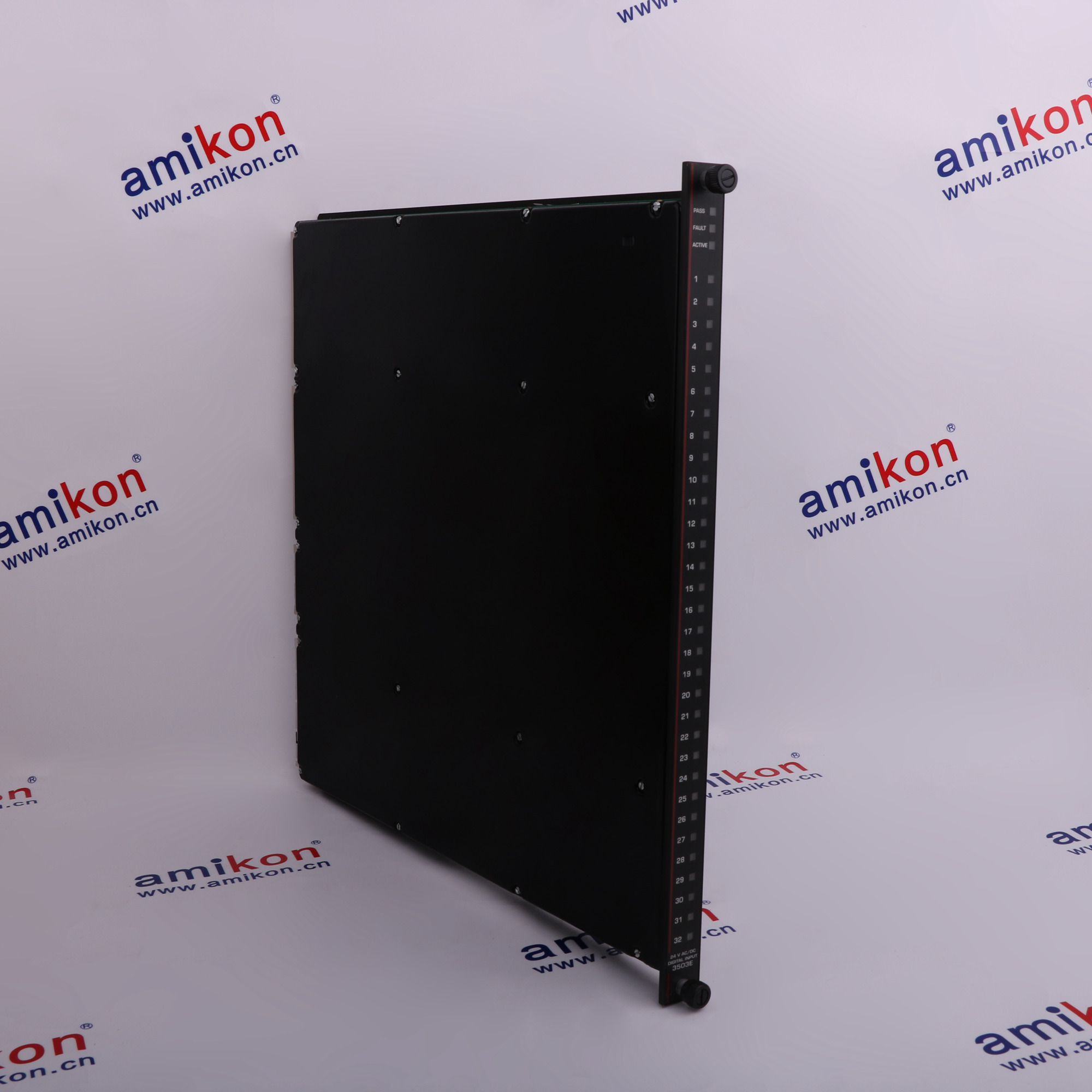

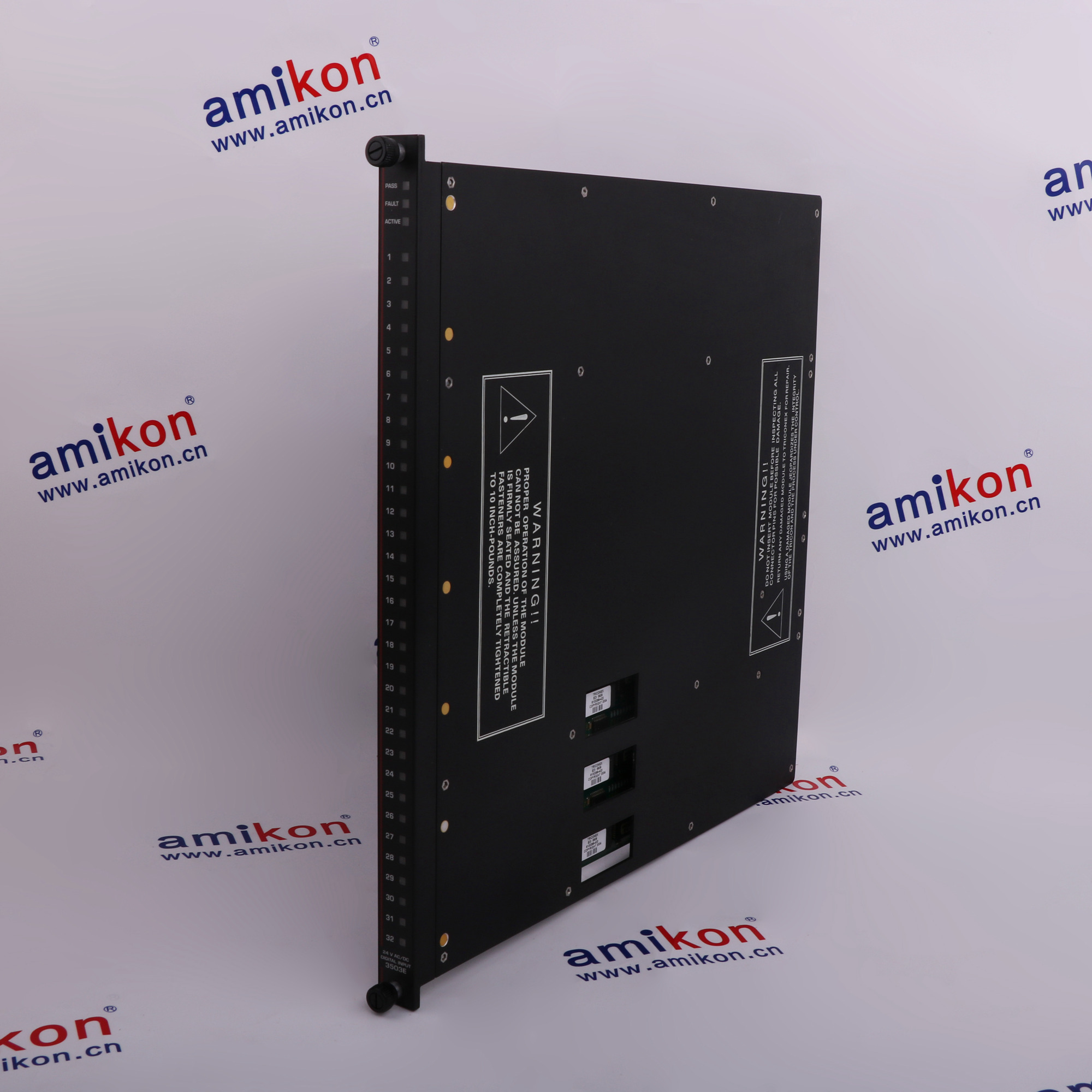

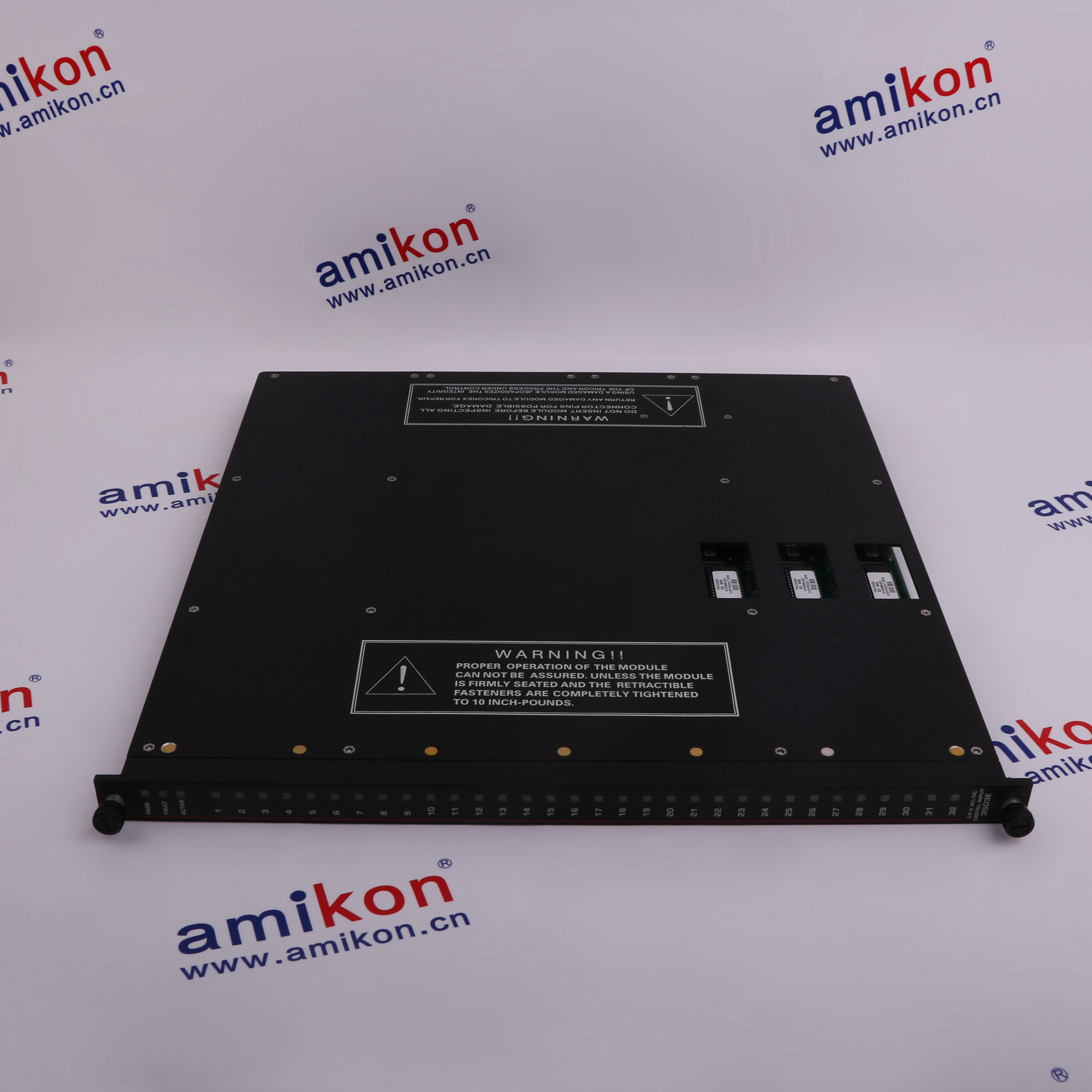

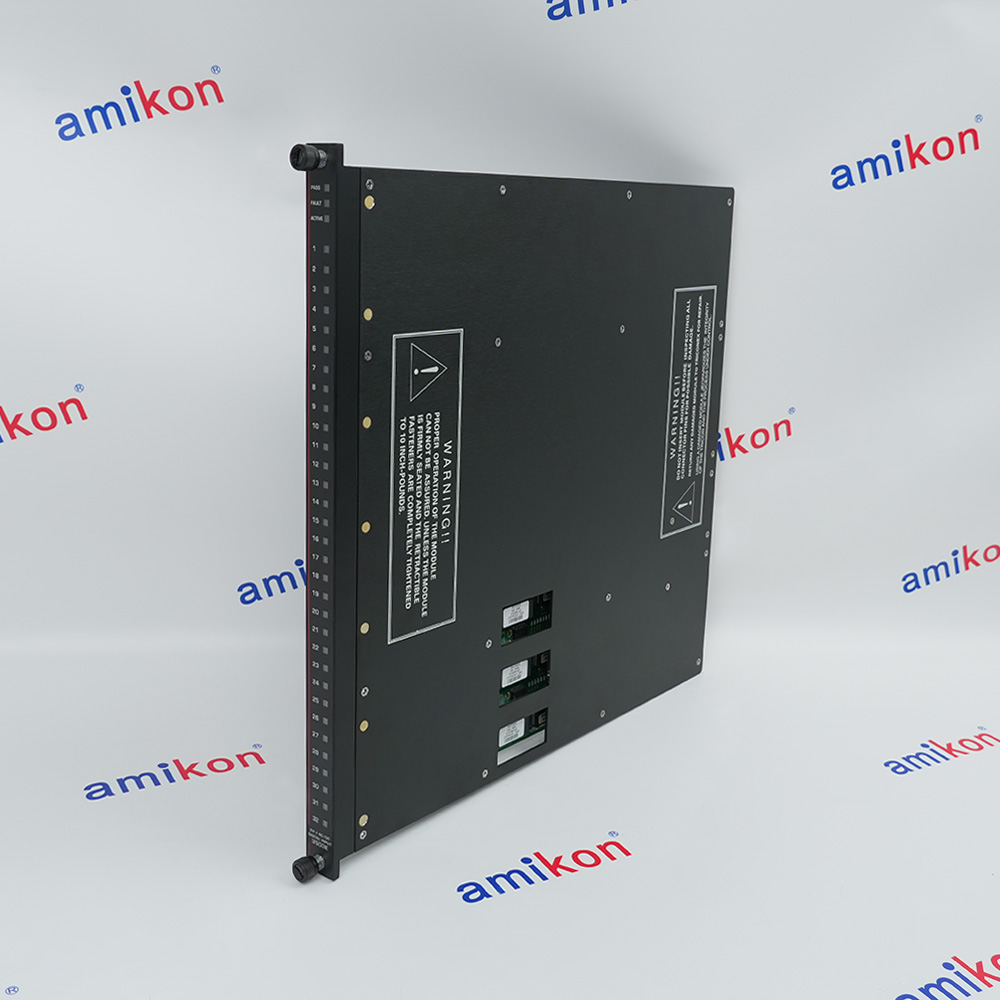

3503E - TMR Digital Input Module
Triconex 3503E acquires 32 nominal 24 VAC/VDC discrete inputs, commoned in groups of eight. Its triplicated input paths and continuous self-test support detection of a normally energized circuit changing to the off state.
Match field voltage, switching thresholds and diagnostic behavior to the connected circuit. The manufacturer does not recommend 3503E with shunt-diode intrinsic safety barriers; evaluate the documented 3505E alternative through the approved system design.
Match field voltage, switching thresholds and diagnostic behavior to the connected circuit. The manufacturer does not recommend 3503E with shunt-diode intrinsic safety barriers; evaluate the documented 3505E alternative through the approved system design.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 3503E supports field I/O tasks
The manufacturer documents the following circuit functions. Validate the complete safety function and field wiring before service.
-
01 · DISCRETE STATUS
Acquire field contact states
Read discrete input states through the documented 24 VAC/VDC input circuit. Check threshold margin, the common return for each group and the field supply before accepting the logic state. -
02 · TRIP INPUTS
Detect loss of an energized signal
Use the self-test-supported input path for a normally energized demand circuit. Validate the off-state transition and account for the documented input delay in the complete safety-function response. -
03 · AC SIGNALS
Monitor AC-operated input circuits
Acquire discrete signals at 47-63 Hz within the documented voltage limits. Review smoothing, switching levels and diagnostic coupling when the field signal is shared with other equipment.
Technical specifications for 3503E
-
Product Model3503E
-
Product ParametersTMR Digital Input Module
-
In stock1 unit
-
ManufacturerInvensys
-
Input points32, commoned in groups of 8
-
Input frequencyDC or 47-63 Hz
-
Recommended DC input range20-42.5 VDC
-
Maximum input voltage42.5 VAC/VDC
-
Off-to-on threshold15 VAC/VDC typical; 18 VAC/VDC worst-case
-
On-to-off threshold8 VAC/VDC typical; 6 VAC/VDC worst-case
-
Typical hysteresis4 VAC/VDC
-
Nominal turn-on current6-9 mA
-
Input impedanceGreater than 1.25 kohm nominal
-
Input delaysOff to on: <8 ms; on to off: <15 ms
-
Optical isolation rating1000 VAC minimum; 1500 VDC minimum
-
Logic powerLess than 10 W
-
Field power per on point0.5 W nominal; 1.5 W at maximum field voltage
-
Chassis leakage at 60 Hz0.25 mA maximum per on point
-
Diagnostic glitch duration20 ms typical
View all additional
Alternative Names
3503E
Triconex 3503E
Tricon 3503E
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed field I/O arrangement
Triconex 3503E acquires 32 nominal 24 VAC/VDC discrete inputs, commoned in groups of eight. Its triplicated input paths and continuous self-test support detection of a normally energized circuit changing to the off state.
Match field voltage, switching thresholds and diagnostic behavior to the connected circuit. The manufacturer does not recommend 3503E with shunt-diode intrinsic safety barriers; evaluate the documented 3505E alternative through the approved system design.
Document field wiring and the approved application settings before exchange. Use the complete Tricon system installation procedure and verify affected circuits after replacement.
Features:
- 32 inputs in four common groups
- 24 VAC/VDC nominal field circuits
- Continuous normally-on circuit self-test
The 3503E requires field configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Preserve the exact 3503E identity and the installed field termination. A similar Tricon module number does not establish interchangeability.
Match field voltage, switching thresholds and diagnostic behavior to the connected circuit. The manufacturer does not recommend 3503E with shunt-diode intrinsic safety barriers; evaluate the documented 3505E alternative through the approved system design.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- 32 inputs in four common groups
- Continuous normally-on circuit self-test
- Separate on and off switching thresholds
The 3503E requires replacement verification of field wiring, load or signal limits, termination and configured diagnostics before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3503E is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.2 × 40.8 × 40 cm
-
Shipping weight2.00 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3503E
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Why can a 24 V signal still fail to switch a 3503E point reliably?
Check voltage at the module under load. The worst-case off-to-on threshold is 18 VAC/VDC; wiring or barrier losses can reduce the available margin. Nominal turn-on current is 6-9 mA. -
How many independently commoned groups does 3503E provide?
There are four groups of eight inputs, not 32 independently commoned circuits. Preserve the documented termination grouping and field references. -
Can a 50 Hz AC status signal be connected to this input model?
The specified input-frequency range is DC or 47-63 Hz. Apply the AC voltage limits and switching thresholds; the recommended 20-42.5 VDC range is specifically a DC rating. -
Why is 3503E discouraged with shunt-diode intrinsic safety barriers?
The manufacturer expressly advises against that combination and identifies 3505E for those applications. A substitution still requires the barrier and complete system design to be reviewed. -
What happens during the 3503E self-test of a normally energized input?
The self-test continuously checks the controller can detect the transition to off. Diagnostic glitching is typically 20 ms and may appear on an adjacent de-energized point, so shared external circuits need review. -
Does an off-state channel need periodic exercise for diagnostic coverage?
The manual specifies manual toggling every three months for the off state and no minimum toggling requirement for the on state. Apply these conditions within the site proof-test procedure. -
Which input transition has the longer specified delay?
On-to-off delay is less than 15 ms, compared with less than 8 ms off-to-on. Include the applicable transition delay in the system response calculation. -
How should cabinet heat be assessed when most inputs stay on?
The table gives less than 10 W logic power plus nominal field loading of 0.5 W per on point, rising to 1.5 W at maximum field voltage. Use the actual energized-point count and supply condition.
