PRODUCT DESCRIPTION

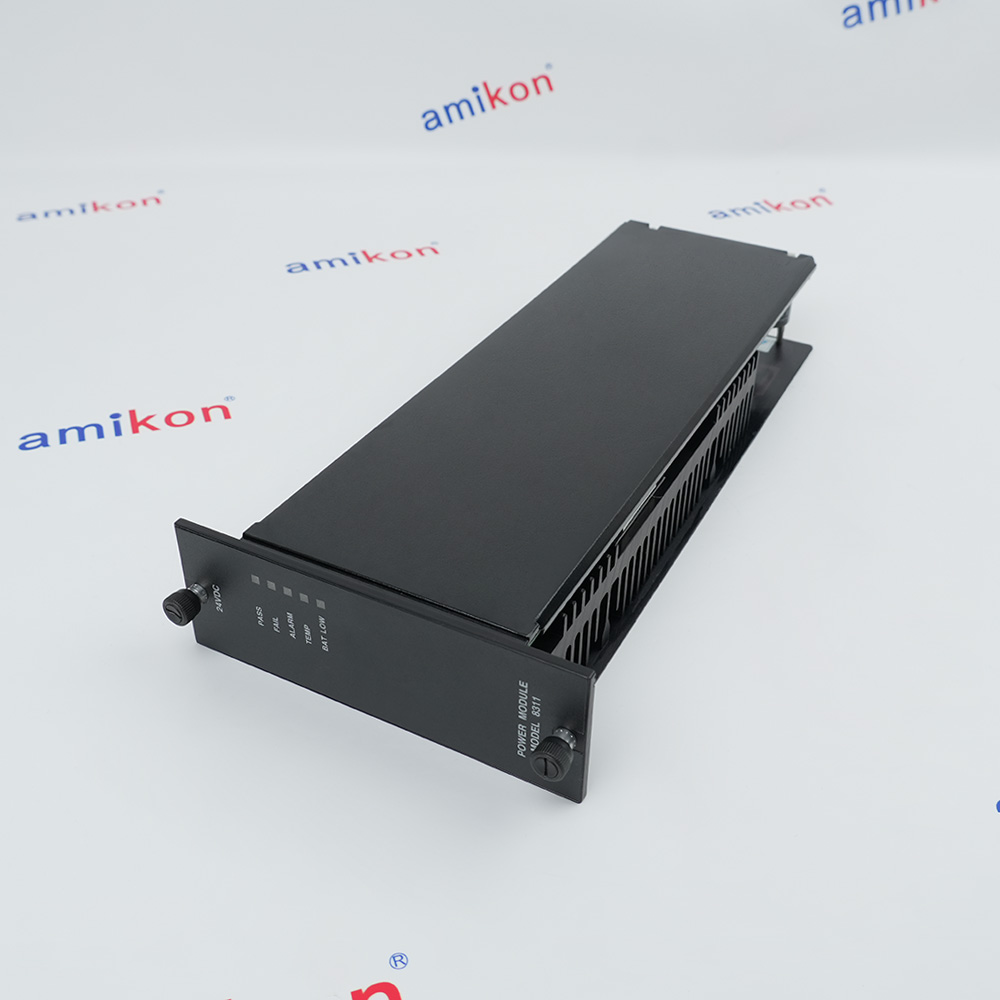

8311 - 24 VDC Power Module
Triconex 8311 converts a nominal 24 VDC source into 6.5 VDC chassis power. The manufacturer specifies 175 W output at 60 degrees C ambient and a maximum output current of 27 A. It is a chassis power module, not a 24 VDC field-output supply.
Provide an independent source rated at least 240 W for each power module. Normal input operation is 24 VDC minus 15% to plus 20%; the extended 19.2-36 VDC range is for short periods only. Before removal, disable incoming power to the affected module and confirm that secondary power is operating normally.
Provide an independent source rated at least 240 W for each power module. Normal input operation is 24 VDC minus 15% to plus 20%; the extended 19.2-36 VDC range is for short periods only. Before removal, disable incoming power to the affected module and confirm that secondary power is operating normally.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 8311 supports controller power continuity
The manufacturer documents chassis power conversion, independent supply paths and maintenance conditions. Apply the complete system installation and safety requirements.
-
01 · DC CONVERSION
Supply the controller backplane
Convert an engineered 24 VDC source into the documented 6.5 VDC chassis supply. Account for installed controller modules and reserve at least 240 W of incoming capacity for each power source. -
02 · SOURCE REDUNDANCY
Maintain two independent power paths
Feed the two chassis power modules from separately protected sources. For critical service, the guide recommends at least one UPS sized for the connected chassis and the required outage duration. -
03 · CONTROLLED EXCHANGE
Maintain power during module service
Confirm the secondary supply is healthy and disable incoming power to the affected module before removal. Follow the special ATEX restrictions and the minimum 60-second wait before reinstalling a removed module.
Technical specifications for 8311
-
Product Model8311
-
Product Parameters24 VDC Power Module
-
In stock1 unit
-
ManufacturerInvensys
-
Recommended input voltage24 VDC, -15% to +20%
-
Extended input range19.2-36 VDC; short periods only
-
Low-line hysteresis1.5 VDC minimum
-
Required source capacity240 W minimum per power source
-
Input over-voltage clamp40 VDC
-
Steady-state input current5 A typical; 10 A maximum
-
Input inrush current23 A maximum at 24 VDC for 10 ms
-
Internal fuse15 A time-delay; not field-removable
-
Regulated output voltage6.5 VDC, +/-1%
-
Output current limit rating27 A maximum at 60 degrees C ambient
-
Rated output power175 W at 60 degrees C ambient
-
Input-to-output isolation1000 VAC or 1500 VDC
-
Output hold-up at zero input2.0 ms minimum; 5.6 ms typical
-
Output over-voltage protection115% typical; recycle power to restart
-
Output over-current protection110% typical; automatic restart
View all additional
Alternative Names
8311
Tricon 24 VDC Power Module
8311 Chassis Power Supply
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match chassis power and the independent sources
Triconex 8311 converts a nominal 24 VDC source into 6.5 VDC chassis power. The manufacturer specifies 175 W output at 60 degrees C ambient and a maximum output current of 27 A. It is a chassis power module, not a 24 VDC field-output supply.
Provide an independent source rated at least 240 W for each power module. Normal input operation is 24 VDC minus 15% to plus 20%; the extended 19.2-36 VDC range is for short periods only. Before removal, disable incoming power to the affected module and confirm that secondary power is operating normally.
Check source polarity, protective earth, source capacity and the top slot key. Do not use alarm contacts in hazardous locations. Preserve the engineered chassis grounding arrangement.
Features:
- 24 VDC nominal input source
- 6.5 VDC regulated chassis output
- 175 W output at 60 degrees C
The 8311 requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Verify the 8311 24 VDC input identity and top key 003. Isolate its incoming source and verify healthy secondary power before removing a module; wait at least 60 seconds before reinstalling one.
Provide an independent source rated at least 240 W for each power module. Normal input operation is 24 VDC minus 15% to plus 20%; the extended 19.2-36 VDC range is for short periods only. Before removal, disable incoming power to the affected module and confirm that secondary power is operating normally.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- 24 VDC nominal input source
- 175 W output at 60 degrees C
- Independent redundant power operation
The 8311 requires replacement verification of input supply, protective earth, slot key and healthy secondary power before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 8311 is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size6.1 × 40.5 × 17.7 cm
-
Shipping weight2.85 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 8311
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is the 8311 output 24 VDC or 6.5 VDC?
24 VDC is the nominal input. The documented output is 6.5 VDC +/-1%, with 175 W output power at 60 degrees C. It must not be specified as a 24 VDC, 360 W output supply. -
May the extended 36 V input limit be used as a continuous design setpoint?
No. The guide reserves the extended 19.2-36 VDC range for short periods. Keep normal operation within 24 VDC -15% to +20% and control source-switching transients. -
Can maintenance personnel replace the internal 15 A fuse?
The 8311 fuse is not removable. The manufacturer instructs users to return the module to Triconex for fuse replacement rather than attempt a field fuse repair. -
What must be isolated before a power module is withdrawn?
Disable incoming power to the affected module and verify secondary power is performing normally. Online replacement is conditional on these checks, not permission to remove a live-fed unit. -
How soon may a removed power module be reinstalled?
Wait at least 60 seconds after removal before attempting reinstallation, as required by the manufacturer replacement procedure. -
Which mechanical key identifies the 8311 power slot?
The power-module key table specifies top key 003 for 8311. A change of input-voltage model requires the proper key and engineered supply review; do not force a mismatched module into a slot. -
What is the verified hold-up time with input at zero volts?
The exact 8311 table gives 2.0 ms minimum and 5.6 ms typical. The old page value of 2.8 ms minimum is not the value in this manufacturer table. -
Can a failed redundant power module remain in an ATEX installation?
The guide requires immediate replacement; if replacement is not possible, shut down the Tricon. It permits running with a failed power module only where ignitable gas concentrations are known to be absent.
