PRODUCT DESCRIPTION

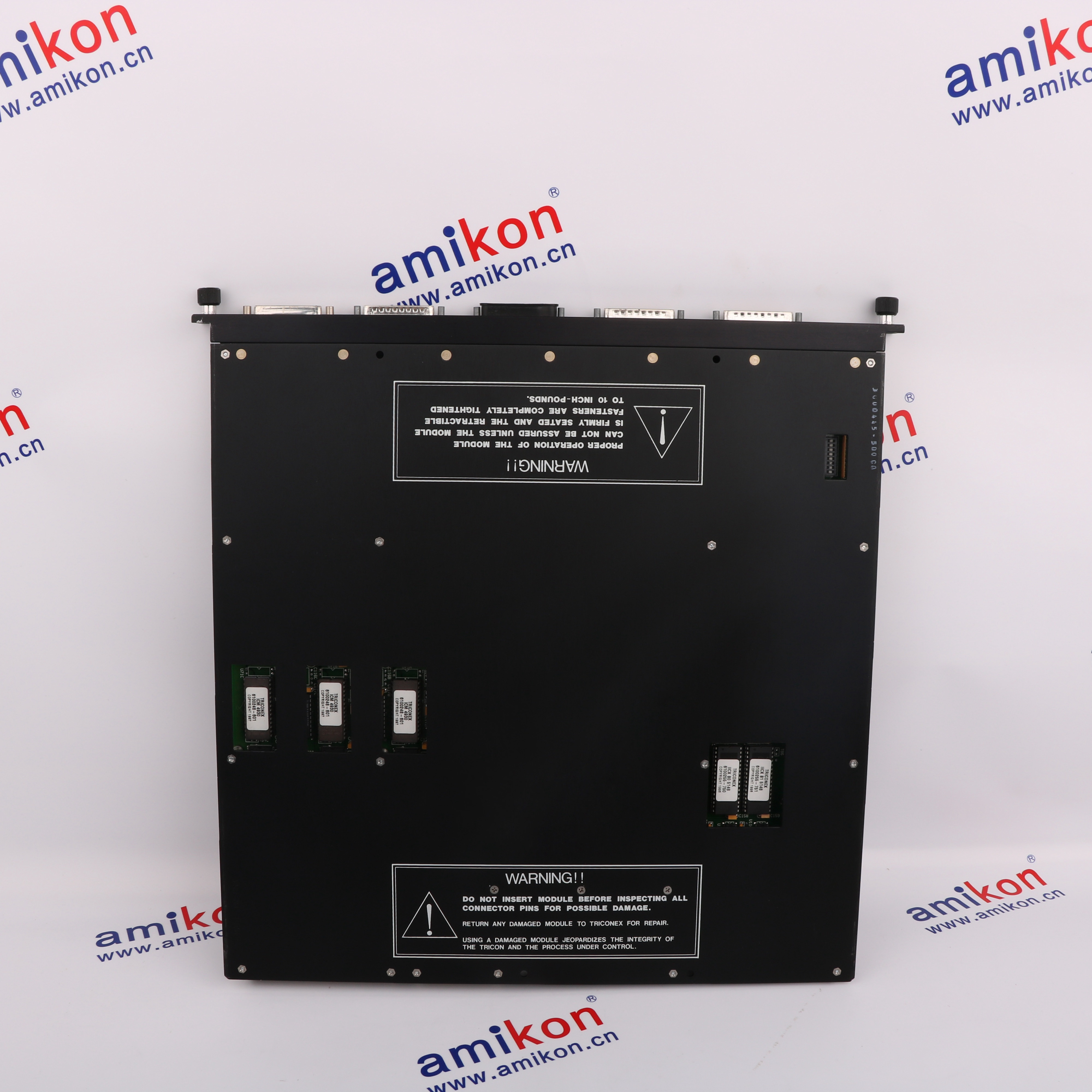

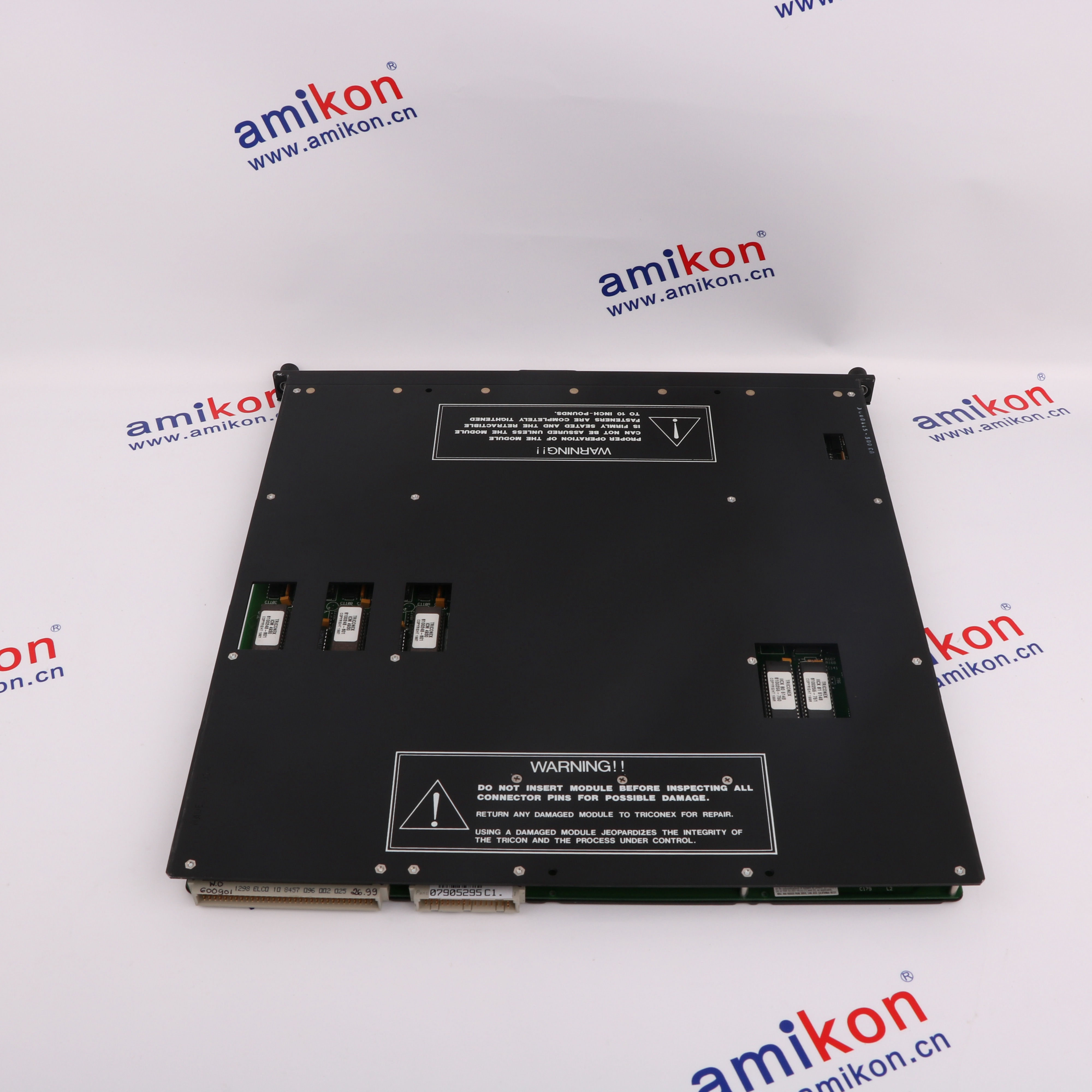

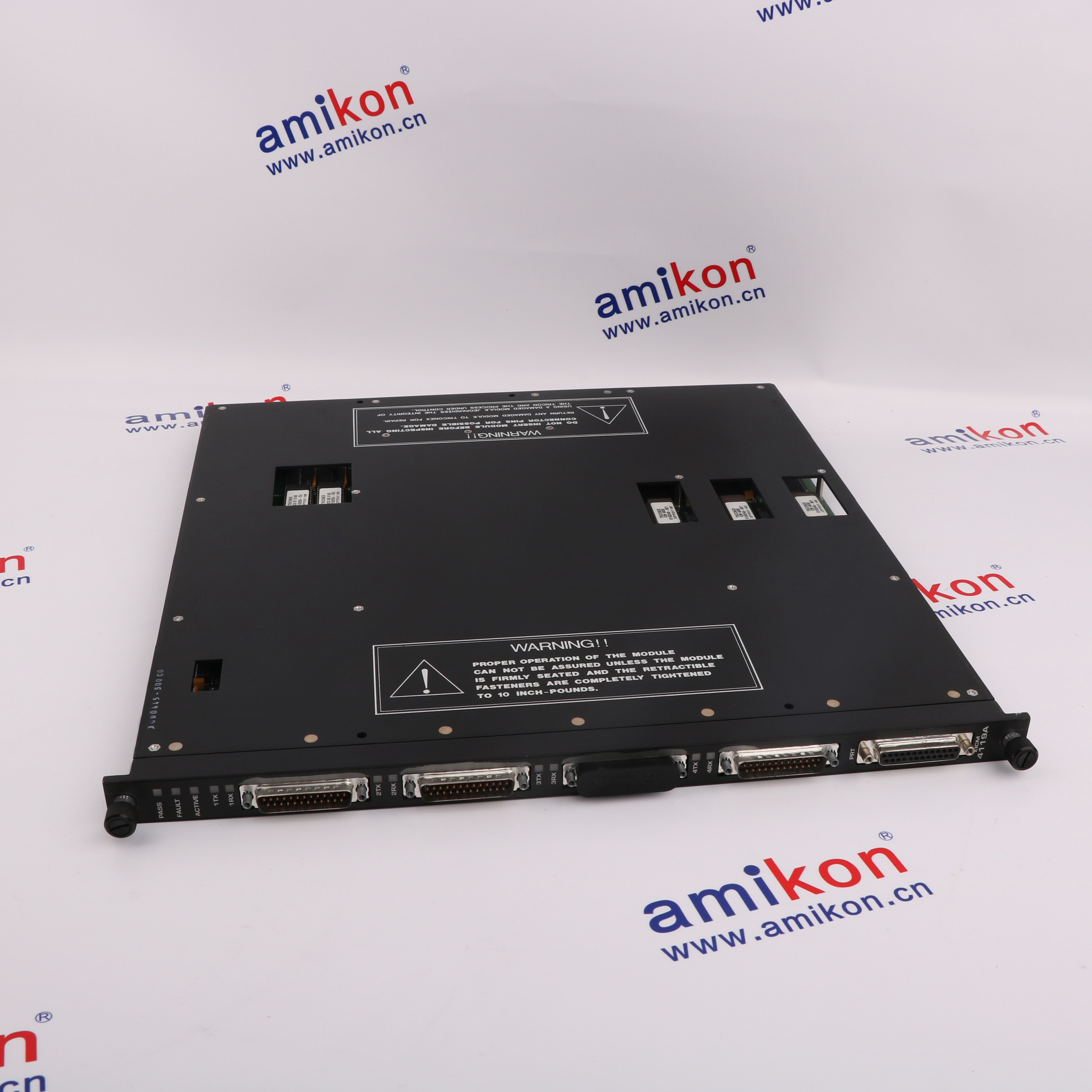

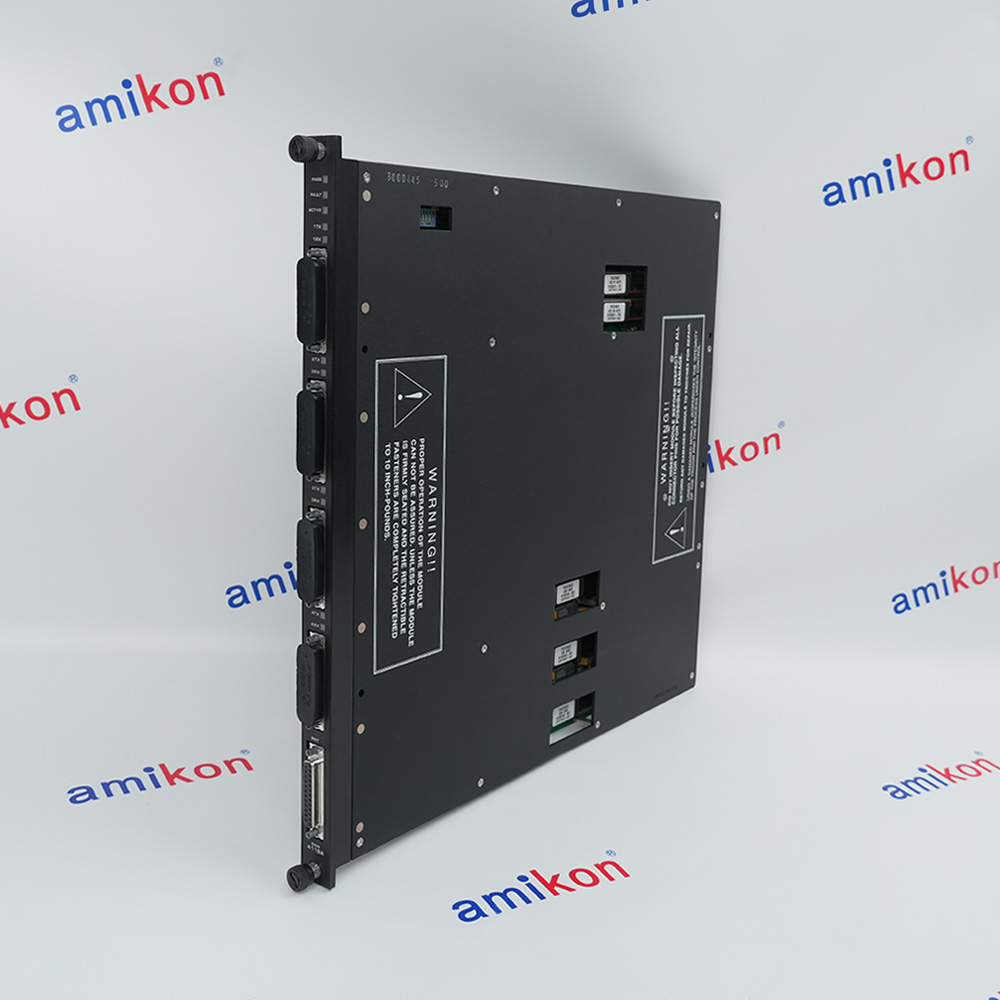

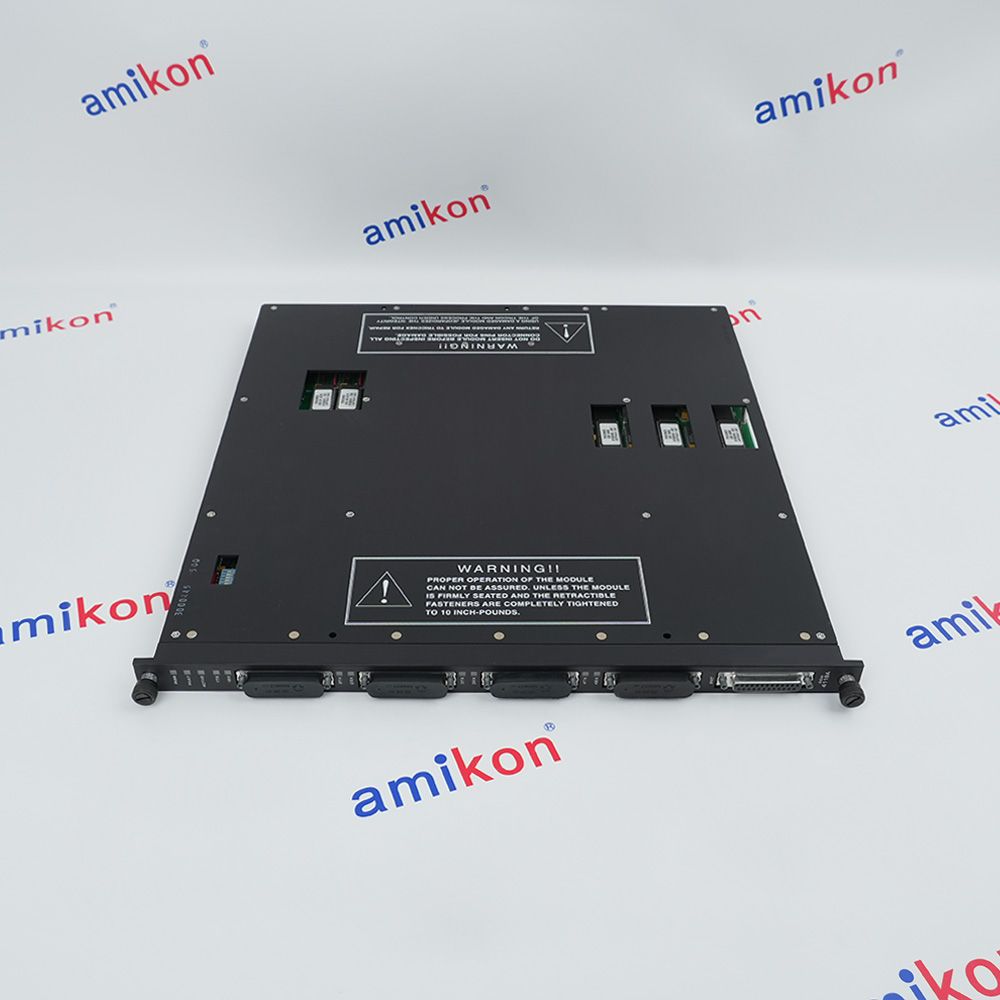

4119A - Intelligent Communication Module
Triconex 4119A is an Enhanced Intelligent Communication Module for connecting a Tricon controller to Modbus masters or slaves, a TriStation PC and a Centronics-compatible printer. Four serial ports and one parallel port can operate concurrently.
The serial ports support RS-232, RS-422 or RS-485 with 500 VDC isolation, while Modbus can operate in RTU or ASCII mode. Verify port assignment, cable pin-out, addressing, aggregate data rate and tag aliases before commissioning.
The serial ports support RS-232, RS-422 or RS-485 with 500 VDC isolation, while Modbus can operate in RTU or ASCII mode. Verify port assignment, cable pin-out, addressing, aggregate data rate and tag aliases before commissioning.
BEFORE YOU BUY
Check the complete ordered configuration
ACTUAL APPLICATIONS
Where 4119A supports measurement tasks
Manufacturer literature supports the following measurement arrangements. Confirm the complete installed system and the exact ordered configuration before selecting this component.
-
01 · MODBUS LINKS
Exchange controller data
Modbus data exchange between Tricon and process control systems. Verify the documented field interface, configured limits and approved safety function before service. -
02 · ENGINEERING ACCESS
Connect TriStation services
Modbus master or slave communication for safety-system monitoring. Verify the documented field interface, configured limits and approved safety function before service. -
03 · SYSTEM RECORDS
Route documented printer output
TriStation engineering workstation communication. Verify the documented field interface, configured limits and approved safety function before service.
Technical specifications for 4119A
-
Product Model4119A
-
Product ParametersIntelligent Communication Module
-
In stock1 unit
-
ManufacturerInvensys
-
Slot keysTop 001, bottom 003
-
Serial portsFour concurrent ports
-
Serial interfacesRS-232, RS-422 or RS-485
-
Port isolation500 VDC
-
Parallel interfaceCentronics printer port
-
ProtocolsTriStation and Modbus
-
Modbus modesRTU or ASCII
-
Aggregate data rate57.6 kbit/s maximum
-
Communication speeds1200, 2400, 9600 or 19,200 baud
-
Logic power<10 W
View all additional
Alternative Names
4119A
Tricon Enhanced Intelligent Communication Module
EICM Modbus Communication Module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed measurement arrangement
Triconex 4119A is an Enhanced Intelligent Communication Module for connecting a Tricon controller to Modbus masters or slaves, a TriStation PC and a Centronics-compatible printer. Four serial ports and one parallel port can operate concurrently.
Use 4119A only in a documented Tricon configuration that supports the EICM.
Match the complete model, logical communication slot and mechanical keys.
Confirm RS-232, RS-422 or RS-485 electrical interfaces and cable pin-outs.
Verify Modbus RTU or ASCII mode, baud rate, addresses and supported function codes.
Check TriStation and printer port assignments plus tag aliases.
Do not treat another Tricon communication module as interchangeable without controlled verification.
4119A provides four isolated serial ports and one parallel printer port for concurrent Tricon communications. Engineering checks should cover physical interface, pin-out, Modbus RTU or ASCII mode, baud rate, address, tag aliases and the 57.6 kbit/s aggregate data-rate limit. Validate read and write behavior against the approved safety-system communication design.
Features:
- Four concurrent serial communication ports
- RS-232, RS-422 or RS-485 interfaces with 500 VDC isolation
- TriStation and Modbus protocol support
The 4119A requires exact configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm the complete 4119A model before replacement.
Record the installed slot, controller version, firmware, port configuration and cable assignments.
Back up the approved communication and Modbus mapping before removal.
Inspect all serial and parallel connectors and preserve shielding and termination.
Verify current Triconex communication documentation and site lifecycle requirements.
Contact Amikon with model 4119A for availability and replacement support.
The serial ports support RS-232, RS-422 or RS-485 with 500 VDC isolation, while Modbus can operate in RTU or ASCII mode. Verify port assignment, cable pin-out, addressing, aggregate data rate and tag aliases before commissioning.
Retain the validated safety logic, termination arrangement and proof-test records. Recommission every affected channel before the safety function is returned to service.
Features:
- Four concurrent serial communication ports
- TriStation and Modbus protocol support
- Modbus RTU or ASCII operation
The 4119A requires replacement verification of the complete ordered configuration and installed measurement system before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.
Features:
- Sources: Existing verified Triconex model documentation and saved model PDFs
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 4119A is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.2 × 40.8 × 40 cm
-
Shipping weight2.35 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 4119A
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which serial electrical standards are available on the 4119A?
Its four isolated serial ports support RS-232, RS-422 or RS-485. Select the interface from the approved system design and verify the cable pin-out at both ends. -
When should Modbus RTU or Modbus ASCII be selected?
Use the mode required by the connected master or slave and configure the same mode, baud rate, address and framing throughout the communication path. -
How many communication ports may operate at the same time?
All four serial ports can operate concurrently, while the module also provides a Centronics parallel printer interface. Port duties must be assigned in the approved configuration. -
Why must combined 4119A traffic stay below 57.6 kbit/s?
The official aggregate data-rate limit applies across all four serial ports. Sum the configured port rates and leave margin for stable cyclic traffic and diagnostics. -
What must a system integrator verify in the Modbus data map?
Confirm tag aliases, device addresses, supported function codes, register locations, byte order and write permissions before any control write is enabled. -
Does the parallel printer port replace a TriStation or Modbus connection?
No. It is a separate Centronics printer interface; engineering access and Modbus devices must use correctly assigned serial ports. -
Which details distinguish a correct 4119A replacement from a similar EICM?
Check the exact suffix, slot keying, firmware requirements, port interfaces, cable pin-outs, Modbus mapping and the saved project configuration. -
How can maintenance isolate an intermittent 4119A communication fault?
Check PASS, FAULT, ACTIVE and TX/RX indications, test one port at a time, verify shielding and termination, then compare traffic after a controlled restart.
