PRODUCT DESCRIPTION

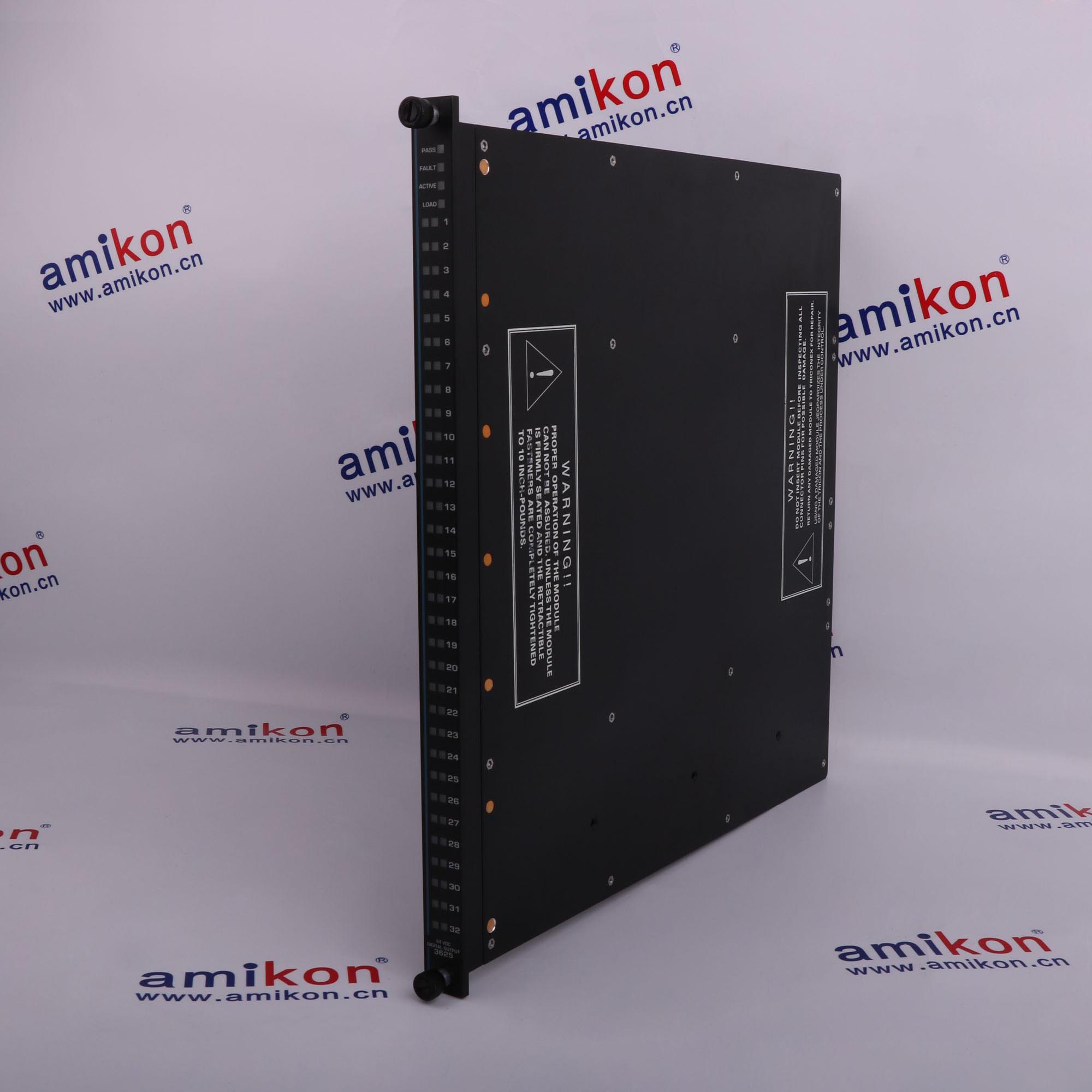

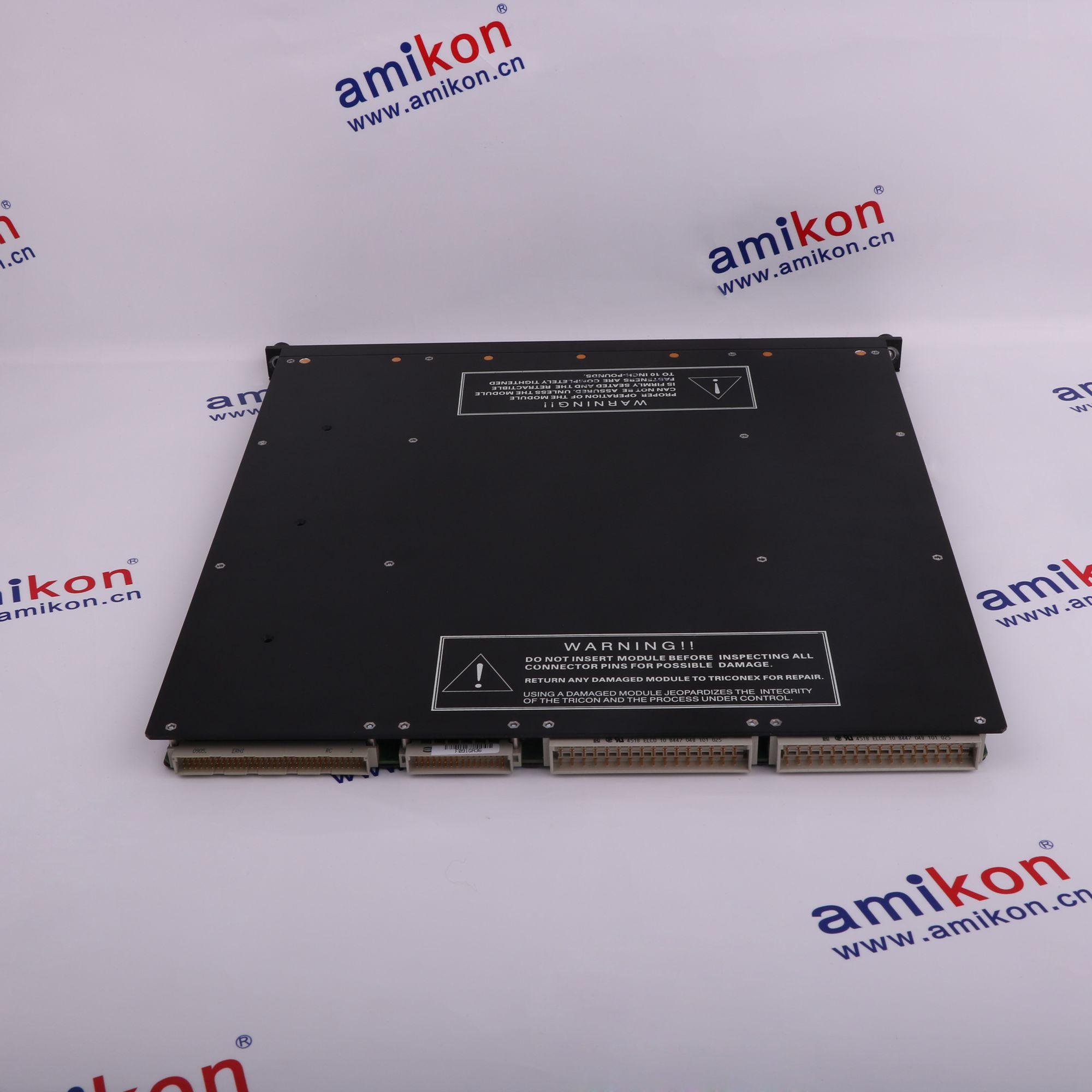

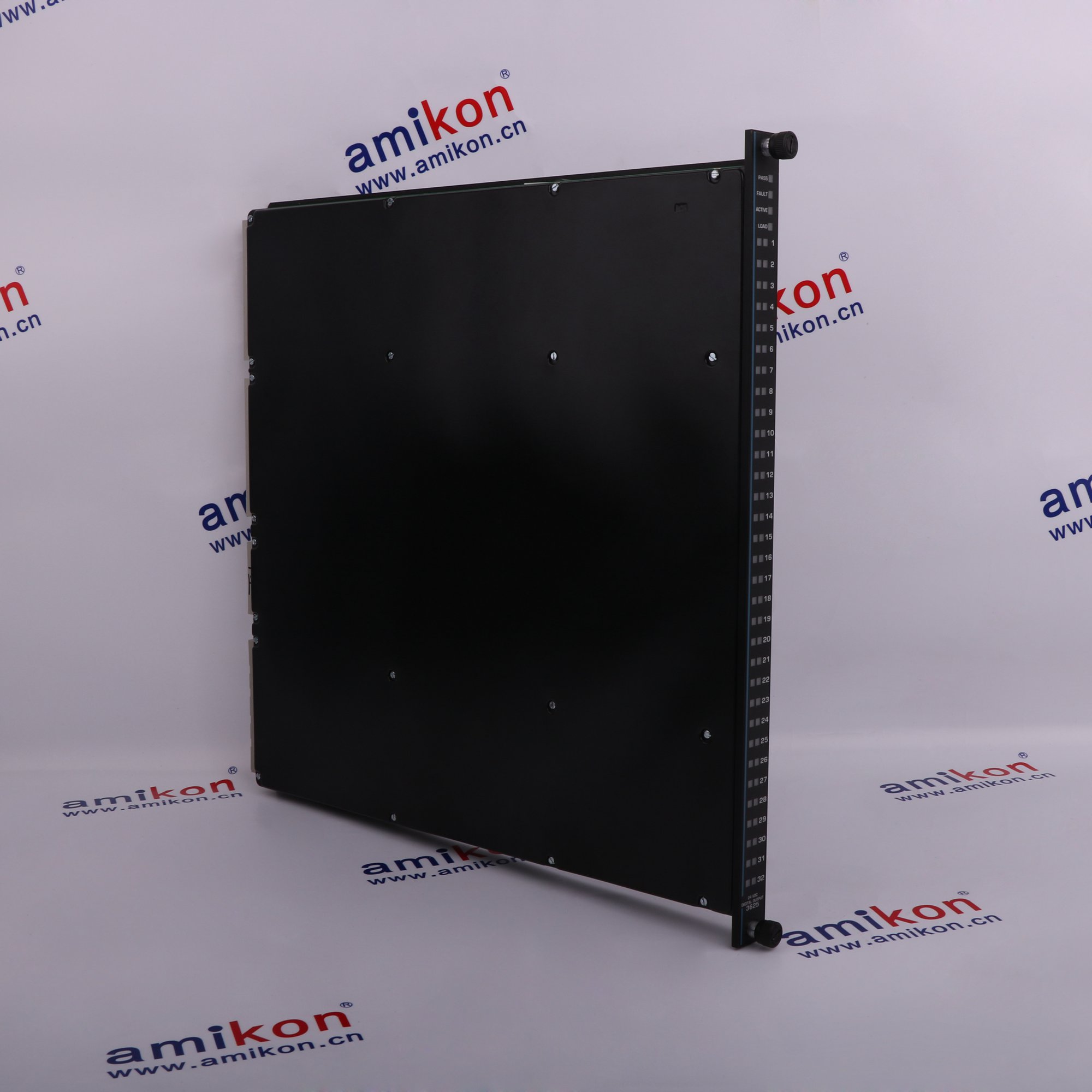

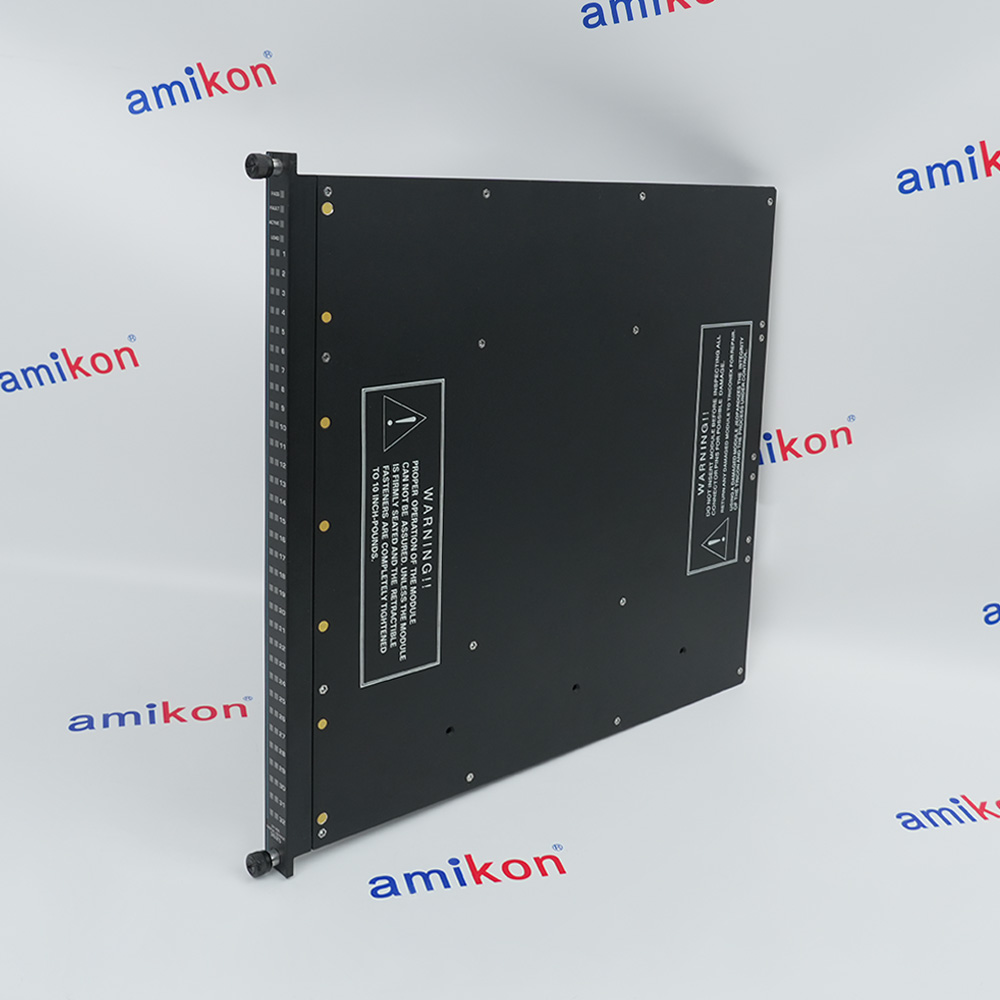

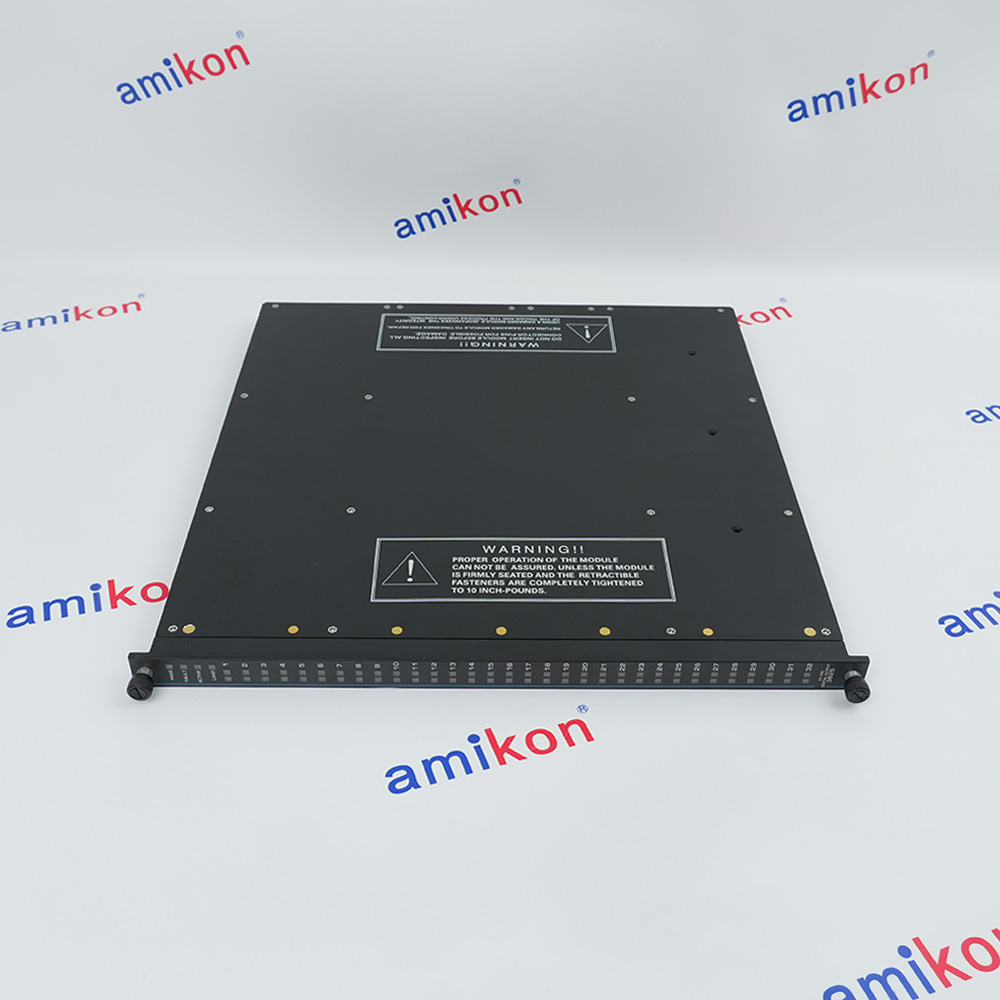

3625 - Supervised Digital Output Module
Triconex 3625 is a 32-point commoned TMR Digital Output Module for supervised or non-supervised 24 VDC circuits. It supports energize-to-trip and de-energize-to-trip applications in Tricon v10.2 and later systems.
Each point can be programmed for supervision with short- and open-circuit detection thresholds. Verify the exact controller version, top key 006, bottom key 007, commoned field termination, load current, supervision settings and safe-state logic before replacement.
Each point can be programmed for supervision with short- and open-circuit detection thresholds. Verify the exact controller version, top key 006, bottom key 007, commoned field termination, load current, supervision settings and safe-state logic before replacement.
BEFORE YOU BUY
Check the complete ordered configuration
ACTUAL APPLICATIONS
Where 3625 supports measurement tasks
Manufacturer literature supports the following measurement arrangements. Confirm the complete installed system and the exact ordered configuration before selecting this component.
-
01 · SAFETY OUTPUTS
Command supervised final elements
Supervised 24 VDC solenoid outputs in emergency shutdown systems. Confirm the commoned termination, field supply, configured trip state and approved safety logic before service. -
02 · TRIP CIRCUITS
Maintain the designed safe-state action
De-energize-to-trip final-element control. Preserve the approved energize-to-trip or de-energize-to-trip philosophy and prove the complete final-element circuit. -
03 · LOOP DIAGNOSTICS
Detect field circuit faults
Per-point open- and short-circuit monitoring in safety loops. Configure the documented supervision thresholds per point and validate the diagnostic response under controlled conditions.
Technical specifications for 3625
-
Product Model3625
-
Product ParametersSupervised Digital Output Module
-
In stock1 unit
-
ManufacturerInvensys
-
System requirementTricon v10.2 or later
-
Output signals32, commoned
-
Nominal voltage24 VDC
-
Recommended voltage16-32 VDC
-
Maximum voltage36 VDC
-
Current rating1.70 A per point maximum
-
Surge current5 A for 7 ms
-
Minimum load10 mA
-
Point supervisionProgrammable per point
-
Logic power<13 W
View all additional
Alternative Names
3625
Tricon 24 VDC TMR Output Module
32-Point Supervised Digital Output Module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed measurement arrangement
Triconex 3625 is a 32-point commoned TMR Digital Output Module for supervised or non-supervised 24 VDC circuits. It supports energize-to-trip and de-energize-to-trip applications in Tricon v10.2 and later systems.
Use 3625 only in Tricon v10.2 or later systems.
Match top slot key 006 and bottom slot key 007.
Confirm the documented 16-point commoned termination panels for all 32 outputs.
Verify 16-32 VDC field power, load current and termination-panel current.
Check supervision, short/open thresholds and trip philosophy for every point.
Do not treat another 24 VDC Tricon output module as interchangeable without controlled verification.
3625 is a 32-point commoned 24 VDC TMR output module for Tricon v10.2 and later. Engineering checks should cover field termination, common return, 16-32 VDC supply, per-point load, termination-panel current, leakage, supervision thresholds and the energize-to-trip or de-energize-to-trip safety philosophy.
Features:
- Thirty-two commoned 24 VDC TMR outputs
- Supervised or non-supervised operation per point
- Energize-to-trip and de-energize-to-trip support
The 3625 requires exact configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm the complete 3625 model before replacement.
Record the Tricon version, logical slot, termination panel, safety logic and point-supervision settings.
Inspect the connector, keys, field wiring and common return.
Preserve energize-to-trip or de-energize-to-trip behavior and proof-test records.
Verify current Triconex documentation and site lifecycle requirements.
Contact Amikon with model 3625 for availability and replacement support.
Each point can be programmed for supervision with short- and open-circuit detection thresholds. Verify the exact controller version, top key 006, bottom key 007, commoned field termination, load current, supervision settings and safe-state logic before replacement.
Retain the validated safety logic, termination arrangement and proof-test records. Recommission every affected point before the safety function is returned to service.
Features:
- Thirty-two commoned 24 VDC TMR outputs
- Energize-to-trip and de-energize-to-trip support
- Programmable short- and open-circuit detection
The 3625 requires replacement verification of the complete ordered configuration and installed measurement system before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.
Features:
- Sources: Existing verified Triconex model documentation and saved model PDFs
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3625 is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.2 × 40.8 × 40 cm
-
Shipping weight1.95 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3625
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which trip philosophies can the 3625 support?
The official guide permits energize-to-trip and de-energize-to-trip use. The safety logic, field circuit and proof-test procedure must all match the selected philosophy. -
How much output current may one 3625 point carry?
A point is rated up to 1.70 A, while the termination panel is limited to 10 A total. Calculate both the individual load and simultaneous panel demand. -
Why does the 10 mA minimum load matter?
Loads below the specified minimum may not behave correctly with the module diagnostics and leakage characteristics. Verify the actual field-device current in every operating state. -
Where is output point supervision established?
Supervision is programmable per point. Set the required open- and short-circuit thresholds and prove the diagnostic response with the process in a safe condition. -
What must be confirmed about the commoned return wiring?
The 32 outputs share a commoned architecture, so field termination, return paths, supply distribution and protective devices must match the approved drawings. -
How should a 5 A, 7 ms surge rating be applied to field loads?
Use it only for documented short-duration inrush analysis; it does not replace the 1.70 A continuous point limit or the 10 A termination-panel limit. -
Which identifiers prevent installation of the wrong digital output module?
Verify model 3625, Tricon v10.2 or later, top key 006, bottom key 007, the correct termination panel and 24 VDC field supply. -
What functional proof is required after replacing a 3625?
Check point states and PASS, FAULT, LOAD and ACTIVE indications, command each affected output, prove open/short detection and revalidate the safety function.
