PRODUCT DESCRIPTION

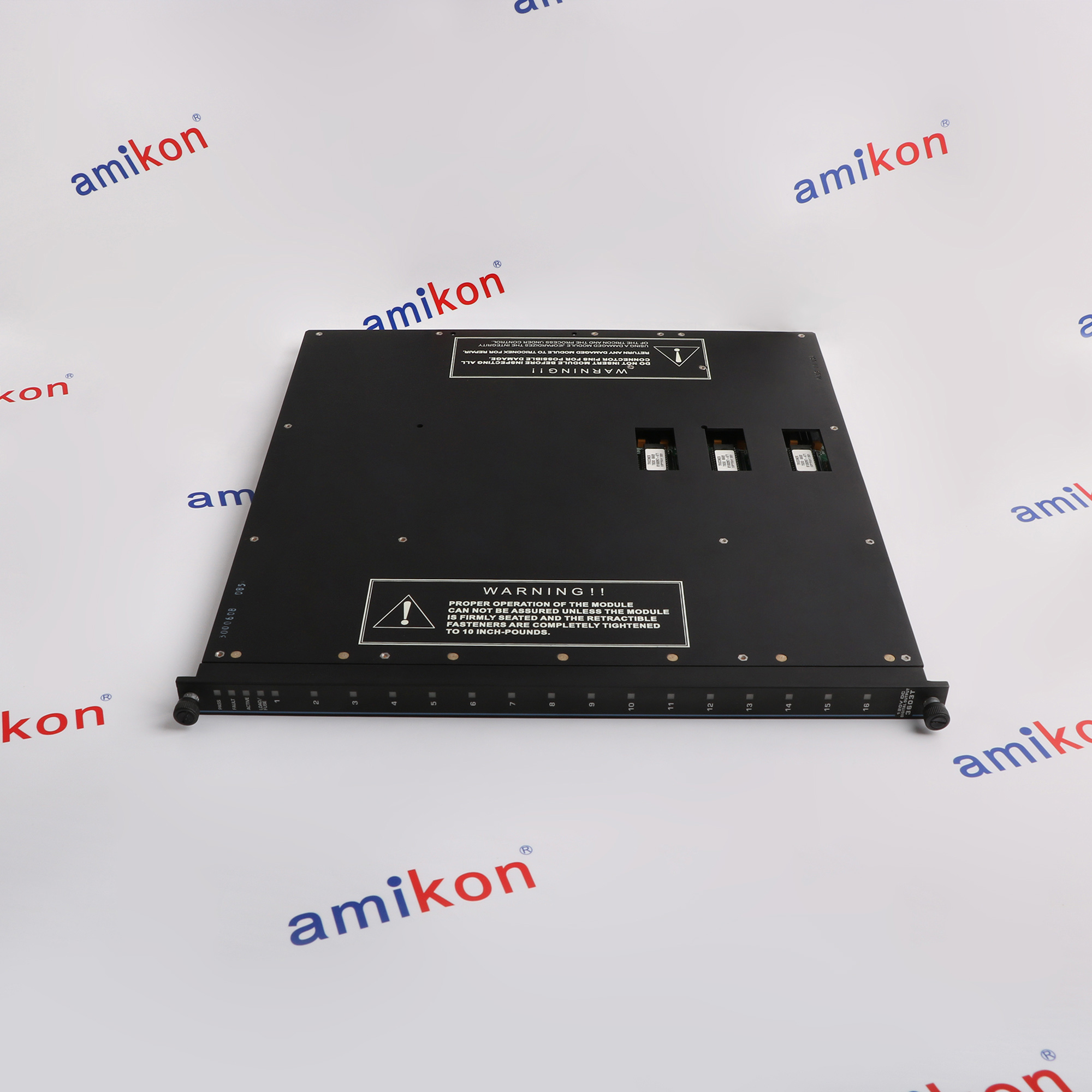

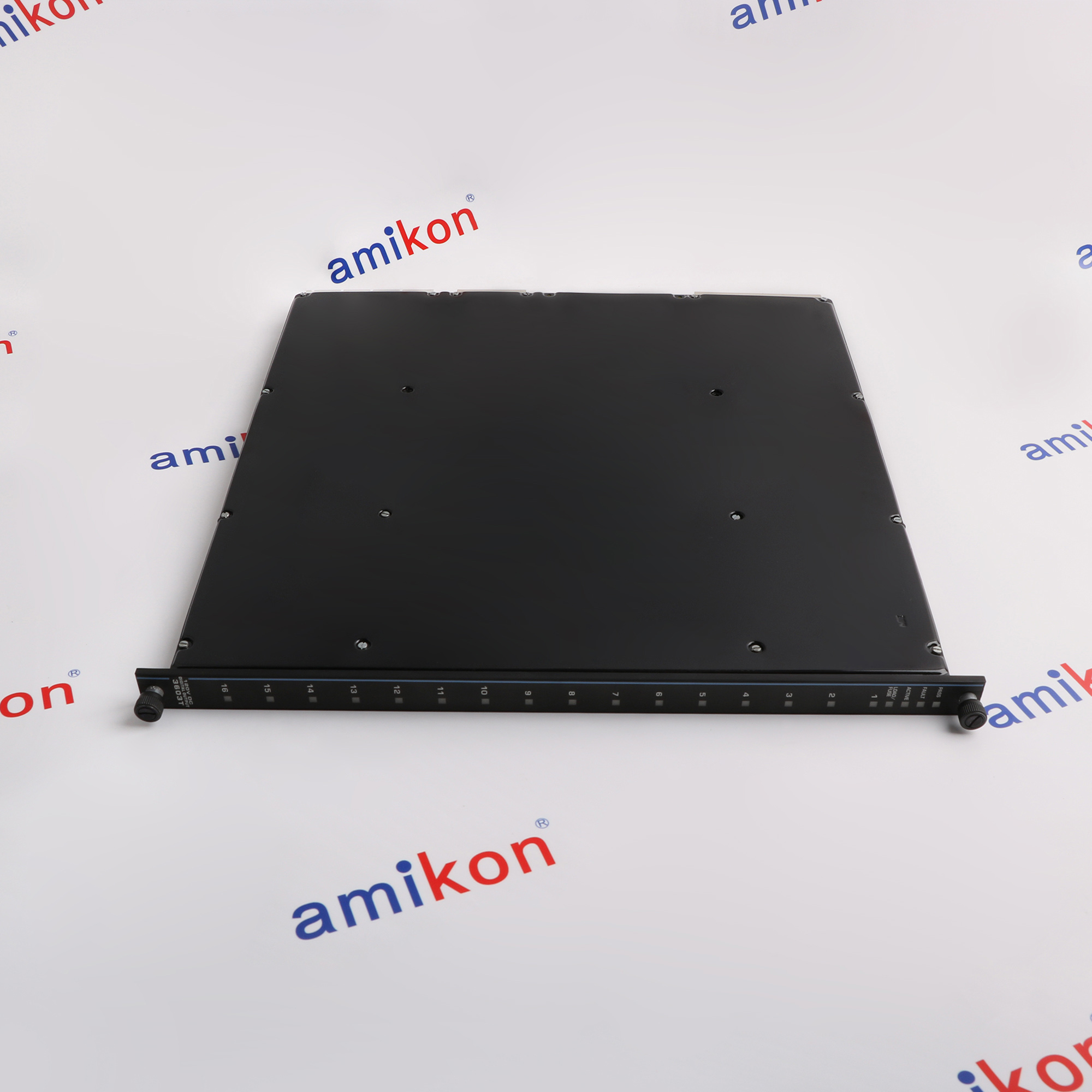

3603T 120 VDC digital output for the Tricon safety instrumented system
Triconex 3603T is a 120 VDC digital output used with the Tricon safety instrumented system. The complete order reference identifies the required hardware and must be matched to the installed chassis, baseplate, cable or field termination.
Manufacturer documentation lists the applicable electrical, signal and installation characteristics. Verify the nameplate, hardware revision, connector layout and project records before replacement.
Manufacturer documentation lists the applicable electrical, signal and installation characteristics. Verify the nameplate, hardware revision, connector layout and project records before replacement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
3603T supports Triconex safety-system lifecycle work
Use this 120 VDC digital output only after matching its documented hardware, field circuits and installed controller configuration.
- 01 · SAFETY CONTROL
Maintain configured shutdown functions
Preserve the approved logic path, point assignment and voting architecture during scheduled maintenance. - 02 · FIELD INTEGRATION
Connect the documented signals
Confirm voltage, current, channel, termination and protective-earth requirements before wiring the 3603T. - 03 · LIFECYCLE SERVICE
Verify replacement operation
Run diagnostics and a site functional test before returning the affected safety function to service.
Technical specifications for 3603T
-
Product Model3603T
-
Product Parameters120 VDC digital output
-
Place of shipmentXiamen, China
-
In stock1 unit
-
ManufacturerInvensys
-
Module TypeTMR digital output module
-
Nominal Voltage120 V DC field circuit
-
Output Points16 commoned channels
-
Voltage Range90 to 150 V DC
-
Typical Voltage DropBelow 1.5 V on state
-
Maximum Point Current0.8 A continuous output
-
Surge Capability4 A for 10 ms
-
Off-State Leakage2 mA maximum current
-
Point Isolation2500 V DC dielectric withstand
-
Point Fuse1.0 A fast-acting device
-
DiagnosticsOutput-voltage loopback testing
-
Module IndicatorsPASS-FAULT-ACTIVE-LOAD display
-
Hot SpareSupported with matching termination
-
Termination Panel9664-810F commoned interface
-
Safety ArchitectureTwo-out-of-three voted output
