PRODUCT DESCRIPTION

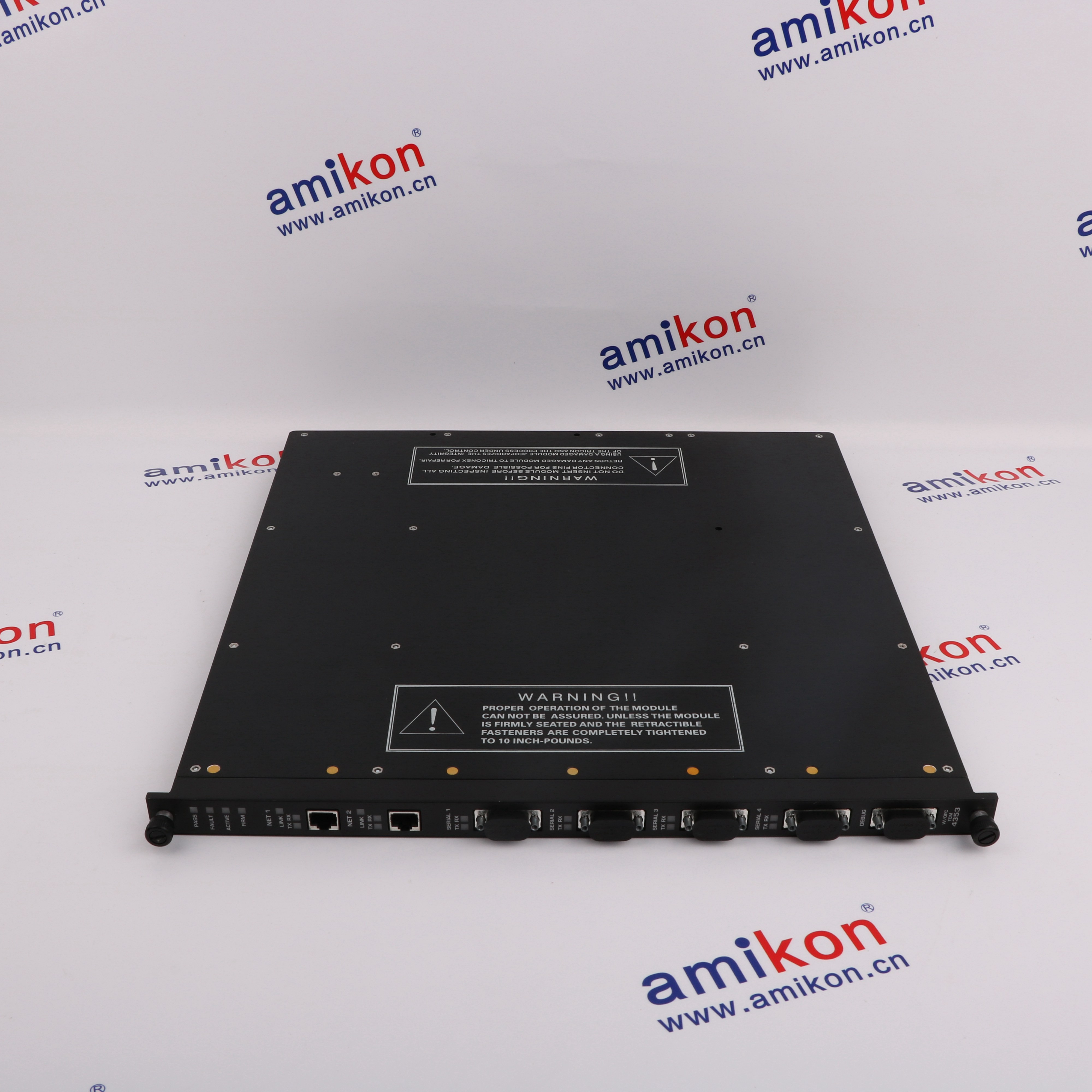

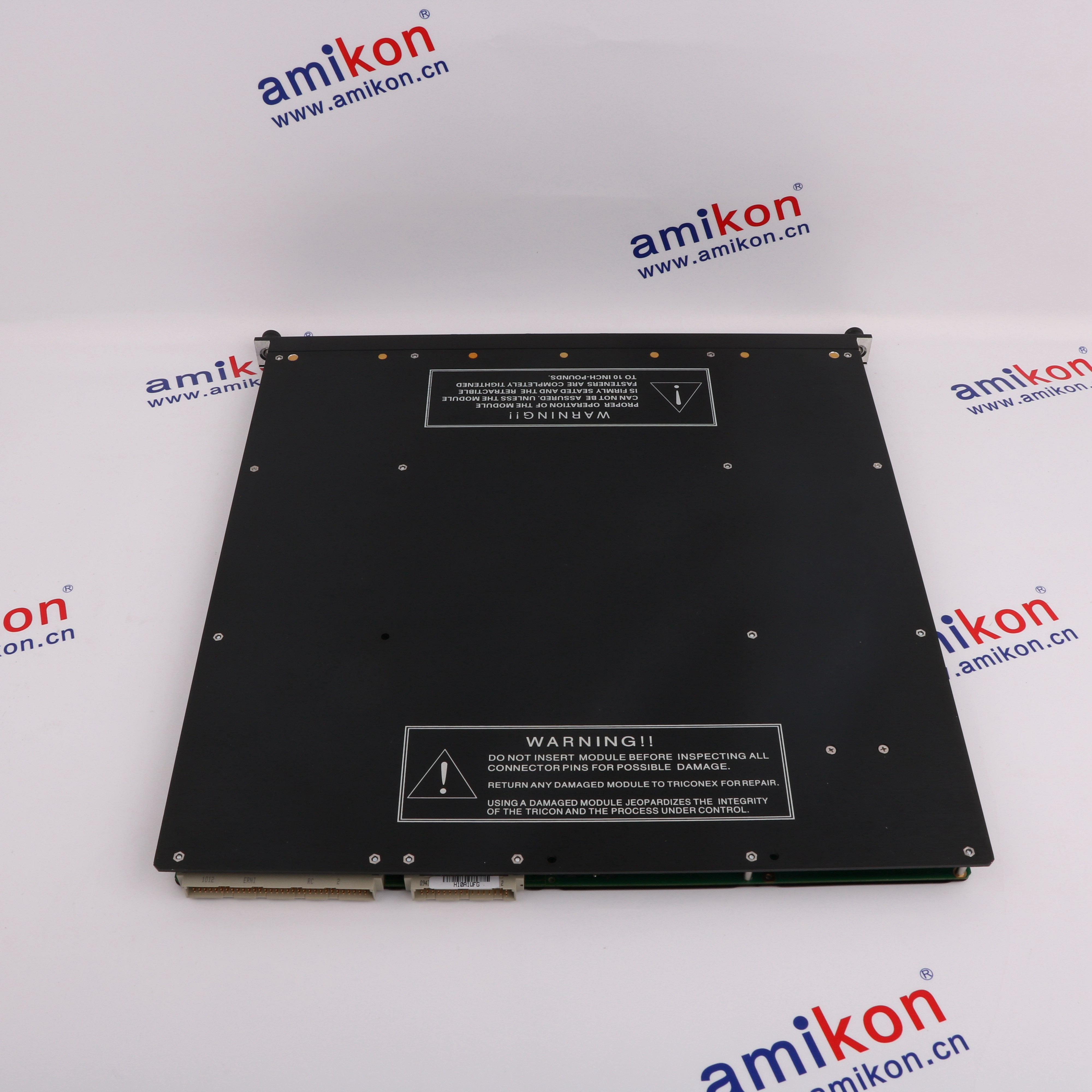

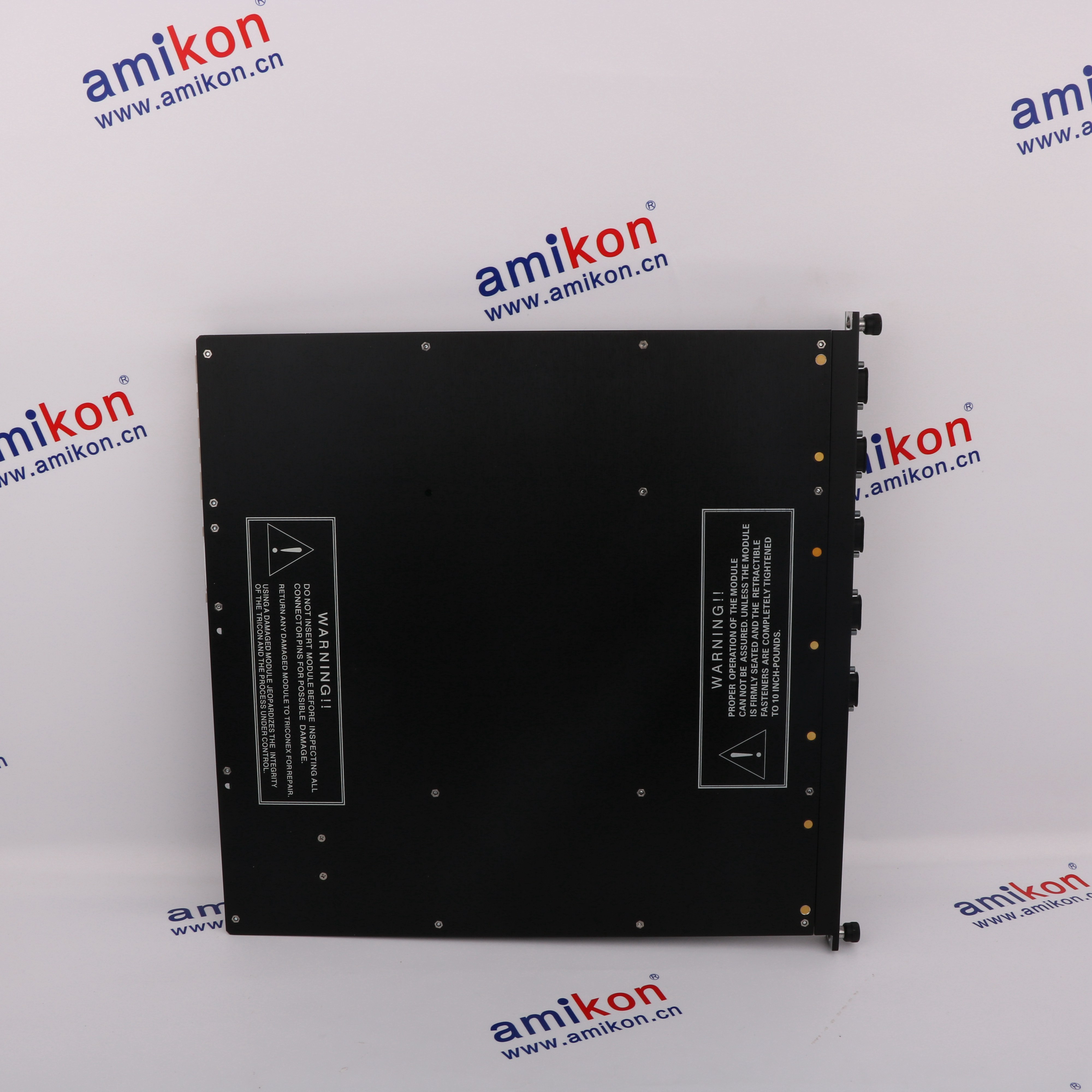

4353 - Tricon Communication Module
Triconex 4353 is a copper Tricon Communication Module with an embedded OPC server for Tricon 10.3 and later. Its two RJ-45 network ports operate at 100 Mbps, alongside four RS-232/RS-485 serial ports.
The manufacturer assigns embedded OPC to NET 2 and TSAA, Modbus TCP and peer communication to NET 1. The OPC server supports up to ten clients and the documented Data Access and Alarms and Events standards.
The manufacturer assigns embedded OPC to NET 2 and TSAA, Modbus TCP and peer communication to NET 1. The OPC server supports up to ten clients and the documented Data Access and Alarms and Events standards.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 4353 supports Tricon communications
These uses follow the manufacturer port assignments and system-version rules. Validate the installed network and application before commissioning.
-
01 · OPC APPLICATIONS
Serve the documented OPC clients
Use NET 2 for applications accessing the embedded OPC server. Observe the ten-client limit and the supported Data Access and Alarms and Events functions. -
02 · PROCESS HOSTS
Separate NET 1 process communications
Assign TSAA and Modbus TCP host traffic to NET 1 as documented for 4353. Do not copy the two-port Modbus assignment from an earlier TCM generation. -
03 · MAINTENANCE ACCESS
Retain a planned engineering connection
TriStation is supported on either Ethernet port for this model. Coordinate the engineering connection with the OPC and process-network assignments before controlled maintenance.
Technical specifications for 4353
-
Product Model4353
-
Product ParametersTricon Communication Module
-
ManufacturerInvensys
-
Supported Tricon version10.3 and later
-
Network portsTwo RJ-45 copper ports
-
Network medium100BaseT twisted pair
-
Network speed100 Mbps
-
Serial connectorsFour DB-9 ports
-
Serial electrical interfacesRS-232 and RS-485
-
Maximum serial rate per port115.2 kbps
-
Aggregate serial throughput460.8 kbps
-
Port isolation500 VDC
-
TriStation Ethernet assignmentNET 1 and NET 2
-
Modbus TCP assignmentNET 1
-
TSAA Ethernet assignmentNET 1
-
Embedded OPC serverSupported on NET 2; up to 10 clients
-
Logic powerLess than 10 W
-
Module status indicatorsPass, Fault, Active and FIRM
View all additional
Alternative Names
4353
Triconex 4353
Tricon TCM 4353
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the controller generation and network assignment
Triconex 4353 is a copper Tricon Communication Module with an embedded OPC server for Tricon 10.3 and later. Its two RJ-45 network ports operate at 100 Mbps, alongside four RS-232/RS-485 serial ports.
The manufacturer assigns embedded OPC to NET 2 and TSAA, Modbus TCP and peer communication to NET 1. The OPC server supports up to ten clients and the documented Data Access and Alarms and Events standards.
Check the exact TCM generation, logical-slot pairing and permitted chassis location. Serial port 1 can serve Modbus or GPS; serial port 4 can serve Modbus or TriStation. Do not treat either shared assignment as simultaneous use.
Features:
- Embedded OPC on NET 2
- Up to ten OPC clients
- 100 Mbps copper networking
The 4353 requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the exact 4353 identity, controller version and communication configuration. Label all cables before removal. Paired TCMs are independent modules, not hot spares.
The manufacturer assigns embedded OPC to NET 2 and TSAA, Modbus TCP and peer communication to NET 1. The OPC server supports up to ten clients and the documented Data Access and Alarms and Events standards.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- Embedded OPC on NET 2
- 100 Mbps copper networking
- Modbus TCP and TSAA on NET 1
The 4353 requires replacement verification of port assignments, protocol configuration and restored communication before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 4353 is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size49 × 45.3 × 6.8 cm
-
Shipping weight2.80 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 4353
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does 4353 negotiate a 10 Mbps copper connection?
The manufacturer footnote states that 4353 supports 100 Mbps only. The generic copper 10/100 Mbps entry has this exact-model exception. -
How many clients can connect to the embedded OPC server?
The documented maximum is ten clients. This is the embedded server limit, not a per-serial-port allowance. -
Which OPC functions are identified in the guide?
The manufacturer lists Data Access and Alarms and Events standards. The guide does not establish an OPC UA capability for this module. -
Can a Modbus TCP host use the OPC-assigned NET 2 port?
The 4353 protocol table assigns Modbus TCP to NET 1 and embedded OPC to NET 2. Use the documented port for each service. -
Is TSAA available on both 4353 Ethernet ports?
No. The table assigns TSAA to NET 1 for 4353. Both-port TSAA support shown for another TCM generation must not be copied here. -
What should be recorded before taking a communication module out of service?
Label the communication cables and record the relevant module and network configuration. The manufacturer replacement procedure begins with cable identification and disconnection. -
What fastener torque is specified when installing the replacement?
The replacement procedure specifies 10 inch-pounds for the retractable fasteners after the module is firmly seated. -
How soon should Pass and Active appear after replacement?
The procedure gives approximately one minute for Pass and one to two minutes for Active. Restore cables and verify the required communication services rather than relying only on those indications.
