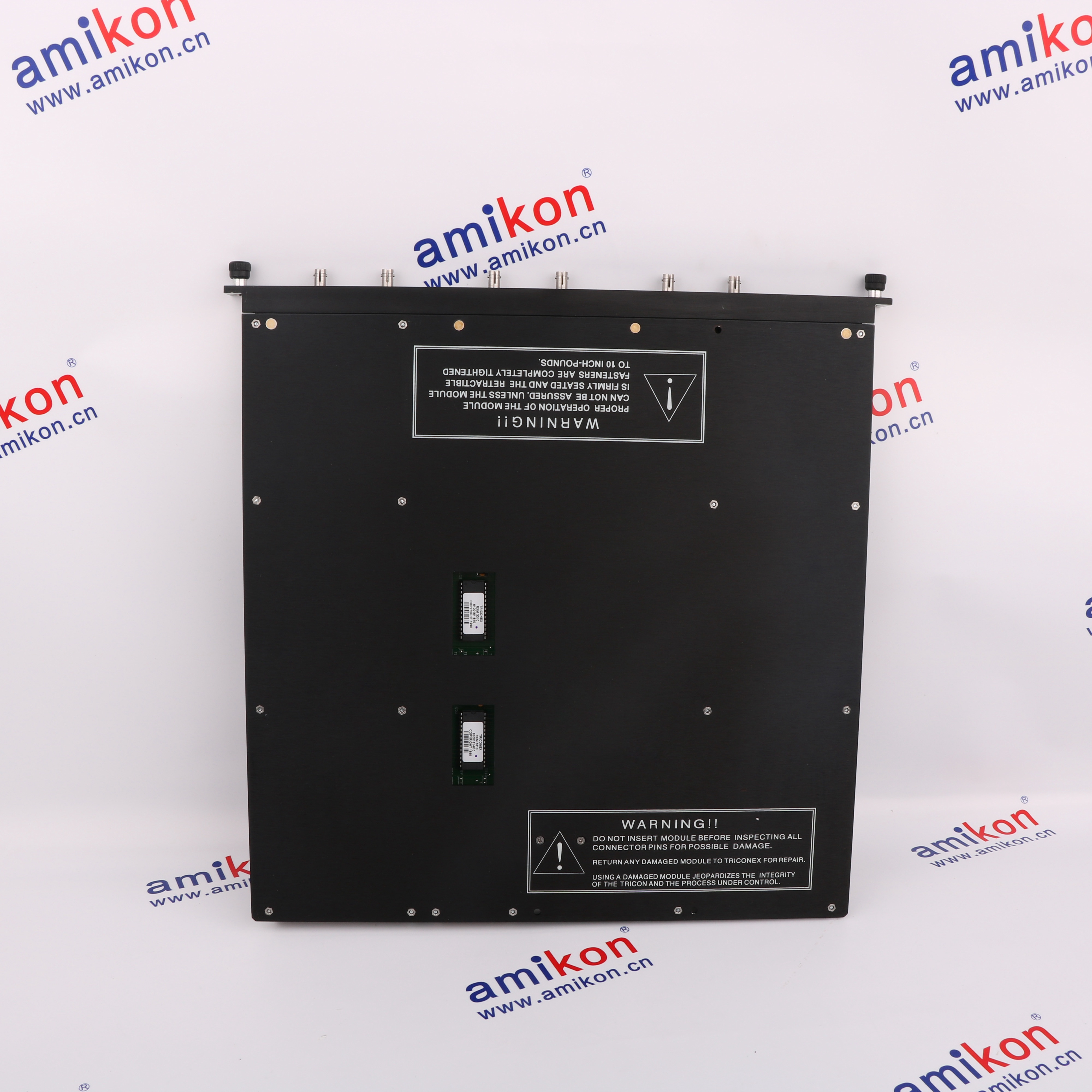

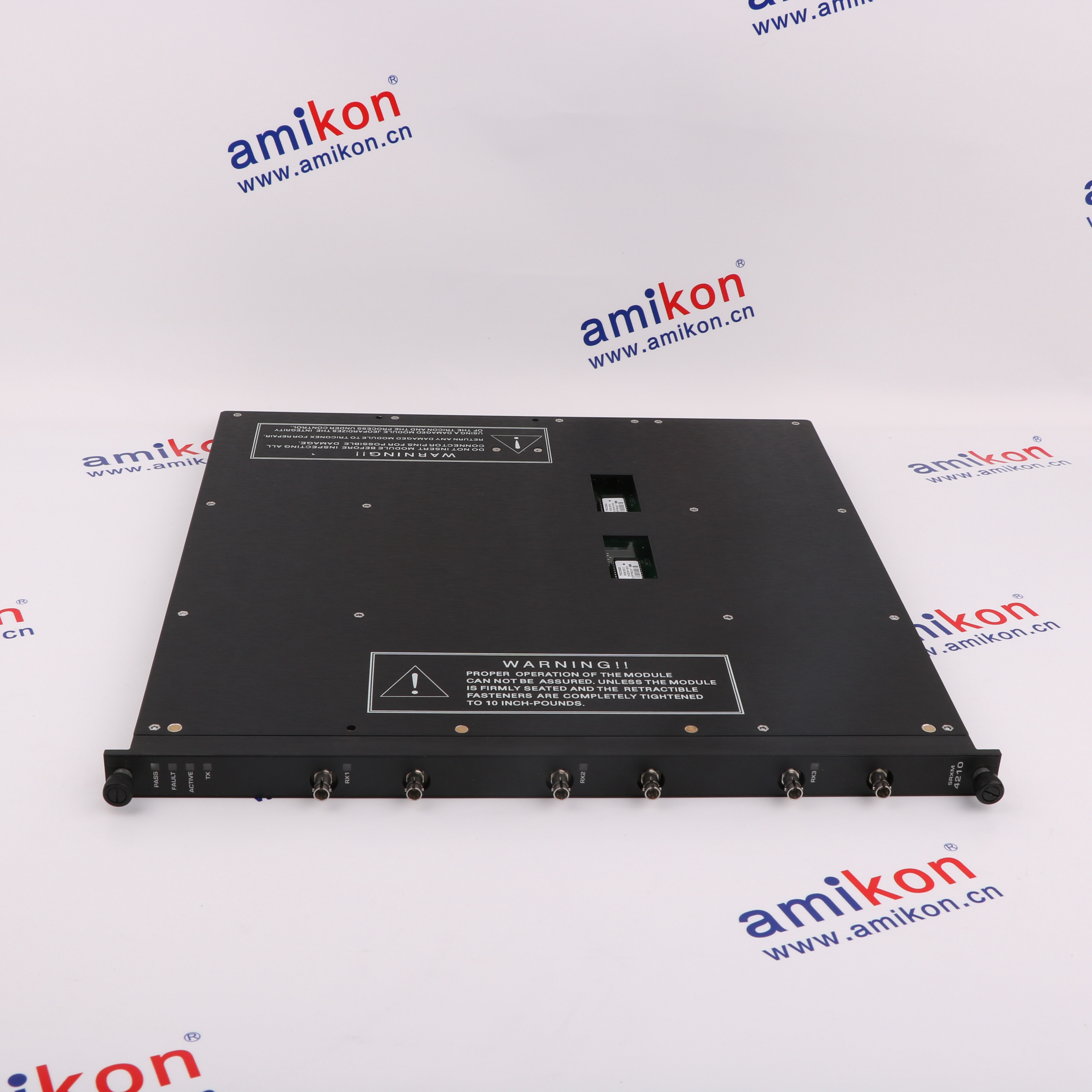

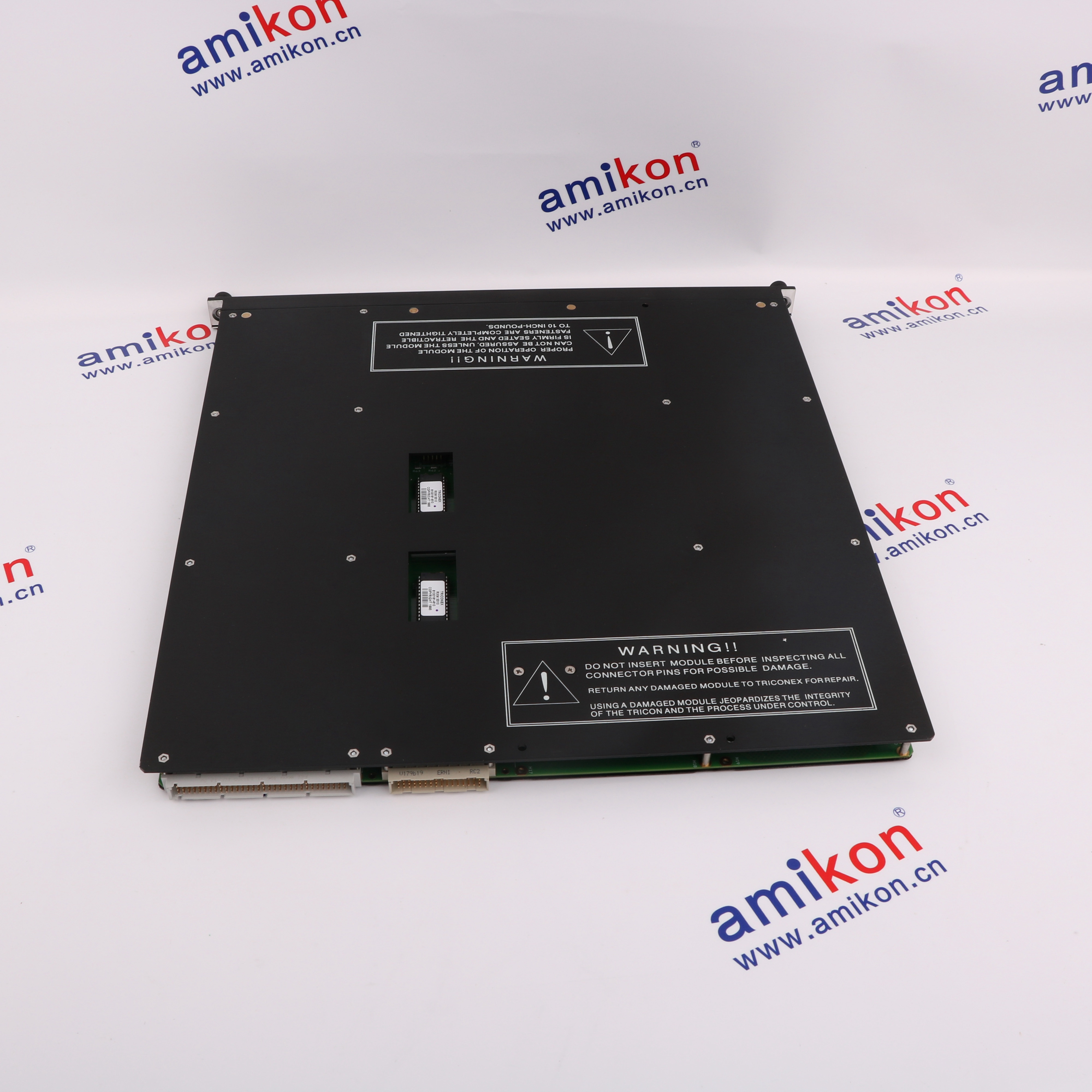

Technical specifications for 4210
-
Product Model4210
-
Product ParametersRemote Extender Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.2x40.8x40cm
-
ManufacturerInvensys
-
Weight1.95 kg
-
RXM Chassis LocationPrimary
-
Cable TypeSingle-mode
-
Cable Length Limit7.5 miles (12 kilometers)
-
Connectors6/remote site
-
Remote Sites Supported3
-
Modem PortsFiber Optic with STconnectors
-
Diagnostic IndicatorsPASS, FAIL, ACTIVE,TX, RX1, RX2, RX3
Description
The Triconex 4210 is a Remote Extender Module (RXM) as a Primary Single-Mode Remote Extender Module (SRXM) for the Triconex Safety Instrumented System (SIS). The 4210 enables remote placement of I/O modules several kilometers from the main chassis, extending the system's I/O and processing capabilities through high-integrity fiber optic communication links.
The 4210 uses sets of three identical modules that act as repeaters and bus extenders while providing complete ground loop isolation. A primary RXM set of the 4210 can support up to three separate remote locations through connection to remote RXM sets housed in remote chassis. The 4210 operates with single-mode fiber optic cables at a communication rate of 375 kilobits per second, providing maximum immunity against electro-static and electro-magnetic interference.
Remote sites can be located as far as 7.5 miles (12 kilometers) from the primary site using the 4210. For each channel of a remote location, one cable carries data transmitted from the primary 4210 to the remote RXM, and the other cable carries data received by the primary 4210 from the remote RXM. A pair of modules must be wired for each of the three channels, amounting to a total of six cables for each remote location.
The 4210 uses sets of three identical modules that act as repeaters and bus extenders while providing complete ground loop isolation. A primary RXM set of the 4210 can support up to three separate remote locations through connection to remote RXM sets housed in remote chassis. The 4210 operates with single-mode fiber optic cables at a communication rate of 375 kilobits per second, providing maximum immunity against electro-static and electro-magnetic interference.
Remote sites can be located as far as 7.5 miles (12 kilometers) from the primary site using the 4210. For each channel of a remote location, one cable carries data transmitted from the primary 4210 to the remote RXM, and the other cable carries data received by the primary 4210 from the remote RXM. A pair of modules must be wired for each of the three channels, amounting to a total of six cables for each remote location.
Information
Overview
Manuals
Application Notes
Product Applications
Insertion Guide
Features:
- Primary SRXM with Single-Mode Fiber Optic Communication
- Extends I/O Bus Up to 7.5 Miles (12 Kilometers)
- Supports Up to 3 Remote Sites per Primary RXM Set
- 375 Kilobits per Second Communication Rate
- Complete Ground Loop Isolation
The Triconex 4210 Remote Extender Module extends the Tricon I/O bus through single-mode fiber optic communication while providing electrical isolation and protection against electromagnetic interference. The 4210 supports remote I/O deployment with a maximum fiber communication distance of 7.5 miles (12 kilometers) and allows remote field devices and I/O modules to be located far from the main control cabinet.
The 4210 Triconex Remote Extender Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Triconex 4210 Remote Extender Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 4210 features comprehensive diagnostic indicators including PASS, FAIL, ACTIVE, TX (Transmit), and RX1/RX2/RX3 (Receive for channels A, B, C). These indicators on the 4210 provide clear visual status indication for system health monitoring and troubleshooting. The 4210 uses fiber optic connectors with ST-interface for reliable optical connection.
The 4210 is part of the Triconex TMR (Triple Modular Redundancy) architecture, contributing to the overall system SIL 3 certification in accordance with IEC 61508. The 4210 is widely used in oil and gas, petrochemical, power generation, and other industries where large-scale distributed control and safety monitoring are required. The 4210 allows for remote placement of I/O points, reducing wiring costs and simplifying installations while maintaining high safety integrity levels.
- Offshore Rigs: Links living platform control rooms to remote wellhead I/O on satellite jackets over open water
- Large Refineries: Connects SIS core to distributed I/O across distillation, hydrocracking, and coking units
- Chemical Tank Farms: Enables real-time tank level/temp/pressure monitoring across large footprints without copper cabling
- Mine Automation: Extends safety loops to remote conveyors, ventilation shafts, and pumping stations
- Cross-Plant ESD: Integrates plant safety zones into unified ESD network for plant-wide actions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Verify System Power: Although Triconex modules are hot-swappable, always ensure you are using a safe, approved maintenance process in accordance with your facility’s standard operating procedures.
Inspect Connectors: Visually check the module's edge connectors and the backplane slot for any dust, debris, or bent pins.Align the Module: Align the module top and bottom with the chassis card guides.
Slide and Seat: Gently slide the 4210 module into the designated slot on the primary chassis. Push firmly until the module is securely seated in the backplane connector.
Secure: Fasten the retaining screws at the top and bottom of the module faceplate to prevent dislodging due to facility vibrations.
Alternative Names
421O
42I0
4Z10
Technical notes
The 4210 is part of the Triconex TMR (Triple Modular Redundancy) architecture, contributing to the overall system SIL 3 certification in accordance with IEC 61508. The 4210 is widely used in oil and gas, petrochemical, power generation, and other industries where large-scale distributed control and safety monitoring are required. The 4210 allows for remote placement of I/O points, reducing wiring costs and simplifying installations while maintaining high safety integrity levels.
FAQs
-
What is the Triconex 4210?
+The Triconex 4210 is a Primary Remote Extender Module (RXM) used in Tricon Triple Modular Redundancy (TMR) safety systems -
What is the maximum distance supported?
+The 4210 module supports distances up to 7.5 miles (12 kilometers) without signal degradation. -
How many remote sites can a primary 4210 connect to?
+A single primary 4210 RXM set can connect to up to three separate remote locations simultaneously. -
What is the purpose of the Triconex 4210?
+It acts as a primary extension link to locate I/O chassis near field equipment while centralizing core control logic
