PRODUCT DESCRIPTION

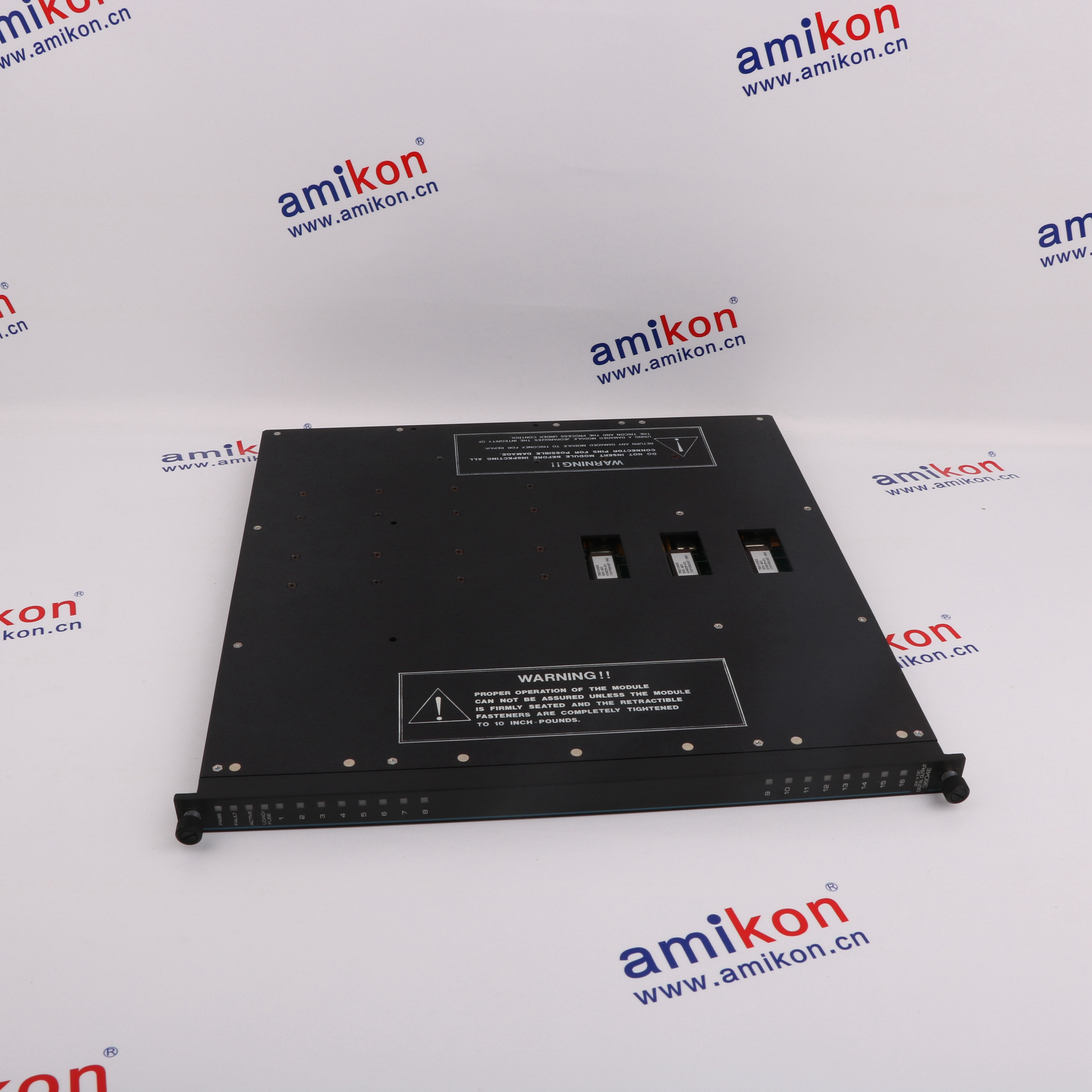

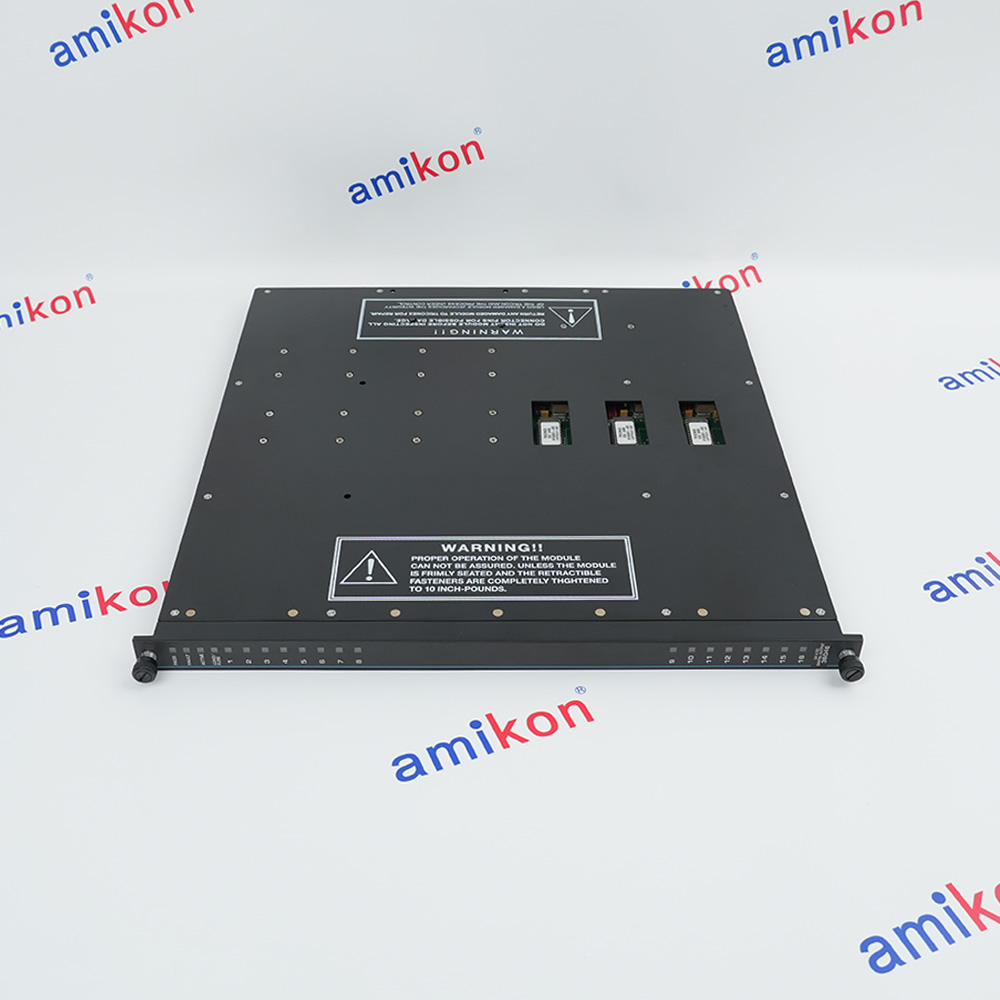

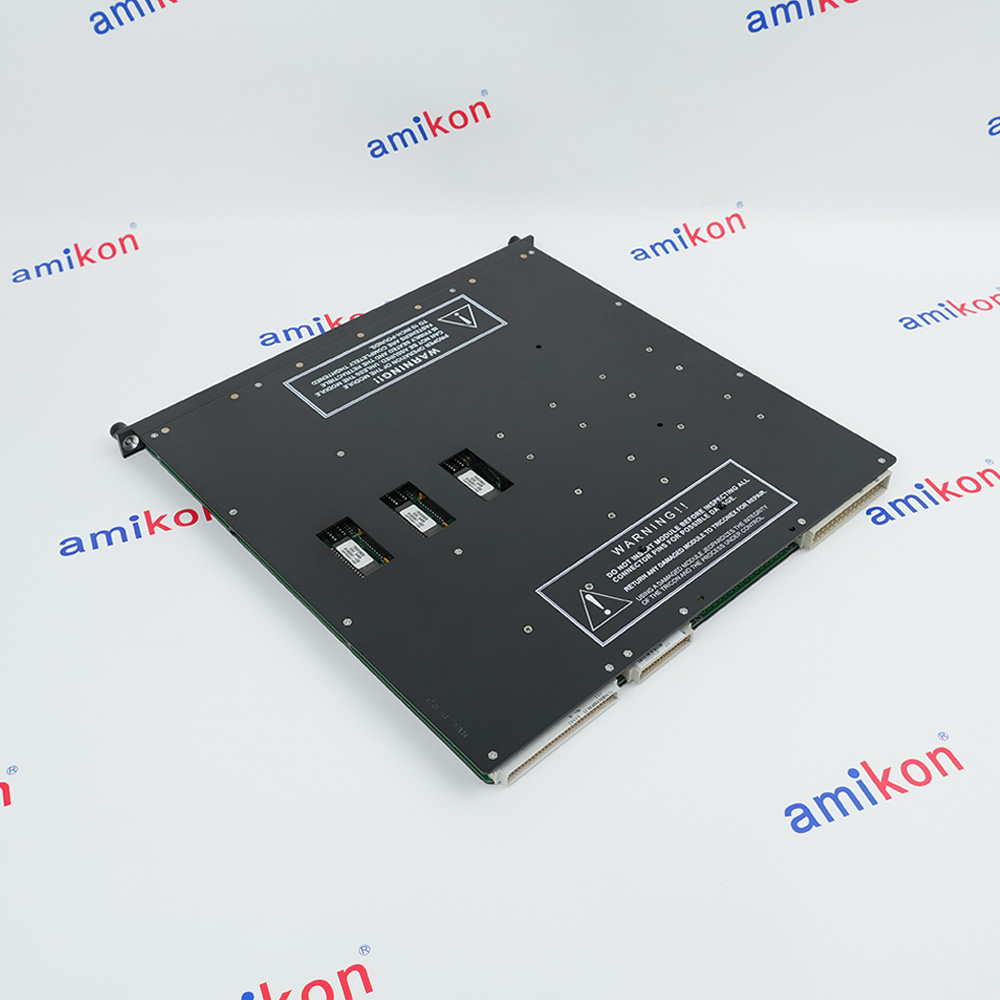

3604E - TMR Digital Output Module
Triconex 3604E provides sixteen non-commoned nominal 24 VDC digital outputs. The TMR output architecture votes the three channel commands before applying power to the connected load.
The specified voltage range is 22-45 VDC with a maximum continuous output current of 2 A per point. Verify field fuses, supply to unused points, cable voltage drop and diagnostic pulses before connecting final elements.
The specified voltage range is 22-45 VDC with a maximum continuous output current of 2 A per point. Verify field fuses, supply to unused points, cable voltage drop and diagnostic pulses before connecting final elements.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 3604E supports field I/O tasks
The manufacturer documents the following circuit functions. Validate the complete safety function and field wiring before service.
-
01 · DC ACTUATION
Switch independently wired DC loads
Drive approved DC final elements through the sixteen non-commoned outputs. Check steady current, inrush, field fuse selection and the available load voltage with the installed cable. -
02 · RELAY INTERFACES
Command external relay circuits
Use a correctly rated relay interface when the engineered application requires contact switching. Evaluate off-state leakage and diagnostic pulses against relay dropout and response characteristics. -
03 · FIELD DIAGNOSTICS
Monitor output load and fuse status
Use the module field-alarm indication when diagnosing supply, load and fuse conditions. Preserve power to every output point, including unused points on non-commoned panels, as required by the manual.
Technical specifications for 3604E
-
Product Model3604E
-
Spare Model7400116-020
-
Product ParametersTMR Digital Output Module
-
ManufacturerInvensys
-
Output signals16, non-commoned
-
Operating voltage range22-45 VDC
-
Continuous current limit2 A per point maximum
-
Surge current limit10 A for 10 ms maximum
-
Off-state load leakage2 mA maximum
-
Field termination fuseOne 2.5 A fast-acting fuse per output
-
Point isolation1500 VDC minimum
-
Logic powerLess than 10 W
-
Point indicationOne on/off indicator per output
-
Module indicationsPass, Fault, Active
-
Field alarm indicationLoad/Fuse
-
Maximum diagnostic toggle rateEvery 100 ms plus one scan
-
Diagnostic pulse duration2 ms maximum; 500 microseconds typical
-
Backplane on-state dropLess than 3 VDC typical at 500 mA; <3 VDC maximum at 2 A
-
Inductive-load protectionReverse diode on the I/O module
View all additional
Alternative Names
3604E
Triconex 3604E
Tricon 3604E
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed field I/O arrangement
Triconex 3604E provides sixteen non-commoned nominal 24 VDC digital outputs. The TMR output architecture votes the three channel commands before applying power to the connected load.
The specified voltage range is 22-45 VDC with a maximum continuous output current of 2 A per point. Verify field fuses, supply to unused points, cable voltage drop and diagnostic pulses before connecting final elements.
Document field wiring and the approved application settings before exchange. Use the complete Tricon system installation procedure and verify affected circuits after replacement.
Features:
- 16 non-commoned DC outputs
- 22-45 VDC operating range
- 2 A maximum per output point
The 3604E requires field configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Preserve the exact 3604E identity and the installed field termination. A similar Tricon module number does not establish interchangeability.
The specified voltage range is 22-45 VDC with a maximum continuous output current of 2 A per point. Verify field fuses, supply to unused points, cable voltage drop and diagnostic pulses before connecting final elements.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- 16 non-commoned DC outputs
- 2 A maximum per output point
- Individual field-fuse protection
The 3604E requires replacement verification of field wiring, load or signal limits, termination and configured diagnostics before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3604E is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.1 × 40.8 × 39.8 cm
-
Shipping weight2.80 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3604E
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is a 20 VDC supply inside the 3604E operating range?
No. The listed range starts at 22 VDC and ends at 45 VDC. Check the voltage delivered under load rather than relying on a nominal 24 V supply label. -
Can every point tolerate a 10 A load continuously?
No. Continuous current is limited to 2 A per point. The 10 A value is a surge rating for 10 ms. -
What fuse is required at each field output?
The manual specifies one 2.5 A fast-acting fuse per output in the field termination module. Verify the approved termination assembly before replacement. -
Why can an unused output cause a Load/Fuse alarm?
The manual requires power to all points, including unused points on non-commoned panels. Check field power before treating the alarm as a failed output module. -
Could an off command leave measurable current in the load?
Yes. The specified maximum leakage to the load is 2 mA. Evaluate this against the connected device release threshold. -
How is inductive kick-back handled by 3604E?
A reverse diode on the I/O module provides the documented inductive kick-back protection. Verify the complete field circuit and its approved suppression arrangement. -
How does a long termination cable affect the output voltage budget?
The manual separates backplane and external-termination voltage-drop limits and gives different values for 10-foot and 99-foot cables. Calculate the load voltage using the applicable cable and current condition. -
Can diagnostic pulse behavior be changed on this output module?
The typical diagnostic pulse is 500 microseconds with a 2 ms maximum. The manual states diagnostic glitching can be disabled using the OVD disable function; changes must follow the validated application requirements.
