PRODUCT DESCRIPTION

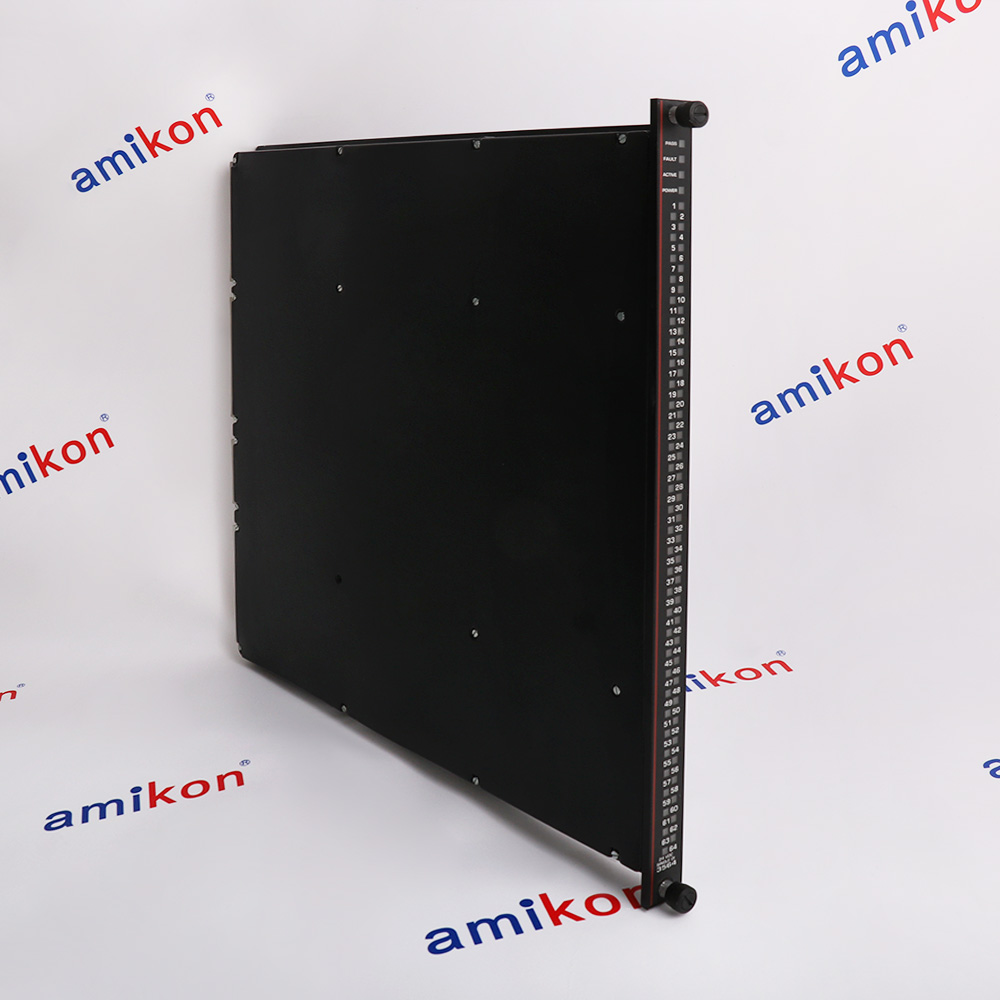

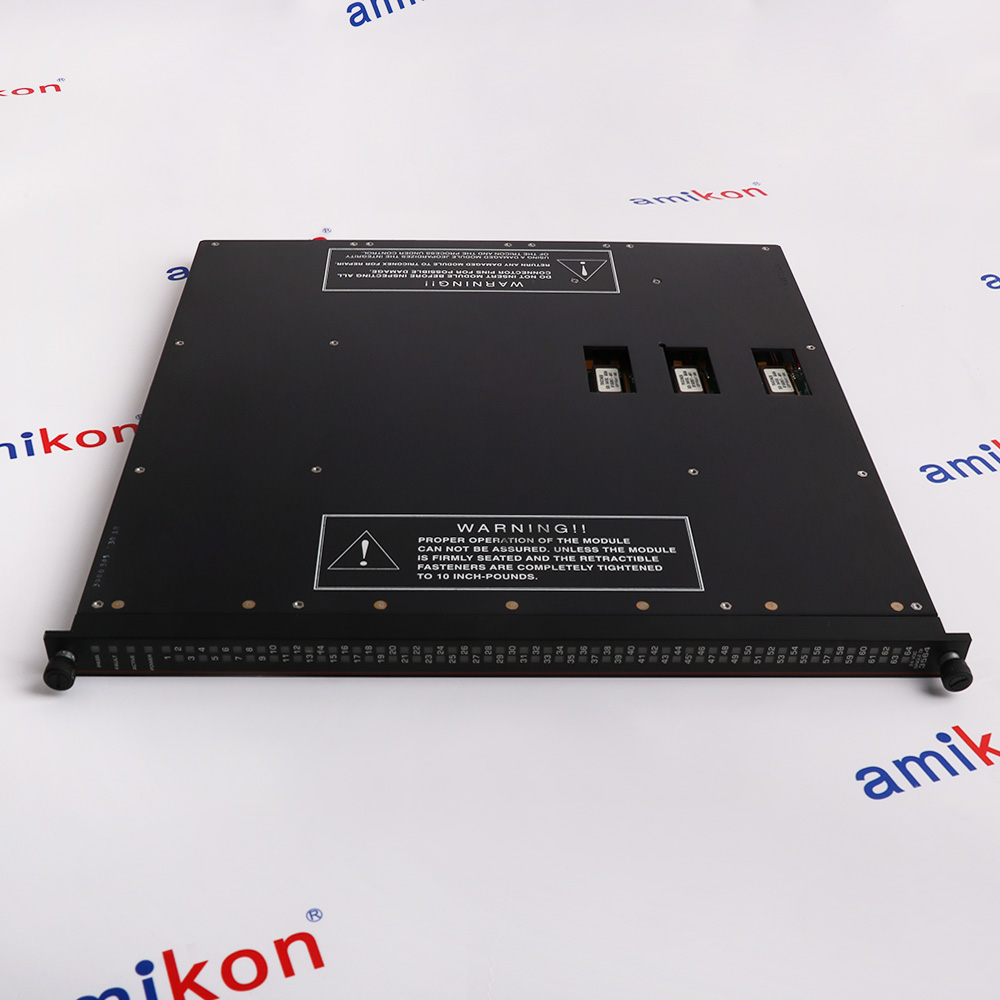

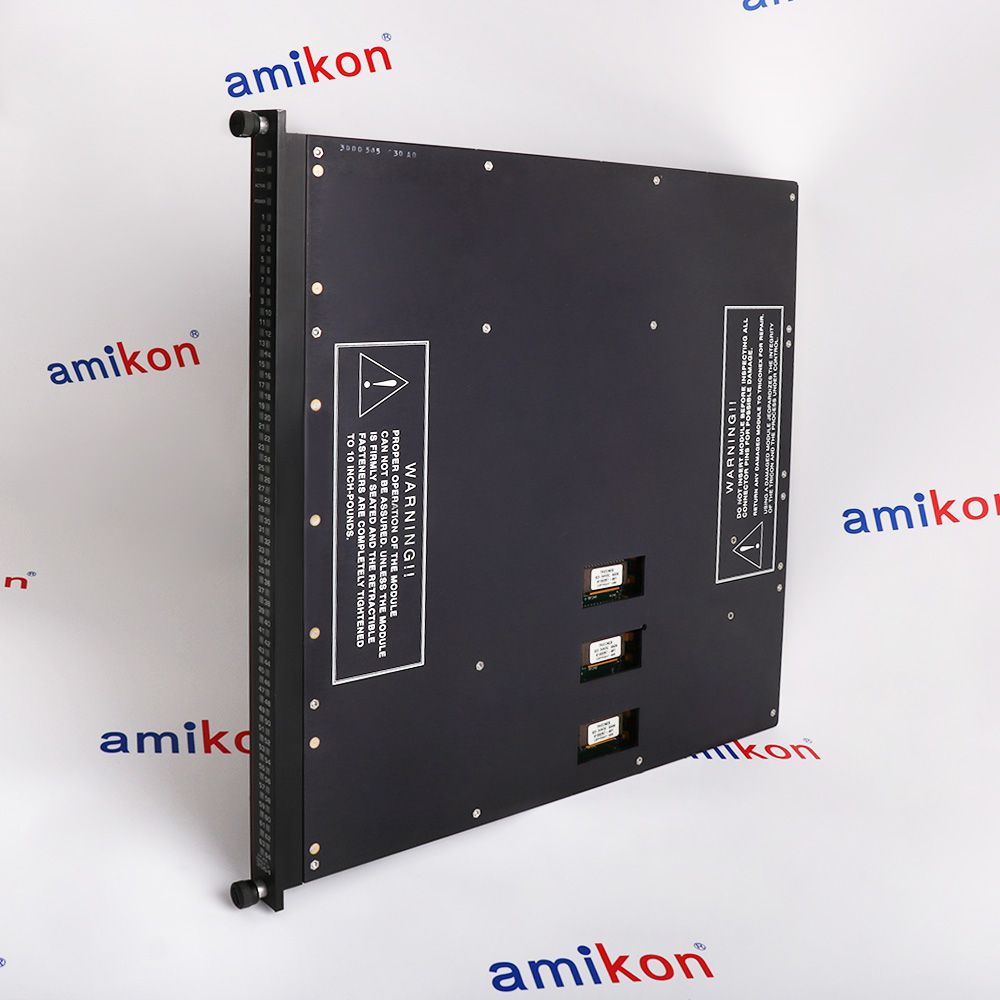

3564 64-point single digital input module for the Tricon safety instrumented system
Triconex 3564 is a 64-point single digital input module used with the Tricon safety instrumented system. The complete order reference identifies the required hardware and must be matched to the installed chassis, baseplate, cable or field termination.
Manufacturer documentation lists the applicable electrical, signal and installation characteristics. Verify the nameplate, hardware revision, connector layout and project records before replacement.
Manufacturer documentation lists the applicable electrical, signal and installation characteristics. Verify the nameplate, hardware revision, connector layout and project records before replacement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
3564 supports safety-system maintenance and lifecycle projects
Use the 64-point single digital input module only in the documented Triconex configuration after confirming field circuits, mating hardware and the application program.
- 01 · PROCESS SAFETY
Maintain emergency shutdown functions
Support configured shutdown logic and field circuits in oil, gas, chemical and power-generation installations. - 02 · FIRE & GAS
Preserve monitored protection loops
Match the installed point assignment, signal type and termination arrangement before reconnecting fire-and-gas devices. - 03 · LIFECYCLE SERVICE
Replace legacy Triconex hardware
Record the existing configuration, install the exact 3564 identity and complete diagnostics plus site functional testing before return to service.
Technical specifications for 3564
-
Product Model3564
-
Product ParametersDigital input module
-
Place of shipmentXiamen, China
-
In stock1 unit
-
ManufacturerInvensys
-
Module TypeSingle digital input module
-
Input Points64 commoned channels
-
Nominal Input Voltage24 V DC
-
DC Operating Range15–30 V DC
-
Maximum Input Voltage36 V DC
-
Off-to-On ThresholdAbove 15 V DC
-
On-to-Off ThresholdBelow 6 V DC
-
Nominal Turn-on Current2–3 mA
-
Typical Hysteresis4 V DC
-
Input DelayBelow 2 ms in either direction
-
Minimum Point Isolation1,500 V DC
-
Nominal Input ImpedanceAbove 3.0 kΩ
-
Point Load at 24 V0.2 W per active input
-
Maximum Point Load0.5 W at maximum field voltage
-
Diagnostic IndicatorsPer-point state plus PASS/FAULT/ACTIVE
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match 3564 to the installed Triconex configuration
Triconex 3564 is a 64-point single digital input module for the Tricon safety instrumented system. Verify the complete product identity and controller generation before integration.
Match all mating modules, baseplates, termination panels, cables, field power and signal assignments. Preserve approved project records.
Complete the manufacturer-recommended diagnostics and site functional test after installation.
Features:
- Exact product identity: 3564
- Product class: 64-point single digital input module
- Model-specific values listed in the specifications
The Triconex 3564 requires its ratings, wiring and installed configuration to be checked before system integration and commissioning.
INTERCHANGEABILITY
Verify the full replacement identity before commissioning
Replace Triconex 3564 only after matching the complete order reference, hardware revision, connector or terminal arrangement and installed function.
Record the existing slot, cable and field-terminal labels before removal. Transfer only configuration data approved for the exact hardware and project.
After installation, verify power, communications, every connected point, alarm response and the complete safety function.
Features:
- Match the complete 3564 identifier
- Compare revision, connectors and mating hardware
- Test diagnostics and field operation before service
The Triconex 3564 requires replacement verification against the installed hardware and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Available documents must be matched to the complete 3564 identity, installed system and applicable revision.Features:
- Model-specific data sheet prepared for 3564
- Manufacturer guide reference identified before order
- Installation steps follow Triconex maintenance controls
Documentation for Triconex 3564 must match the installed system and revision; confirm manual availability in the written quotation.
