PRODUCT DESCRIPTION

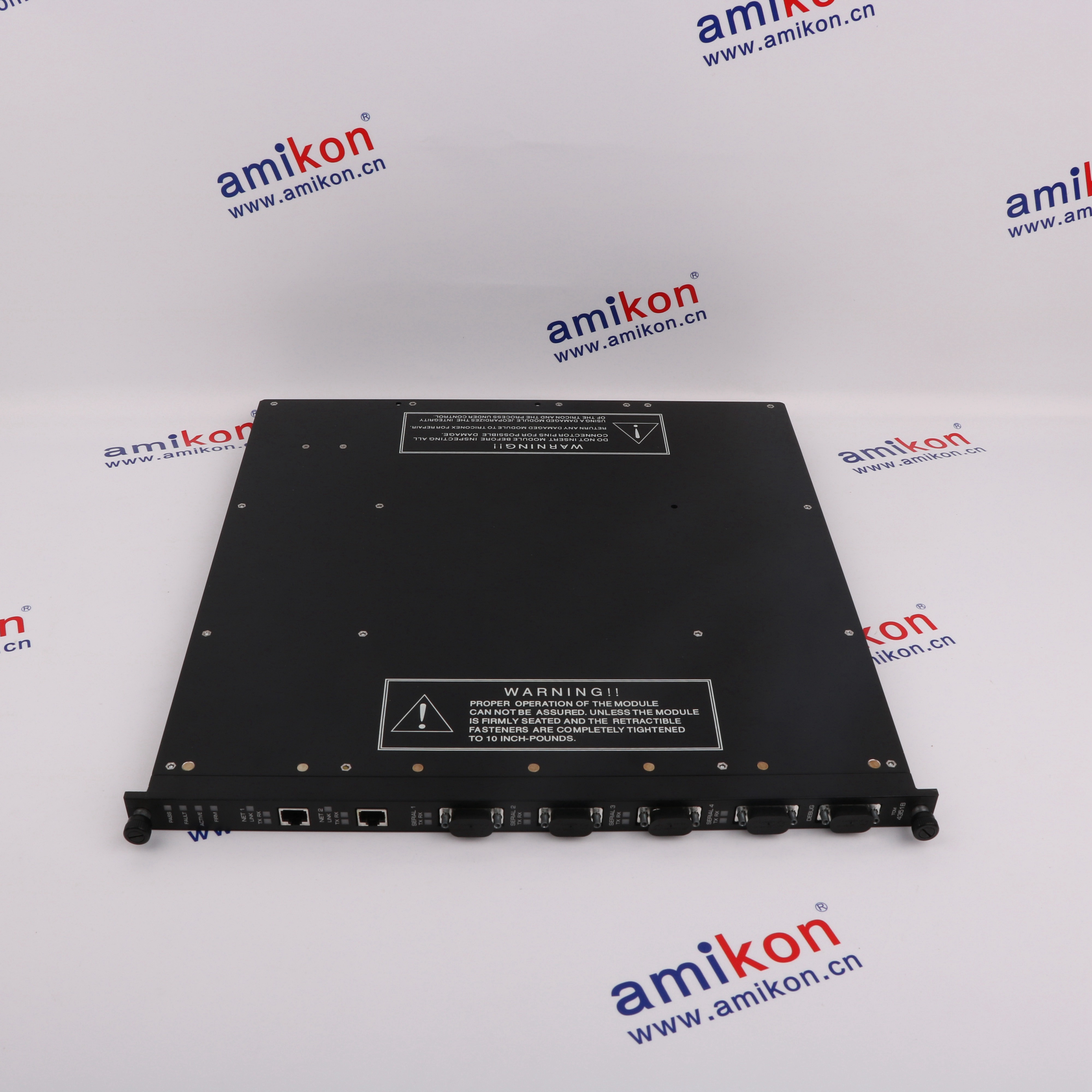

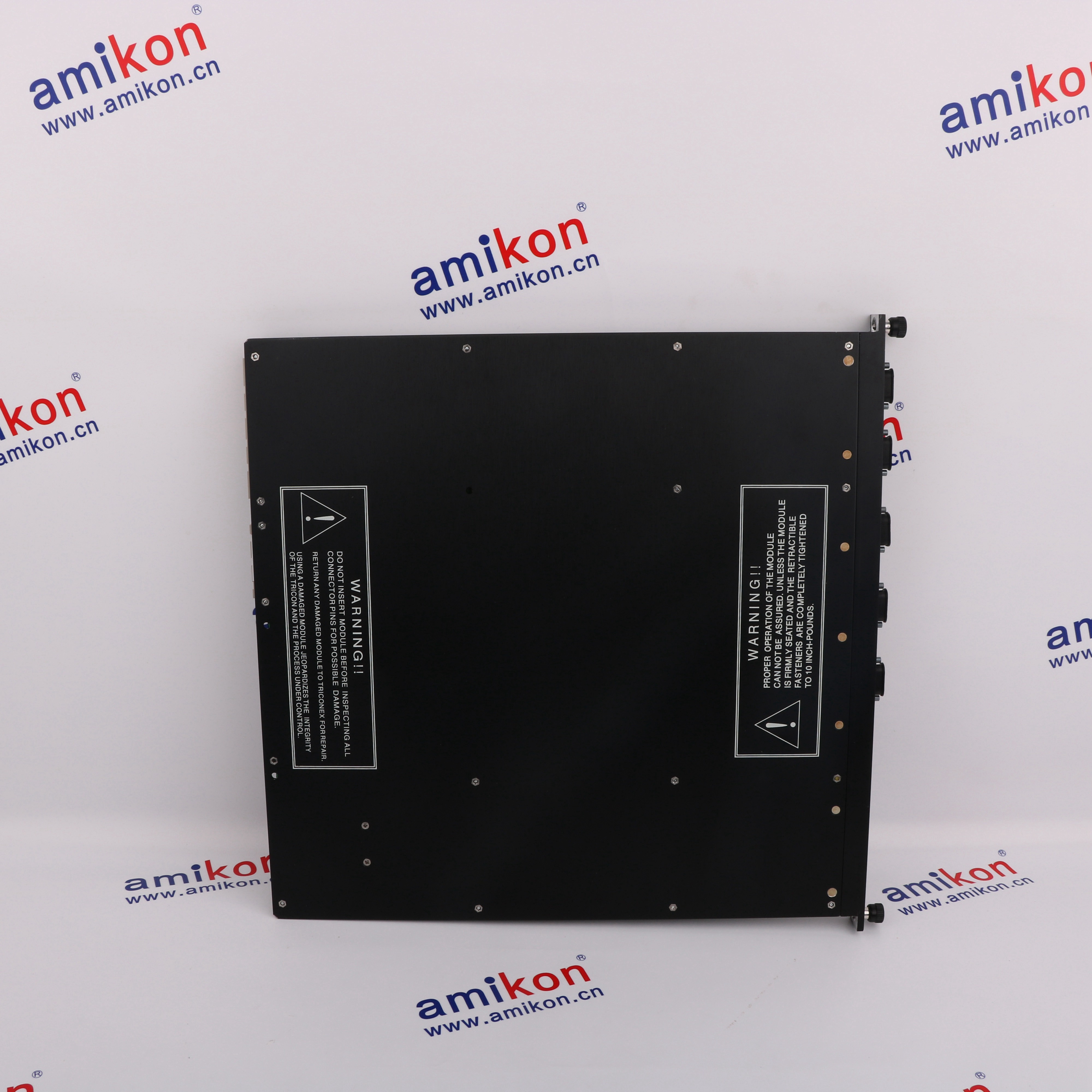

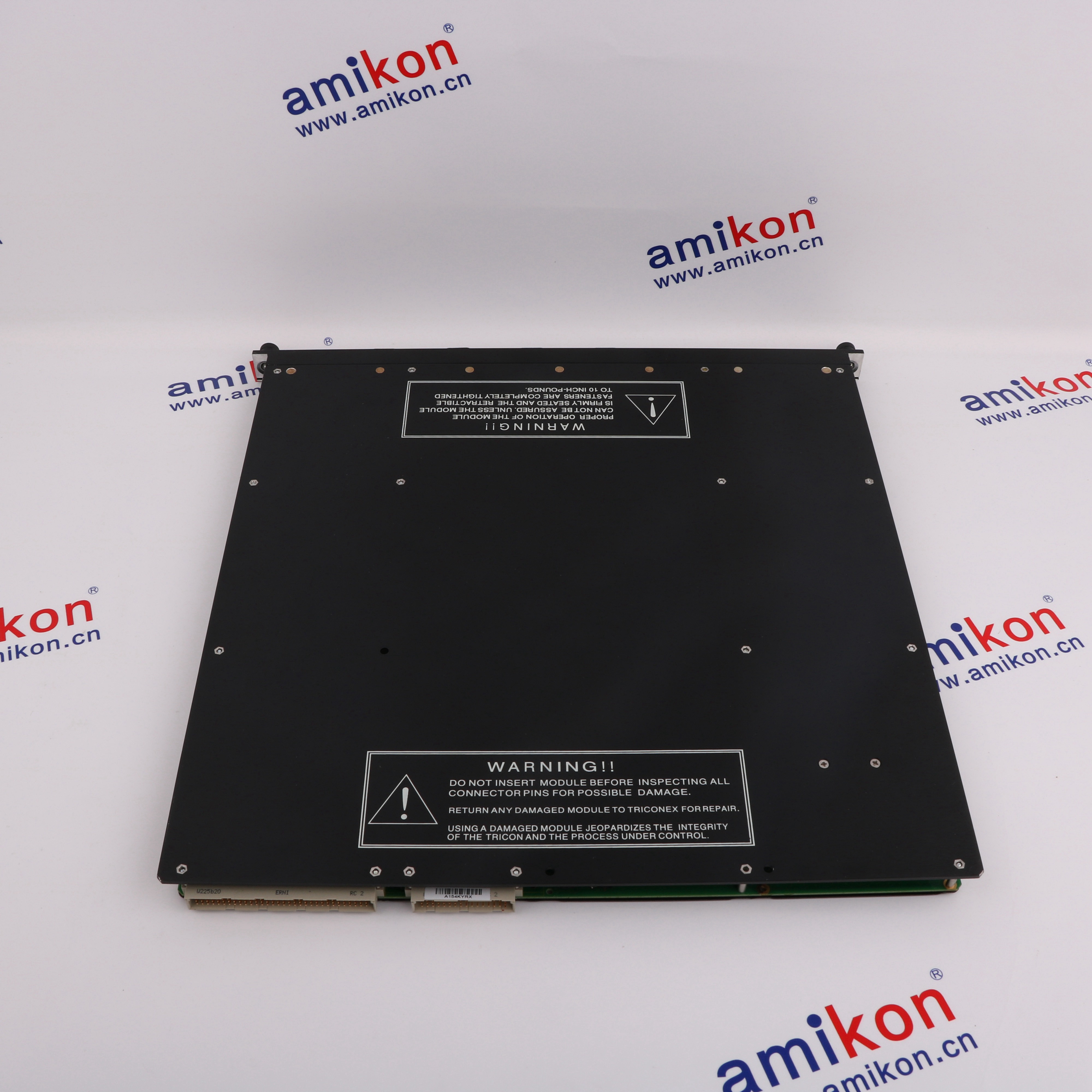

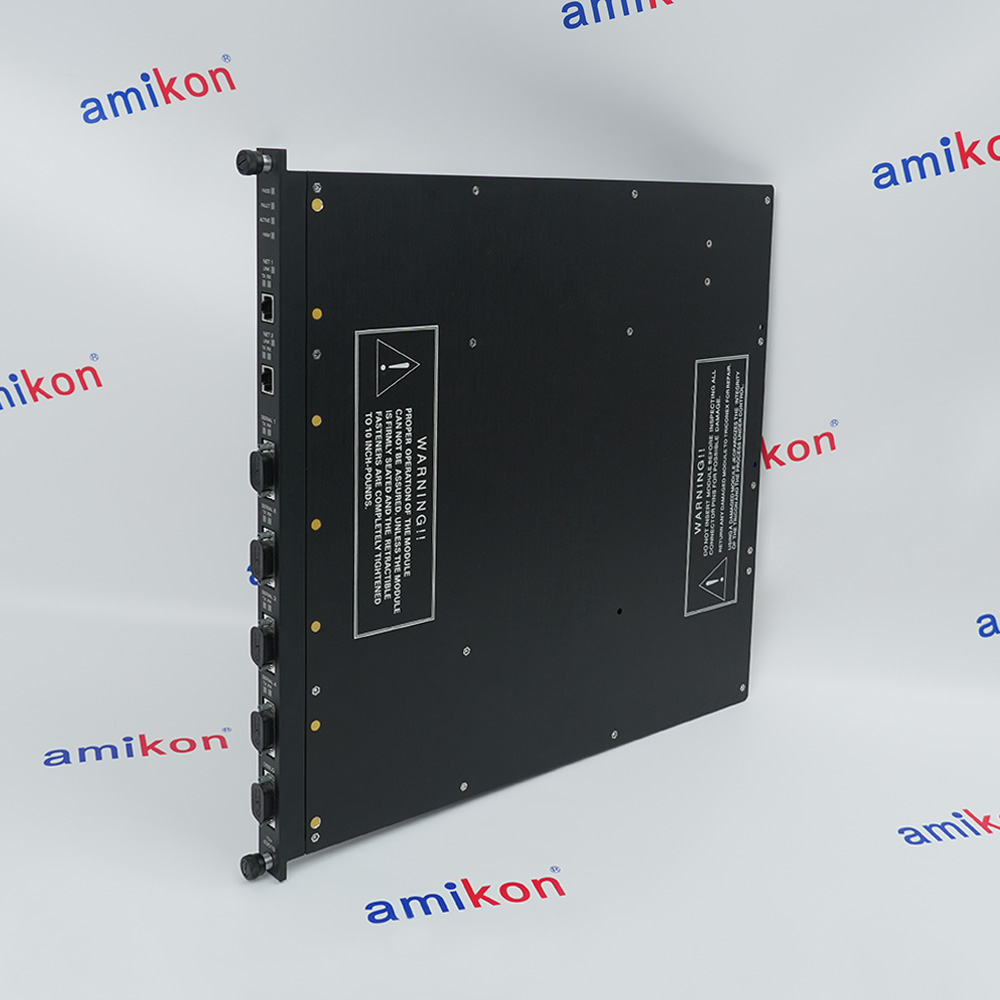

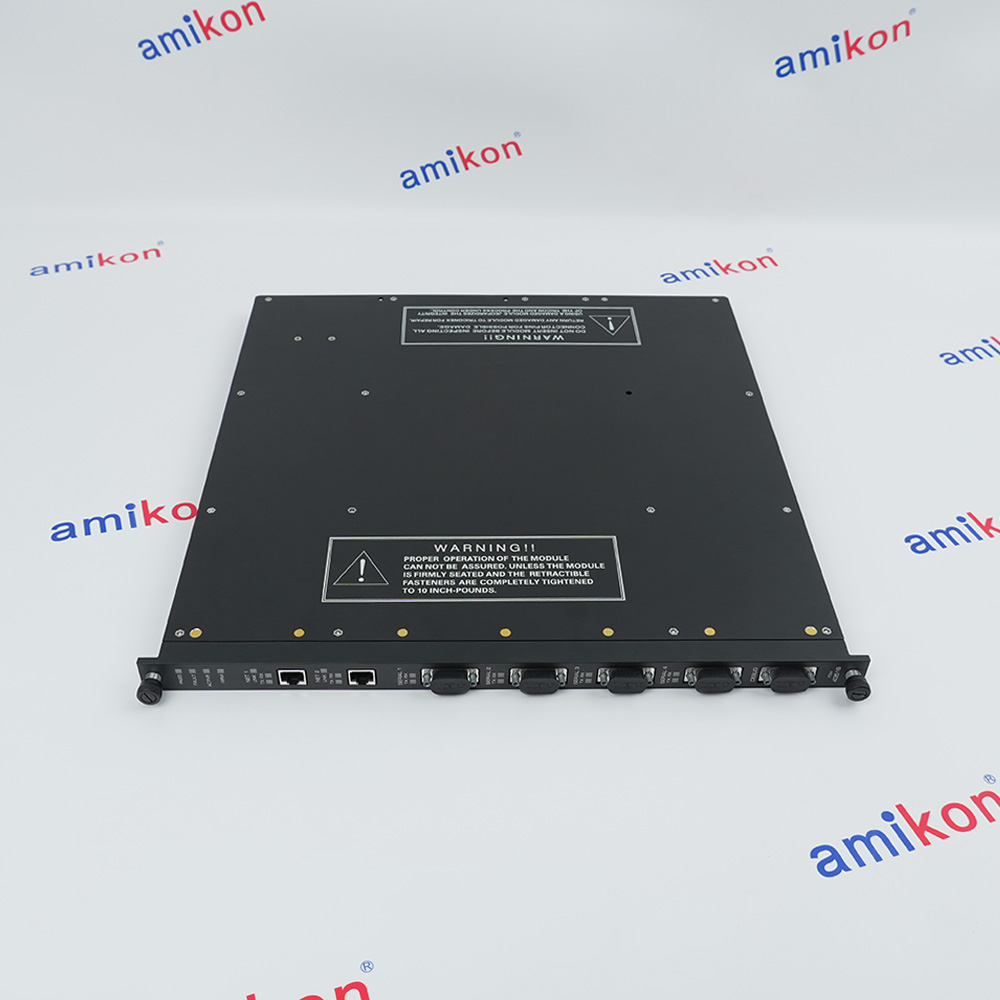

4351B - Tricon Communication Module
Triconex 4351B connects Tricon v10.3 and later controllers to serial devices and Ethernet hosts. It provides four RS-232/RS-485 serial ports with DB-9 connectors and two 10/100BaseT copper Ethernet ports with RJ-45 connectors.
Match the installed TCM generation, logical slot and protocol assignment before replacement. The two modules in a logical slot operate independently rather than as hot spares. Removing a TCM stops all communication through that module even when the controller remains online.
Match the installed TCM generation, logical slot and protocol assignment before replacement. The two modules in a logical slot operate independently rather than as hot spares. Removing a TCM stops all communication through that module even when the controller remains online.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 4351B connects controller data
The manufacturer maps these communication tasks to specific TCM ports. Confirm the configured protocol, device addressing and installed controller release.
-
01 · SERIAL INTEGRATION
Exchange data with Modbus devices
Connect serial Modbus master or slave equipment through the configured RS-232/RS-485 interface. Assign numeric aliases to the Tricon variables that external Modbus devices must read or write. -
02 · ETHERNET HOSTS
Connect supervisory data services
Use the documented NET 1 or NET 2 protocol assignment for Modbus TCP or TSAA host communication. Match the copper Ethernet connection and configured addressing to the approved network design. -
03 · TIME COORDINATION
Synchronize controller time
Use the supported Trimble GPS interface on serial port 1 or the documented Ethernet time-synchronization protocol. Select the intended time source and port rather than assuming every serial port accepts GPS.
Technical specifications for 4351B
-
Product Model4351B
-
Product ParametersTricon Communication Module
-
In stock1 unit
-
ManufacturerInvensys
-
Controller release compatibilityTricon v10.3 or later
-
Serial interfaces4 RS-232/RS-485 ports; DB-9
-
Ethernet interfaces2 copper 10/100BaseT ports; RJ-45
-
Port isolation500 VDC
-
Maximum serial rate115.2 Kbps per port
-
Combined serial throughput460.8 Kbps across four ports
-
Modbus serial operationMaster RTU; slave ASCII or RTU
-
Modbus TCP assignmentNET 1 and NET 2
-
TriStation accessNET 1, NET 2 or serial port 4
-
GPS interface assignmentTrimble GPS on serial port 1
-
TSAA multicast supportNET 1 and NET 2, UDP/IP
-
Peer-to-peer interfaceUDP/IP on NET 1 and NET 2; DLC on NET 1
-
System TCM capacity4 modules across 2 logical slots in chassis 1 or 2
-
Combined Modbus device capacity16 masters or slaves per Tricon system, network and serial combined
-
Logic powerLess than 10 W, TCM specification table
View all additional
Alternative Names
4351B
Tricon Communication Module
4351B Copper Ethernet TCM
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the controller release and port assignments
Triconex 4351B connects Tricon v10.3 and later controllers to serial devices and Ethernet hosts. It provides four RS-232/RS-485 serial ports with DB-9 connectors and two 10/100BaseT copper Ethernet ports with RJ-45 connectors.
Match the installed TCM generation, logical slot and protocol assignment before replacement. The two modules in a logical slot operate independently rather than as hot spares. Removing a TCM stops all communication through that module even when the controller remains online.
Record network addresses, Modbus aliases and each cable position before exchange. TCMs cannot coexist with NCMs or EICMs in the same Tricon system under the documented communication rules.
Features:
- Four DB-9 serial communication ports
- Two copper RJ-45 Ethernet ports
- Tricon v10.3 or later compatibility
The 4351B requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Verify the full 4351B identity and Tricon v10.3-or-later compatibility. Review every installed TCM model before replacement; the documented generation restrictions apply across chassis.
Match the installed TCM generation, logical slot and protocol assignment before replacement. The two modules in a logical slot operate independently rather than as hot spares. Removing a TCM stops all communication through that module even when the controller remains online.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- Four DB-9 serial communication ports
- Tricon v10.3 or later compatibility
- Independent TCM operation; no hot spare
The 4351B requires replacement verification of controller version, cable mapping, addresses and communication restoration before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 4351B is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.2 × 40.8 × 40 cm
-
Shipping weight2.30 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 4351B
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can 4351B be installed in a v10.1 controller?
The compatibility table assigns 4351B to Tricon v10.3 or later. It lists 4351A and 4352A for v10.1-v10.2; check the exact system release before selecting a replacement. -
Does a 4351B accept a fiber cable directly?
No. It has two copper 10/100BaseT RJ-45 ports. The guide assigns fiber MT-RJ interfaces to other TCM models, so their specifications must not be applied to 4351B. -
Can an original 4351 stay elsewhere in the system after adding 4351B?
The guide prohibits installing 4351B in a system with 4351 or 4352, even in different chassis. Different TCM models also cannot share a logical slot. -
Will the second TCM automatically act as a hot spare during removal?
No. Modules in the same logical slot operate independently. All communication through the removed TCM ceases, so plan the communication interruption even if controller execution stays online. -
Which serial port can be reserved for TriStation access?
Serial port 4 supports TriStation or Modbus. Serial port 1 instead supports Trimble GPS or Modbus; preserve these assignments when reconnecting labelled cables. -
Why do readable Tricon variable names still need Modbus aliases?
Modbus addresses are numeric. The guide requires a five-digit alias assigned in TriStation for each variable that a Modbus device reads or writes. -
Is an embedded OPC server included in 4351B?
No. The manufacturer assigns the embedded OPC Data Access and Alarms and Events server to models 4353 and 4354, not 4351B. -
What indicators should be expected after seating a replacement TCM?
The replacement procedure states Pass should appear in about one minute and Active in one to two minutes. Tighten fasteners to 10 inch-pounds and reconnect the labelled communication cables before checking the restored links.
