PRODUCT DESCRIPTION

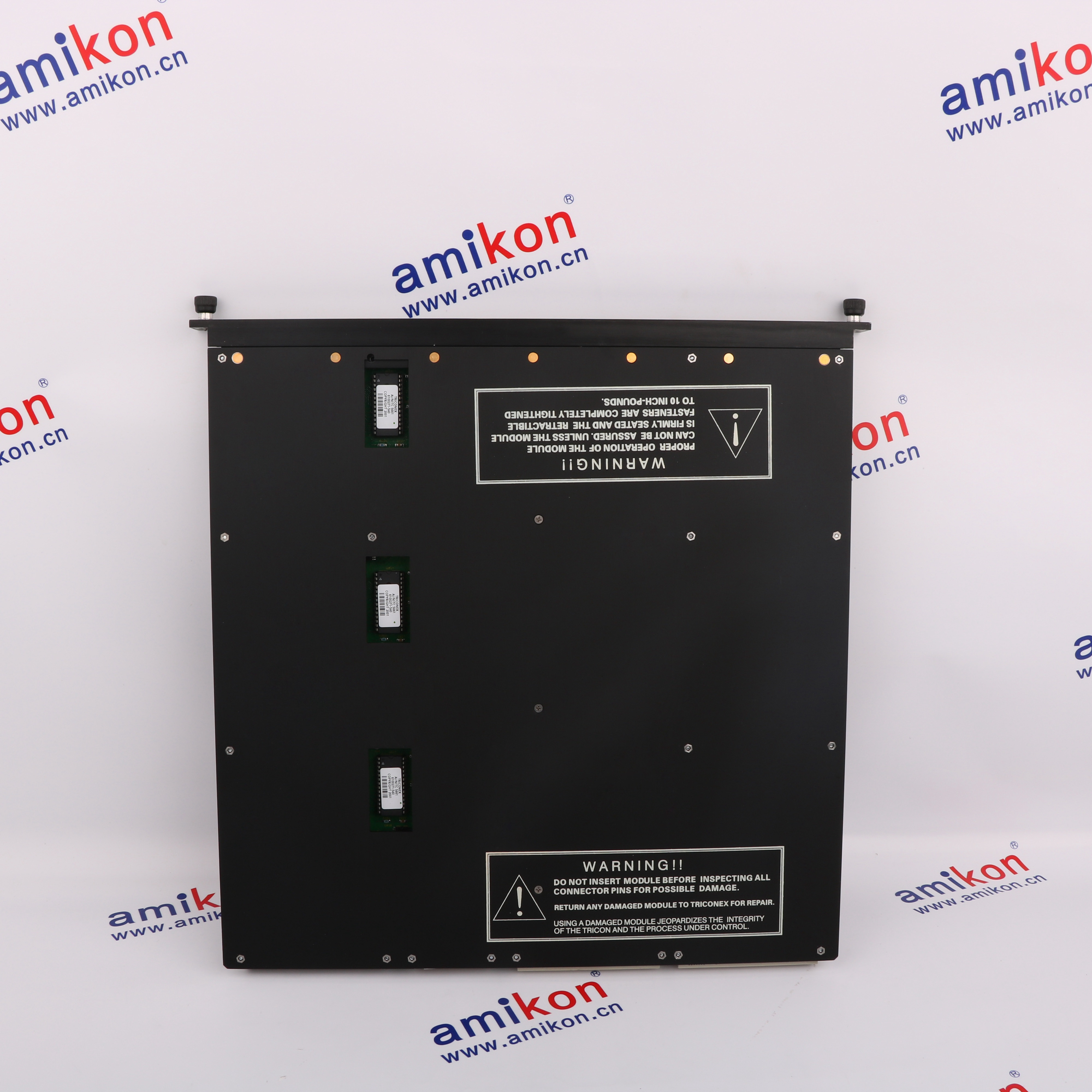

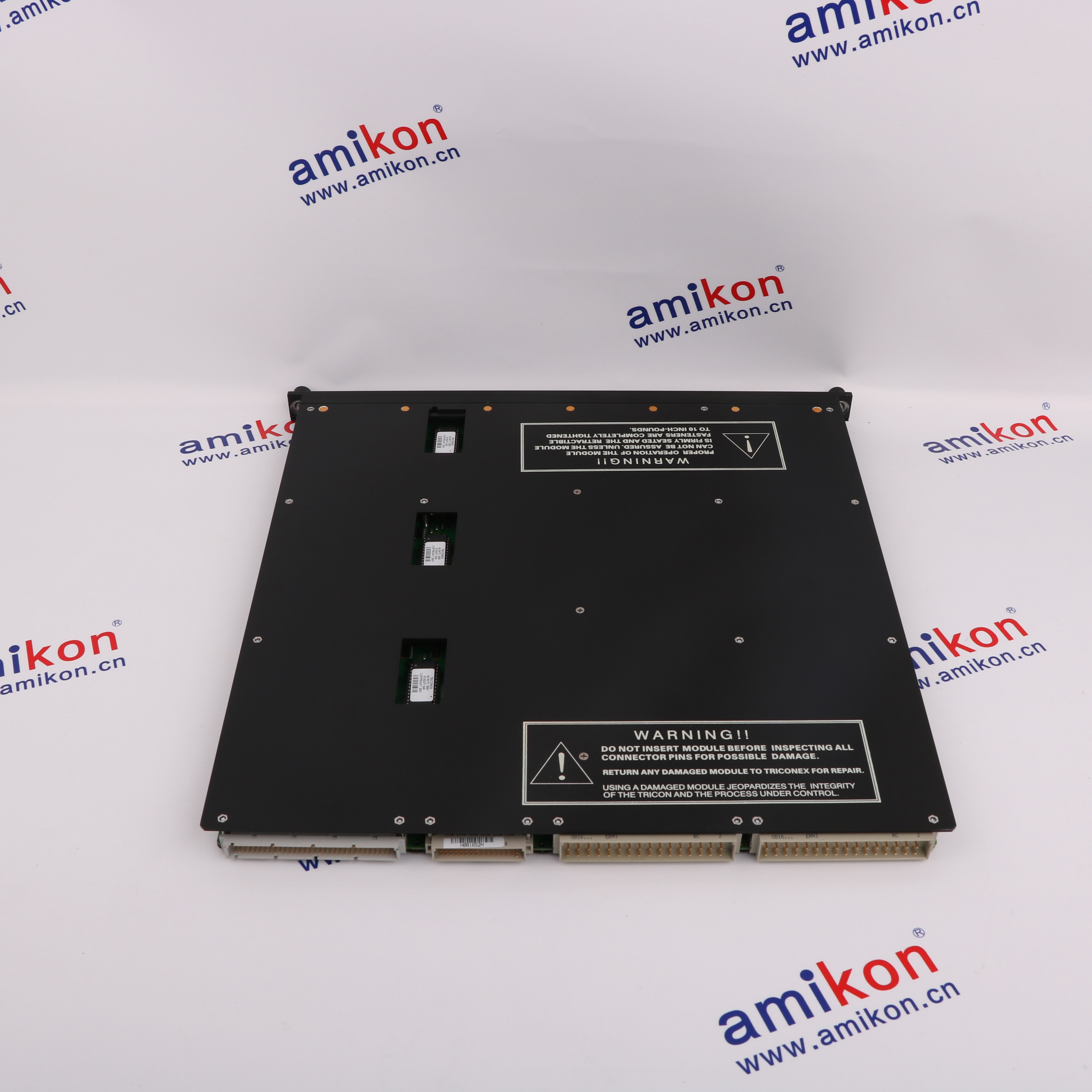

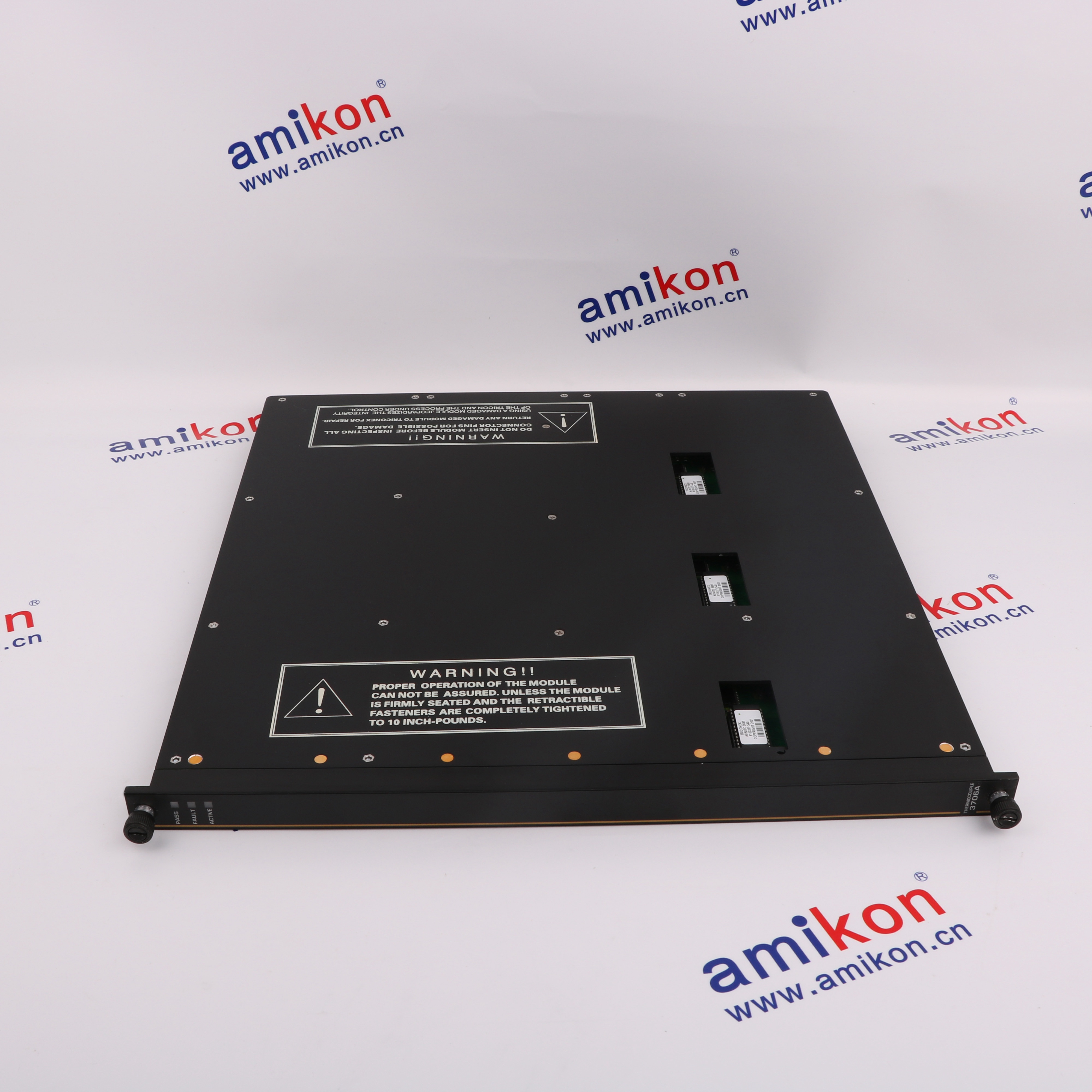

3706A - Non-Isolated Thermocouple Input Module
Triconex 3706A provides 32 differential, DC-coupled thermocouple inputs for types J, K and T. Its triplicated channels perform linearization and cold-junction compensation, returning signed temperature data in Celsius or Fahrenheit.
Use the correct external termination module, maintain a uniform termination temperature and keep common-mode voltage within +/-10 VDC. The manufacturer warns that rapidly changing inputs can cause channel mis-comparisons; later NITC firmware also freezes inputs briefly when a hot spare is inserted.
Use the correct external termination module, maintain a uniform termination temperature and keep common-mode voltage within +/-10 VDC. The manufacturer warns that rapidly changing inputs can cause channel mis-comparisons; later NITC firmware also freezes inputs briefly when a hot spare is inserted.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 3706A supports thermocouple measurement
The manufacturer documents the following circuit functions. Validate the complete safety function and field wiring before service.
-
01 · TEMPERATURE INPUTS
Acquire multi-point thermocouple signals
Read connected J, K or T thermocouples through the configured input module. Select thermocouple type and Celsius or Fahrenheit engineering units in TriStation, then verify the reported temperature against a known input. -
02 · BROKEN-SENSOR RESPONSE
Handle an open thermocouple circuit
Use the termination-selected upscale or downscale burnout indication in the engineered application. An open or out-of-range input is reported as a defined signed integer, which must be handled deliberately by the control logic. -
03 · REFERENCE JUNCTION
Compensate terminal temperature changes
Use the termination-mounted temperature transducers for reference-junction compensation. Keep the termination assembly at a uniform temperature; thermal gradients are excluded from the published accuracy allowance.
Technical specifications for 3706A
-
Product Model3706A
-
Product ParametersNon-Isolated Thermocouple Input Module
-
ManufacturerInvensys
-
Supported thermocouplesJ, K, T
-
Input signals32 differential, DC-coupled
-
Open-input detectionUpscale or downscale, selected on termination module
-
Input update rate50 ms maximum; see firmware hot-spare restriction
-
Input resistance22 Mohm DC, typical
-
Input point protection110 VAC continuous without damage
-
Common-mode noise rejection-85 dB minimum at 0-60 Hz; -95 dB typical at 60 Hz
-
Normal-mode noise rejection-17 dB at 60 Hz
-
Common-mode voltage range+/-10 VDC maximum, channel-to-channel or channel-to-ground
-
Channel-to-channel isolation200 kohm typical; non-isolated module
-
Reference-junction compensation range0-60 degrees C
-
Temperature data format16-bit signed integer; 0.125 degree per count
-
Auto-calibration intervalEvery 5 seconds, with reference-junction compensation
-
Burnout indication values+32767 upscale; -32767 downscale
-
Logic powerLess than 10 W
View all additional
Alternative Names
3706A
Non-Isolated Thermocouple Module
NITC 3706A
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed field I/O arrangement
Triconex 3706A provides 32 differential, DC-coupled thermocouple inputs for types J, K and T. Its triplicated channels perform linearization and cold-junction compensation, returning signed temperature data in Celsius or Fahrenheit.
Use the correct external termination module, maintain a uniform termination temperature and keep common-mode voltage within +/-10 VDC. The manufacturer warns that rapidly changing inputs can cause channel mis-comparisons; later NITC firmware also freezes inputs briefly when a hot spare is inserted.
Document field wiring and the approved application settings before exchange. Use the complete Tricon system installation procedure and verify affected circuits after replacement.
Features:
- 32 differential thermocouple inputs
- J, K and T thermocouple support
- Termination-selected burnout direction
The 3706A requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Preserve the exact 3706A identity and the installed field termination. A similar Tricon module number does not establish interchangeability.
Use the correct external termination module, maintain a uniform termination temperature and keep common-mode voltage within +/-10 VDC. The manufacturer warns that rapidly changing inputs can cause channel mis-comparisons; later NITC firmware also freezes inputs briefly when a hot spare is inserted.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- 32 differential thermocouple inputs
- Termination-selected burnout direction
- Triplicated cold-junction compensation
The 3706A requires replacement verification of field wiring, load or signal limits, termination and configured diagnostics before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3706A is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.2 × 40.8 × 40 cm
-
Shipping weight2.20 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3706A
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Where is the burnout direction selected for 3706A?
On the selected field termination module, not by applying the isolated-module configuration rule. Confirm whether the installed termination provides upscale or downscale detection. -
What should be done with unused thermocouple inputs?
The installation section requires unused thermocouple inputs to be shorted. The external termination panel must also be installed and connected for proper operation. -
Can terminal temperature gradients invalidate the stated accuracy?
Yes. The accuracy allowance includes reference-junction compensation errors but excludes gradients between the temperature transducers and thermocouple terminations. Maintain a uniform temperature across the termination module. -
Does 200 kohm mean this is an isolated thermocouple module?
No. The manufacturer identifies 3706A as non-isolated. Keep channel-to-channel and channel-to-ground common-mode voltage within +/-10 VDC; exceeding that range can affect other channels. -
Why can inserting a hot spare freeze temperature updates?
The source footnote states that NITC firmware Meta 4873 or later freezes inputs for one second upon hot-spare insertion. Include this condition in the maintenance and application review. -
What can cause a false fault during a rapid temperature change?
The manual warns about differences above 0.5 percent of full scale among the triplicated readings. The footnote associates sustained differences over 256 input samples with increased fault probability. -
How should the application interpret a value of +32767?
It is the documented upscale indication for thermocouple burnout or an out-of-range input, not a normal temperature measurement. Downscale uses -32767; implement the configured fault response. -
If changing the module does not clear a cold-junction fault, what is next?
The installation section identifies a faulty cold-junction transducer as a possible cause on the non-isolated module. If module replacement does not correct it, the guide directs attention to replacement of the field termination module.
