Technical specifications for CM 3201
-
Product ModelCM 3201
-
Spare ModelCM3201
-
Product ParametersCommunication Module
-
Tariff Code8537101190
-
Country of originusa
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.5x18.6x21.7cm
-
ManufacturerInvensys
-
Weight1.5 kg
-
Nominal input voltage24 V DC
-
Specified operational voltagerange24 V DC –15% or +20% + 5% AC ripple
-
10 Mb AUI-type MAU6 W maximum additional per MAU
-
100 Mb MII-type MAU3.75 W maximum additional per MAU
-
Absolute maximum input voltage33 V DC
-
Absolute maximum reverse inputvoltage0.6 V DC
-
Reverse current isolation input toinput500 µA maximum
-
Inrush current per input2.4 A maximum
-
Protective-to-functional-earthisolation500 V DC
Description

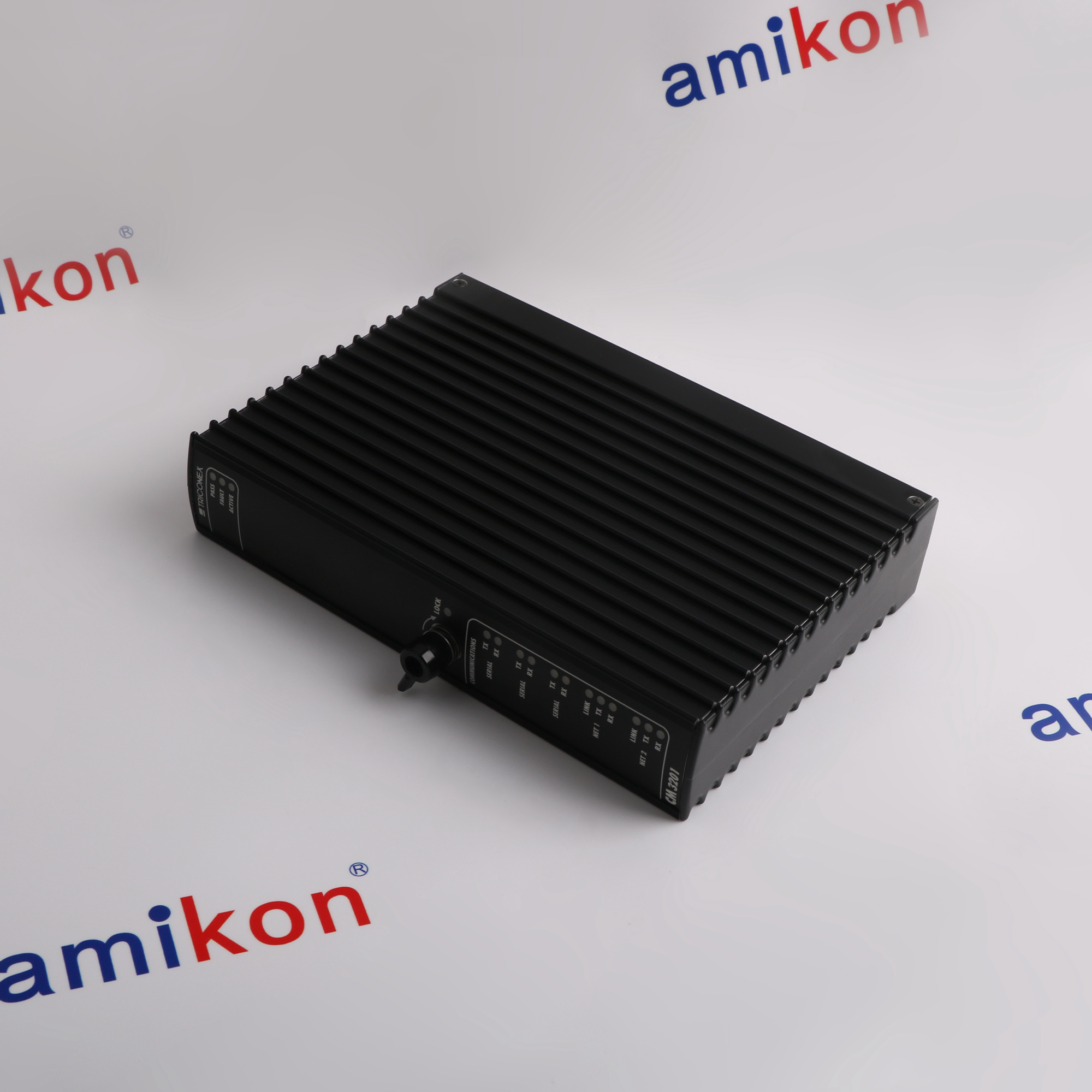

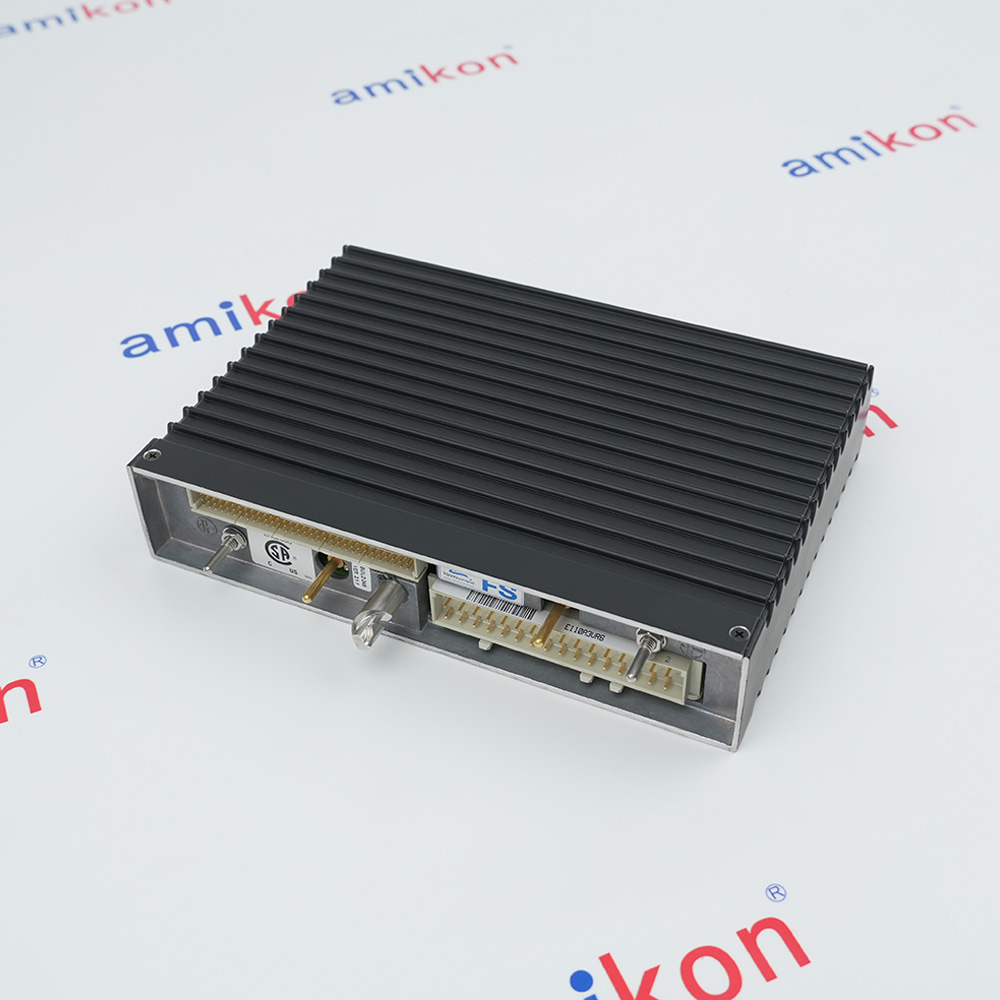

The 3201 is a Triconex CM3201 Communication Module designed as an optional communication interface for the Trident safety system. The 3201 serves as a three-to-one interface to the Main Processors (MPs), enabling the Trident controller to communicate with external host computers, distributed control systems (DCS), open networks, network printers, other Trident systems, and Tricon V9 systems.
The 3201 provides three optically isolated RS-232/485 serial ports. The 3201's serial ports are user-configurable for Modbus point-to-point or multi-point (network) connections, with transmission rates up to 115 kilobits per second per port. The 3201 supports Modbus master or Modbus slave protocol on the serial ports.
The 3201 provides two network ports for Ethernet communication. The 3201's first network port is a 10-megabit Ethernet port with two connectors: 10BaseT and Attachment Unit Interface (AUI) for a 10-megabit media access unit (MAU). The 3201's second network port is a 100-megabit Ethernet port with two connectors: 100BaseTX and Media Independent Interface (MII) for a 100-megabit MAU. MAUs may be used in place of the 10/100BaseT RJ-45 twisted-pair connections on the 3201 to convert the network ports to other Ethernet media types or to extend network reach.
The 3201 provides three optically isolated RS-232/485 serial ports. The 3201's serial ports are user-configurable for Modbus point-to-point or multi-point (network) connections, with transmission rates up to 115 kilobits per second per port. The 3201 supports Modbus master or Modbus slave protocol on the serial ports.
The 3201 provides two network ports for Ethernet communication. The 3201's first network port is a 10-megabit Ethernet port with two connectors: 10BaseT and Attachment Unit Interface (AUI) for a 10-megabit media access unit (MAU). The 3201's second network port is a 100-megabit Ethernet port with two connectors: 100BaseTX and Media Independent Interface (MII) for a 100-megabit MAU. MAUs may be used in place of the 10/100BaseT RJ-45 twisted-pair connections on the 3201 to convert the network ports to other Ethernet media types or to extend network reach.
Information
Overview
Manuals
Engineering Considerations
Product Applications
Module Insertion Steps
Features:
- Three Optically Isolated RS-232/485 Serial Ports
- Dual Ethernet Network Ports
- Multiple Protocol Support
- Three-to-One Interface to MPs
- Redundant Communication Capability
The CM3201 supports up to three configurable RS-232 or RS-485 serial ports.These optically isolated ports can be configured for Modbus communication and support transmission speeds up to 115.2 kbps. RS-232 connections are suitable for shorter point-to-point connections, while RS-485 supports longer-distance industrial communication and multidrop networks.
The module also provides two network ports for Ethernet-based communication. Supported communication functions include TCP/IP, TSAA, TriStation, Peer-to-Peer communication, Triconex time synchronization, and other compatible network services. This allows the CM3201 to connect Triconex systems with DCS, HMI, SCADA, engineering, and plant-level communication networks.
The CM3201 TRICONEX Communication Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
TRICONEX CM3201 Communication Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The CM3201 supports Modbus Master and Modbus Slave communication through its serial interfaces. This allows the Triconex system to exchange process and status data with external devices such as PLCs, meters, controllers, and other industrial automation equipment.
The module operates from a nominal 24 V DC supply with a specified operating range of 19.2 to 30 V DC, including the specified AC ripple tolerance. Logic power consumption is specified at up to 8 W without media adapter units (MAUs).
The TRICONEX CM3201 can be used in single or redundant communication configurations. A Trident controller can support up to two communication modules on a communication module baseplate, allowing additional communication ports or redundant communication connections depending on the system configuration.
- Oil & Gas: Monitors processes, fire/gas detection, and emergency shutdown (ESD) systems
- Power Generation: Enables secure communication between regional control and turbine monitoring for grid stability
- Chemical/Petrochemical: Ensures reliable data exchange between sensors, DCS, and operator stations to maintain safety loops
- Emergency Shutdown (ESD): Relays critical trip signals to safely stall operations before incidents occur
- Fire & Gas (F&G): Bridges flame/gas/smoke detectors to centralized safety hubs
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power check: Ensure the baseplate slot is rated for the CM 3201 and system power is handled according to safety guidelines.Alignment: Carefully align the module edges with the designated communication slot rails on the Trident baseplate.Seating: Push the module straight in firmly until the rear connectors fully engage with the backplane and secure any locking mechanisms or retaining screws.
Alternative Names
CM320I
CM32O1
CM3Z01
CM 3201
CM 320I
CM 32O1
CM 3Z01
CM-3201
Technical notes

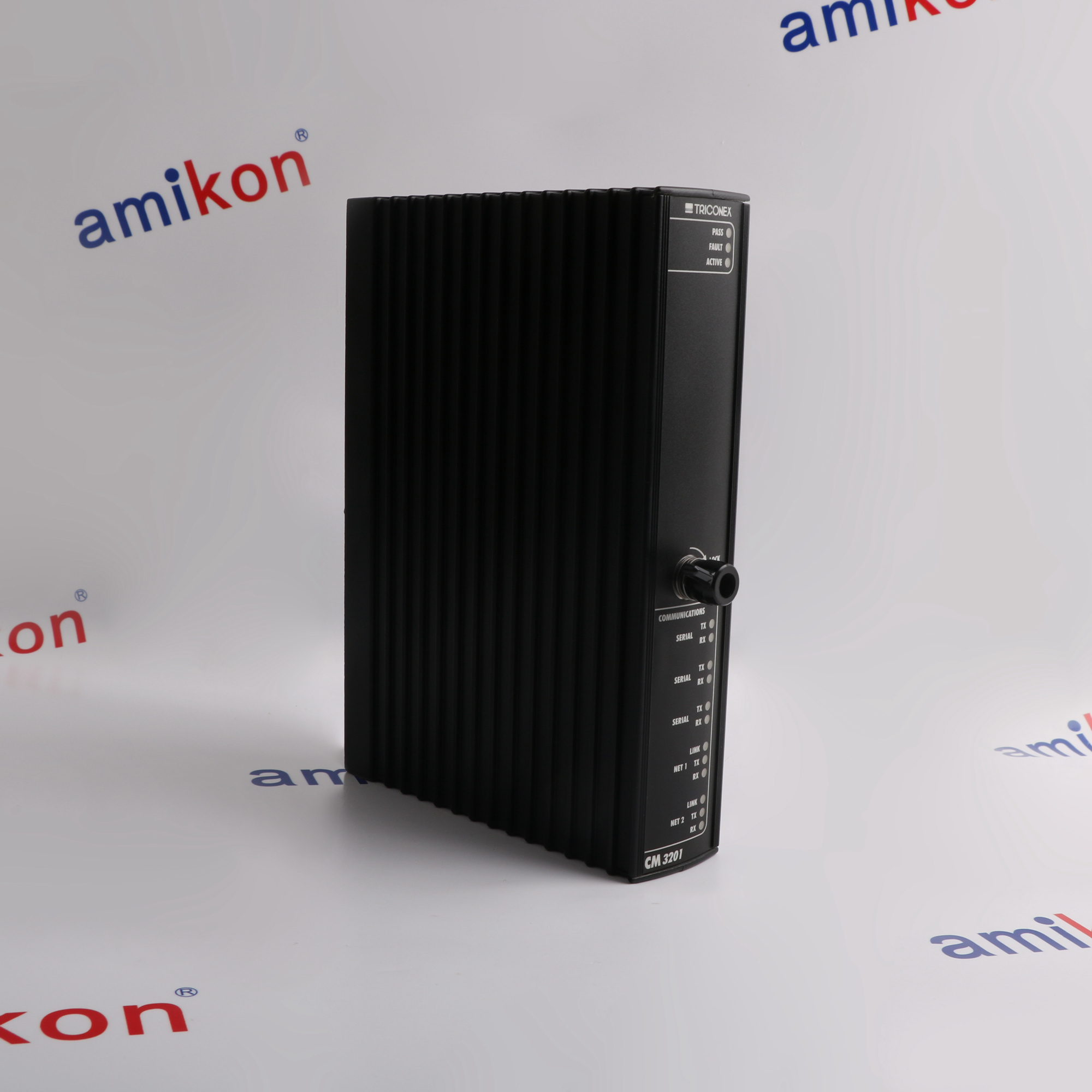

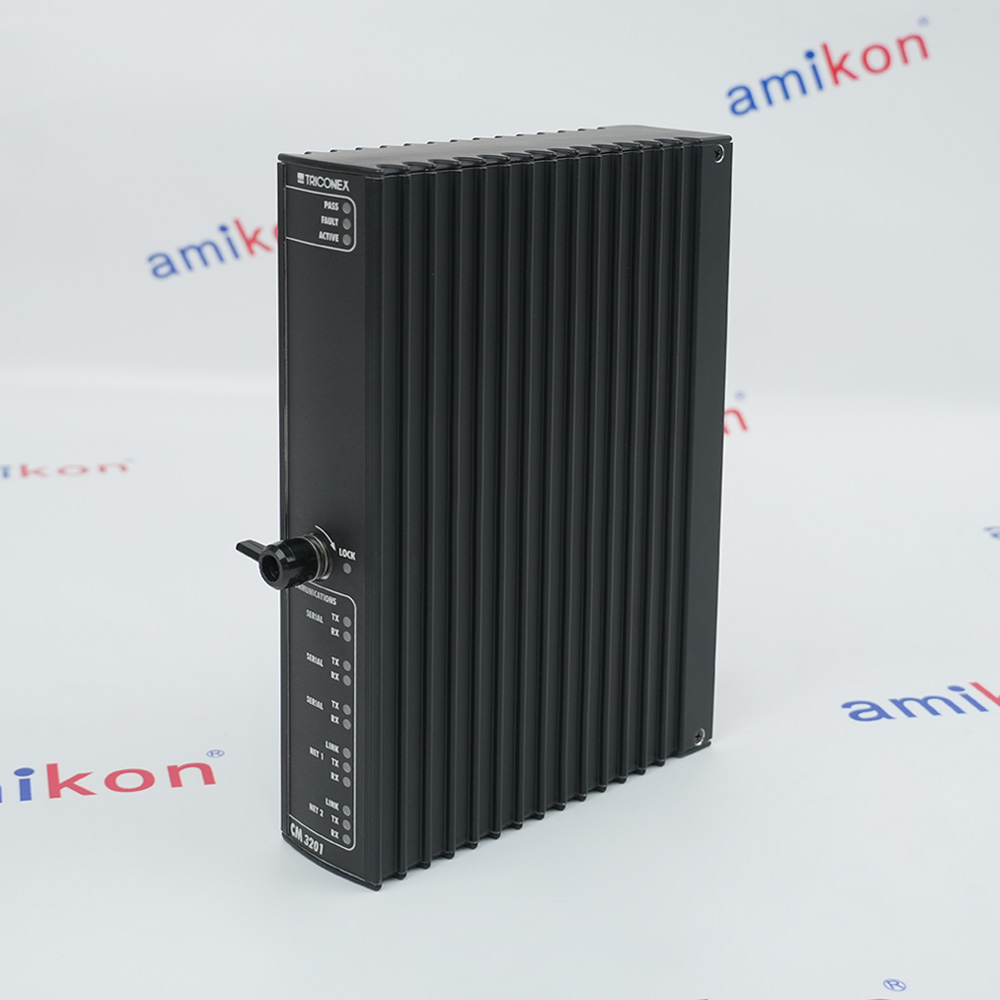

The 3201 supports Triconex Peer-to-Peer communication among multiple Trident systems or a combination of Trident and Tricon systems. The 3201 also supports time synchronization over network ports for multiple Trident systems or a combination of Trident and Tricon systems.The 3201 operates on logic power supplied by the MP. The 3201 features a front panel with PASS, FAULT, and ACTIVE status indicators, as well as communication status LEDs for SERIAL TX/RX, LINK, and NET TX/RX on both network ports. The 3201 includes a locking mechanism on the front panel for secure module retention
FAQs
-
Can serial and network ports work at the same time?
+Yes, all serial and Ethernet communication ports operate simultaneously. -
What protocols does the module support?
+It supports Modbus (Master/Slave), TCP/IP, TSAA, TriStation, and SNTP time synchronization. -
How does network redundancy work with this module?
+A single Trident baseplate layout allows you to mount up to two CM3201 modules side-by-side. When dual modules are configured, they provide a fully redundant, fault-tolerant communication loop back to your primary safety controller. -
Does the CM3201 support hot-swapping?
+Yes. While the module itself does not utilize an autonomous hot-spare function slot, you can pull and replace a faulty module safely while the main safety controller is completely online and running.
