Technical specifications for DO 3401
-

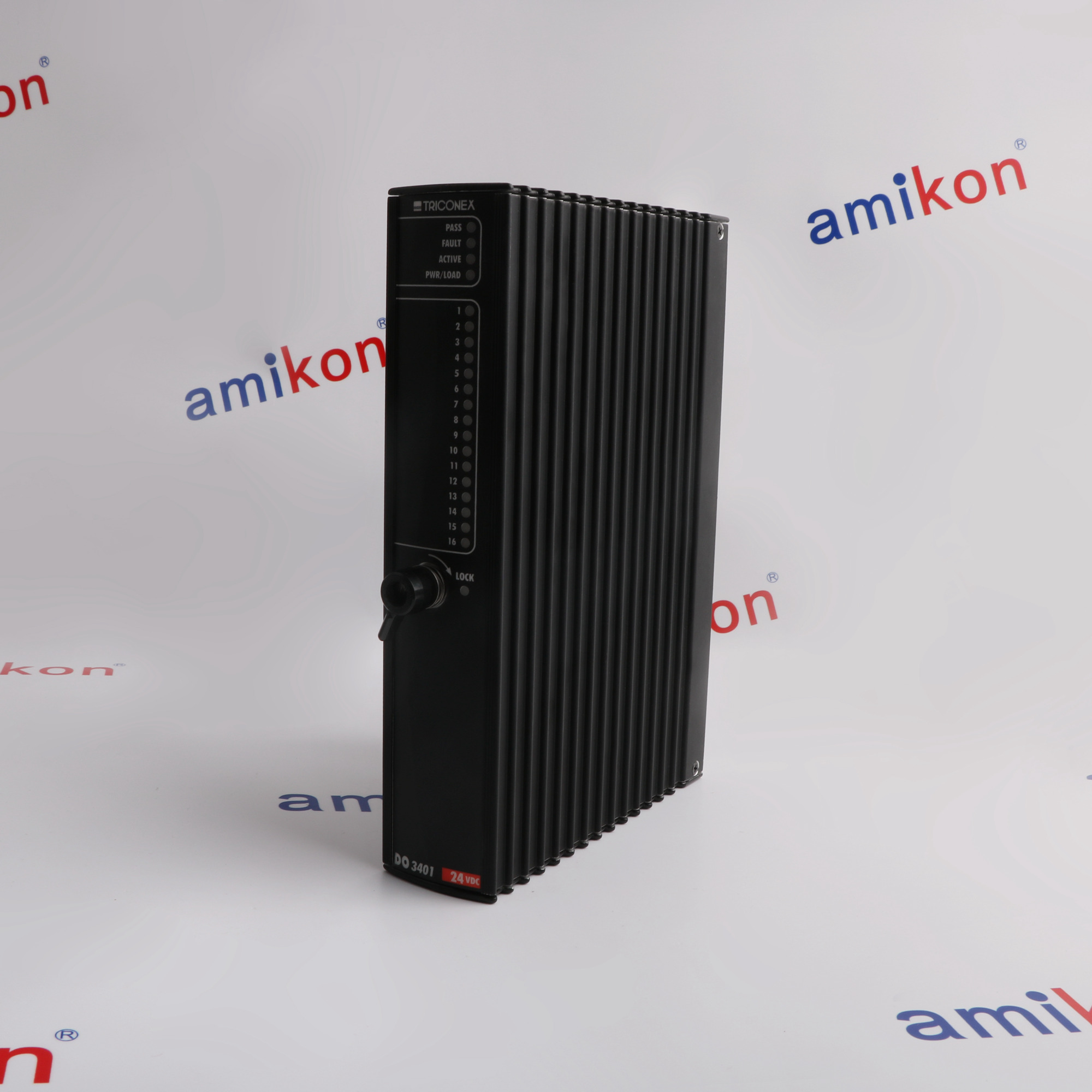

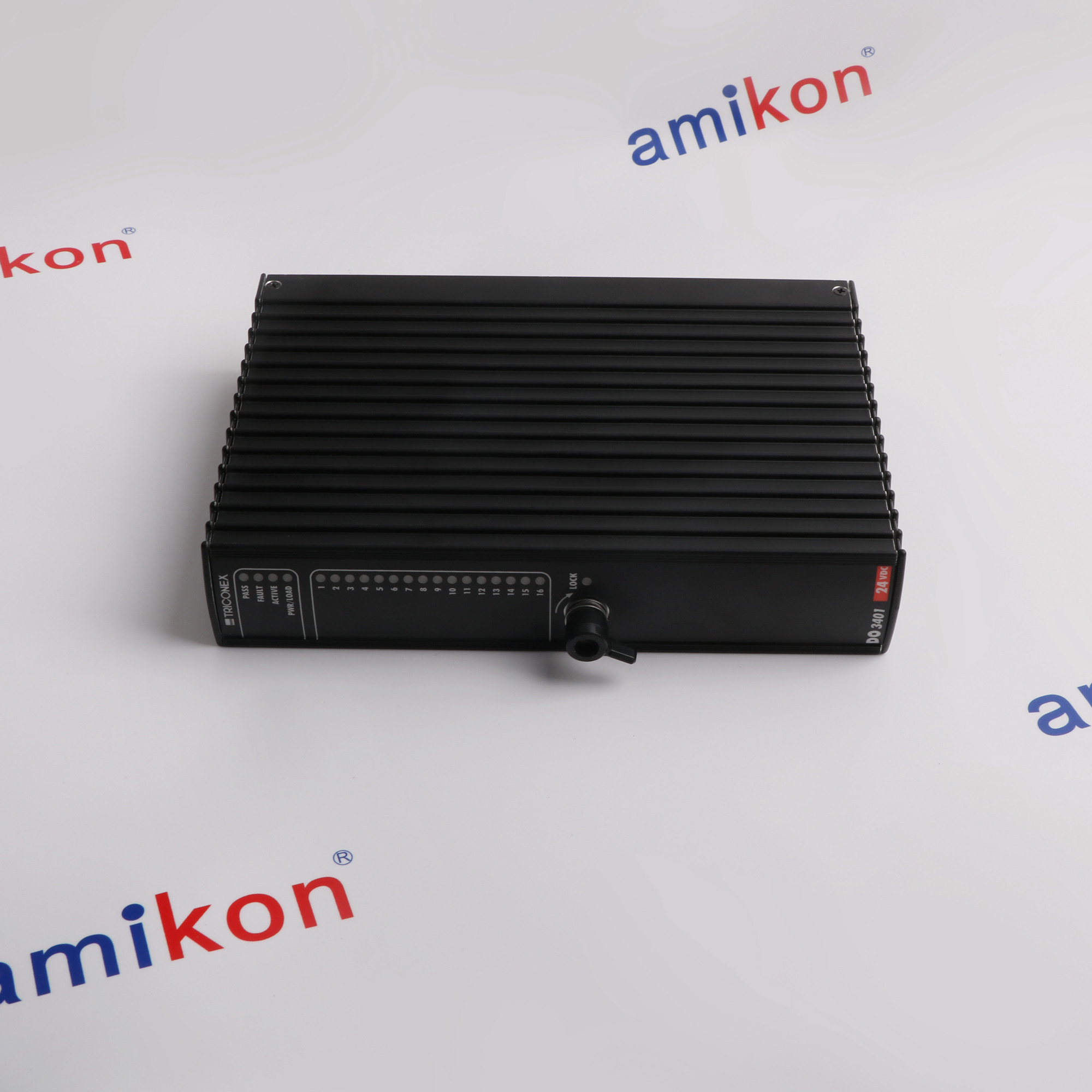

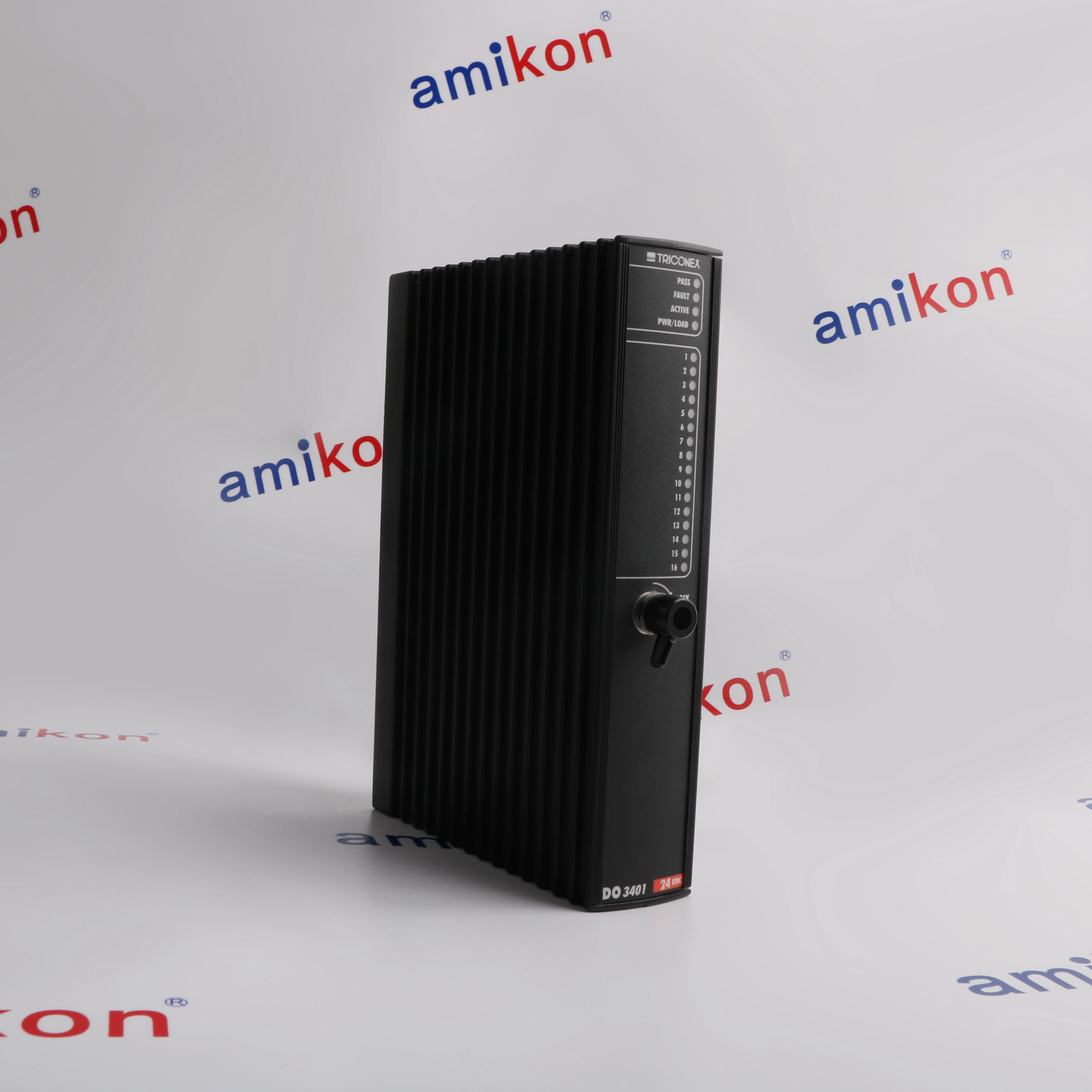

Product ModelDO 3401
-
Spare ModelDO3401
-
Product ParametersDigital Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.5x18.8x20.8cm
-
ManufacturerInvensys
-
Weight1.4 kg
-
Functional-to-protective-earth isolation500 V DC, minimum
-
Functional-to-functional-earth (logic)isolation800 V DC, minimum
-
Diagnostic glitch duration<2 ms, maximum500 µs, typical
-
Field alarmsLoss of field power, output point shortedOn or Off
-
Points16, commoned
-
Nominal output voltage24 V DC
-
Operational voltage range15–30 V DC
-
Absolute maximum output voltage33 V DC
-
Absolute maximum reverse input voltage–0.6 V DC
-
Leakage to load (Off-state)<1 mA
-
On-state voltage drop<1 V DC @ 1.5 A
-
Loop-back scan time<1 ms for all 16 points
Description
The TRICONEX DO3401 employs Triple Modular Redundant (TMR) architecture with three completely isolated electronic channels. Each channel independently receives output commands from its associated Main Processor, while the patented Quad Voter circuitry performs two-out-of-three voting before energizing each field output. This design eliminates single points of failure and significantly increases both system availability and functional safety.
Each TMR Digital Output Module hasthree isolated sets of electronics, calledchannels, which independently acceptdata from the MP associated with eachchannel. The channels use the patentedQuad Voter circuitry to vote on individual output signals as they are appliedto the load.
This voter circuitry is based on parallelseries paths which pass power if twoout of three switches (channels A andB, or channels B and C, or channels Aand C) command them to close. TheQuad Voter circuitry has multipleredundancy on all critical signal paths,guaranteeing safety and maximumavailability
Each TMR Digital Output Module hasthree isolated sets of electronics, calledchannels, which independently acceptdata from the MP associated with eachchannel. The channels use the patentedQuad Voter circuitry to vote on individual output signals as they are appliedto the load.
This voter circuitry is based on parallelseries paths which pass power if twoout of three switches (channels A andB, or channels B and C, or channels Aand C) command them to close. TheQuad Voter circuitry has multipleredundancy on all critical signal paths,guaranteeing safety and maximumavailability
Information
Overview
Manuals
Application Notes
Product Applications
Wiring & Connection
Features:
- Triple Modular Redundant (TMR) architecture
- 16 commoned digital output channels
- Patented Quad Voter output voting logic
- Two-out-of-three (2oo3) fault-tolerant output control
Each TMR digital output module includes a voltage-loopback circuit. This circuit verifies the operation of each output switch independently of whether a field load is present, and detects latent faults that would otherwise remain undetected until a demand occurs. The loopback test applies a known voltage to the output path and measures the response, classifying the result into Off, transition, or On regions based on the loop-back thresholds.
The DO3401 Triconex Digital Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Triconex DO3401 Digital Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module performs ongoing diagnostics on each channel and circuit. Any diagnostic failure activates the Fault indicator LED on the module front panel and the chassis alarm signal. A separate LOAD/FUSE alarm indicator activates if the detected field voltage does not match the commanded state of the output point, indicating a shorted output, blown field fuse, or loss of field power.
The DO3401 supports hot-spare capability. A faulty module can be replaced online without shutting down the safety system, provided a spare slot is available in the chassis. The module is mechanically keyed to prevent incorrect installation in a configured chassis. Field power must be wired to each output point on the external termination panel; the module sources current to field devices but does not generate field power internally.
- Oil & Gas: Upstream/downstream, offshore platforms, and refineries managing hazardous gas lines
- Petrochemical/Chemical: High-risk plants requiring reliable control of toxic or flammable materials
- Power Generation: Conventional/nuclear plants managing turbine protection and trip prevention
- Solenoid Valves: Opens/closes flow paths upon alarm state
- Motor Starters: Cuts power instantly on emergency stop
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off & ESD: Ensure system power is off or follow live-insertion safety rules, and use proper electrostatic discharge (ESD) wrist straps before handling.
External Termination: Connect field actuator cables through the matching External Termination Panel (ETP) or Field Termination Assembly (FTA) linked via cable to the backplate.
Voltage and Power: Wire external 24V DC field power (15--30V DC operating range) to each required output point, as the module sources current to field devices.
Polarity Check: Verify correct polarity and firm screw/terminal connections before re-applying power to prevent channel faults or load/fuse alarms.
Alternative Names
DO340I
DO34O1
D03401
DO 3401
DO 340I
DO 34O1
D0 3401
DO-3401
DO-340I
DO-34O1
D0-3401
Technical notes
The output current is self-limiting. In normal switching mode, the current is limited to less than 4.8 A with a typical operating point of 3.0 A. In degraded mode, the self-limiting current is greater than 0.7 A with a typical value of 1.5 A. The on-state voltage drop is less than 1.0 V DC at 1.5 A load current. Off-state leakage to the load is less than 1 mA.
FAQs
-
What is the primary use of the DO3401 module?
+It is used in safety-critical applications like emergency shutdown (ESD) systems, fire and gas (F&G) monitoring, and burner management. -
Does it support online replacement?
+Yes, the module features a hot-sparing design that allows safe replacement while the system is running. -
How does its fault tolerance work?
+The unit utilizes three isolated electronic channels. Signals are processed through a patented Quad Voter circuit. The logic relies on parallel-series paths requiring a 2-out-of-3 (2oo3) vote to operate, ensuring uninterrupted function if a channel fails. -
What are the input and output voltage ranges?
+The nominal output rating is 24 VDC. It operates across a window of 15 to 30 VDC, with an absolute maximum threshold of 33 VDC.
