Technical specifications for TS-02
-
Product ModelTS-02
-
Product ParametersTemperature Monitoring Unit
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size18.2x12.8x6cm
-
ManufacturerJoppich
-
Weight0.25 kg
-
Power supply24 V – 270V ±10% DC
-
Power consumption< 6 VA or < 6 W
-
Max. voltage230 V
-
Max. current6 A
-
Max. switching capacityAC 1500 VA DC 120 W
-
Display range0…200 °C
-
Display accuracy2 °C ± 1 digit
Description

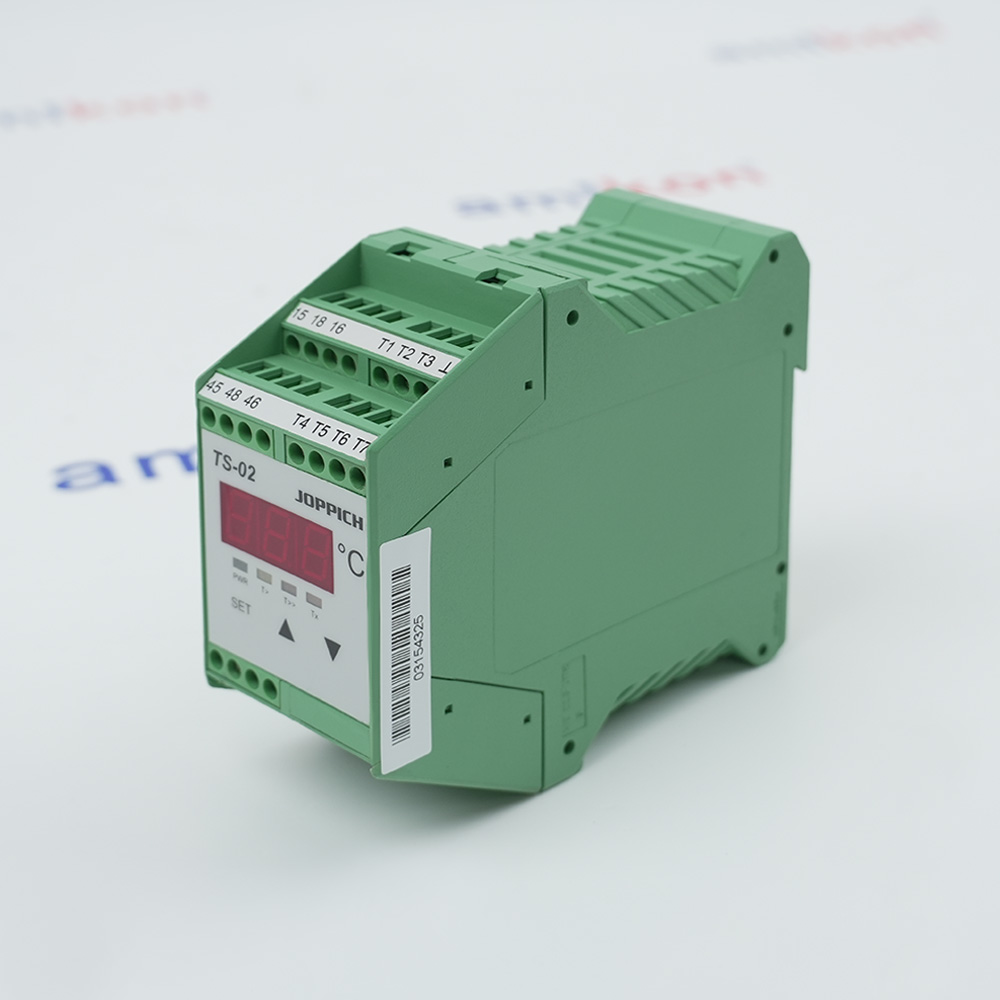

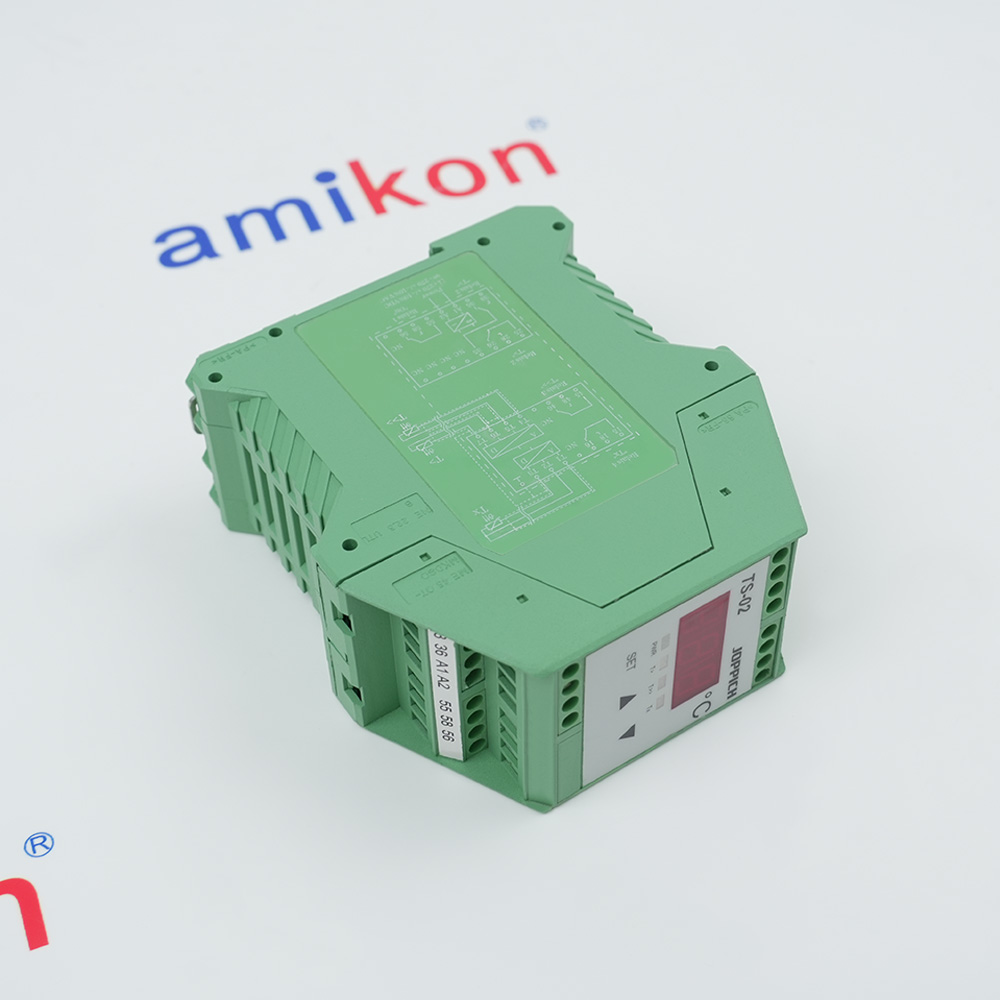

TS-02
Joppich 87000022
Temperature Monitoring Unit
Joppich 87000022
Temperature Monitoring Unit
Information
Overview
Manuals
Technical notes
Product Applications
Preparation and Mounting
Features:
- Dual-Sensor Technology: PT100 + PTC Thermistors
- Three-Stage Temperature Alarm with Four Relays
- User-Adjustable Tx Threshold (20–200 °C)
- Automatic Self-Test with Fault Diagnostics
- Wide Universal Power Supply (24–270 V AC/DC)
The TS-02 Joppich Temperature Monitoring Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Joppich TS-02 Temperature Monitoring Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Complementing the analog PT100 measurement are two PTC thermistor circuits ("temp.>" and "temp.>>") conforming to DIN 44081/82 standards. These circuits provide discrete, fail-safe thermal protection at fixed or adjustable threshold temperatures. The "temp.>" circuit (yellow LED) typically triggers at 120 °C to initiate a first-level warning—such as starting a cooling fan—while the "temp.>>" circuit (red LED) triggers at 150 °C to activate a critical shutdown or alarm. Multiple PTC thermistors can be connected in series within each circuit, allowing distributed temperature sensing across transformer windings or multiple equipment zones.
- Transformer Thermal Protection:Prevents overheating & insulation breakdown in HV/MV transformers
- Industrial Control Panels:Safety layer for ambient/component temps in enclosures
- Electric Motor & Generator Safeguards:Tracks internal temps to prevent overload thermal damage
- Multi-Step Temperature Control:2/3-step controller for fans/heaters via real-time sensors
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting location: Fix the device inside an industrial control panel or machinery cabinet.Environmental limits: Ensure the ambient operating temperature stays within the recommended limits.Power confirmation: Verify your power supply matches the rated range (typically universal AC/DC 24–240 V).
FAQs
-
What is the TS-02 ?
+The Joppich TS-02 is a highly specialized industrial temperature monitoring unit commonly used in electrical control panels, automation systems, and dry-type transformers. -
Does the TS-02 require a PE (Protective Earth) connection?
+No. The TS-02 is designed to operate without a PE connection and features a floating power supply. -
Are the power inputs polarity protected?
+Yes. The mains connection is protected against polarity reversal for both AC and DC power supplies. -
How are temperature thresholds communicated?
+The TS-02 uses built-in relay outputs that toggle when temperatures exceed safe operating limits, triggering safety trips or panel alarms
