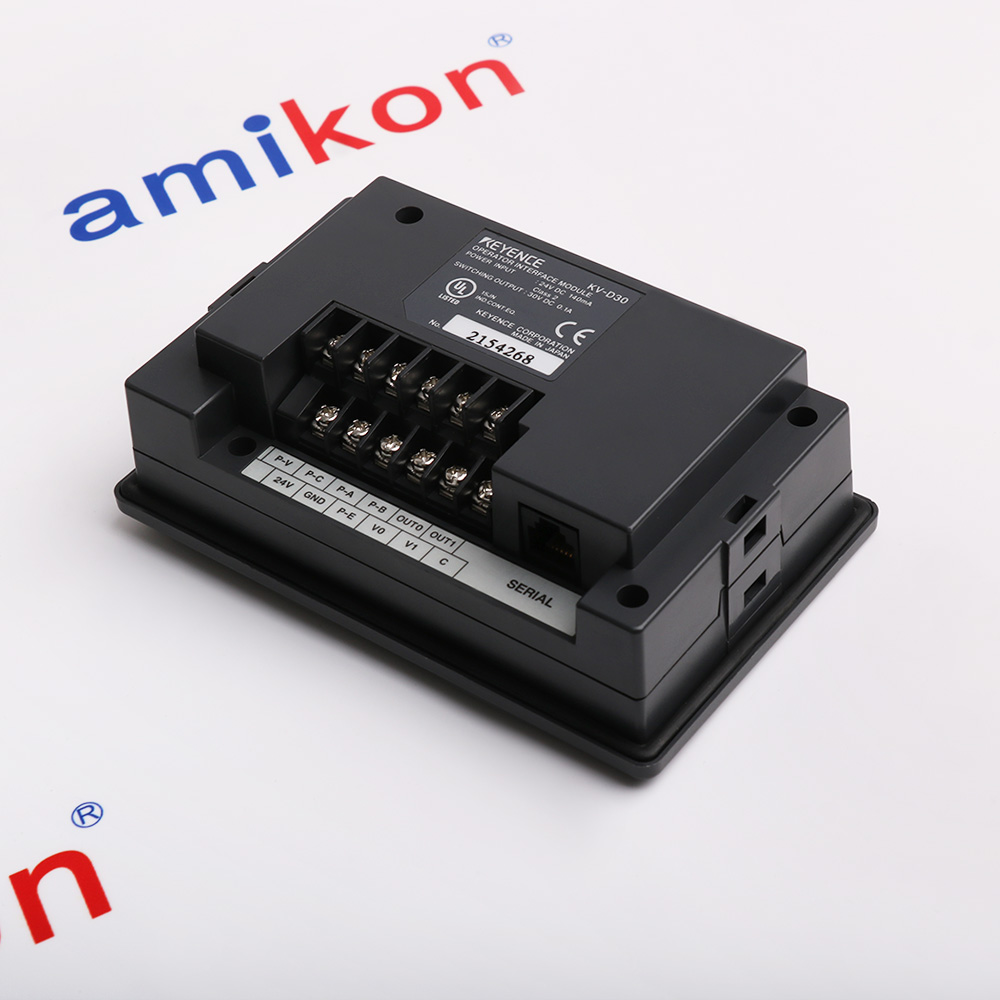

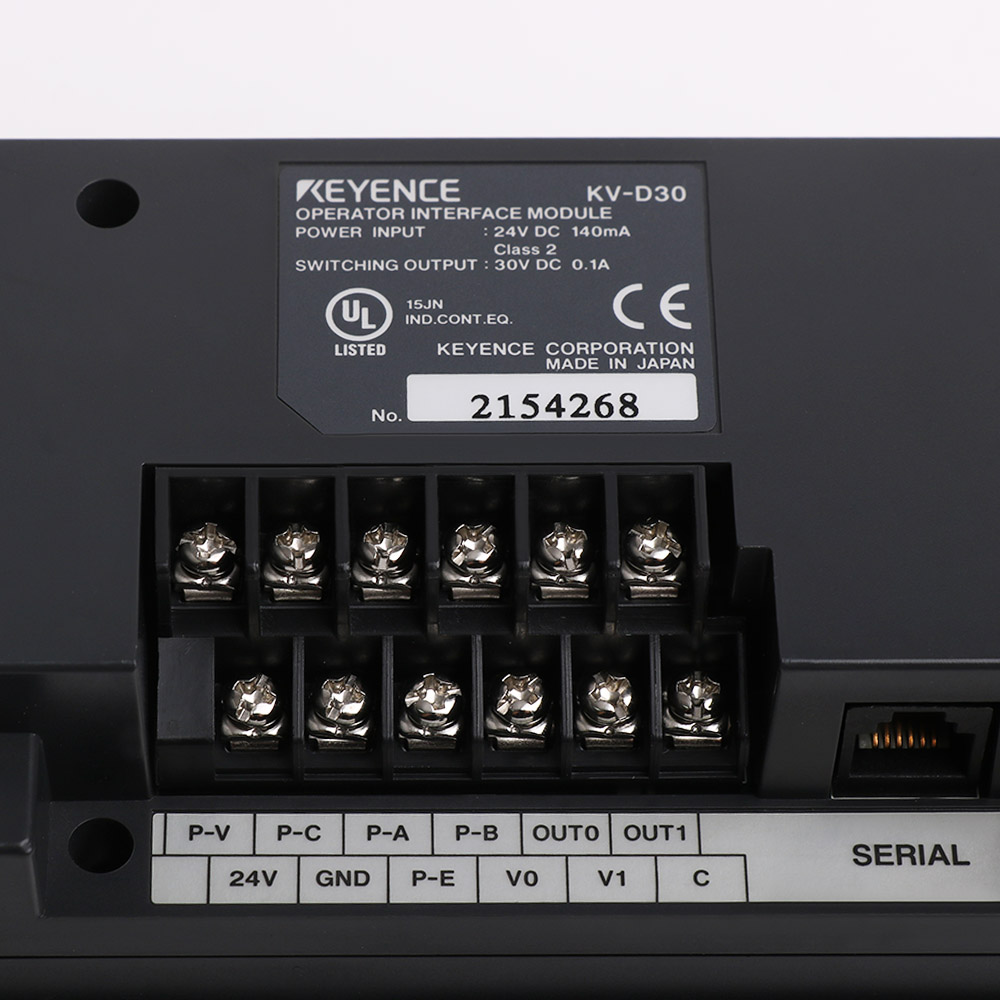

KEYENCE KV-D30 is a three-color operator panel for KV-series controllers. It displays 24 characters on each of four lines in green, orange or red and is documented with a 2.5 m cable and mounting fixtures.
Before replacement, verify the 122 +0.8/0 × 72 +0.8/0 mm panel cutout, 1.2 to 3.0 mm panel thickness, controller, cable and ladder display settings in KV STUDIO or KV BUILDER. KEYENCE lists KV-D30 as discontinued and identifies VT3-W4MT as the recommended replacement, so migration compatibility must be confirmed as an engineering change.
Before replacement, verify the 122 +0.8/0 × 72 +0.8/0 mm panel cutout, 1.2 to 3.0 mm panel thickness, controller, cable and ladder display settings in KV STUDIO or KV BUILDER. KEYENCE lists KV-D30 as discontinued and identifies VT3-W4MT as the recommended replacement, so migration compatibility must be confirmed as an engineering change.
Technical specifications for KV-D30
-
Product ModelKV-D30
-
Product ParametersThree-Color Operator Panel
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12.8 × 4.5 × 7.8 cm
-
ManufacturerKEYENCE
-
Weight0.44 lbs (0.2 kg)
-
Display ColorsGreen, orange and red
-
Display Capacity24 characters × 4 lines
-
Supported ControllerKV-700 CPU and KV series
-
Included Cable2.5 m
-
Included HardwareMounting fixtures
-
Panel Thickness1.2 to 3.0 mm
-
Panel Cutout122 +0.8/0 × 72 +0.8/0 mm
-
Display ProgrammingKV STUDIO or KV BUILDER ladder program
-
Optional Direct CableOP-42143, 5 m
-
Optional Jog DialOP-42144, external 24 Vdc required
View all additional
Alternative Names
KV-D30
KEYENCE Visual KV Three-Color Operator Panel
KV Series 24-Character Display Panel
Technical notes
KV-D30 is discontinued. Confirm the existing controller, cutout, cable, ladder display settings and replacement engineering before considering the recommended VT3-W4MT migration.
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Product Applications
Compatibility
Lifecycle & Replacement
Features:
- Three-color green, orange and red operator display
- Twenty-four characters across four display lines
- Compatible with KV-700 CPU and KV-series controllers
- 2.5 m cable and mounting fixtures documented as supplied
- Panel mounting for 1.2 to 3.0 mm thickness
The panel uses ladder-programmed display settings through KV STUDIO or KV BUILDER. Verify the controller, cable, panel cutout, mounting thickness, optional accessories and project logic before commissioning.
KV-D30 KEYENCE: Verify the installed controller, 122 × 72 mm nominal cutout, panel thickness, cable, ladder display settings and discontinued-product replacement plan before installation.
KEYENCE KV-D30 Visual KV Three-Color Operator Panel Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.
- KV-series controller operating-status display
- Three-color machine-state and alarm indication
- Ladder-programmed production-message display
- Panel-mounted maintenance and diagnostic prompts
- Optional jog-dial operator input with OP-42144
Use KV-D30 only with a compatible KV-series controller and documented display program.
Match the 122 +0.8/0 × 72 +0.8/0 mm panel cutout.
Confirm the panel thickness is within 1.2 to 3.0 mm.
Verify the supplied 2.5 m cable or optional OP-42143 5 m direct cable.
Check KV STUDIO or KV BUILDER ladder settings and any OP-42144 external 24 Vdc wiring.
Do not treat VT3-W4MT as a direct replacement without controlled migration verification.
Match the 122 +0.8/0 × 72 +0.8/0 mm panel cutout.
Confirm the panel thickness is within 1.2 to 3.0 mm.
Verify the supplied 2.5 m cable or optional OP-42143 5 m direct cable.
Check KV STUDIO or KV BUILDER ladder settings and any OP-42144 external 24 Vdc wiring.
Do not treat VT3-W4MT as a direct replacement without controlled migration verification.
Confirm the complete KV-D30 model and installed controller before replacement because the product is discontinued.
Record the panel cutout, cable, mounting fixtures, display messages and ladder-program settings.
Inspect the connectors, panel hardware, cabinet opening and wiring.
Preserve the green, orange and red display logic and operator-message sequence.
Verify current KEYENCE replacement guidance and project-conversion requirements.
Contact Amikon with KV-D30 for availability and replacement support.
Record the panel cutout, cable, mounting fixtures, display messages and ladder-program settings.
Inspect the connectors, panel hardware, cabinet opening and wiring.
Preserve the green, orange and red display logic and operator-message sequence.
Verify current KEYENCE replacement guidance and project-conversion requirements.
Contact Amikon with KV-D30 for availability and replacement support.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about KV-D30
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is KV-D30 a direct replacement for every existing KV operator panel?
No. Compare the exact controller, panel cutout, mounting depth, cable, display program and ladder logic before removing the installed panel. -
How much information can the display show at one time?
The panel supports 24 characters per line across four lines. Confirm the actual ladder display messages and character allocation in the existing project. -
How are the green, orange and red display colors assigned?
Display color selection is controlled through the KV STUDIO or KV BUILDER ladder program. Review the machine logic to confirm how each color is used for status, warning or alarm conditions. -
Is the operator-panel cable included with KV-D30?
KEYENCE documents a 2.5 m cable and mounting fixtures as supplied items. Confirm package contents and connector condition when the unit arrives. -
What opening should the cabinet panel provide?
Use the documented nominal cutout of 122 +0.8/0 by 72 +0.8/0 mm and a panel thickness of 1.2 to 3.0 mm. Measure the existing opening before ordering. -
When is the OP-42143 cable required?
OP-42143 is the optional 5 m direct cable. Select it only when the standard 2.5 m cable does not meet the cabinet-to-controller routing distance. -
What must be provided when adding the OP-42144 jog dial?
The OP-42144 optional jog dial requires an external 24 Vdc supply. Verify wiring, current capacity and the ladder functions assigned to the dial. -
How should a discontinued KV-D30 be handled in an MRO replacement plan?
KEYENCE lists KV-D30 as discontinued and identifies VT3-W4MT as the recommended replacement. Treat migration as an engineering change and verify cutout, wiring, software and project conversion before purchase.
