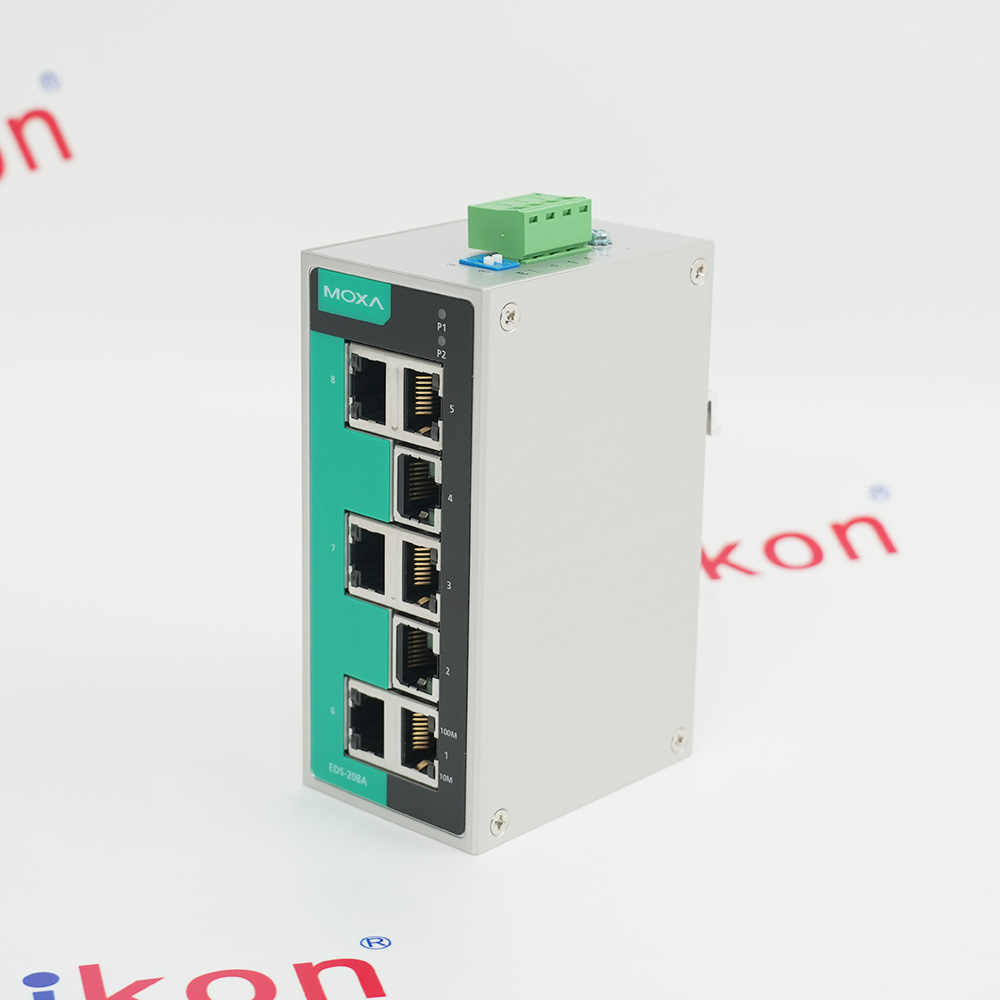

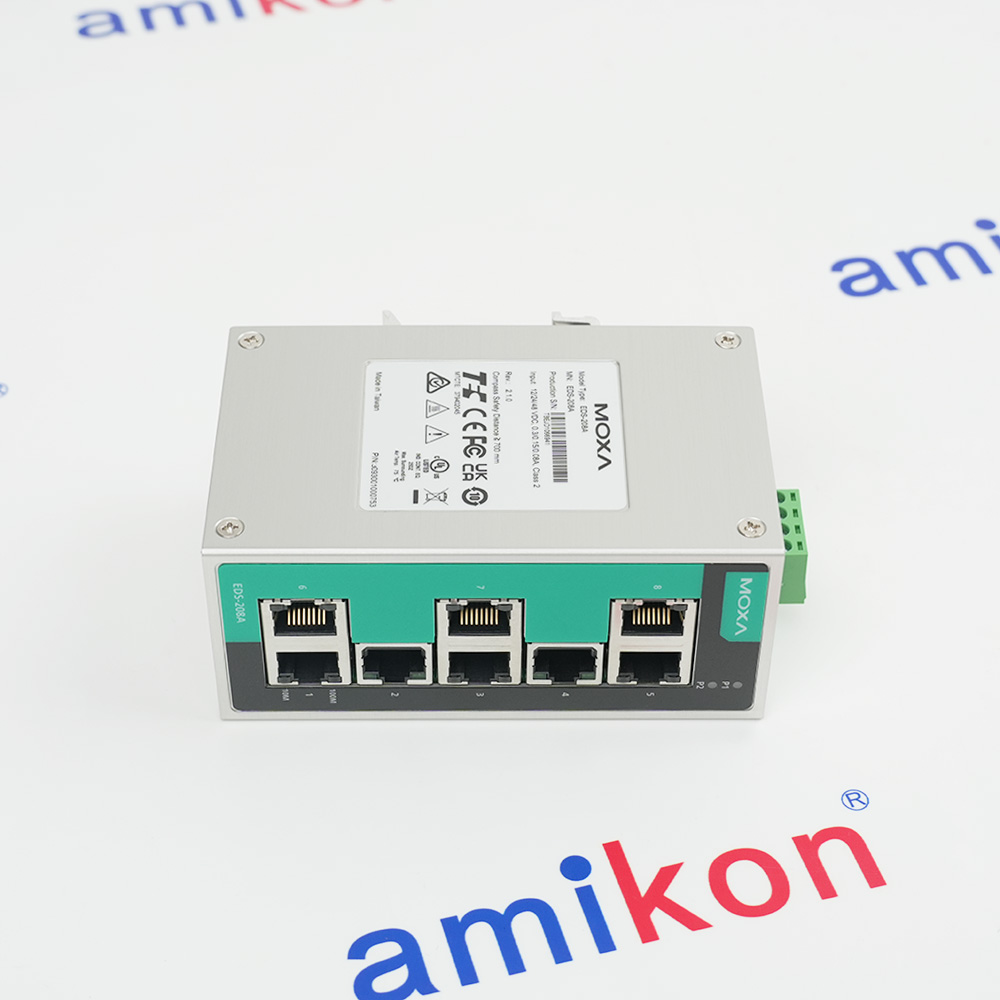

EDS-208A
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
EDS208A
UNMANAGED ETHERNET SWITCH
WITH 8X 10/100 BASET(X) PORTS
12/24/48 VDC INPUT
-10 TO +60 DEGREES C OPERATING TEMPERATURE
DIN RAIL MOUNTING
IP30
UNMANAGED ETHERNET SWITCH
WITH 8X 10/100 BASET(X) PORTS
12/24/48 VDC INPUT
-10 TO +60 DEGREES C OPERATING TEMPERATURE
DIN RAIL MOUNTING
IP30
Technical specifications for EDS-208A
-
Product ModelEDS-208A
-
Product ParametersUNMANAGED ETHERNET SWITCH
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5x7.8x12.5cm
-
ManufacturerMOXA
-
Weight0.2 kg
-
MAC Table Size2 K
-
Packet Buffer Size768 kbits
-
Processing TypeStore and Forward
-
Connection1 removable 4-contact terminal block(s)
-
Input Voltage12/24/48 VDC, Redundant dual inputs
-
Operating Voltage9.6 to 60 VDC
-
Storage Temperature-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity5 to 95% (non-condensing)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the Moxa EDS-208A？+The Moxa EDS-208A series consists of entry-level, industrial 8-port unmanaged Ethernet switches designed for harsh environments, supporting 10/100M copper and fiber connections.
-
What is EDS-208A the port configuration?+The series offers 8 ports, with models supporting 8 copper (RJ45) ports or a combination of 6 or 7 copper ports and 1 or 2 fiber ports (SC or ST connectors, single-mode or multi-mode)..
-
What are the power requirements?+The switches support redundant dual 12/24/48 VDC power inputs (9.6 to 60 VDC range).
-
Is the EDS-208A manageable?+No, the EDS-208A series are unmanaged switches designed for plug-and-play.
-
What is the power input range?+The switches accept a redundant dual 12/24/48 VDC (9.6 to 60 VDC) input.
Get a quick price fo EDS-208A
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring Requirements
Features:
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or STconnector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations
- -40 to 75°C wide operating temperature range (-T models)
The EDS-208A Moxa 8-port compact unmanaged Ethernet switches may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Moxa EDS-208A 8-port compact unmanaged Ethernet switches Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature rangefrom -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation controlapplications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level offlexibility for industrial applications.
- Traffic Control Systems: Installed in wayside cabinets for highway monitoring
- Railway Equipment: Used in mobile applications and rail-side machinery
- Maritime Equipment: Built into shipboard systems and offshore platform machinery that requires DNV, ABS, or LR marine certifications
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Grounding: Connect the rightmost contact of the 3-contact terminal block to the grounding surface to limit EMI effects.
Power Inputs: The switch supports redundant dual power inputs (P1 and P2).
Insert the positive/negative DC wires into the V+ / V- terminals on the 4-contact terminal block.
Tighten the wire-clamp screws using a small flat-blade screwdriver to prevent loose connections.
