Technical specifications for 8101-HI-TX
-
Product Model8101-HI-TX
-
Spare ModeliO-8AI-2H
-
Product ParametersANALOG INPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.1x12.5x10.5cm
-
ManufacturerMTL Insturments Group
-
Weight0.2 kg
-
Number of channels8, single-ended
-
Nominal signal range (span)4 to 20 mA
-
Full signal range1 to 23 mA
-
Short circuit current> 23.5 mA
-
Open circuit current< 0.5 mA
-
Output voltage (@ 20mA)13.5 V (min.)
-
Output current32 mA (max.)
-
Accuracy (over temp range)± 0.1% of span
-
Resolution16 bits
-
Repeatability0.05% of span
-
Any channel to Railbus100 V ac
Description
8 single-ended 4-20 mA input channels
Non-incendive field circuits
HART pass-through
HART variable and status reporting
2- or 4-wire transmitters
Open and short circuit detection
24 V dc bussed field power required
Non-incendive field circuits
HART pass-through
HART variable and status reporting
2- or 4-wire transmitters
Open and short circuit detection
24 V dc bussed field power required
Information
Overview
Manuals
Technical notes
Product Applications
installation
Features:
- 8 single-ended 4-20 mA input channels
- Non-incendive field circuits
- HART pass-through
- HART variable and status reporting
- 2- or 4-wire transmitters
- Open and short circuit detection
- 24 V dc bussed field power required

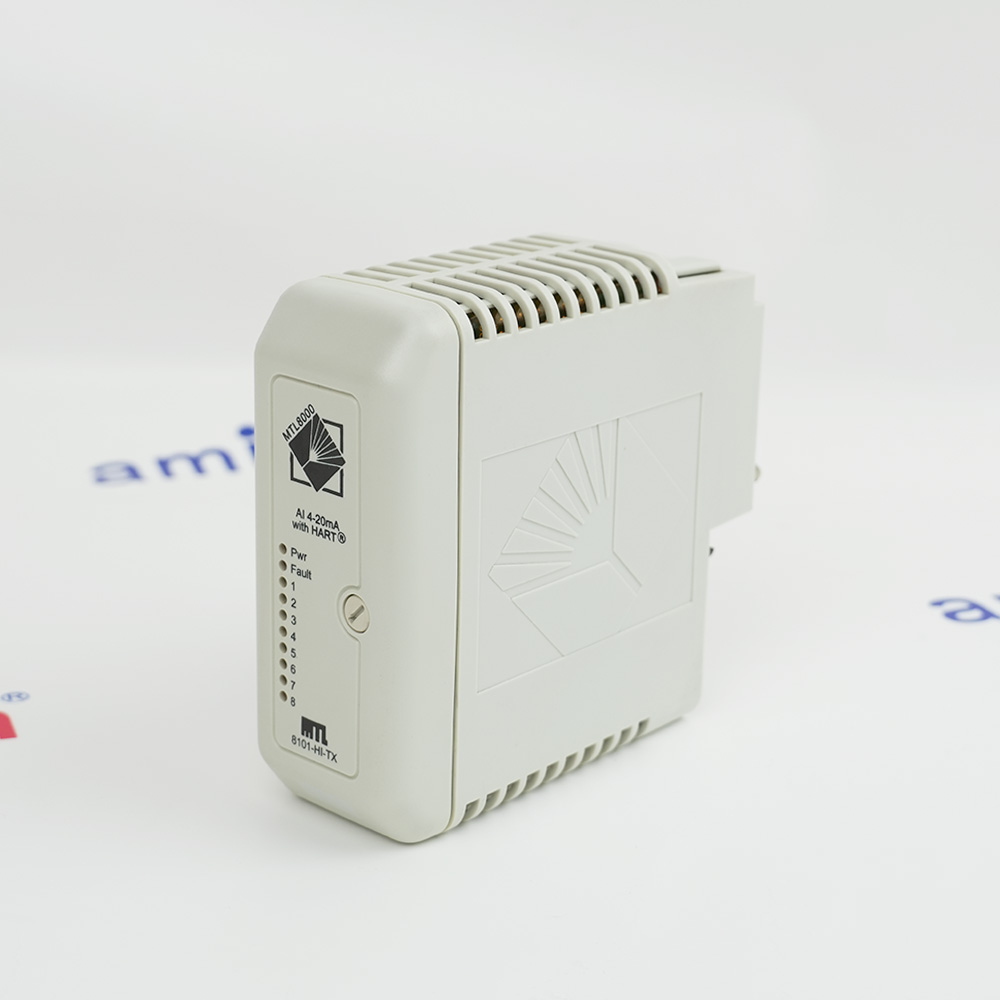

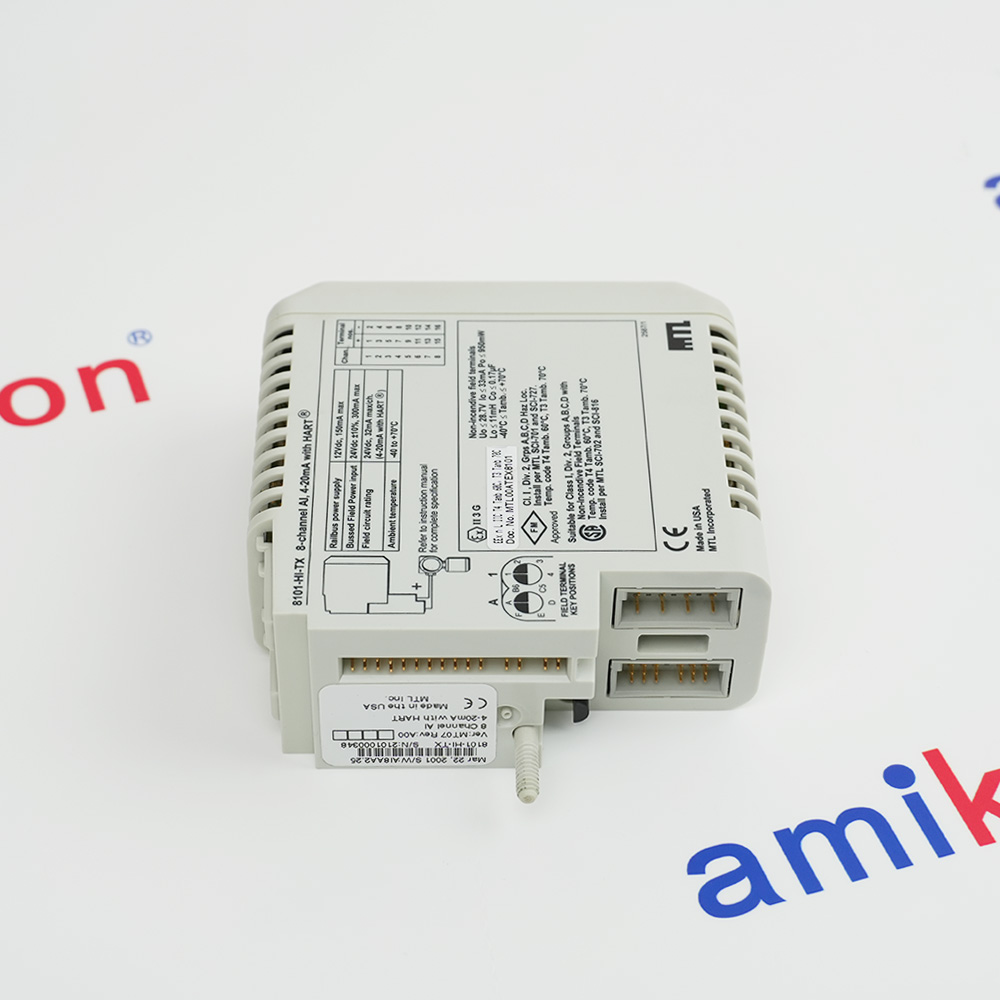

The 8101-HI-TX MTL 8-channel analog input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
MTL 8101-HI-TX 8-channel analog input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Channels: 8 single-ended input channels.
Signal Range: Nominal 4 to 20 mA; full range 1 to 23 mA.
HART Support: Provides variable and status reporting, allowing host controllers transparent access to field instrument data.
Transmitter Compatibility: Supports both 2-wire and 4-wire transmitters.
Fault Detection: Includes built-in open-circuit (< 0.5 mA) and short-circuit (> 23.5 mA) detection.
Precision: 16-bit resolution with an accuracy of ±0.1% of span.
- Turbomachinery:4-20 mA sensors track vibration, temp & pressure for turbines/compressors
- Pumping Systems:Prevents dry-run/over-pressure for water/oil pipeline pumps
- Reactors and Boilers:HART multi-variable data maintains safe chemical reactor envelopes
- Heat Exchangers:Differential pressure/temp optimization for power/HVAC plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Carrier Compatibility: The module must be plugged into a PAC8000 module carrier.
Keying: The module uses a Key Code A1. Ensure the carrier's keying pins match this code to prevent incorrect module insertion.
Enclosure Requirements: For hazardous area (Zone 2/Div 2) installations, the equipment must be housed in an enclosure providing at least IP54 protection.
FAQs
-
What is 8101-HI-TX?
+The MTL 8101-HI-TX is an 8-channel analog input module (4-20mA) with HART functionality, for the MTL8000 process I/O system, often used in hazardous areas -
What is the function of the MTL 8101-HI-TX?
+It is an 8-channel, 4-20mA input module designed to interface field instruments with hazardous area functionality, including support for HART communication. -
Does this module support HART communication?
+Yes, the "-HI-TX" indicates it has HART integrated, allowing the 8000 node to act as a transparent gateway for accessing HART capabilities of field instruments. -
How many 8101-HI-TX modules can be used per node?
+An MTL 8000 node can accommodate 32 I/O modules, allowing for up to 512 I/O points depending on configuration.
