PRODUCT DESCRIPTION

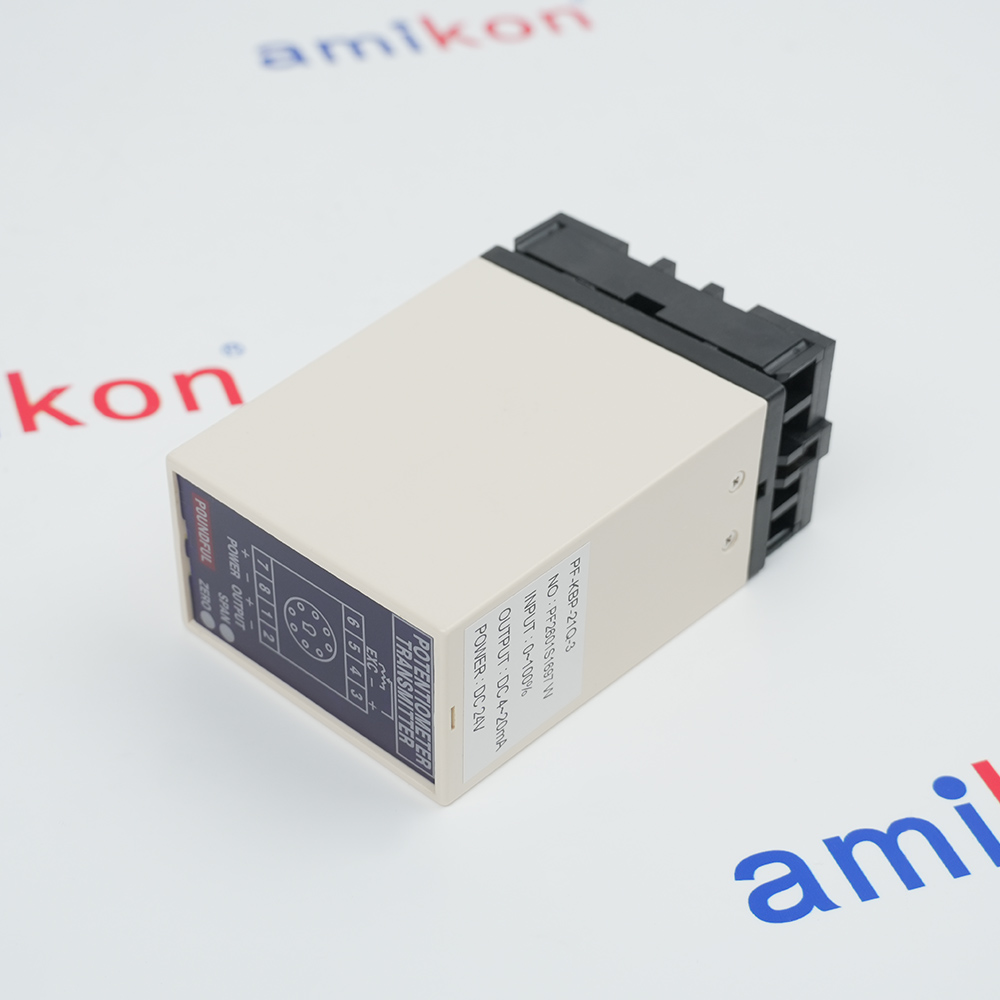

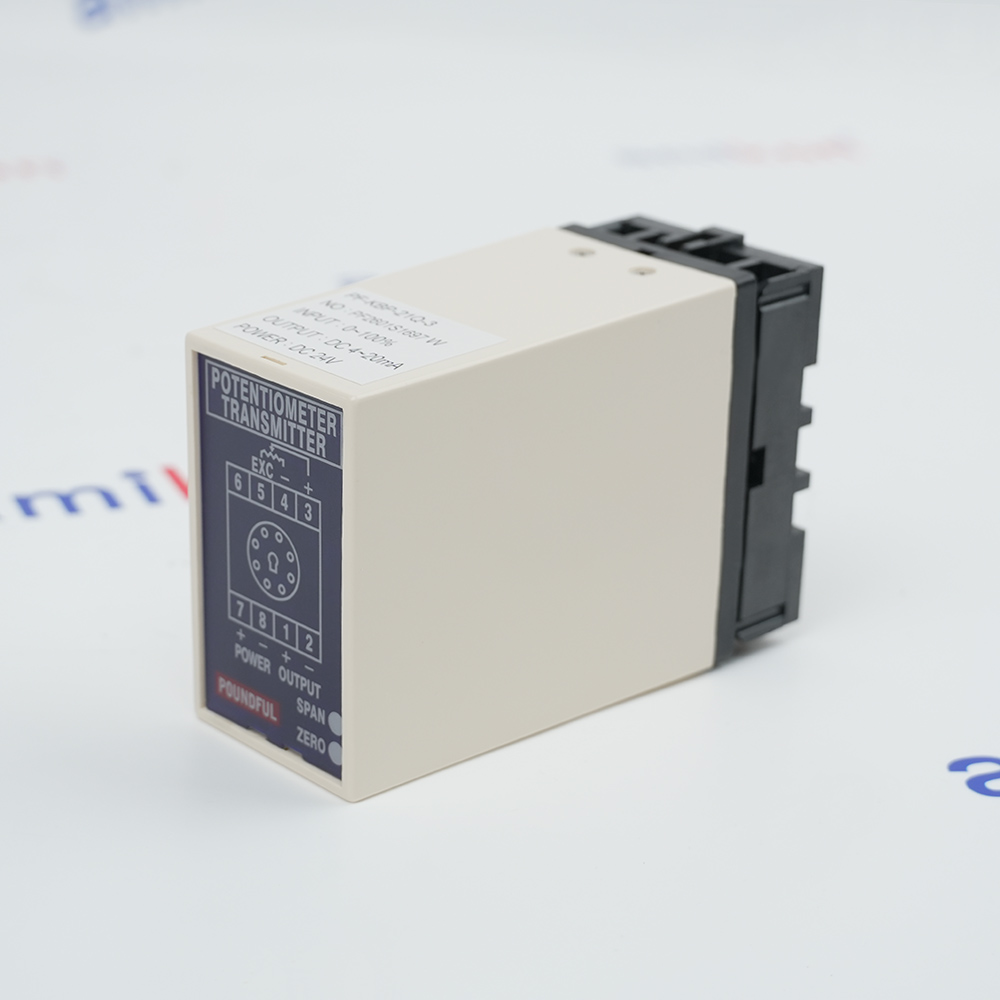

PF-KBP-21Q-3 potentiometer transmitter
POUNDFUL PF-KBP-21Q-3 is a potentiometer transmitter that converts a 0-100% position signal into a linear 4-20 mA DC output. It operates from a 24 V DC supply and accepts switchable potentiometer resistance ranges from 200 ohm to 50 kohm.
The transmitter provides 0.1% full-scale accuracy at 23 +/-5 deg C, output ripple below 0.1% full scale and a response time of 250 ms or less. Its plug-in construction with barrier terminals supports operation from 0 to 55 deg C at 20-95% relative humidity without condensation.
The transmitter provides 0.1% full-scale accuracy at 23 +/-5 deg C, output ripple below 0.1% full scale and a response time of 250 ms or less. Its plug-in construction with barrier terminals supports operation from 0 to 55 deg C at 20-95% relative humidity without condensation.
BEFORE YOU BUY
Confirm the complete PF-KBP-21Q-3 identity
ACTUAL APPLICATIONS
Application fields for PF-KBP-21Q-3
These broad application fields reflect the documented function and technical characteristics of PF-KBP-21Q-3.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Continuous Production
Discrete manufacturing and assembly productionContinuous industrial production operations -
02 · WATER & WASTEWATER
Municipal Water and Industrial Wastewater Services
Municipal water treatment servicesIndustrial wastewater treatment operations -
03 · COMMERCIAL BUILDINGS
Commercial and Institutional Building Operations
Commercial property operationsInstitutional facility services
Technical specifications for PF-KBP-21Q-3
-
Product ModelPF-KBP-21Q-3
-
Product ParametersPotentiometer transmitter
-
In stock1 unit
-
ManufacturerPOUNDFUL
-
Input signalPotentiometer position, 0 to 100%
-
Input resistanceSwitchable 200 ohm to 50 kohm
-
Excitation voltage2.5 V DC internal
-
Output signal4 to 20 mA DC
-
Supply voltage24 V DC
-
Accuracy0.1% full scale at 23 +/-5 deg C
-
Output rippleBelow 0.1% full scale peak-to-peak
-
Temperature coefficient100 ppm/deg C from 0 to 50 deg C
-
Voltage-mode drive10 mA maximum
-
Response time250 ms maximum, 0 to 90%
-
Operating temperature0 to 55 deg C
-
Operating humidity20 to 95% RH, non-condensing
-
Storage temperature0 to 70 deg C
-
Storage humidity20 to 95% RH, non-condensing
-
ConstructionSocket/plug-in with barrier terminals
View all additional
Alternative Names
PF-KBP-21Q-3
POUNDFUL potentiometer transmitter
PF-KBP signal transmitters
PF-KBP-21Q-3 transmitter
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate PF-KBP-21Q-3 into a 4-20 mA position loop
Connect PF-KBP-21Q-3 to a 24 V DC supply and a potentiometer representing 0 to 100% position. Select the input-resistance range that matches the installed sensing element between 200 ohm and 50 kohm, while retaining the transmitter's 2.5 V DC internal excitation arrangement.
Route the linear 4 to 20 mA DC output to the receiving analog input with correct polarity and terminal assignment. The documented performance includes 0.1% full-scale accuracy at 23 +/-5 deg C, output ripple below 0.1% full scale and a response time of 250 ms or less.
Install the plug-in transmitter and barrier-terminal base in the approved enclosure and maintain the documented 0 to 55 deg C operating range with 20 to 95% non-condensing humidity. Commission the loop by checking the 0%, midpoint and 100% positions against the corresponding output current.
Features:
- Selectable 200 ohm to 50 kohm input
- Linear 4-20 mA DC position output
- Endpoint and response-time verification
PF-KBP-21Q-3 integration requires the input-resistance range, 24 V DC supply, terminal assignment and 4-20 mA loop scaling to match.
INTERCHANGEABILITY
Match PF-KBP-21Q-3 input range and loop scaling
Before removal, record the complete PF-KBP-21Q-3 marking, selected potentiometer-resistance range, 24 V DC supply polarity and every barrier-terminal connection. Capture the measured input position and corresponding output current so the existing loop scaling can be reproduced.
Compare the replacement transmitter's 0 to 100% potentiometer input, switchable 200 ohm to 50 kohm range, 2.5 V DC excitation and 4 to 20 mA output with the installed article. Do not select a substitute from enclosure appearance or output type alone.
Fit the replacement to the correct socket, restore the recorded range selection and terminal wiring, then verify output at the lower endpoint, midpoint and upper endpoint. Confirm stable current, correct direction of travel and a response time no greater than 250 ms before returning the loop to service.
Features:
- Recorded resistance range and terminal wiring
- Matched excitation, supply and output signal
- Three-point loop scaling verification
PF-KBP-21Q-3 replacement requires the selected input range, 24 V DC supply, barrier-terminal wiring and 4-20 mA scaling to match.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Exact-model technical data for PF-KBP-21Q-3
- Applicable manufacturer document pages
- Directory links by subcategory and brand
Documentation for PF-KBP-21Q-3 must match the installed product identity and supplied configuration.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Product size5 × 12 × 8.3 cm
-
Net weight0.25 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginTaiwan
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about PF-KBP-21Q-3
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is PF-KBP-21Q-3?
PF-KBP-21Q-3 is a potentiometer transmitter in the PF-KBP signal transmitters family. -
Which technical values should be checked for PF-KBP-21Q-3?
Use the complete model reference and verify documented values such as Input signal: Potentiometer position, 0 to 100%, Input resistance: Switchable 200 Ω to 50 kΩ, Excitation voltage: 2.5 V DC internal. -
Does the complete suffix or revision of PF-KBP-21Q-3 matter?
Yes. Preserve the complete model, suffix and revision because electrical, firmware, connector or configuration details can differ. -
What photographs help confirm PF-KBP-21Q-3?
Provide clear photographs of the full nameplate, front face, connectors, side labels and any revision or assembly markings. -
What should be included in a quotation request?
Provide the complete model, quantity, required condition, delivery destination and requested delivery date. -
What is normally included with PF-KBP-21Q-3?
The supplied scope follows the written quotation. Accessories, cables, terminal blocks, software and documents are included only when listed. -
What should be recorded before replacing PF-KBP-21Q-3?
Record the installed position, wiring, connector orientation, settings, firmware or program data and diagnostic state as applicable. -
How should delivery time be confirmed?
Confirm stock status and lead time against the complete model and quantity because availability can vary by revision and condition.
