Motor Drive Type:Variable Speed Drive - VSD
Operating Supply Voltage:380 V to 500 V
Power Rating: 2.2 kW
Number of Phases: 3 Phase
Product Type: Motor Drives
Subcategory:Motors & Motor Drives
Group of channels:2 groups of 8 outputs
Discrete output number:16
Discrete output type:Solid state switch
Discrete output voltage:24 V DC
Current per channel:0.5 A
Short-circuit protection:Outputs electronically protected
Protective treatment:TC
rated operational voltage:24 V DC
Maximum leakage current:1 mA 24 V DC
Surge current"5 A during 1 ms
Product or component type:Analog input module
Input level:High level
Nominal read cycle time:27 ms
Isolation between channels and bus:1000 Vrms
Isolation between channels:Common point
Current consumption:270 mA at 5 V DC

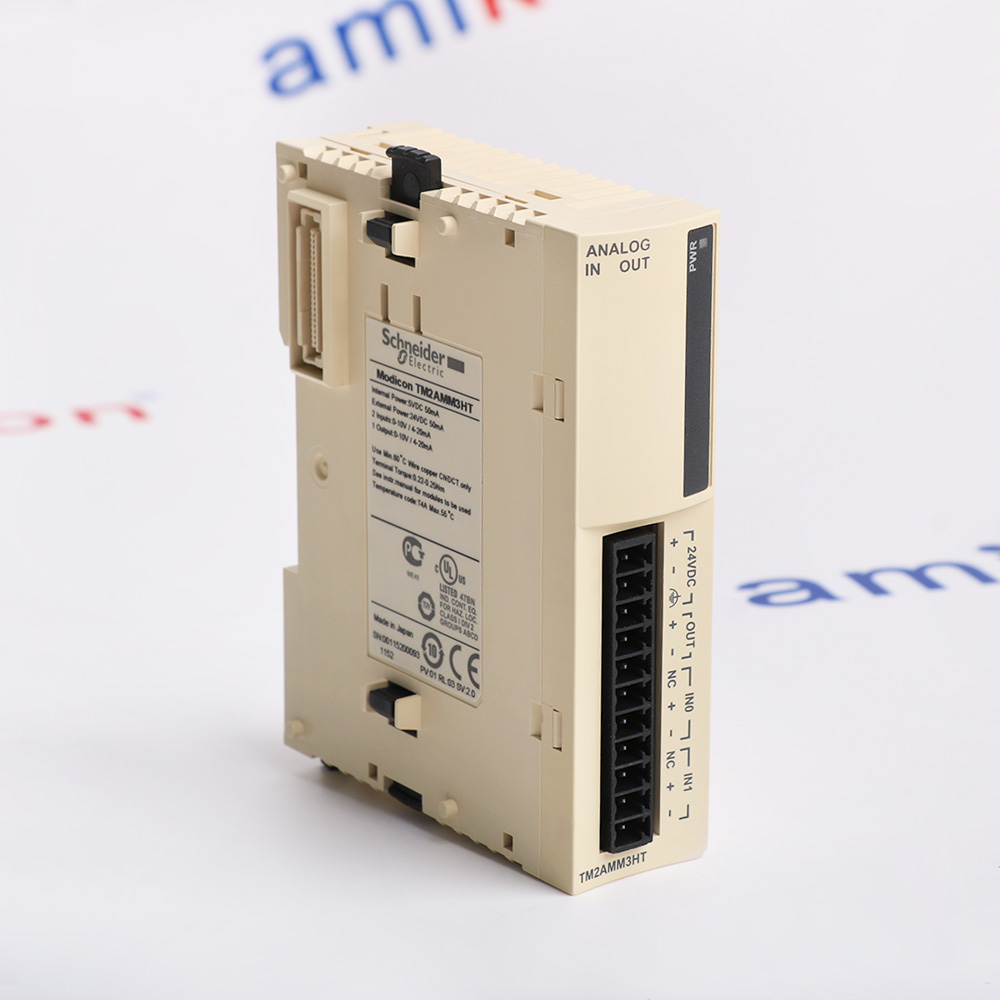

Modicon M238 logic controller
Input/output analog module
High level
Current 4...20 mA
Voltage 0...10 V
Analogue input resolution:12 bits
Stabilisation time:20 ms
rated supply voltage:24 V DC
Supply voltage limits:19.2…30 V
Range of product:Modicon X80

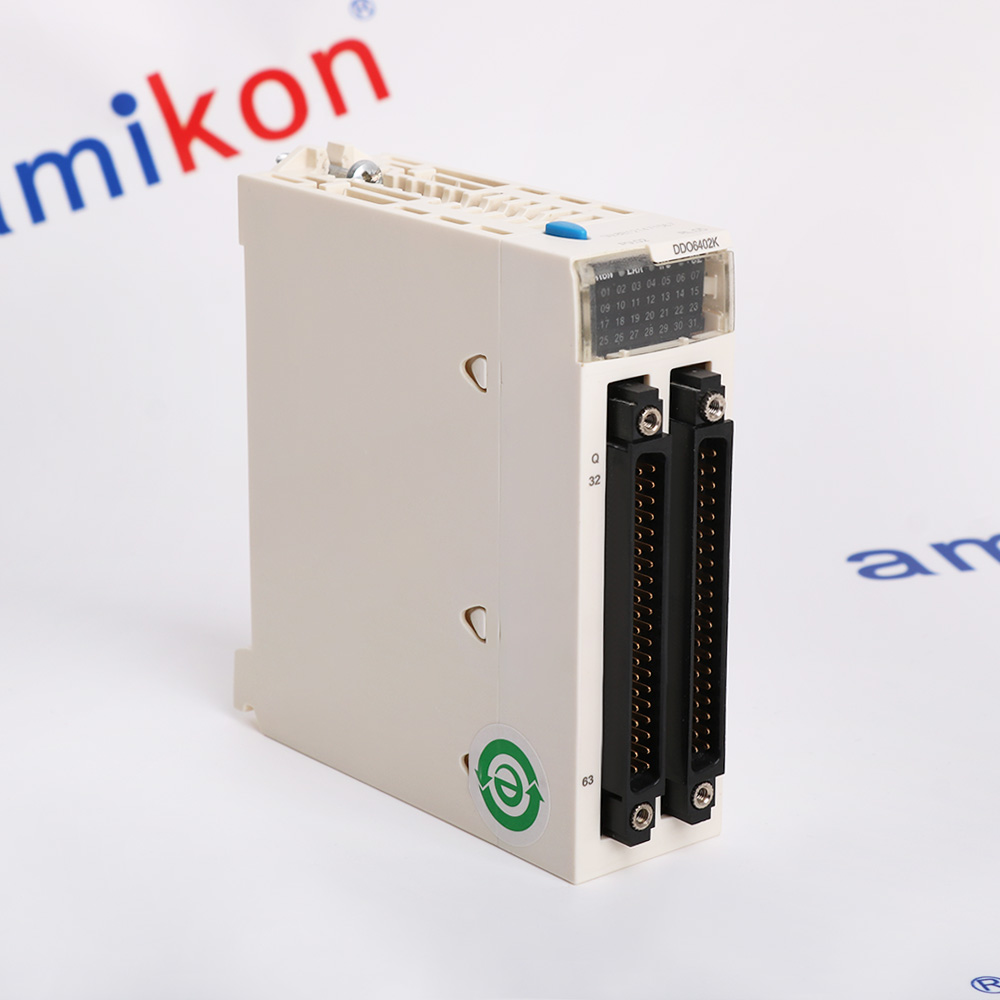

Product or component type:Discrete output module
Discrete output number:64 conforming to EN/IEC 61131-2
Discrete output type:Solid state
Discrete output logic:Positive
Discrete output voltage:24 V 19...30 V DC
Discrete output current:0.1 A
