Technical specifications for BSH1402P21A2A
-
Product ModelBSH1402P21A2A
-

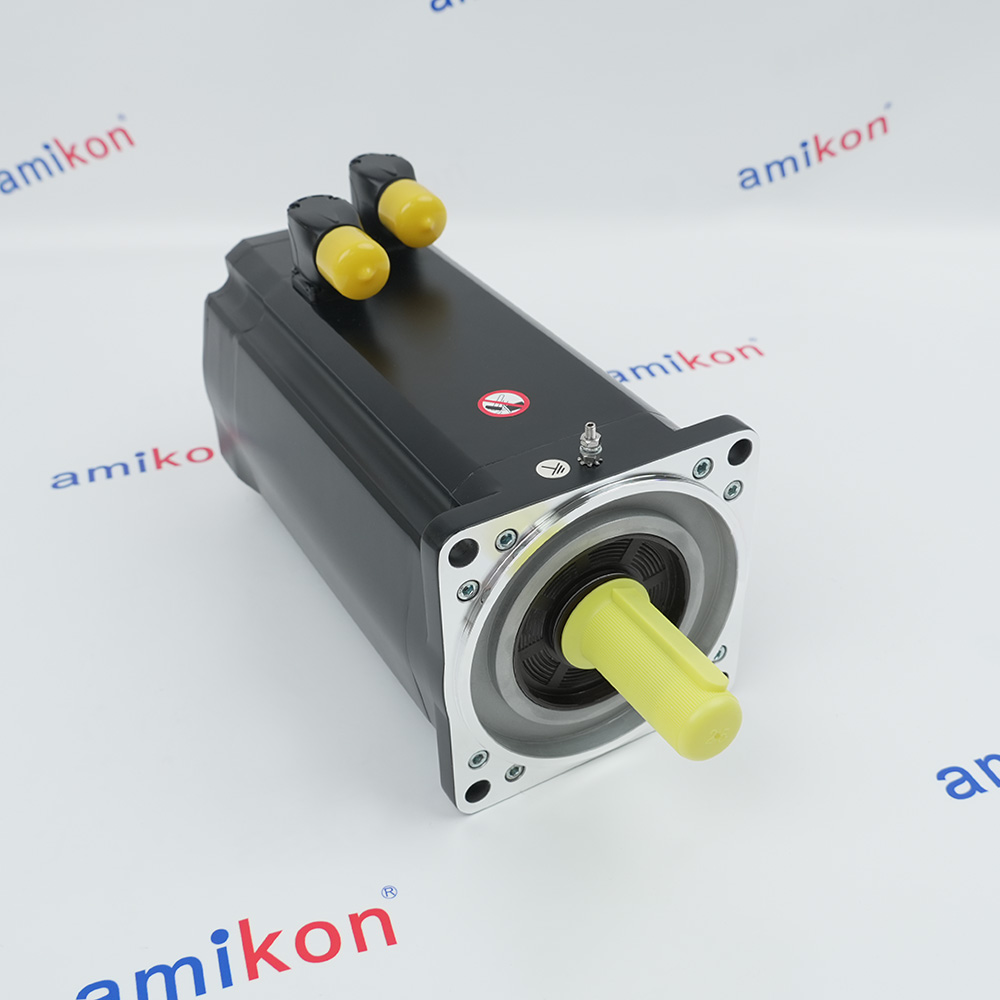

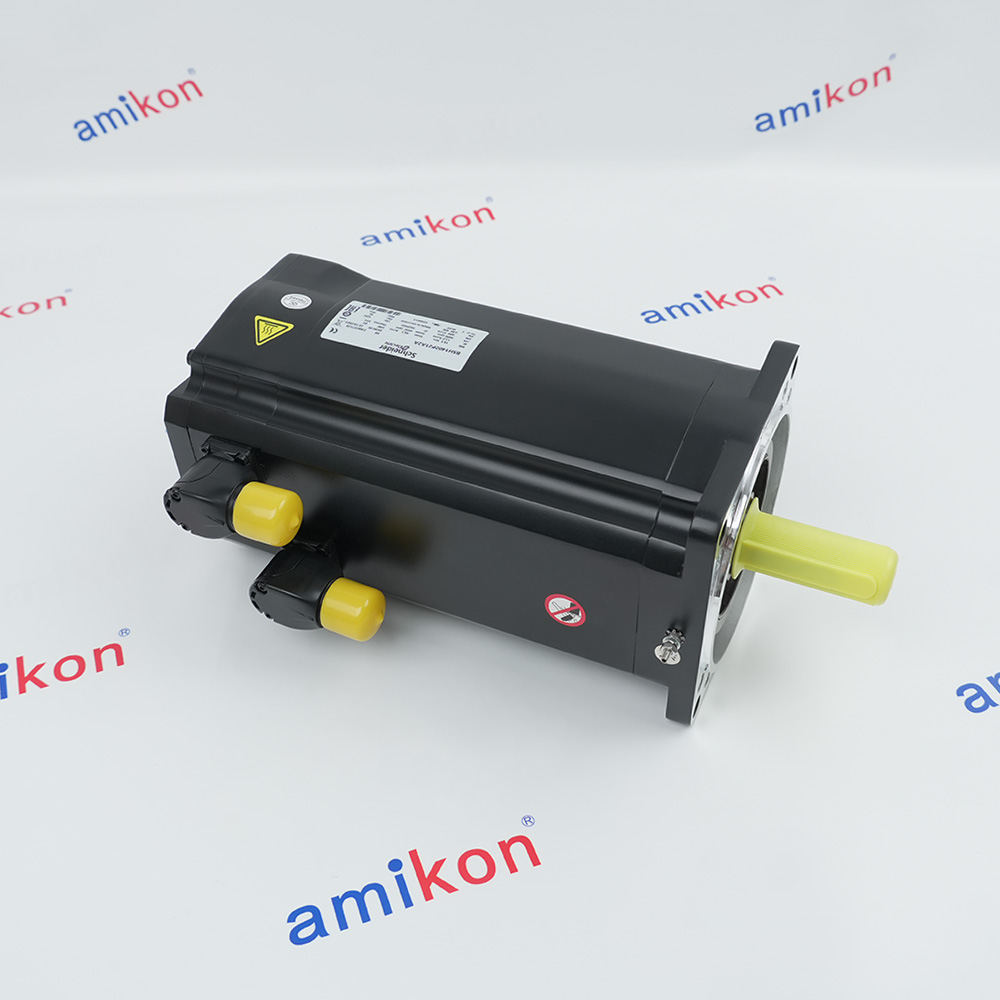

Product ParametersAC servo motor BSH - 14.9 Nm - 4000 rpm
-
Tariff Code8537101190
-
Country of originFRANCE
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size27.7x13.4x4cm
-
ManufacturerSchneider Electric
-
Weight16.6 kg
-
Device short nameBSH
-
Product or component typeServo motor
-
Maximum mechanical speed4000 rpm
-
supply voltage max480 V
-
Network number of phasesThree phase
-
Continuous stall current13.2 A
-
maximum continuous power4.2 W
-
Maximum permanent current44.1 A
-
Torque constant1.47 N.m/A at 120 °C
-
Back emf constant101 V/krpm at 120 °C
-
Rotor inertia12.68 kg.cm²
-
Stator resistance0.6 Ohm at 20 °C
Description
The Schneider Electric BSH1402P21A2A AC Servo Motor is a high-performance servo motor for the Lexium motion control platform. It delivers a continuous stall torque of 14.9 Nm and supports a maximum mechanical speed of 4000 rpm, making it suitable for demanding positioning and motion control applications. The motor is equipped with a 140 mm IEC-standard flange, a 24 mm smooth shaft, and operates without an integrated holding brake.
The BSH1402P21A2A incorporates a single-turn SinCos Hiperface encoder with a resolution of 131072 points per revolution, providing high-precision position feedback for servo control systems. The motor features 10 magnetic poles, a torque constant of 1.47 Nm/A, and a back EMF constant of 101 V/krpm, enabling accurate speed regulation and dynamic motion performance.
The BSH1402P21A2A incorporates a single-turn SinCos Hiperface encoder with a resolution of 131072 points per revolution, providing high-precision position feedback for servo control systems. The motor features 10 magnetic poles, a torque constant of 1.47 Nm/A, and a back EMF constant of 101 V/krpm, enabling accurate speed regulation and dynamic motion performance.
Alternative Names
BSH1402P21AZA
BSH1402P2IA2A
BSH1402PZ1A2A
BSH140ZP21A2A
BSH14O2P21A2A
8SH1402P21A2A
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion & Mounting
Features:
- 14.9 Nm Continuous Stall Torque with 4000 rpm Maximum Speed
- 140 mm IEC Frame Size with Smooth (Untapped) Shaft
- Single-Turn SinCos Hiperface Absolute Encoder (128 periods/rev)
- IP65 Standard Protection with IP67 Option
- Low Rotor Inertia (12.68 kg·cm²) for High Acceleration
BSH1402P21A2A features a 140 mm IEC frame size with a 24 mm diameter smooth (untapped) shaft end. The shaft length of BSH1402P21A2A is 50 mm, with a centering collar depth of 3.5 mm and a centering collar diameter of 130 mm. The mounting flange of BSH1402P21A2A uses four M8 mounting holes on a 165 mm bolt circle diameter, conforming to international standard flange dimensions for easy mechanical integration. The overall motor length of BSH1402P21A2A is 272.5 mm, with a net weight of approximately 16.6 kg (17.3 kg including packaging).
The BSH1402P21A2A Schneider Electric AC servo motor BSH - 14.9 Nm - 4000 rpm may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric BSH1402P21A2A AC servo motor BSH - 14.9 Nm - 4000 rpm Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The encoder system of BSH1402P21A2A is a single-turn absolute SinCos Hiperface encoder with 128 periods per revolution, providing a feedback resolution of 131,072 points per turn. This high-resolution encoder of BSH1402P21A2A eliminates the need for homing routines in many applications, as absolute position information is available immediately upon power-up. The encoder accuracy of BSH1402P21A2A is 1.4 angular degrees, with a back EMF constant of 101 V/krpm at 120°C. The electrical connection of BSH1402P21A2A is made via two rotatable angled M23 connectors, allowing 90-degree rotation for flexible cable routing in confined installations.
- Food/Beverage: Used in high-moisture filling/bottling machines like brewery lines
- Packaging: Powers multi-axis form-fill-seal, wrapping, cartoning, and high-speed sorting
- Material Handling: Drives AGVs, conveyors, sorters, and ASRS
- Textile: Controls tensioning, weaving, and spinning in dusty environments
- Printing/Converting: Manages continuous tension, cutting, and paper tracking
- Plastics/Rubber: Runs injection molding, blow molding axes, and extrusion pullers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Position: The BSH1402P21A2A supports universal mounting, but for the vertical drive shaft (shaft end pointing up), the protection rating drops to IP50.
Alignment: Ensure the motor flange is mounted cleanly on a flat, metal surface for proper heat dissipation. Do not hammer or force the coupling onto the smooth shaft to avoid damaging the internal bearings.
Sealing: If operating in environments with splashing fluids or dust, ensure the motor flange is sealed and the proper shaft seal ring is installed (especially if speeds frequently exceed 4000 rpm).
Technical notes
The BSH1402P21A2A is designed for operation with 230 VAC, 400 VAC, and 480 VAC three-phase Lexium drives. Depending on the connected drive, the motor provides a rated output power of up to 3400 W, a continuous stall current of 13.2 A, and a peak stall torque of 28.71 Nm. The motor also supports a maximum permanent current of 44.1 A, allowing rapid acceleration and high transient torque during demanding machine cycles.
FAQs
-
What is the BSH1402P21A2A ?
+The Schneider BSH1402P21A2A is a high-performance, 14.9 Nm AC synchronous servo motor from the Lexium series. -
Does this motor include a holding brake?
+No, the "2" designation in the part number indicates it comes without a holding brake. -
What is the IP rating for this model?
+This model typically features an IP65 or IP67 rating, making it highly protected against dust, contact, and water jets, suitable for harsh industrial environments. -
Which drive series is this motor designed to work with?
+This motor is optimally paired with Schneider Electric's Lexium 05 and compatible Lexium servo drives.
