Technical specifications for BMXFCW303
-
Product ModelBMXFCW303
-
Product ParametersCord set - 40-way terminal
-
Tariff Code8537101190
-
Country of originfrance
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size28x28x5cm
-
ManufacturerSchneider Electric
-
Weight0.9 kg
-
Range of productModicon X80
-
Accessory / separate part typePreformed cordset
-
Accessory / separate part designationPreformed cordset with one end with flying leads
-
Accessory / separate part destinationFor I/O module with 40-way connectors
-
Number of cables2
-
Cable length3 m
-
Total number of wires40
Description

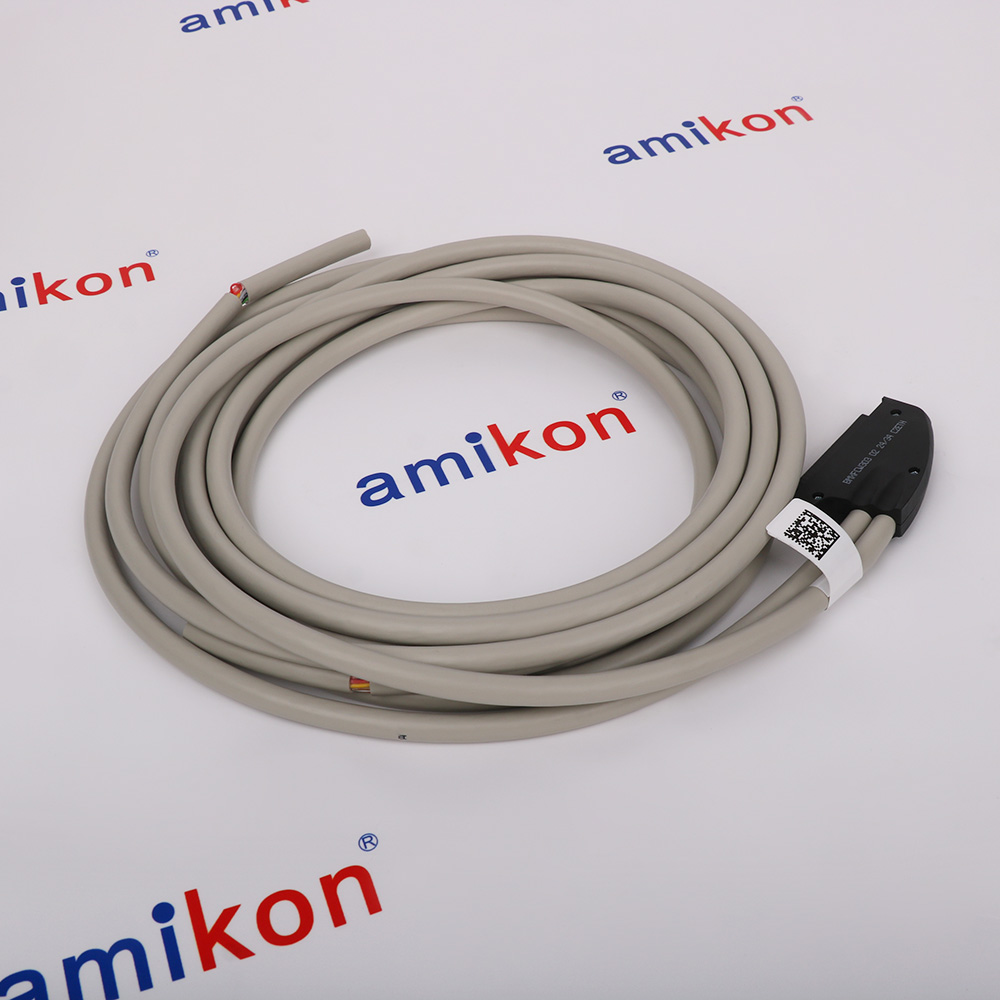

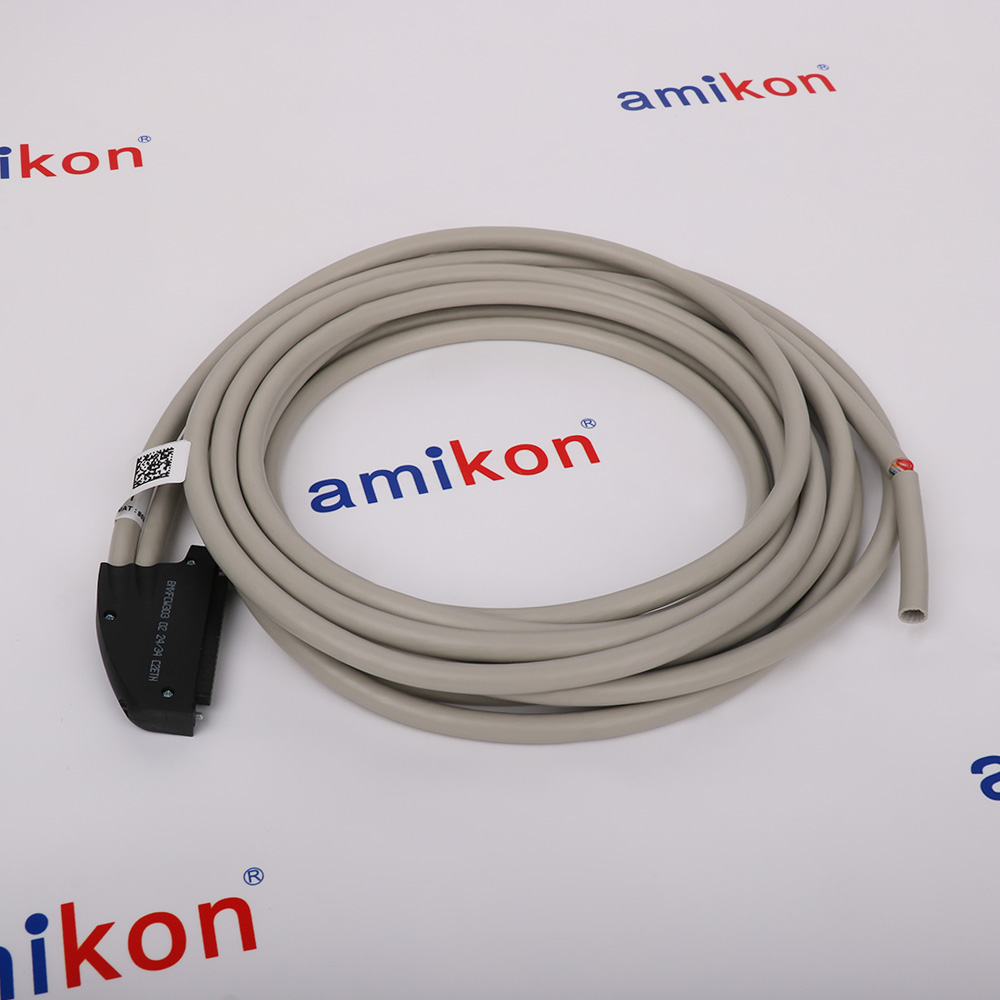

The Schneider Electric BMXFCW303 is a cord set designed for industrial automation applications, specifically for use with Modicon M340 I/O systems. The BMXFCW303 features a 40-way terminal configuration with two ends flying leads, providing flexible wiring connections between I/O modules and field devices.
The Schneider Electric BMXFCW303 has a cable length of 3 meters (approximately 9.8 feet), providing adequate reach for typical control panel installations. The BMXFCW303 is designed to facilitate easy and reliable connections in M340-based control architectures, ensuring proper signal transmission for digital and analog I/O signals.
The Schneider Electric BMXFCW303 has a cable length of 3 meters (approximately 9.8 feet), providing adequate reach for typical control panel installations. The BMXFCW303 is designed to facilitate easy and reliable connections in M340-based control architectures, ensuring proper signal transmission for digital and analog I/O signals.
Information
Overview
Manuals
Application Notes
Product Applications
Connection & Wiring
Features:
- 40-Way Terminal Cord Set with Two Ends Flying Leads
- 3-Meter Cable Length
- REACh Compliant with Declaration
- RoHS Compliant (Pro-Active Compliance)
The cord set consists of two cables with a total of 40 wires, each with a wire section of 0.324 mm² (AWG 22). The flying leads are color-coded in accordance with DIN 47100, enabling rapid identification and reducing wiring errors during installation and maintenance. The cable length is 3 metres, providing sufficient reach for typical control cabinet layouts while maintaining signal integrity.
The BMXFCW303 Schneider Electric Cord set - 40-way terminal may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric BMXFCW303 Cord set - 40-way terminal Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The BMXFCW303 is part of the broader Modicon X80 common platform of modules, which serves as the I/O foundation for the Modicon M580 ePAC, Modicon M340 PAC, and Quantum Ethernet I/O systems. This common platform enables seamless integration and flexibility across different controller architectures within the Schneider Electric automation ecosystem.
- Water/Wastewater: Controls pumping stations, manages SCADA telemetry, and monitors water quality in real-time
- Oil/Gas/Petrochemical: Handles process control loops and integrates with HART for continuous diagnostics
- Food/Beverage: Manages motion control, packaging automation, and recipe management with precision
- Mining/Metals: Executes interlocking processes, manages material handling, and logs time-stamped events
- Smart Manufacturing: Controls distributed machinery via Ethernet networks for reduced time-to-market
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cable Ends: The cable splits into two bundles of 20-wire flying leads.
Color Coding: The wires are color-coded per the DIN 47100 standard for fast recognition during installation.
Wiring to Terminal Blocks: Connect the flying leads to your field terminals, Telefast modules, or marshalling cabinets according to the exact channel allocation map of your specific 32-channel or 64-channel module.
Alternative Names
BMXFCW3O3
Technical notes
The Schneider Electric BMXFCW303 is part of Schneider Electric's comprehensive portfolio of connection accessories for Modicon M340 programmable automation controllers. The BMXFCW303 provides a reliable wiring solution for industrial control applications where pre-fabricated cable assemblies simplify installation and reduce wiring errors. The BMXFCW303 is designed for use in standard industrial environments with appropriate protection and installation practices.
FAQs
-
What is BMXFCW303 ?
+The Schneider Electric BMXFCW303 is a pre-formed cordset for Modicon X80 and M340 I/O modules. -
How does it differ from the BMXFCW503?
+Both cables feature the same 40-way configuration and flying leads, but the BMXFCW303 is 3 meters long, while the BMXFCW503 is 5 meters. -
What is the wire gauge and cross-section?
+It uses AWG 22 wire with a cross-section of 0.324 mm² -
What is the wire color code?
+The flying leads are color-coded in accordance with the DIN 47100 standard.
