Technical specifications for BMXFTB2000
-
Product ModelBMXFTB2000
-
Spare ModelModicon X80
-
Product ParametersTerminal block, Modicon X80
-
Tariff Code8537101190
-
Country of originfrance
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size9.5x3.1x4.2cm
-
ManufacturerSchneider Electric
-
Weight0.1 kg
-
Range of productModicon X80
-
Accessory / separate part typeRemovable connection block
-
Number of terminals20 removable cage clamp terminal block
-
Connection TypeCage clamp (spring-loaded)
-
Product Type20-pin removable terminal block
Description

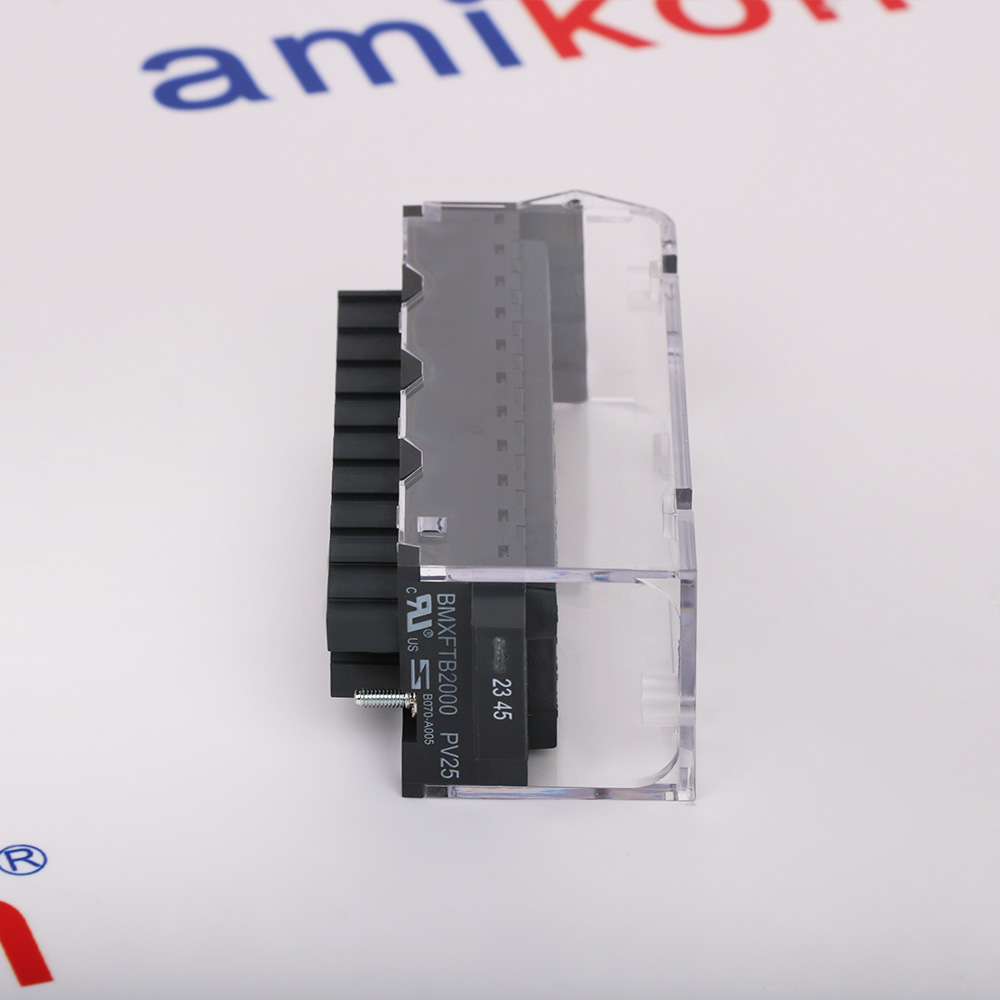

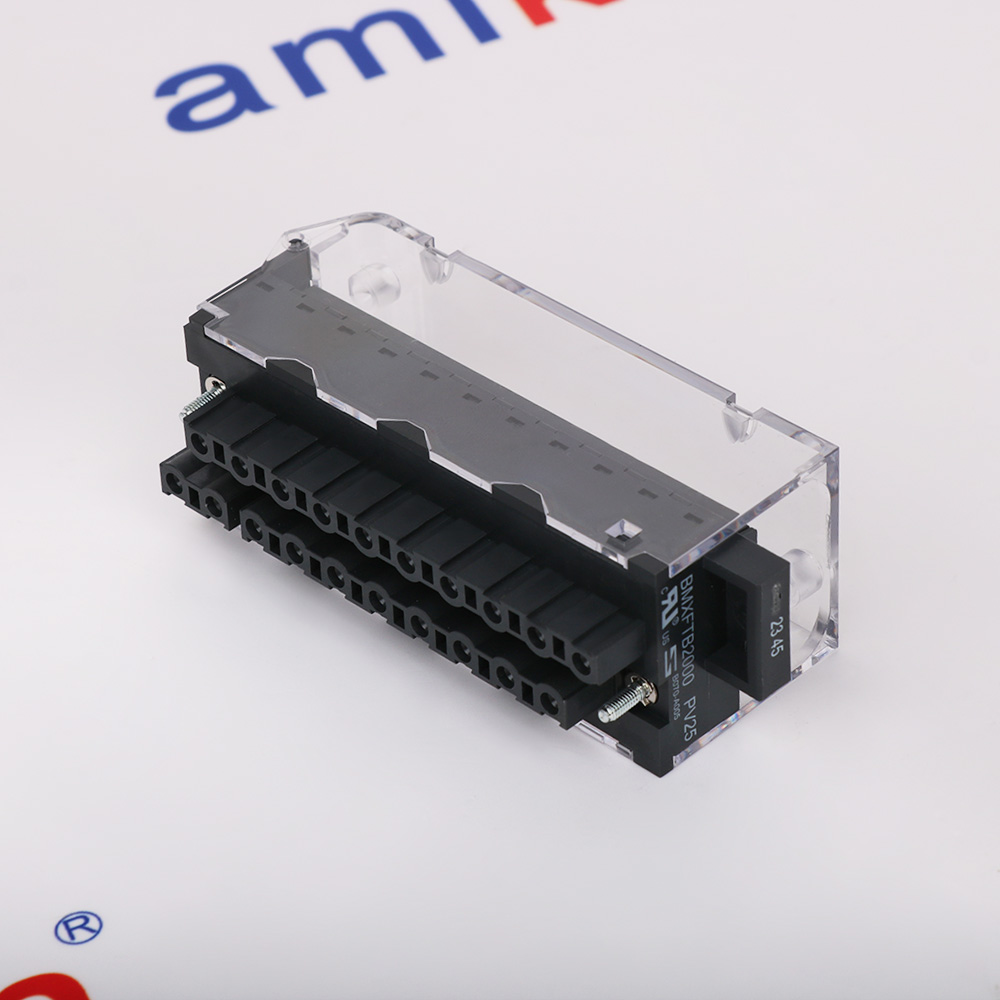

The Schneider Electric BMXFTB2000 is a 20-pin removable cage clamp terminal block for the Modicon X80 automation platform. The BMXFTB2000 provides secure wiring connections for Modicon X80 I/O modules that feature a 20-pin removable terminal block interface, enabling reliable signal transmission in industrial automation systems.
The Schneider Electric BMXFTB2000 accommodates wire cross-sections from 0.34 mm² to 1 mm², providing flexibility for various field wiring requirements. The BMXFTB2000 uses cage clamp terminals that resist vibration and maintain secure connections in demanding industrial environments. The BMXFTB2000 is designed for tool-free or minimal-tool installation, facilitating quick wiring and maintenance.
The Schneider Electric BMXFTB2000 accommodates wire cross-sections from 0.34 mm² to 1 mm², providing flexibility for various field wiring requirements. The BMXFTB2000 uses cage clamp terminals that resist vibration and maintain secure connections in demanding industrial environments. The BMXFTB2000 is designed for tool-free or minimal-tool installation, facilitating quick wiring and maintenance.
Information
Overview
Manuals
Application Notes
Product Applications
Wiring & Cable Connection
Features:
- 20-Pin Removable Cage Clamp Terminal Block
- Wide Wire Cross-Section Range (0.34 to 1 mm²)
- Compatible with Modicon M340 and M580 Platforms
- RoHS Compliant (Since 1036)
Each terminal accommodates a single wire ranging from 0.34 mm² (AWG 22) to 1 mm² (AWG 18). The caged clamp mechanism ensures vibration-resistant connections without the need for screw tightening after initial installation. The terminal block is equipped with captive screws for secure mechanical retention to the I/O module, with a maximum tightening torque of 0.5 N·m.
The BMXFTB2000 Schneider Electric 20-pin removable caged terminal block may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric BMXFTB2000 20-pin removable caged terminal block Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The BMXFTB2000 is compatible with a wide range of Modicon X80 I/O modules, including analog input modules (BMXAMI0410), analog output modules (BMXAMO0210, BMXAMO0410H), mixed analog I/O modules (BMXAMM0600), digital input modules (BMXDDI1602), digital output modules (BMXDDO1612), and safety-rated modules such as the BMXSAI0410 safety analog input and BMXSDI1602 safety discrete input modules. The terminal block is also used with the BMXDDM16025 mixed discrete I/O module.
- Water/Wastewater: Controls pumping stations, manages SCADA telemetry, and monitors water quality in real-time
- Oil/Gas/Petrochemical: Handles process control loops and integrates with HART for continuous diagnostics
- Food/Beverage: Manages motion control, packaging automation, and recipe management with precision
- Mining/Metals: Executes interlocking processes, manages material handling, and logs time-stamped events
- Smart Manufacturing: Controls distributed machinery via Ethernet networks for reduced time-to-market
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Strip: Strip the insulation from your wire cleanly, exposing 10 mm to 11 mm of bare conductor.
Open the Clamp: Insert a small flat-head screwdriver (typically 2.5 mm or 3 mm) into the rectangular operating slot above or below the circular wire entry point. Press down to open the spring clamp.Insert Wire: Insert the stripped wire fully into the circular wire hole.
Lock: Release the screwdriver to allow the spring to securely clamp the wire.Verify: Gently pull on the wire to ensure it is firmly locked into place.
Alternative Names
BMXFTB200O
BMXFTB20O0
BMXFTB2O00
BMXFTBZ000
Technical notes
The Schneider Electric BMXFTB2000 is part of the Modicon X80 range, a common platform of modules compatible with both Modicon M340 and M580 Programmable Automation Controllers (PAC). The BMXFTB2000 supports standardized wiring across different X80 I/O modules, reducing maintenance complexity and training costs. The BMXFTB2000 is compatible with a wide range of digital and analog I/O modules including BMXAMI0410, BMXAMO0210, BMXAMM0600, BMXDDI1602, BMXDDO1612, and BMXAMO0802.
FAQs
-
What is BMXFTB2000 ?
+The Schneider Electric BMXFTB2000 is a 20-pin removable cage-clamp terminal block designed for the Modicon X80 I/O and M340 automation platforms. -
What is the BMXFTB2000 used for?
+It is a removable connection accessory used to wire field devices (sensors, actuators) directly to Modicon M340 and M580 I/O modules. -
What are the alternative connection types?
+While the BMXFTB2000 uses a cage clamp, other compatible 20-pin blocks include the BMXFTB2010 (screw clamp) and the BMXFTB2020 (spring clamp). -
Is the terminal block included with the I/O module?
+No, the terminal block must be purchased separately
