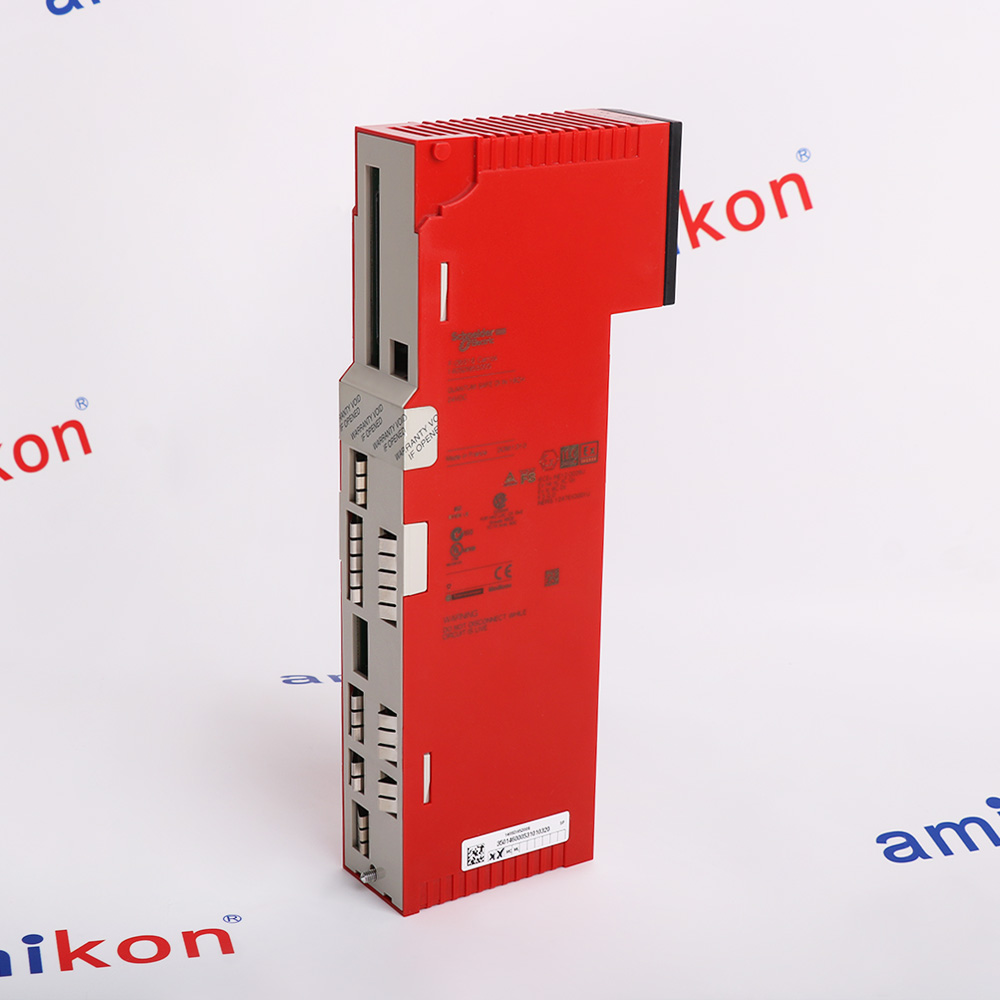

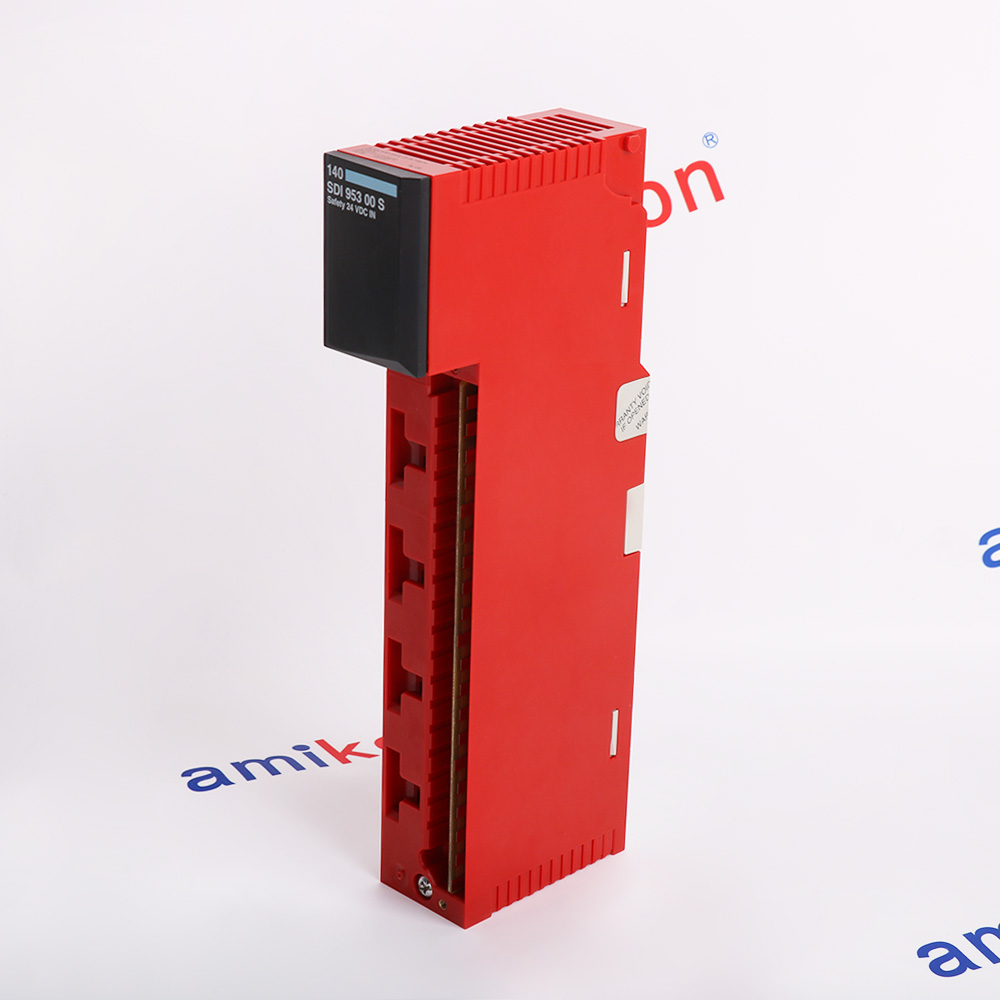

Technical specifications for 140SDI95300S
-
Product Model140SDI95300S
-
Product ParametersSafety dc discrete input module
-
Tariff Code8537101190
-
Country of originFRANCE
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4x10.5x24.8cm
-
ManufacturerSchneider Electric
-
Weight0.35 kg
-
Discrete input number16
-
Group of channels1
-
Logic inputPositive (sink)
-
Discrete input voltage24 V DC
-
Voltage state 1 guaranteed11...30 V DC
-
Voltage state 0 guaranteed-3...5 V DC
-
Current state 1 guaranteed>= 3 mA
-
Current state 0 guaranteed<= 1.5 mA
-
Sensor power supply19.2…30 V
-
Addressing requirement7 input words
-
Input impedance3675 Ohm
-
Absolute maximum input30 V
Description
The 140SDI95300S is a Safety DC Discrete Input Module designed by Schneider Electric for industrial automation and safety control systems. The 140SDI95300S provides 16 discrete input channels operating at 24V DC, making it suitable for a wide range of safety-critical applications where reliable digital input monitoring is essential.
The 140SDI95300S features a single group of 16 inputs with internally connected common terminals. All common 24V terminals on the 140SDI95300S are internally connected, and all common 0V terminals are also internally connected, which simplifies wiring and reduces the number of external connections required. This design allows for more efficient installation and maintenance in control panel applications.
Each input channel on the 140SDI95300S utilizes a dual-pin design where the two pins of the same input are internally connected. For example, pins 1 and 2 for input 1 are internally connected, so users can connect to either the right pin or the left pin depending on their wiring preferences and panel layout. This flexibility in the 140SDI95300S accommodates various installation scenarios and makes cable routing more convenient.
The 140SDI95300S features a single group of 16 inputs with internally connected common terminals. All common 24V terminals on the 140SDI95300S are internally connected, and all common 0V terminals are also internally connected, which simplifies wiring and reduces the number of external connections required. This design allows for more efficient installation and maintenance in control panel applications.
Each input channel on the 140SDI95300S utilizes a dual-pin design where the two pins of the same input are internally connected. For example, pins 1 and 2 for input 1 are internally connected, so users can connect to either the right pin or the left pin depending on their wiring preferences and panel layout. This flexibility in the 140SDI95300S accommodates various installation scenarios and makes cable routing more convenient.
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion & Physical Mounting
Features:
- 16-Channel Digital Input Configuration
- 24V DC Operating Voltage
- Single Group of 16 Internally Connected Inputs
- Dual-Pin Input Design with Internal Connection
- Fuse Protection (1A Fast Blow)
The module accepts input voltages from 11 to 30 V DC for logic state 1 and -3 to 5 V DC for logic state 0, with guaranteed current thresholds of ≥ 3 mA and ≤ 1.5 mA respectively. Each input channel presents an impedance of 3,675 Ω. The sensor power supply range is 19.2 to 30 V DC. Response time is ≤ 25 ms for both rising and falling edges.
The 140SDI95300S Schneider Electric Safety-Type DC Discrete Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140SDI95300S Safety-Type DC Discrete Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 140SDI95300S incorporates comprehensive diagnostic capabilities including broken wire detection, internal channel fault diagnostic, and system failure detection. These safety features are visually indicated through 34 LEDs: one green Active LED for bus communication status, one red Fault LED for external fault indication, 16 green LEDs for individual input channel status, and 16 red LEDs for system failure or internal channel fault conditions.
Electrical isolation of 1,500 Vrms for one minute is provided between the input group and the backplane bus. The module requires 7 input words for addressing and draws 550 mA from the backplane bus. Power dissipation is 2.75 W base plus 0.25 W per active input point. An internal rectifier provides input protection, and a 1 A fast-blow fuse is recommended.
- Oil/Gas/Petrochemical: Used in gas plant logic solvers, offshore platforms, and refinery safety sub-systems
- Chemical Processing: Ensures functional safety in hazardous material handling, mixing, and reactor operations
- Power Generation: Provides safe automation loops for turbines, steam boilers, and auxiliary plant operations
- Heavy Manufacturing: Manages safety risks in automotive assembly lines, robotic cells, and conveyors
- Machinery Protection: Integrates safety relays and proximity sensors to protect equipment and operators
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the Rack: Power down the Modicon Quantum rack.
Align the Module: Guide the module carefully into the designated slot on the Quantum baseplate. Ensure the top and bottom guides slide smoothly into the rack's tracks.
Press to Seat: Push the module straight back firmly to mate the rear connector with the backplane pins.
Secure the Module: Tighten the captive screws at the top and bottom of the front panel to lock the module into place.
Alternative Names
140SDI9530OS
140SDI953O0S
140SD195300S
140SOI95300S
14OSDI95300S
I40SDI95300S
Technical notes
The 140SDI95300S is designed to work with standard industrial sensors operating at 24V DC. The wiring diagram for the 140SDI95300S shows compatibility with sensors that include pull-up resistors (15kOhm as indicated in the sensor example), such as proximity switches and other discrete sensing devices commonly used in manufacturing and process control applications. The module also includes fuse protection with a 1A fast blow fuse to protect the input circuitry from overcurrent conditions.
FAQs
-
What are the core specifications of the 140SDI95300S?
+This module has 16 discrete inputs and requires a sensor power supply ranging from 19.2 to 30V DC. Its typical input impedance is 3675 Ω, and it guarantees a "off" state current ≤ 1.5 mA. -
Is the 140SDI95300S functionally safe?
+Yes, it has key safety application certifications, including SIL2 (Safety Integrity Level 2) certification from TÜV Rheinland, as well as UL, CSA and Hazardous Location (HazLoc) certifications. -
What is this 140SDI95300S?
+The Schneider Electric 140SDI95300S is a 16-channel, 24V DC Safety Discrete Input Module designed for the Modicon Quantum automation platform. -
What is the operational voltage range for the sensors?
+The sensor power supply must be maintained between 19.2 V and 30 V DC.
