BMXDDI3202K
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe

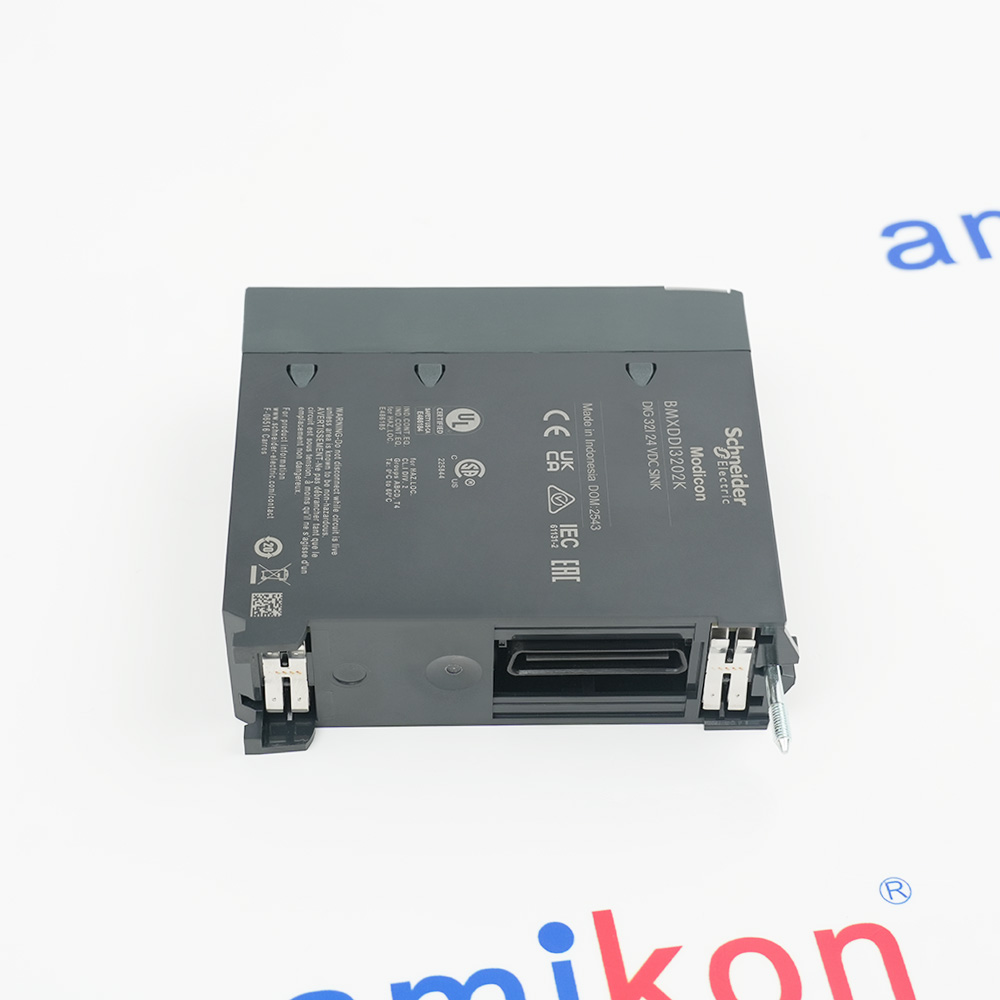

BMXDDI3202K
DISCRETE INPUT MODULE
X80
32 INPUTS
24 VDC
2.5 MA
3.9 W
0 TO 60 DEGREE C
IP20
DISCRETE INPUT MODULE
X80
32 INPUTS
24 VDC
2.5 MA
3.9 W
0 TO 60 DEGREE C
IP20
Technical specifications for BMXDDI3202K
-
Product ModelBMXDDI3202K
-
Product ParametersDigital Input Module
-
Tariff Code8537101190
-
Country of originFrance
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.2x10.3x10.3cm
-
ManufacturerSchneider Electric
-
Weight0.1 kg
-
Range of productModicon X80
-
Product or component typeDiscrete input module
-
Discrete input number32
-
Discrete input typeIsolated
-
Input typeCurrent sink (logic positive)
-
Discrete input voltage24 V DC positive
-
Discrete input current2.5 mA
-
Sensor power supply19...30 V
-
Voltage state 1 guaranteed>= 11 V
-
Current state 1 guaranteed>= 2 mA
-
Voltage state 0 guaranteed<= 5 V
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the BMXDDI3202K ？+the BMXDDI3202K (Modicon X80 Digital Input Module, 32 Inputs, 24V DC Positive
-
What BMXDDI3202K are the diagnostic capabilities?+The module supports Channel Diagnostics (channel LED) and Module Error (ERR LED). However, specific diagnostics like Trip or Short Circuit monitoring are not supported on this module, according to R&D data.
-

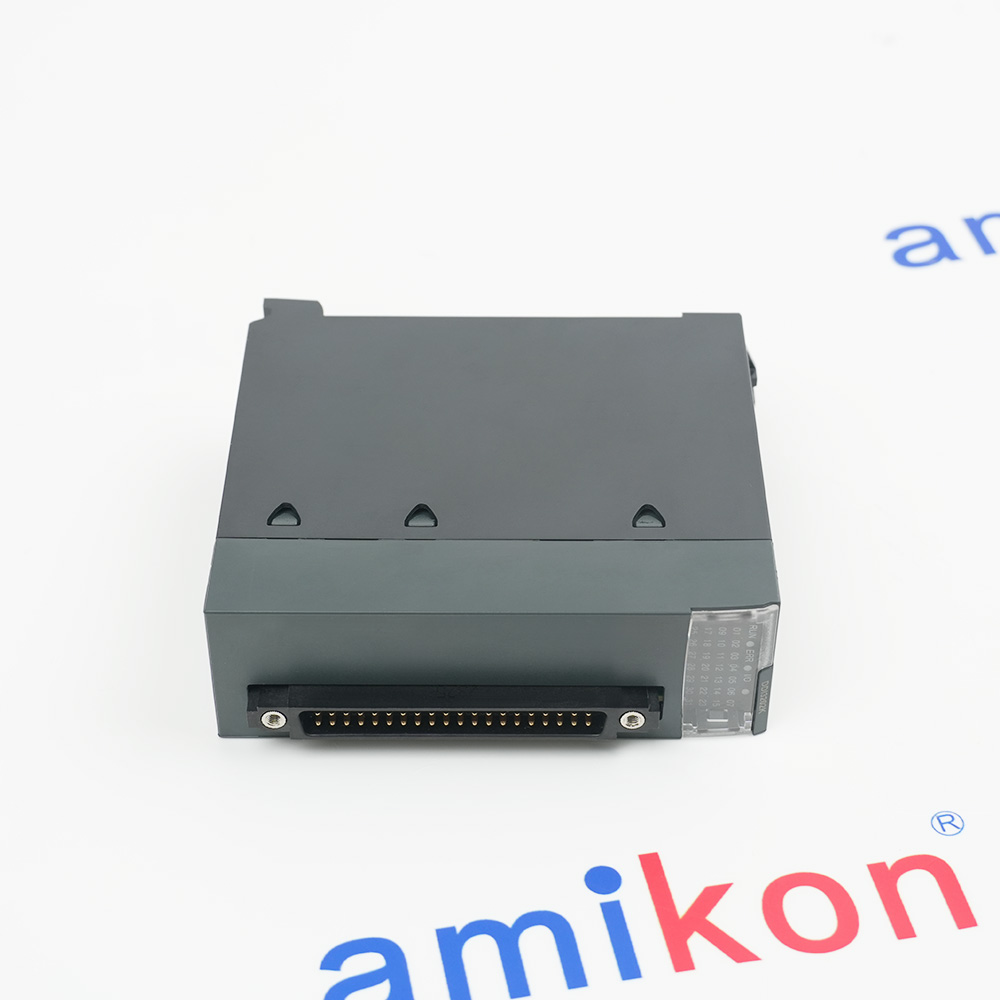

What BMXDDI3202K wiring connector is used?+It requires a 40-pin terminal block (cage, screw, or spring) or an FCN connector.
-
What is the difference between BMXDDI3202K and BMXDDI1602?+The 16-input (BMXDDI1602) complies with IEC 61131-2 Type 3, while the 32-input (BMXDDI3202K) complies with Type 1.
-
Does BMXDDI3202K module work with M580?+Yes, it is fully compatible with Modicon M340 and M580 PLCs.
Get a quick price fo BMXDDI3202K
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- Discrete input module
- Modicon X80
- 32 inputs
- 24V DC positive
The BMXDDI3202K Schneider Electric Discrete input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric BMXDDI3202K Discrete input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts invent
- Factory Automation & Manufacturing:Monitors machine, sensor & actuator ON/OFF states
- Process Control:Food & beverage, chemical, oil & gas industries
- Infrastructure & Utilities:Smart infrastructure, water/wastewater & power generation
- Material Handling & Packaging:Packaging, textile & paper manufacturing equipment
- Data Centers:Environmental monitoring & infrastructure management
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Isolation vs. Density: The BMXAMO0802 provides the highest density (8 channels) but lacks channel-to-channel isolation. If your application requires electrical isolation between outputs to prevent ground loops, you should choose the BMXAMO0410 (4 channels) or BMXAMO0210 (2 channels).
Environmental Resilience: The BMXAMO0802H is the "Hardened" version of the 0802. It has identical electrical specs but features conformal coating and an extended temperature range for harsh environments.
Signal Flexibility: While the 0802 is restricted to current signals, the 0410 and 0210 models support both voltage (+/- 10V) and current outputs.
