      BMXDDO1602

      Need Help? Contact US!
      Call us: +86-18020776786
      Proper, Ready.

      Delivery time
      Please indicate your delivery time

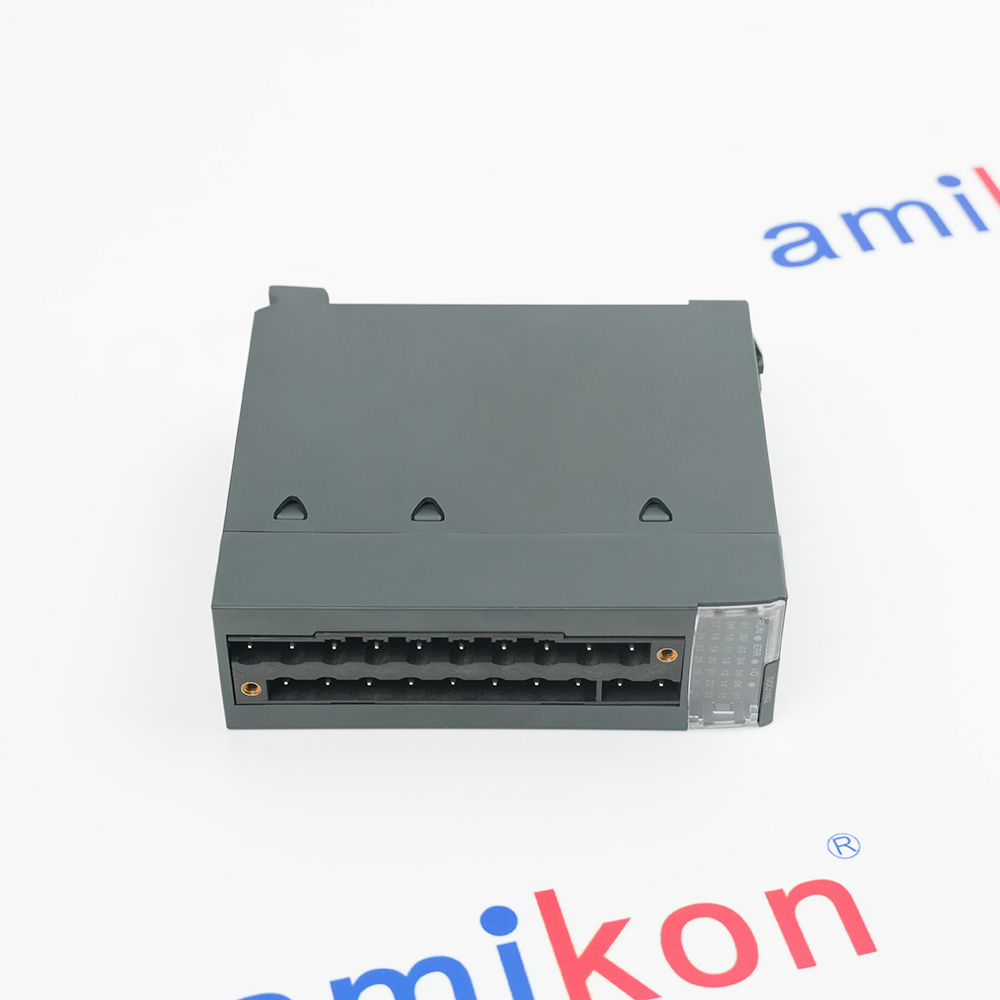

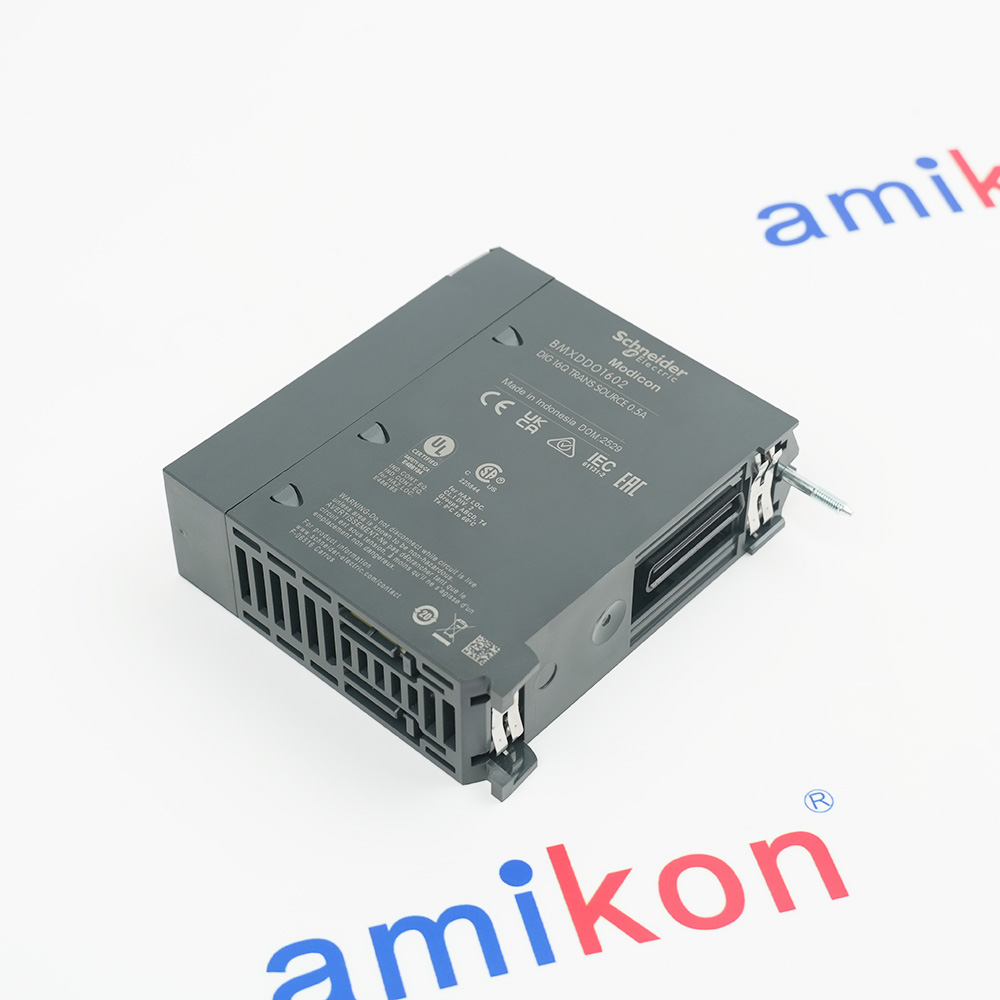

      Schneider Electric BMXDDO1602
      i
      This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!

      Product Information

      Product Describe
      BMXDDO1602
      DISCRETE OUTPUT MODULE
      MODICON X80
      16 TRANSISTOR OUTPUTS
      24V DC POSITIVE

      Specifications

      • Product Model
        BMXDDO1602
      • Spare Model
        BMX-DDO-1602, BMXDD01602
      • Product Parameters
        Digital Outputs Module Transistor
      • Tariff Code
        8537101190
      • Country of origin
        France
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        3.1x9.7x10.3cm
      • Manufacturer
        Schneider Electric
      • weight
        0.12 kg
      • Range of product
        Modicon X80
      • Product or component type
        Discrete output module
      • Discrete output number
        16 conforming to IEC 61131-2
      • Discrete output type
        Solid state
      • Discrete output
        logic Positive
      • Discrete output voltage
        24 V 19...30 V DC
      • Discrete output current
        0.5 A
      • Current per channel
        0.625 A
      • Maximum current per module
        10 A
      • Maximum leakage current
        0.5 mA at state 0
      • Maximum voltage drop
        <1.2 V at state 1
      • Insulation resistance
        > 10 MOhm 500 V DC

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is the BMXDDO1602？+
        The Schneider Electric BMXDDO1602 is a 16-channel, 24V DC positive (source) discrete output module, part of the Modicon X80 I/O platform used with M340 and M580 PLCs.
      • What is the BMXDDO1602 operating temperature?+
        The operating air temperature is 0...60 °C.
      • Can I use the BMXDDO1602 in parallel?+
        Yes, you can parallel up to 2 maximum outputs to increase the current-carrying capacity for a single load.
      • How to reset BMXDDO1602 faulty channel ?+
        Faulty channels on the BMXDDO1602 can be reset via the Control Expert (formerly Unity Pro) software. If a fault is detected (e.g., short circuit), the channel shuts down, and the error must be cleared by diagnosing the output status in the software.
      • What is the BMXDDO1602 maximum voltage drop?+
        The maximum voltage drop for the outputs is < 1.2 V at state 1.
      Get a quick price fo BMXDDO1602
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Product Applications
      • Industrial automation systems
      • Packaging machinery control
      • Material handling equipment control
      • Solutions for aluminium smelters
      • Hot rolling & Cold rolling
      • Iron- and steelmaking
      • Paint solutions
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      What happens next
      Get the quote now Write Email to INFO@AMIKON.CN
      Email confirmation You will get an email confirming that we have received your enquiry.
      Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.
      Your quote You will receive a comprehensive quote tailored to your specific needs.
      Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
      Delivery and payment
      Delivery
      Logistic partners UPS, FedEx and DHL
      International delivery available
      Same day dispatch from warehouse inventory
      Warranty
      All parts new original are covered by Amikon 12 month warranty

      Returns
      No hassle returns policy

      Dedicated customer support team

      Payment options
       We accept Bank transfers and the following methods of payment:

      For more information, please visit our dedicated payments page.
      Why Choose Amikon Limited?

      When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.

      • ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
      • ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
      • ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
      • ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
      • ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
      •

      Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.


      Product

      MORE INFORMATION

      Overview Manuals Technical notes Need more info

      Features:

      • Discrete output module
      • Modicon X80
      • 16 transistor outputs
      • 24V DC positive
      This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

      The BMXDDO1602 Schneider Electric Discrete output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Schneider Electric BMXDDO1602 Discrete output module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      Schneider BMXDDO1602 It is a 16-channel, 24V DC positive (source) transistor discrete output module, part of the Modicon X80 I/O platform, commonly used with M340 and M580 PACs
