BMXP3420302
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe

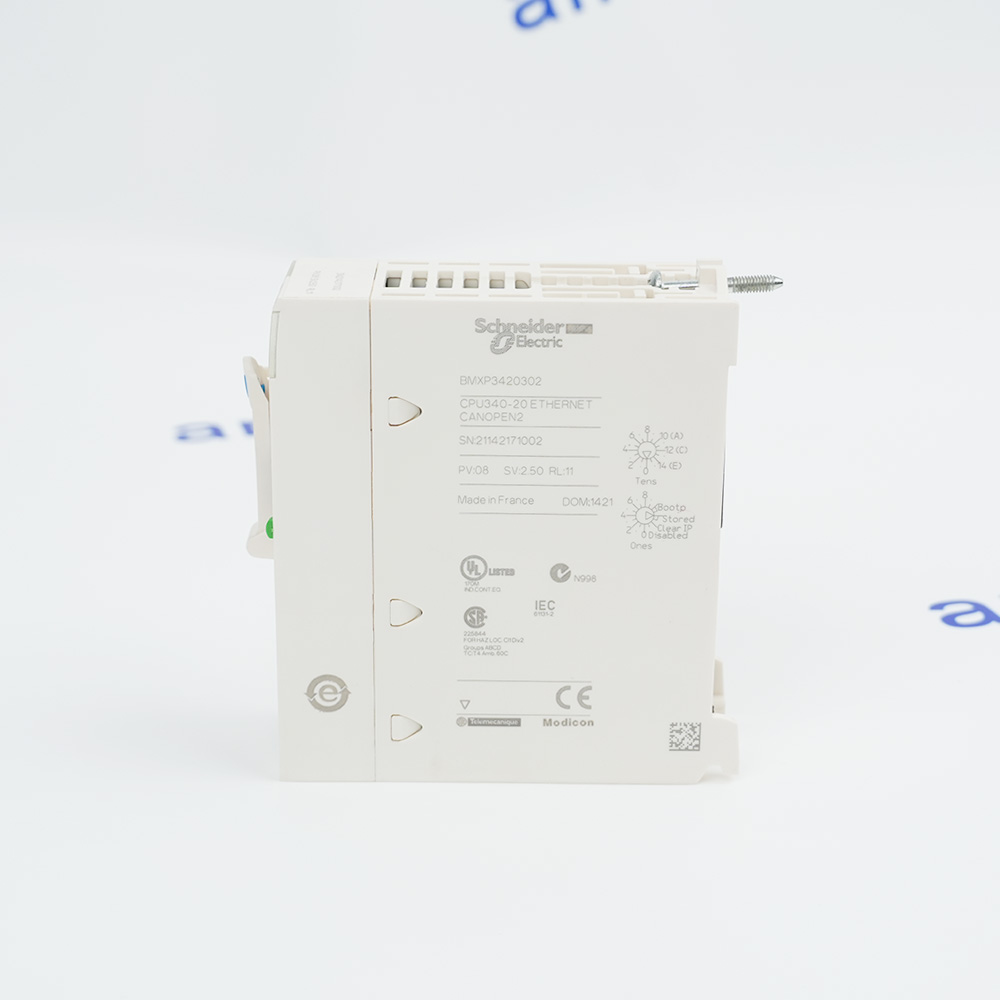

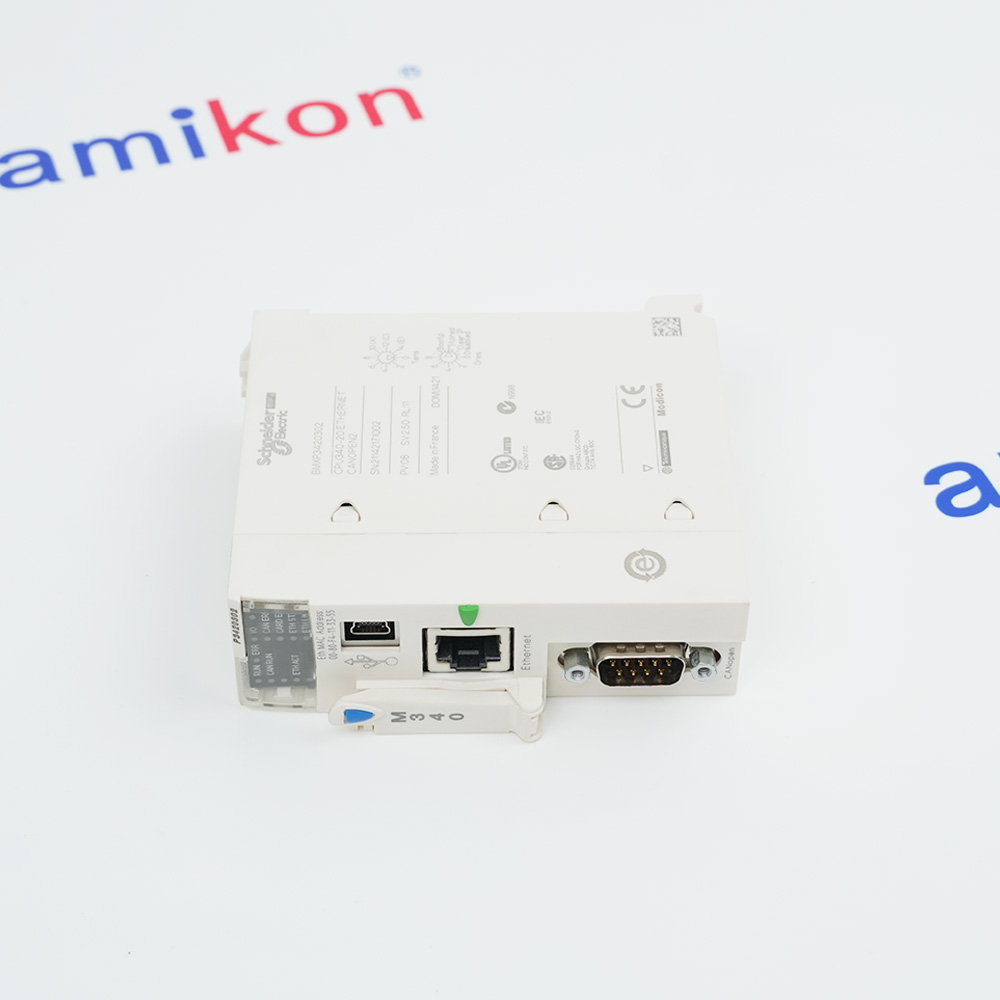

BMXP3420302
PROCESSOR MODULE M340
MAX 1024 DISCRETE + 256 ANALOG I/O
CANOPEN
PROCESSOR MODULE M340
MAX 1024 DISCRETE + 256 ANALOG I/O
CANOPEN
Specifications
-
Product ModelBMXP3420302
-
Product ParametersPROCESSOR MODULE
-
Tariff Code8537101190
-
Country of originFRANCE
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.1x10.5x10.2cm
-
ManufacturerSchneider Electric
-
Weight0.2 kg
-
Number of racks4
-
Local I/O processor capacity (discrete)1024 I/O
-
Analogue I/O processor capacity256 I/O
-
Number of application specific channel36
-
Port Ethernet10BASE-T/100BASE-TX
-
Control channelsProgrammable loops
-
Motion controlIndependent axis CANopen
-
Number of server device(s)63 CANopen
-
Current consumption135 mA at 24 V DC
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is BMXP3420302 ?+The Schneider Electric BMXP3420302 is a Modicon M340 processor, supporting up to 1024 discrete and 256 analog I/O, 4 racks, and 11 slots with CANopen and Ethernet connectivity.
-
What are the key technical specifications of the BMXP3420302?+It is a 24V DC processor (135mA) for the Modicon M340 platform, offering 36 application-specific channels, 63 CANopen slaves, and built-in CANopen/Ethernet ports.
-
How do I handle the SD Card during power-up?+If the CPU is not starting, remove the SD card before powering on, wait for the CPU to run, and then insert the SD card.
-
What is the memory capacity of the processor?+It features 4096 kB of internal RAM (3584 kB for application) and a standard SD card (BMXRMS008MP) for backup.
-
Can it handle extended temperatures?+The M340 platform supports extended temperatures, but you should verify specific environmental specs in the documentation
Get a quick price fo BMXP3420302
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
- What Happens Next
-
Get the quote now Write Email to: INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and Payment
-
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
-
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Core Technical Instructions
Features:
- Modicon M340
- CANopen Transparent Ready
- Processor module
- USB port at 12 Mbit/s
- Compatible with all VM600 ABE04xsystem racks
It is a processor module with a current consumption of 135mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology.Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports up to 800kbps 0m to 40m, 0m to 6m transmission rate.
The BMXP3420302 Schneider Electric PROCESSOR MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electri BMXP3420302 PROCESSOR MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
- Process Control: Manages complex production requiring robust control
- Manufacturing: Automates machines, production lines, high-speed control
- Infrastructure: Ideal for water, cement, and building automation
- Renewable Energy: Used in solar, wind, and other renewables
- Distributed I/O: Controls I/O across 4 racks via CANopen
- Machine Automation: Performance-critical OEM systems, axis motion control
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The module must be installed on a Modicon M340 rack and is fixed via a screw at the bottom.
Power Supply: It draws 135mA at 24V DC directly from the backplane of the rack.
Memory Management: It comes with a BMXRMS008MP memory card used for backing up programs, symbols, and data. Note: Do not remove the SD card while the CPU is powering on if the module is non-operational; follow a specific power-on sequence if troubleshooting is required.
