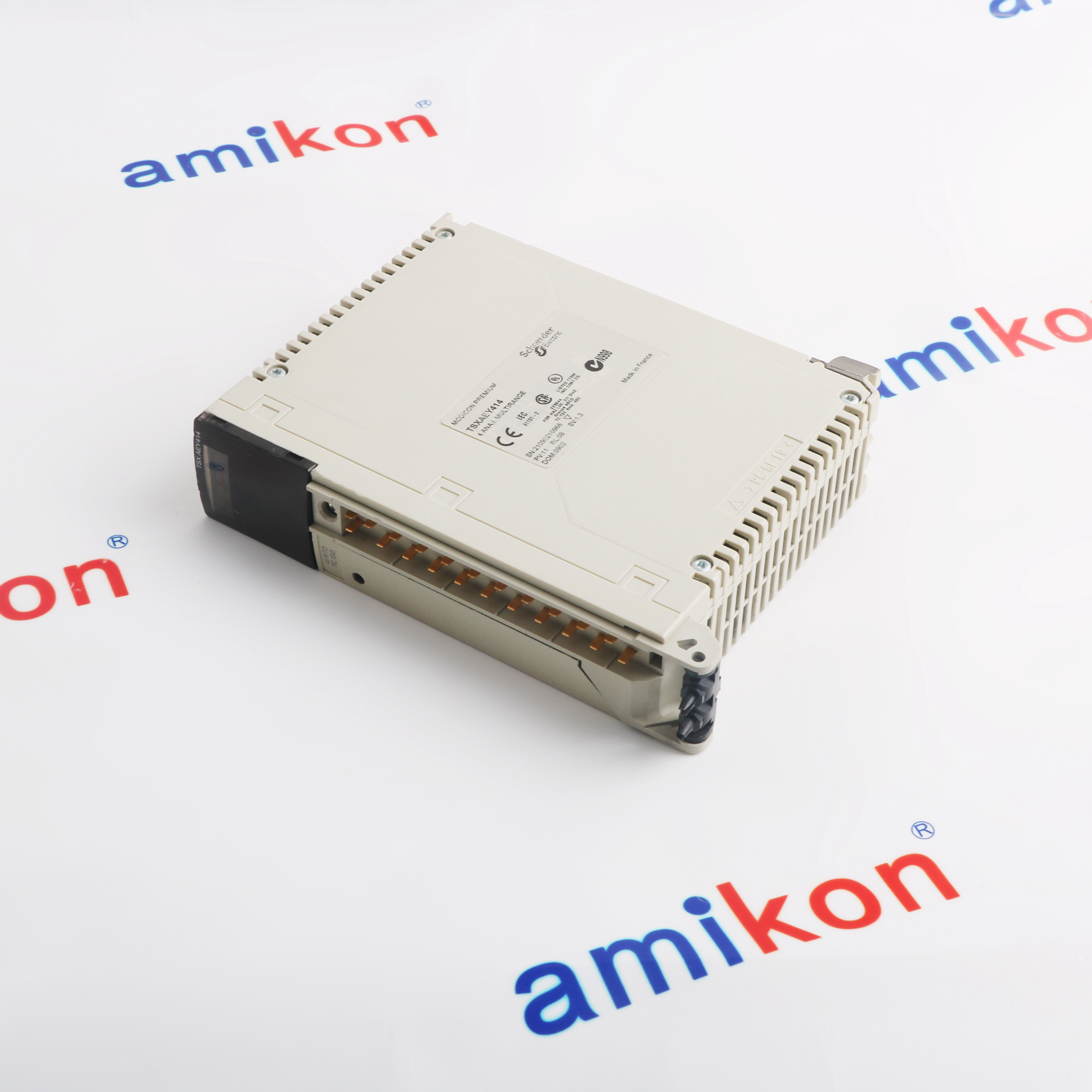

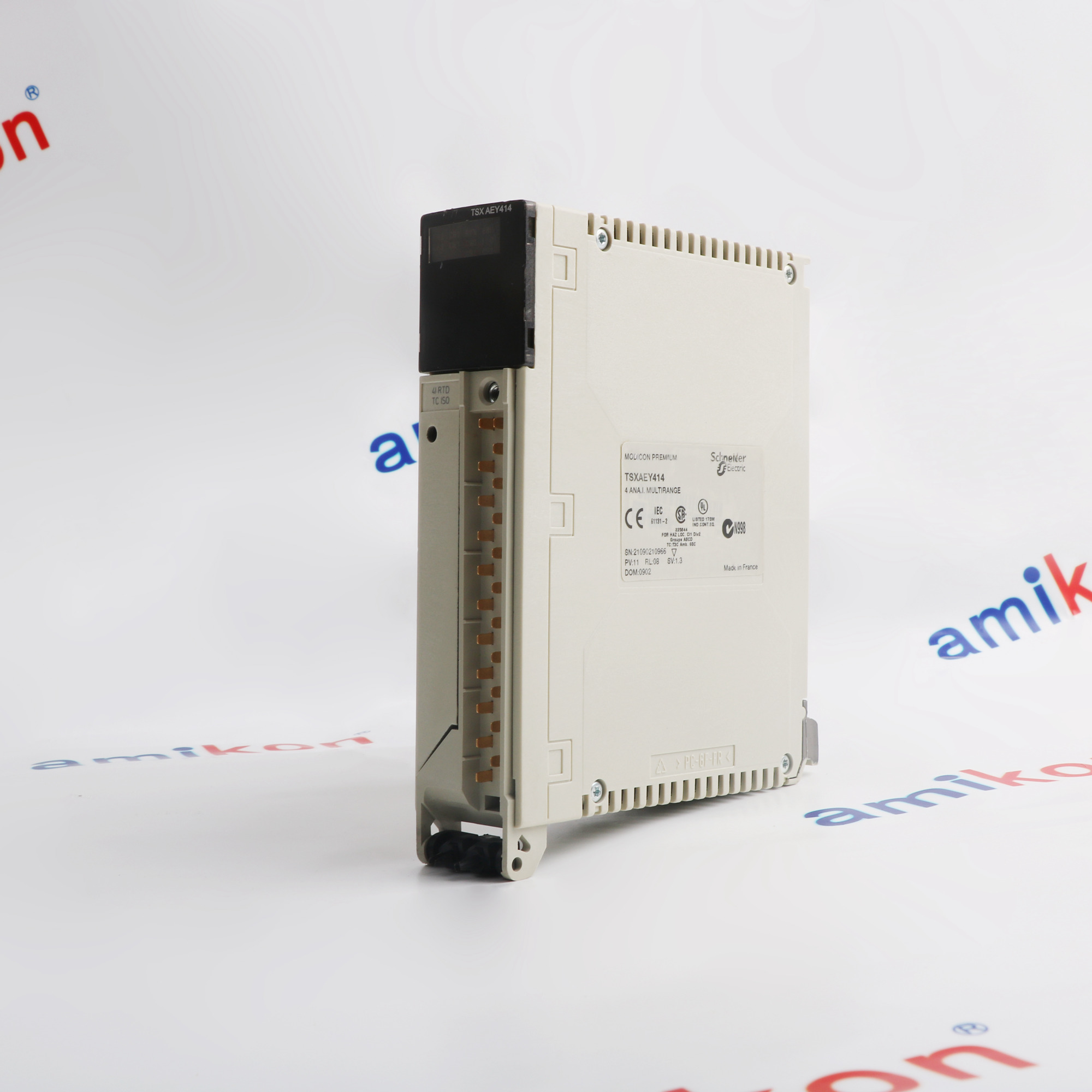

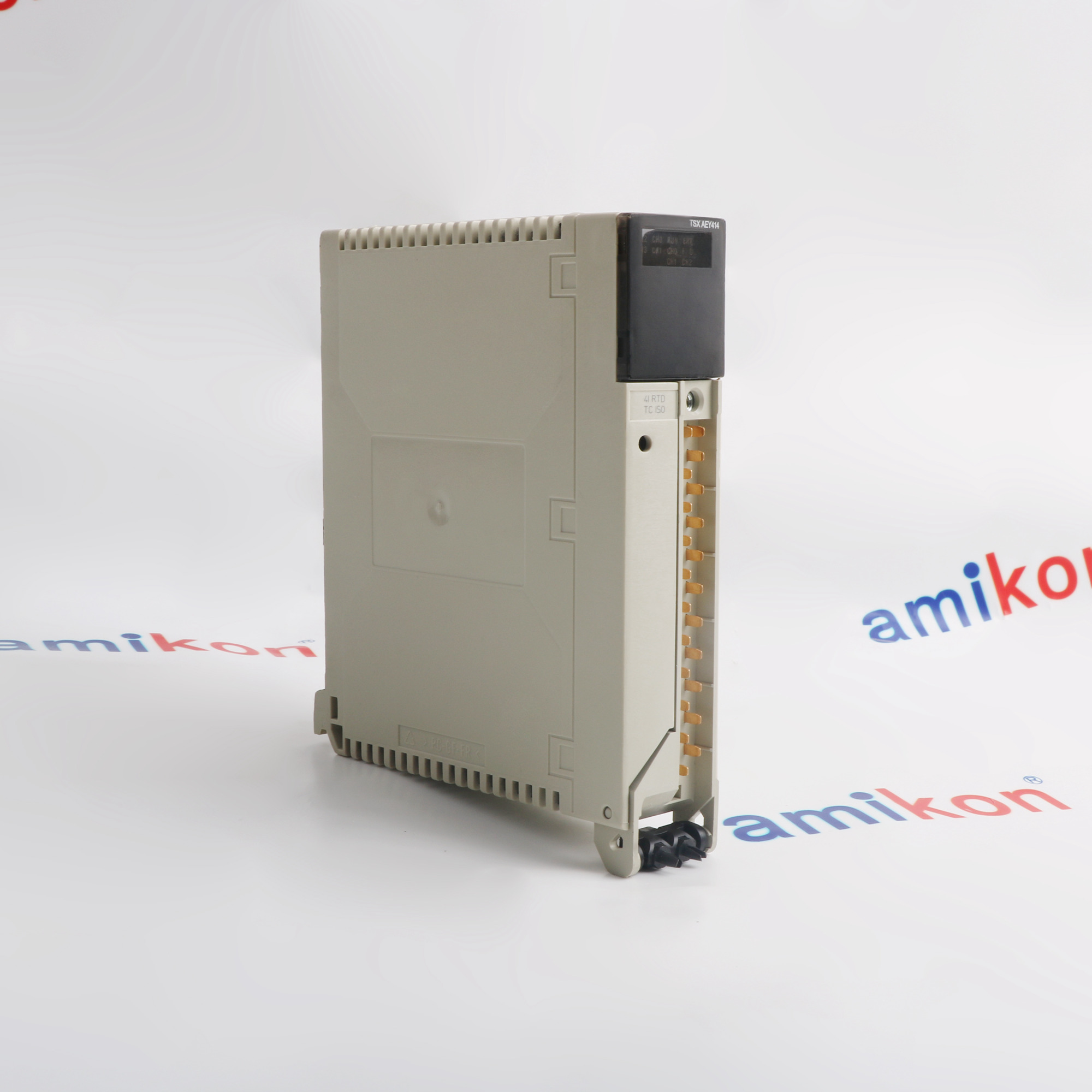

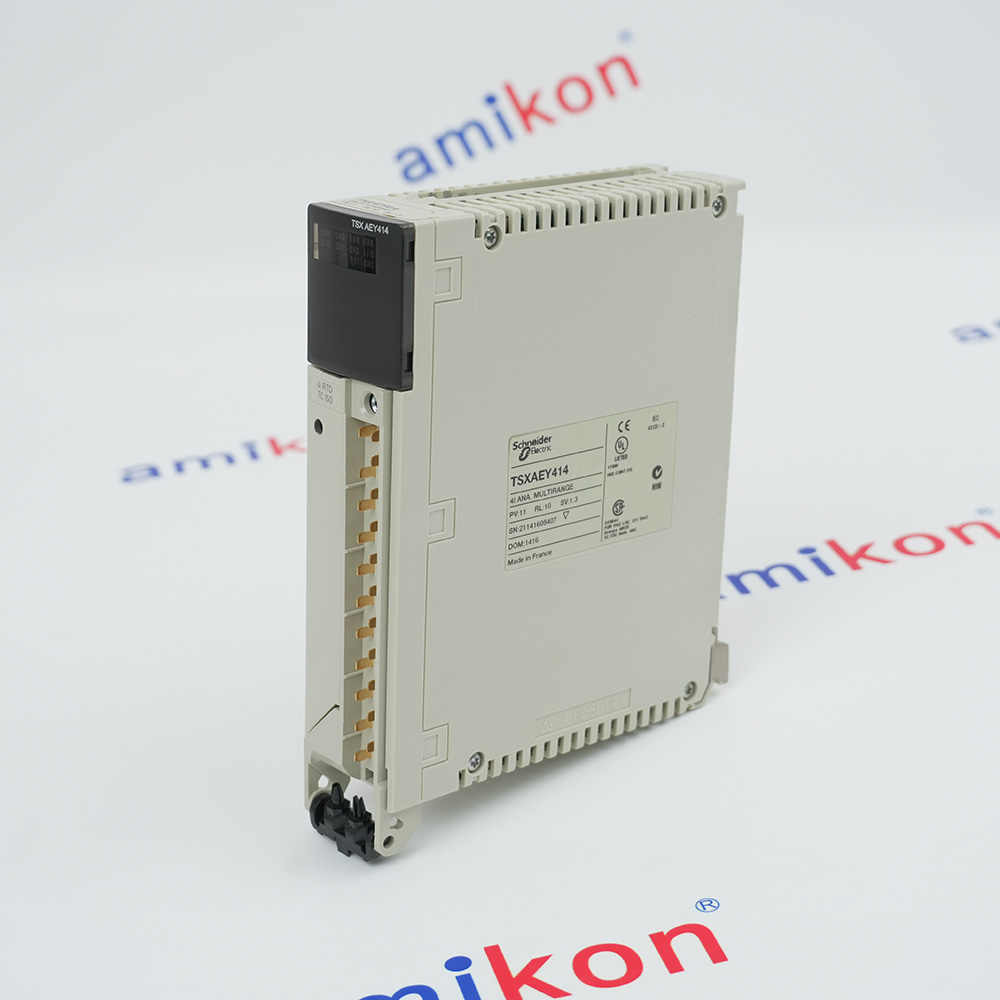

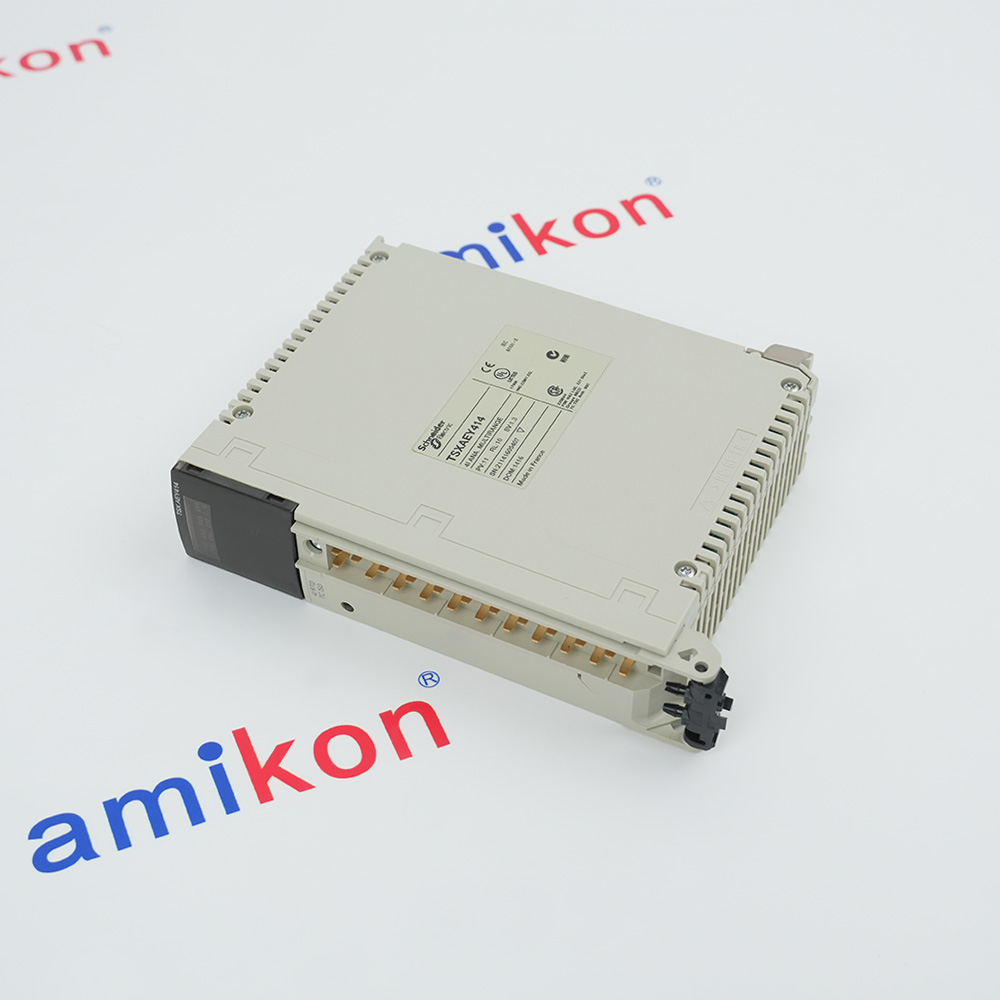

Technical specifications for TSXAEY414
-
Product ModelTSXAEY414
-
Product ParametersAnalog Module
-
Tariff Code8537101190
-
Country of originFRANCE
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.6x13x16.5cm
-
ManufacturerSchneider Electric
-
Weight0.35 kg
-
Input levelLow level
-
Analogue input number4
-
Analog/digital conversion16 bits
-
Nominal read cycle time550 ms
-
Isolation between channels and bus1780 Vrms
-
Isolation between channels and ground1780 Vrms
-
Isolation between channels2830 Vrms
-
Common mode between channels415 V AC or 200 V DC
-
Common mode between channels and earth240 V AC or 110 V DC
-
Overcurrent-30…30 mA at state 1 250 kOhm
-
Current consumption660 mA at 5 V DC
-
Ambient air temperature for operation0…60 °C
Description
The TSXAEY414 is a Schneider Electric Modicon Premium analog input module for industrial automation applications requiring high-level signal acquisition. The TSXAEY414 features 4 high-level analog inputs with screw terminal block connections, enabling precise measurement of multiple process variables in control systems. The TSXAEY414 performs 16-bit analog-to-digital conversion, delivering high-resolution digitization of input signals for accurate process monitoring and control.
The TSXAEY414 features exceptional isolation with 1780 Vrms between channels and ground, and 2830 Vrms between channels, ensuring excellent noise immunity and electrical safety in industrial environments. The TSXAEY414 operates with a current consumption of 660 mA at 5V DC, providing efficient power usage within the Modicon Premium PLC system. The TSXAEY414 supports a nominal read cycle time of 550 ms, ensuring timely acquisition of analog process data.
The TSXAEY414 accommodates wide common mode voltages of 415 V AC or 200 V DC between channels, and 240 V AC or 110 V DC between channels and earth, making it suitable for diverse industrial signal conditions. The TSXAEY414 includes comprehensive input protection with overvoltage protection of -15 to +15 V and overcurrent protection of -30 to +30 mA, safeguarding the module from electrical transients and wiring faults.
The TSXAEY414 features exceptional isolation with 1780 Vrms between channels and ground, and 2830 Vrms between channels, ensuring excellent noise immunity and electrical safety in industrial environments. The TSXAEY414 operates with a current consumption of 660 mA at 5V DC, providing efficient power usage within the Modicon Premium PLC system. The TSXAEY414 supports a nominal read cycle time of 550 ms, ensuring timely acquisition of analog process data.
The TSXAEY414 accommodates wide common mode voltages of 415 V AC or 200 V DC between channels, and 240 V AC or 110 V DC between channels and earth, making it suitable for diverse industrial signal conditions. The TSXAEY414 includes comprehensive input protection with overvoltage protection of -15 to +15 V and overcurrent protection of -30 to +30 mA, safeguarding the module from electrical transients and wiring faults.
Alternative Names
TSXAEY4I4
TSXAEY41A
TSXAEYA14
Information
Overview
Manuals
Application Notes
Product Applications
Mounting and Rack Placement
Features:
- Analog input module
- Modicon Premium
- 4 high level inputs
- 16 bits conversion
The TSXAEY414 Schneider Electric Analog input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric TSXAEY414 Analog input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module supports multiple thermocouple types including J, K, T, E, N, R, S, and B, allowing a wide range of temperature measurement applications. Integrated cold-junction compensation and automatic linearization improve measurement accuracy while simplifying installation and configuration.
Built-in diagnostics continuously monitor sensor integrity, input range status, and module operation. Open-circuit detection and fault reporting help maintenance personnel quickly identify wiring or sensor issues, reducing downtime and improving system reliability.
- Hoisting & Lifting Gear:Load weight & jib positioning monitoring
- Packaging Machinery:16-bit accuracy for high-speed filling/sealing/labeling
- Woodworking & Metal Processing:CNC feed-rate control & spindle temp monitoring
- Textile Machinery:Tension & dyeing vat temp via thermocouple support
- 3C Equipment Manufacturing:Multitasking & precise placement for electronics assembly
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Hoisting & Lifting Gear:Load weight & jib positioning monitoring.
Mounting and Rack Placement
Positioning: The module can be installed in any slot of a TSX RKY rack, except for the first slot (reserved for the power supply).Hot Swapping: You can insert or remove the module while the PLC is powered on without damaging the hardware or disrupting the PLC's operation.Clearance: For optimal measurement accuracy, maintain a minimum height clearance of 150 mm and a width clearance of 100 mm around the module.
Technical notes
The TSXAEY414 has a compact standard module format with a net weight of 0.32 kg (0.71 lb), suitable for installation in Modicon Premium racks. The TSXAEY414 operates in ambient temperatures from 0°C to 60°C (32°F to 140°F) and can be stored in temperatures from -25°C to 70°C (-13°F to 158°F). The TSXAEY414 is rated for relative humidity of 10% to 95% without condensation and has an IP20 degree of protection. The TSXAEY414 is CE marked and designed for pollution degree 2 environments.
FAQs
-
What is TSXAEY414?
+The Schneider Electric TSXAEY414 is a 4-channel, 16-bit analog input module for the Modicon Premium automation platform, for high-level voltage and current (0-20 mA, 4-20 mA) input signals. -
What is the measurement resolution?
+The module uses a 16-bit analog-to-digital converter, providing high precision for industrial measurements. -
How many channels are available?
+It features 4 isolated analog input channels. -
What is the conversion time?
+The typical signal processing time is approximately 550 milliseconds per channel.
