- IC695PNS001CA-ABAH
In Stock
Ships by Saturday, August 15
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IC695PNS001CA-ABAH
-
Product ModelIC695PNS001CA-ABAH
-
Spare ModelIC695PNS001CA
-
Product ParametersRX3I PROFINET SCANNER MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x14.8x14cm
-
ManufacturerGeneral Electric
-
Weight0.55 kg
-
Product LineRX3i PacSystem
-
Protocol SupportPROFINET
-
USB Ports1 Micro USB
-
Internal Power at 5 V DC1.1 A
-
Internal Power at 3.3 V DC1.2 A
-
Operating Temperature0 to 60 degrees Celsius
-
Storage Temperature-40 to 85 degrees Celsius
-
PNS Status and Control Bits32 input status bits and 32 output control bits
Description

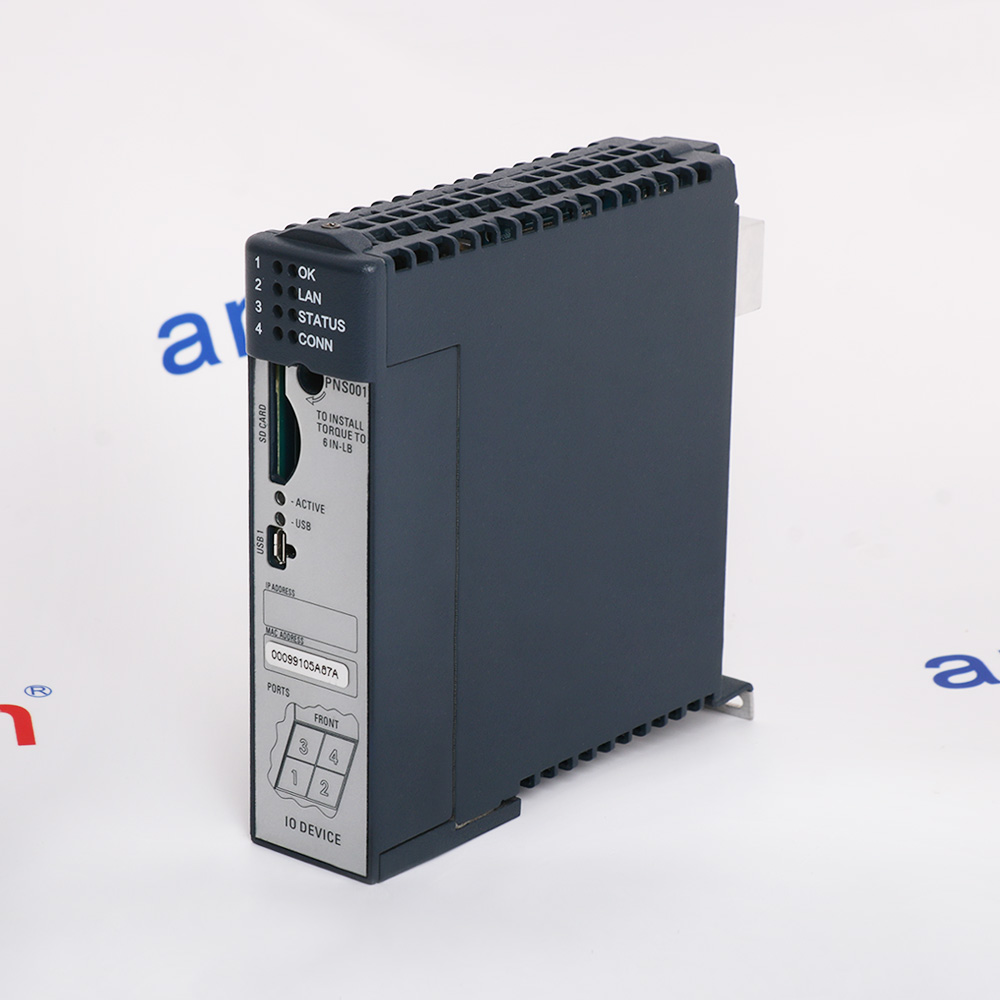

The IC695PNS001CA-ABAH is a Profinet scanner module that is manufactured by GE Fanuc / Emerson Automation. This module is a single slot wide module, that is used to manage Profinet connections such as communicating to remote I/O devices residing in universal I/O backplanes, whether Series 90-30 or RX3i modules; Sending I/O data through the Profinet network to the partner CPUs in the network; Communicate with Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and other similar automation components.

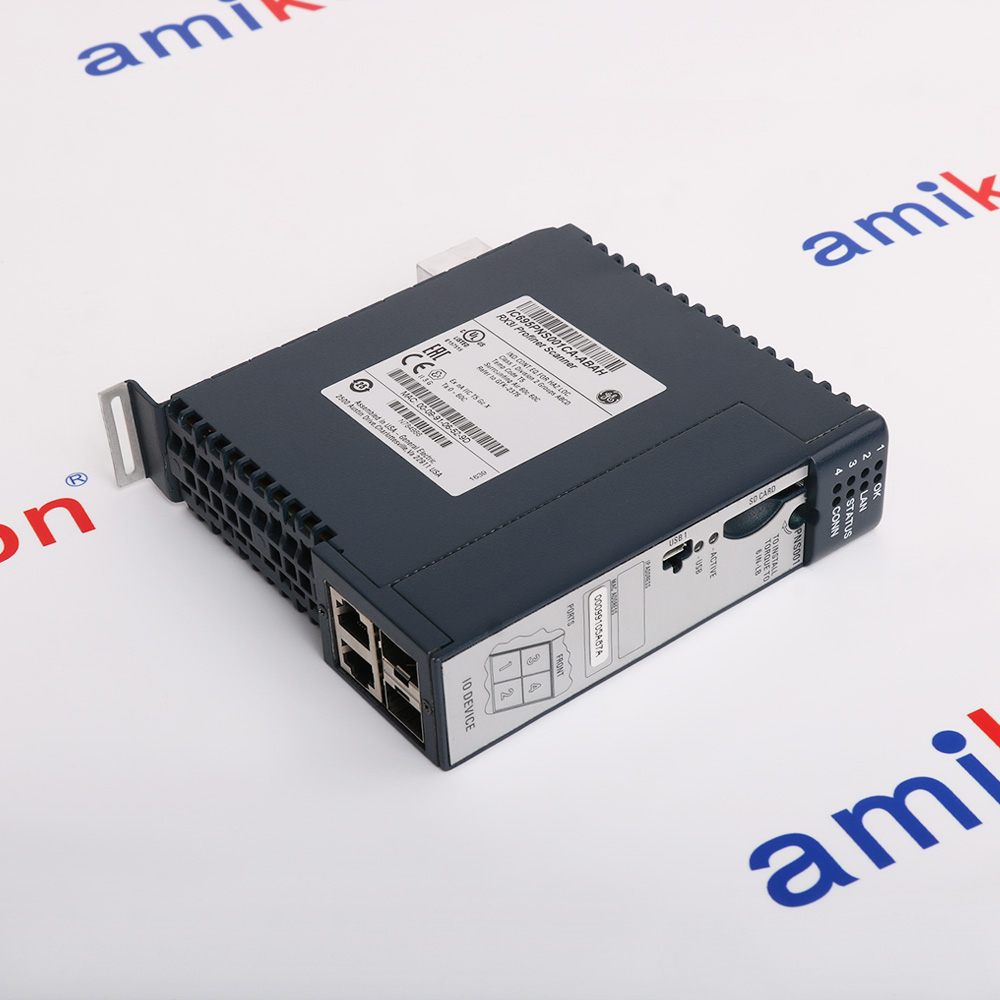

The IC695PNS001CA-ABAH features One (1) micro USB port that is mainly used in performing firmware upgrades. It is also equipped with Four (4) Ethernet communication ports that primarily support Profinet protocol. Each of the ports supports modern communication speeds such as 10/100/1000 Mbps communication speed and supports a variety of topologies such a Liner, Daisy-chain, Star, Ring or redundant Ethernet media topology.
The IC695PNS001CA-ABAH features One (1) micro USB port that is mainly used in performing firmware upgrades. It is also equipped with Four (4) Ethernet communication ports that primarily support Profinet protocol. Each of the ports supports modern communication speeds such as 10/100/1000 Mbps communication speed and supports a variety of topologies such a Liner, Daisy-chain, Star, Ring or redundant Ethernet media topology.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Pre-installation check
Features:
- PACSystems RX3i PROFINET Scanner Module
- Conformal-coated PCB for enhanced environmental protection
- PROFINET V2.3 Class A I/O Device
- Single-slot RX3i Universal Backplane module
The PNS manages PROFINET communication and module configurationbetween an I/O Controller and modules in the remote rack. If networkcommunications are lost, the PNS manages I/O states according to the individualmodule configurations.The PNS supports 10/100/1000 Mbps Copper, 100/1000 Mbps Multi-mode Fiber,and 100/1000 Mbps Single-mode Fiber. PROFINET communications on thenetwork require 100 or 1000 Mbps link speed. Although 10 Mbps cannot be usedfor PROFINET communications, 10 Mbps can be used for other types of Ethernettraffic such as PING.
The IC695PNS001CA-ABAH GE Profinet Scan Module with Fleet Manager II software may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC695PNS001CA-ABAH Profinet Scan Modul Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC695PNS001CA-ABAH exchanges 32 bits of input status data and 32 bits of output control data with the PROFINET controller while continuously managing communication with the I/O modules installed in the local rack. If communication with the controller is interrupted, the scanner maintains I/O behavior according to the configured fault-response settings, supporting predictable operation during network disturbances.
Configuration and diagnostics are performed using Proficy Machine Edition (PME). The front-panel Micro USB port supports local firmware updates and maintenance, while an SD card can be used to transfer the device name during module replacement, simplifying maintenance and reducing commissioning time.
- Water/Wastewater: Monitors remote pumping stations, telemetry, and treatment basins across municipal areas
- Oil/Gas: Manages distributed pipeline manifolds, flow meters, and wellhead valves over fiber rings
- Automotive Assembly: Integrates multi-segmented assembly line data across flexible network topologies
- Power Generation: Gathers real-time diagnostics from switchgear, cooling systems, and auxiliary operations
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Upon receiving your RX3i equipment, carefully inspect all shipping containers for damage. If any part of thesystem is damaged, notify the carrier immediately. The damaged shipping container should be saved asevidence for inspection by the carrier.As the consignee, it is your responsibility to register a claim with the carrier for damage incurred duringshipment. However, GE Intelligent Platforms will fully cooperate with you, should such action be necessary.After unpacking the RX3i equipment, record all serial numbers. Serial numbers are required if you shouldneed to contact Customer Care during the warranty period. All shipping containers and all packing materialshould be saved should it be necessary to transport or ship any part of the system.
Alternative Names
IC695PNS00ICA-ABAH
IC695PNS0O1CA-ABAH
IC695PNSO01CA-ABAH
1C695PNS001CA-ABAH
IC695PNS001CA ABAH
IC695PNS00ICA ABAH
IC695PNS0O1CA ABAH
IC695PNSO01CA ABAH
1C695PNS001CA ABAH
Technical notes
The IC695PNS001CA-ABAH operates from 0°C to +60°C (derated to 57°C with certain SFP configurations) and requires installation in a NEMA/UL Type 1 or IP20-rated enclosure. It holds CE, UL/cUL, and ATEX certifications for use in hazardous locations (Class I, Division 2, Groups A-D; Zone 2). Configuration is performed using PACSystems Machine Edition software version 8.0 or later.
FAQs
-
Does it act as a PROFINET Controller?
+No, it acts exclusively as a PROFINET Device (Slave/Scanner). It manages the I/O for its local rack and reports back to a controller, which is usually the IC695PNC001. -
Can I hot-swap this module?
+No. The IC695PNS001 does not support insertion or removal while the rack is powered on. You must completely power down the RX3i rack before installing or removing the module to avoid hardware damage. -
How many Ethernet ports does the IC695PNS001CA-ABAH have?
+This module is equipped with four Ethernet ports. Two of them are standard RJ45 ports, and the other two are SFP ports for inserting your own fiber optic or copper SFP modules. -
What is the primary function?
+Acts as a network slave device (I/O Device) for the remote rack. It is not a controller.
