Technical specifications for HMIGTO6310
-
Product ModelHMIGTO6310
-
Spare ModelMagelis GTO HMIGTO6310
-
Product ParametersAdvanced touchscreen panel 800 x 600 pixels
-
Tariff Code8537101190
-
Country of originFrance
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size31.5x24x5.5cm
-
ManufacturerSchneider Electric
-
Weight2.45 kg
-
Range of ProductHarmony GTO
-
Product or Component TypeAdvanced touchscreen panel
-
Display colour65536 colours
-
Display size12.1 inch
-
SupplyExternal source
-
Operating SystemHarmony
-
Battery typeLithium internal RAM 100 days 5 day(s) 10 year(s)
-
Display Resolution800 x 600 pixels SVGA
-
Touch sensitive zone1024 x 1024
-
rated supply voltage24 V DC
-
Supply voltage limits19.2…28.8 V
-
Inrush current30 A
-
Memory descriptionFlash EPROM, 96 MB
-
Data backed up512 KB internal RAM SRAM)
-
Relative humidity10…90 % without condensation
-
Ambient air temperature for operation32…131 °F (0…55 °C)
-
Ambient air temperature for storage-4…140 °F (-20…60 °C)
Description

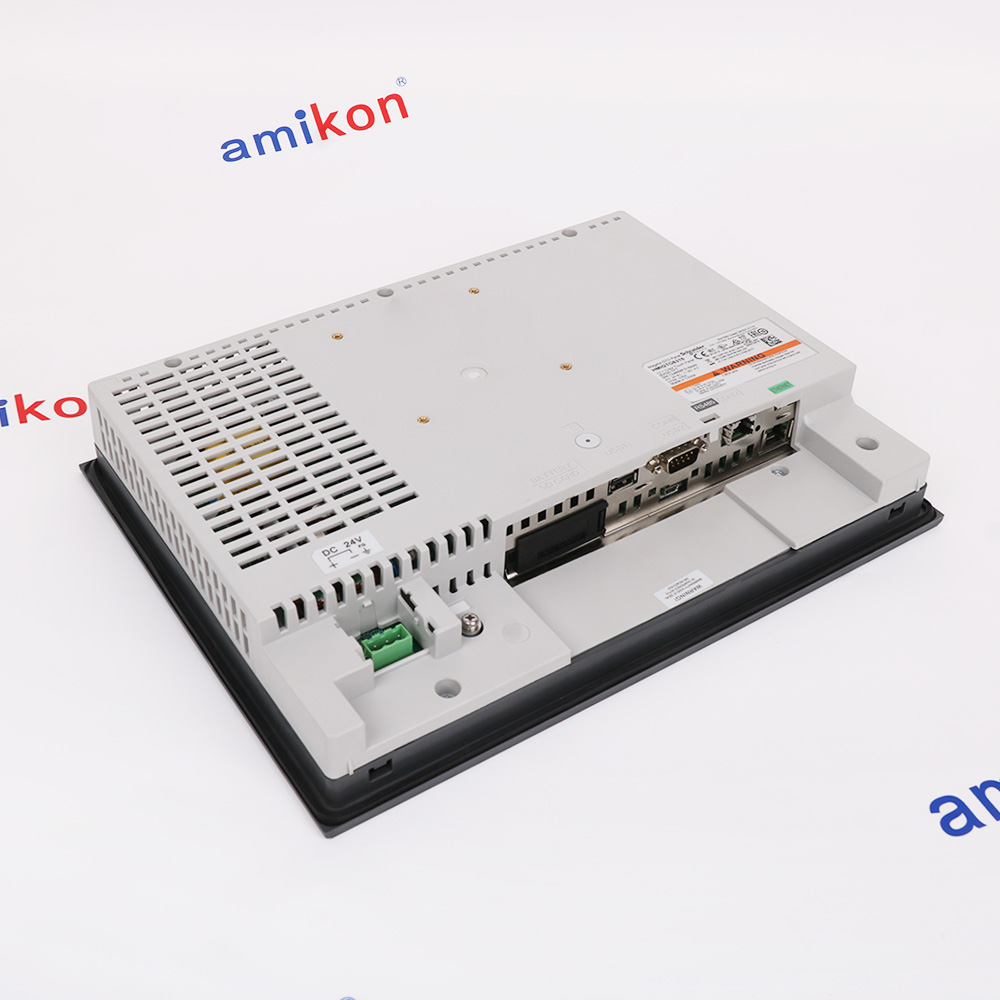

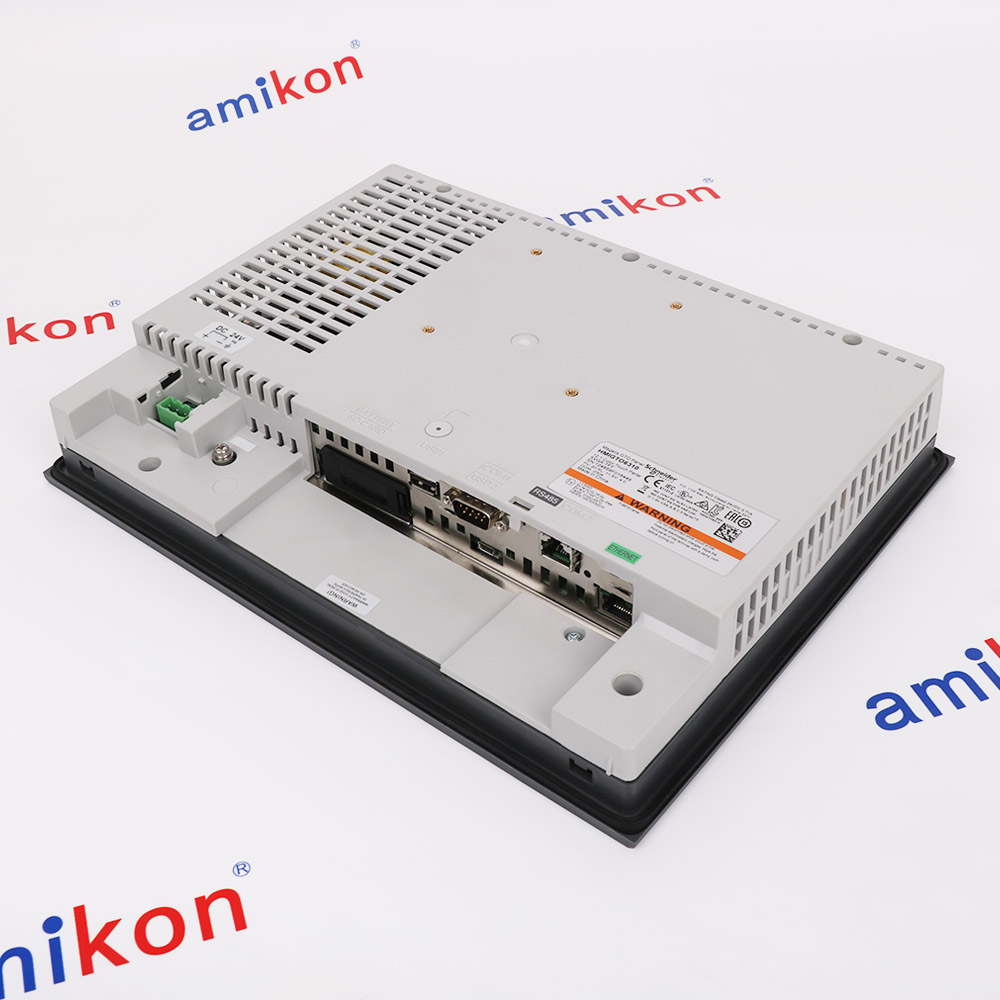

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 12.1" color TFT LCD display, 800 x 600 pixels (SVGA) and 96MB EPROM.
It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry.
The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry.
The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
Alternative Names
HM1GTO6310
HMIGT06310
HMIGTO631O
HM1GTO631O
HM1GT063I0
Information
Overview
Manuals
Communication & Network Architectures
Product Applications
Mounting & Orientation
Features:
- 12.1-Inch SVGA TFT Touchscreen Display
- 96 MB Internal Memory
- Compact Panel-Mount Form Factor
- Installation Fastener Mounting System
- 100 mm Minimum Clearance on All Sides
The Schneider HMIGTO6310 has a 12.1-inch TFT display. The display on the Schneider HMIGTO6310 is SVGA with 800 × 600 pixels. The Schneider HMIGTO6310 has 96 MB internal memory. The Schneider HMIGTO6310 provides clear visualization for industrial operator interfaces.
The HMIGTO6310 Schneider Advanced touchscreen panel 800 x 600 pixels may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider HMIGTO6310 Advanced touchscreen panel 800 x 600 pixels Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The HMIGTO6310 interfaces as a centralized gateway to manage automation cells, compact industrial hardware, or fieldbus networks.
Modbus Master Mode: Configured directly in the software to act as a Modbus Master node. It systematically requests data packets and maps registers from multi-vendor PLCs, remote I/O blocks, and motor drives.
Ethernet TCP/IP: Used for rapid project downloads, Modbus TCP industrial protocols, and server connectivity.Serial Links (COM1 & COM2): Employs built-in RS-232C and RS-485 RJ45 physical lines to network legacy hardware systems.USB Extensions: Employs 1 Type-A host port and 1 Mini-B layout to load scripts, patch configurations, or add storage devices.
- Manufacturing & Packaging:Line metrics & assembly control
- Chemical & Process Control:IP65 continuous process monitoring
- Building Automation:HVAC, security & energy distribution
- Material Handling and Positioning:Point-to-point motion & trapezoidal profiles
- Food & Beverage:Mixer & packaging machine control
- Pharmaceutical Industry:Sterile environment batch data
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Primary Orientation: Mount the unit vertically with the right side facing up. The 24V DC power supply connector must position at the top.
Slanted Incline: When tilting the panel, do not exceed a 30° incline from the vertical plane under normal operating temperatures.
High-Temperature Slant Limitation: If the incline exceeds 30°, the ambient surrounding air temperature must not exceed 40 °C. Use forced air cooling (fans or AC) if needed.
Technical notes
The Schneider HMIGTO6310 supports mounting angles up to 30 degrees from vertical. When the Schneider HMIGTO6310 is installed at inclines more than 30 degrees, the ambient temperature must not exceed 40°C. Forced air cooling may be required for the Schneider HMIGTO6310 at steep mounting angles to ensure ambient operating temperature of 40°C or less.
FAQs
-
What are the display specifications?
+It features an 800 x 600 pixels (SVGA) backlit color TFT LCD display with 96 MB of flash EPROM memory and 512 kB of internal SRAM. -
Which ports are built into the hardware?
+The unit includes 1 RJ45 Ethernet TCP/IP port, 1 RS232C port, 1 RS485 port, 1 USB 2.0 Type A (Host) port, 1 USB mini-B port, and 1 SD/SDHC card slot (up to 32 GB). -
What power supply does it require?
+It operates strictly on a 24V DC external power source -
What software is used to program it?
+It is configured and programmed using Schneider Electric Vijeo Designer (Version 6.1 or higher)
