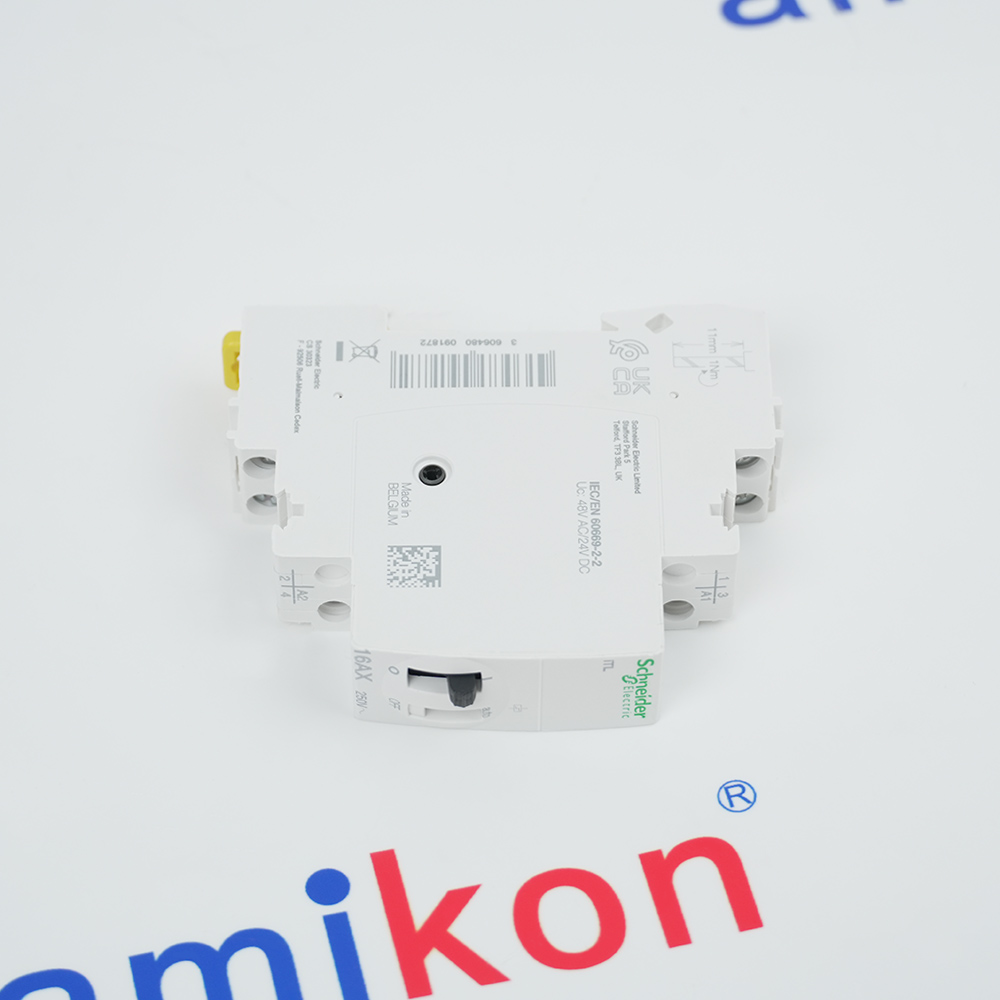

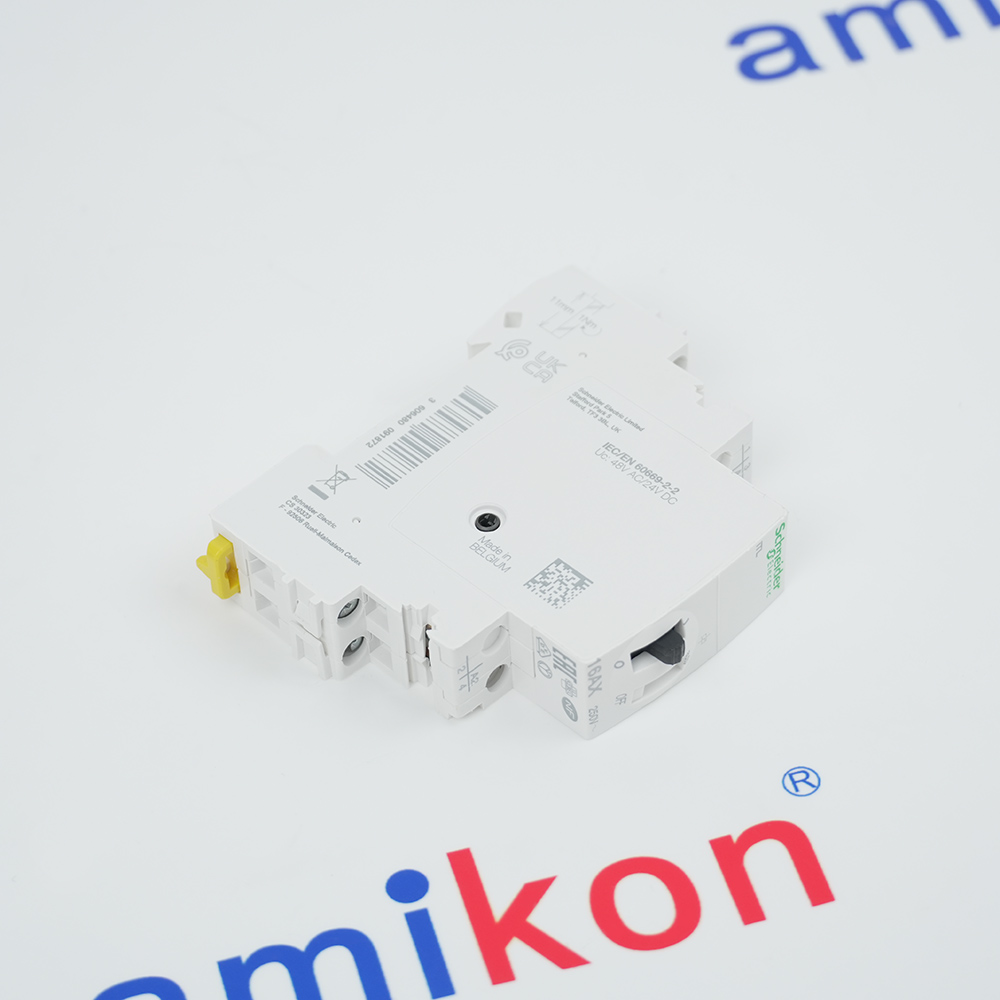

Technical specifications for A9C30212
-
Product ModelA9C30212
-
Product ParametersActi9 iTL Impulse relay
-
Tariff Code8537101190
-
Country of originFrance
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.7x7.1x8.5cm
-
ManufacturerSchneider Electric
-
Weight0.1 kg
-
Range of productActi9
-
Product nameActi9 iTL
-
Product or componenttypeImpulse relay
-
Device short nameiTL
-
Device applicationStandard
-
Poles2P
-
Pole contact composition2 NO
-
rated current16 A
-
Network typeAC
Description
The A9C30212 is a Schneider Electric Acti9 iTL Impulse Relay designed for lighting control and circuit switching applications in residential, commercial, and industrial installations. The A9C30212 features a 2-pole with 2 normally open contacts, providing reliable switching for lighting circuits including incandescent lamps, low-voltage halogen lamps, fluorescent lamps, and discharge lamps.
The A9C30212 delivers a rated current of 16A with an operating voltage range of 24V AC to 250V AC, making it suitable for various load control applications. The A9C30212 operates with a dual control circuit voltage of 24V DC or 48V AC at 50/60Hz, offering flexibility for integration into both DC and AC control systems. The A9C30212 uses impulse control technology where the relay pole closes with one coil pulse and opens with the next pulse, featuring two stable mechanical positions that ensure zero energy consumption in the holding state.
The A9C30212 delivers a rated current of 16A with an operating voltage range of 24V AC to 250V AC, making it suitable for various load control applications. The A9C30212 operates with a dual control circuit voltage of 24V DC or 48V AC at 50/60Hz, offering flexibility for integration into both DC and AC control systems. The A9C30212 uses impulse control technology where the relay pole closes with one coil pulse and opens with the next pulse, featuring two stable mechanical positions that ensure zero energy consumption in the holding state.
Alternative Names
A9C302I2
A9C3O212
A9C3021Z
A9C30Z12
A9C3O2I2
Information
Overview
Manuals
Application Notes
Product Applications
Operational Features
Features:
- Dual-Pole (2 NO) Configuration
- 16A Current Rating
- Integrated Bypass Circuitry
- Flexible Multi-Voltage Coil
- Highly Compact DIN Rail Footprint
The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV.
The A9C30212 Schneider Electric IMPULSE RELAY may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric A9C30212 IMPULSE RELAY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The relay is rated for 16 A at 250 V AC with two normally open (NO) contacts. The coil operates from 230 V AC at 50/60 Hz with a consumption of 2.5 VA. The screwless spring terminals allow quick and reliable wiring.
The iTL impulse relay enables multi-point control of lighting circuits from multiple push buttons without the need for traditional two-way or intermediate wiring. It is also compatible with centralized control systems such as timers, motion detectors, and building management systems.
- Automotive and Assembly Plants:Local push-buttons toggle high-bay lighting & workstations
- Water Treatment & Fluid Systems:Toggles pump/fan status indicators & low-power secondary gear.
- Food & Beverage Processing:Bistable switching for status signals or non-critical loads
- Logistics & Warehousing:Triggers localized warning lights or secondary blocks for conveyors
- Industrial Mills & Mixers:High-torque capability for ball mills & large mixers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Manual Override: Features a front-facing toggle for manual ON/OFF control during commissioning or maintenance.Local Indication: A mechanical indicator provides clear visual status of the contact positions.Switching Frequency: Rated for up to 5 operations per minute or 100 operations per day.
Technical notes
The A9C30212 has a compact width of 18mm (2 modular pitches of 9mm) and mounts on standard DIN rails according to EN 60715, enabling space-saving installation in electrical distribution panels. The A9C30212 achieves electrical durability of up to 200,000 cycles for AC-21 utilization and 100,000 cycles for AC-22 utilization, ensuring long service life. The A9C30212 supports a switching frequency of 100 switching operations per day or 5 switching operations per minute, with an impulse duration between 50ms and 1s.
FAQs
-
What is the A9C30212?
+The Schneider Electric Acti9 A9C30212 is a 2-pole modular impulse (latching) relay. It is primarily used for lighting control, allowing lights to be turned on or off from multiple remote push-button locations. It features two normally open contacts, a 16A rated current, and a 24V DC / 48V AC control coil. -
What is the difference between an impulse relay and a standard contactor?
+An impulse (latching) relay changes its state (ON to OFF, or OFF to ON) every time it receives a brief electrical pulse from a push-button. It mechanically holds its position until the next pulse, which means the control coil does not need to be constantly energized, saving power and preventing coil heating. -
Can this relay be controlled both remotely and manually?
+Yes. Aside from the remote electrical pulse, the front of the relay features a manual toggle switch to force it ON or OFF. -
What is the electrical lifespan of this device?
+It has an electrical endurance of up to 200,000 cycles for AC-21, and 100,000 cycles for AC-22 loads.
