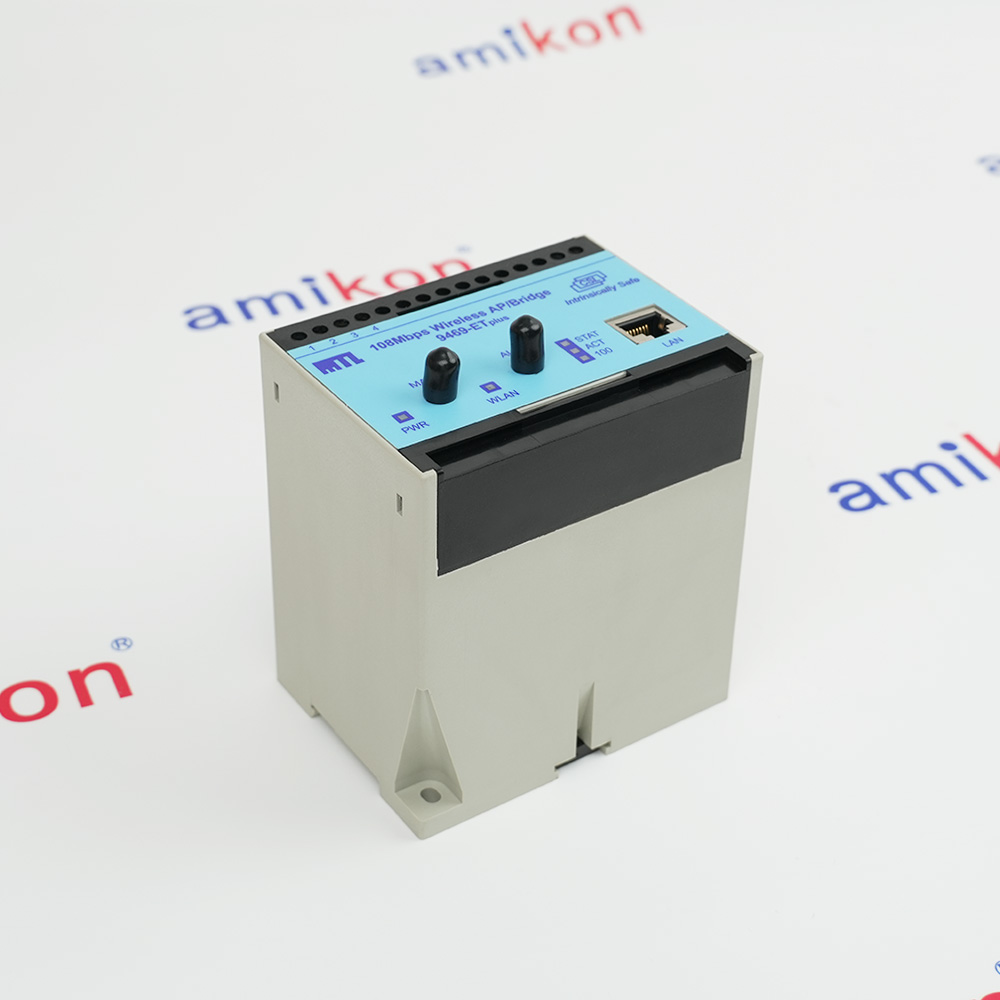

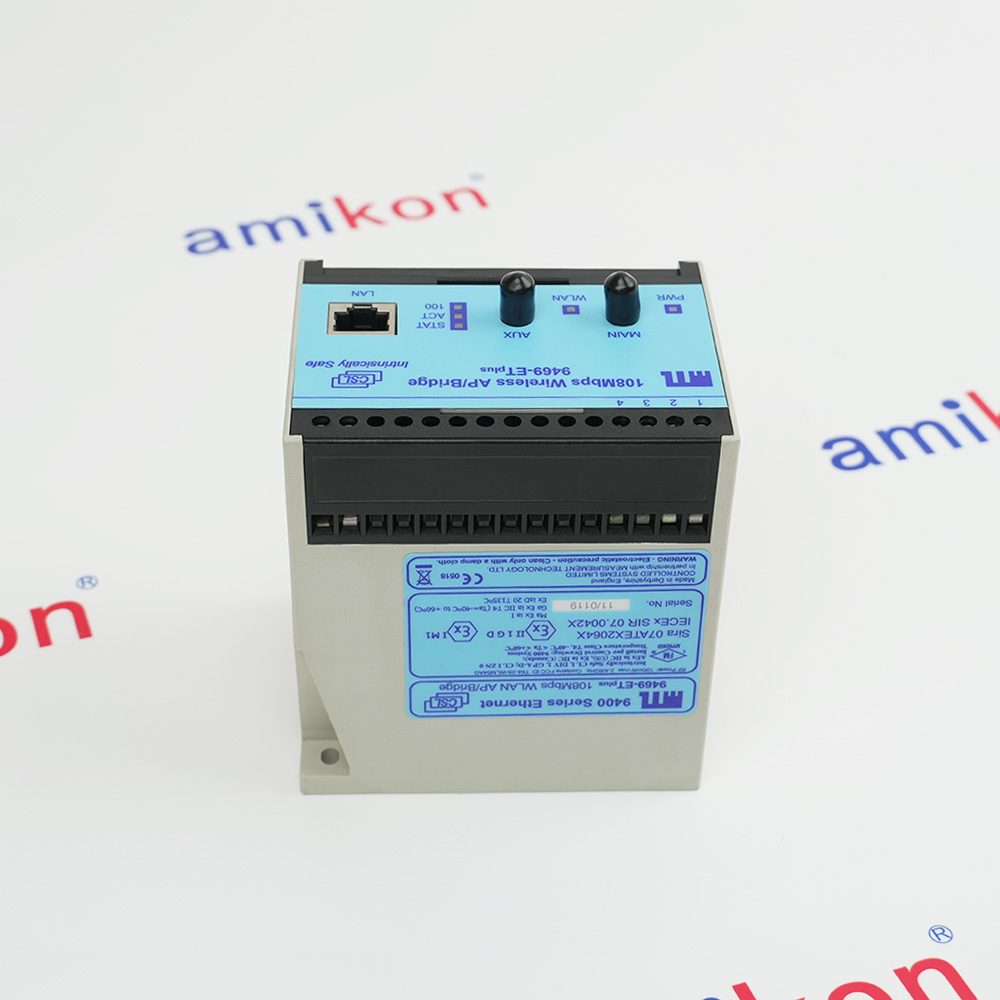

Technical specifications for 9469-ET
-
Product Model9469-ET
-
Product ParametersIntrinsically Safe Wireless AccessPoint/Bridge
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size10x12x7.5cm
-
ManufacturerMTL Insturments Group
-
Weight1.1 kg
-
Input voltage12V DC (9.5–12.8V)
-
Input current270mA
-
Input protectionFuse + supply reversal diode
-
IS ETHERNETIntrinsically Safe 10/100 base T
-
ConnectorRJ45
-
PoExPowered Device
-
Frequency range2.4 / 5 / 5.4GHz
-
Data Rateup to 108Mbps
-
Rapid Roaming<50ms
-
Antenna connector2 x Female SMA - standard polarity
-
Operating−40°C to +60°C
-
Storage−40°C to +60°C
-
Relative Humidity5 to 95% RH (non-condensing)
Description
Tri-Band operation
Convert Ethernet device to wireless
Zone 1, Division 1 mountable
Rapid roaming
10/100Mbs Ethernet
ATEX / IECEx certified
FM / FMC approved
Wide temp. range –40°C to +60°C
PoEx™ Power over IS Ethernet option
Convert Ethernet device to wireless
Zone 1, Division 1 mountable
Rapid roaming
10/100Mbs Ethernet
ATEX / IECEx certified
FM / FMC approved
Wide temp. range –40°C to +60°C
PoEx™ Power over IS Ethernet option
Information
Overview
Manuals
Technical notes
Product Applications
Special Conditions for afe Use
Features:
- Tri-Band operation
- Convert Ethernet device to wireless
- Zone 1, Division 1 mountable
- Rapid roaming
- 10/100Mbs Ethernet
- ATEX / IECEx certified
- FM / FMC approved
- PoEx™ Power over IS Ethernet option
The 9469-ET MTL Intrinsically Safe Wireless Access Point/Bridge may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
MTL 9469-ET Intrinsically Safe Wireless Access Point/Bridge Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Additionally the module may also be used in its Wireless Repeater(WDS) mode to extend the range covered by a wireless network.Designed for hazardous-area mounting, the 9469-ETplus hasintrinsically safe, Zone 1, ATEX and IECEx certification and Division1 FM (USA and Canada) approvals, and may only require asuitably IP-rated enclosure, where necessary. The ATEX and IECExapprovals cover both surface industry and mining applications.The unit may be powered by an intrinsically safe power supply orby Power over IS Ethernet (PoEx) providing intrinsically safe powerand Ethernet communications over a single Cat5e cable..
- Petrochemical Refineries & Gas Plants:Bridges safe-area controls with field instruments on columns/skids
- Pharmaceutical & Chemical Factories:Batch processing: reactors & tanks handling volatile chemicals/solvents
- Surface & Underground Mining:M1 certified for coal faces & underground systems with explosive dust
- Distilleries & Grain Handling:Safe networking for fine powders/high-proof alcohols (explosive dust/vapor)
- Wastewater Treatment Facilities:Methane-prone areas: digester tanks & pump stations
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
When used with Group I gases, the Modules shall each be mounted within an enclosureproviding a degree of protection of at least IP54, in accordance with EN 60529, and in amanner that does not impair the existing creepage and clearance distances. The enclosure shallalso comply with the requirements of Clauses 7 and 8 of EN 60079-0:2006
The connectors do not meet the ingress protection rating of IP20, therefore, this shall be takeninto consideration during the installation of the 9400 Series Ethernet Modules when used withGroup II gases, and each module shall be provided with an enclosure that is commensuratewith the environment into which it is installed.
The supply to the modules must be derived from a suitably certified, intrinsically safe supply.
FAQs
-
What are the primary modes of operation?
+The 9469-ETplus can function as an Access Point (AP) for WiFi infrastructure, a Bridge to connect 10/100 Ethernet equipment to a wireless network, or a Repeater (WDS) to extend range. -
What are the input voltage and current of the 9468-ET?
+This device requires a 12V DC input power supply, with a typical operating voltage range of 9.5V to 12.8V and an input current of 270mA. -
What is the 9469-ET?
+The MTL 9469-ETplus is a Zone 1/Division 1 hazardous-area mounted, multi-functional device acting as a 108Mbps Wireless Access Point, Bridge, or Repeater for Ethernet connectivity -
What wireless standards does it support?
+It supports IEEE 802.11a/b/g/h standards (2.4/5.0/5.4 GHz) and provides security features such as 64/128 bits WEP, WPA-PSK, WPA2-PSK, and MAC address filtering. -
Is it certified for hazardous areas?
+Yes, it is ATEX/IECEx certified and FM/FMC approved for installation in hazardous areas (Zone 1 / Div 1).
